Check Stop Light Switch and Brake Switch
Check Stop Light Switch and Brake Switch
CHECK STOP LIGHT SWITCH AND BRAKE SWITCH
TROUBLE SYMPTOM:
Cruise control
cannot be set.

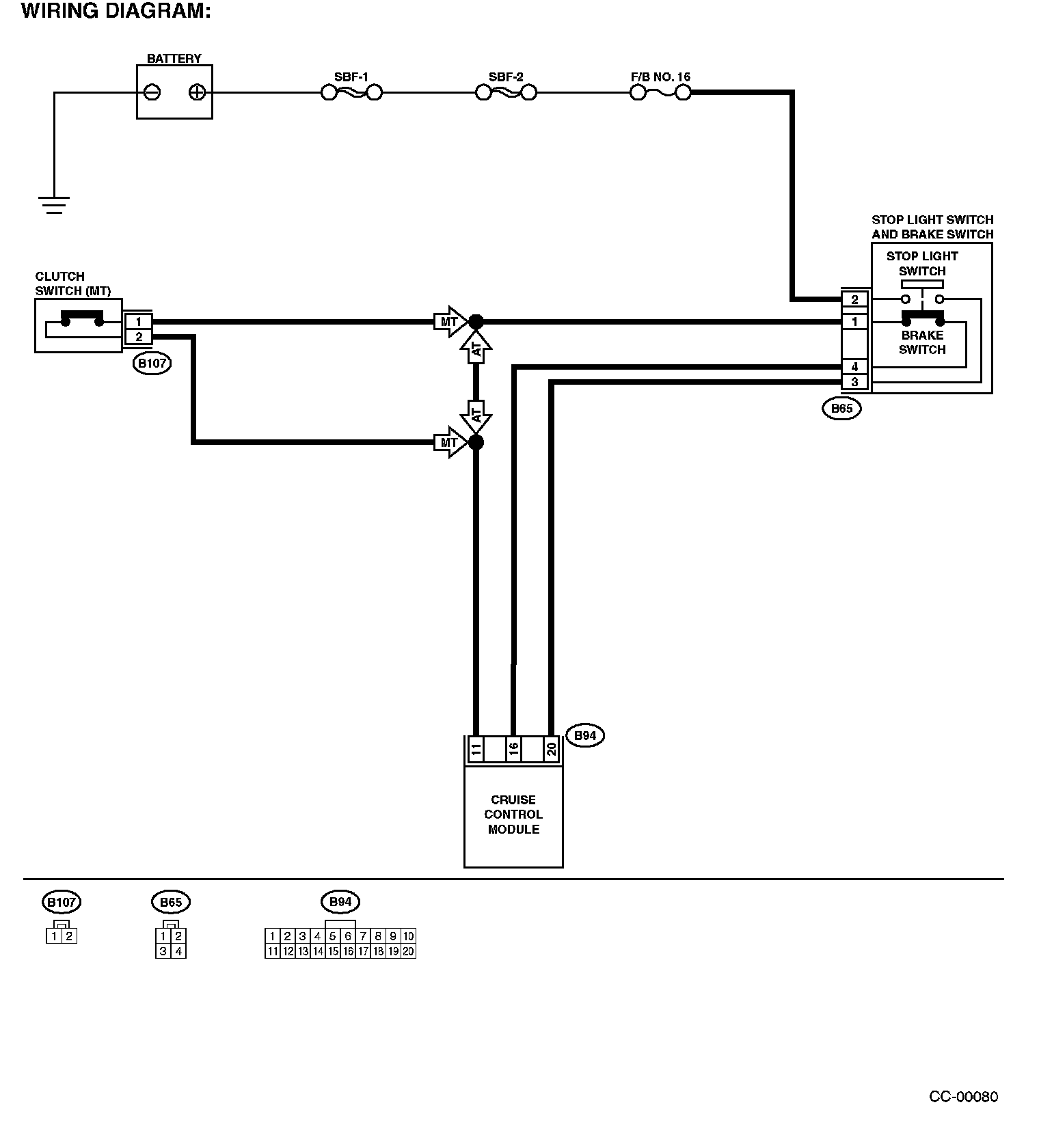

Wiring Diagram:
WIRING DIAGRAM:

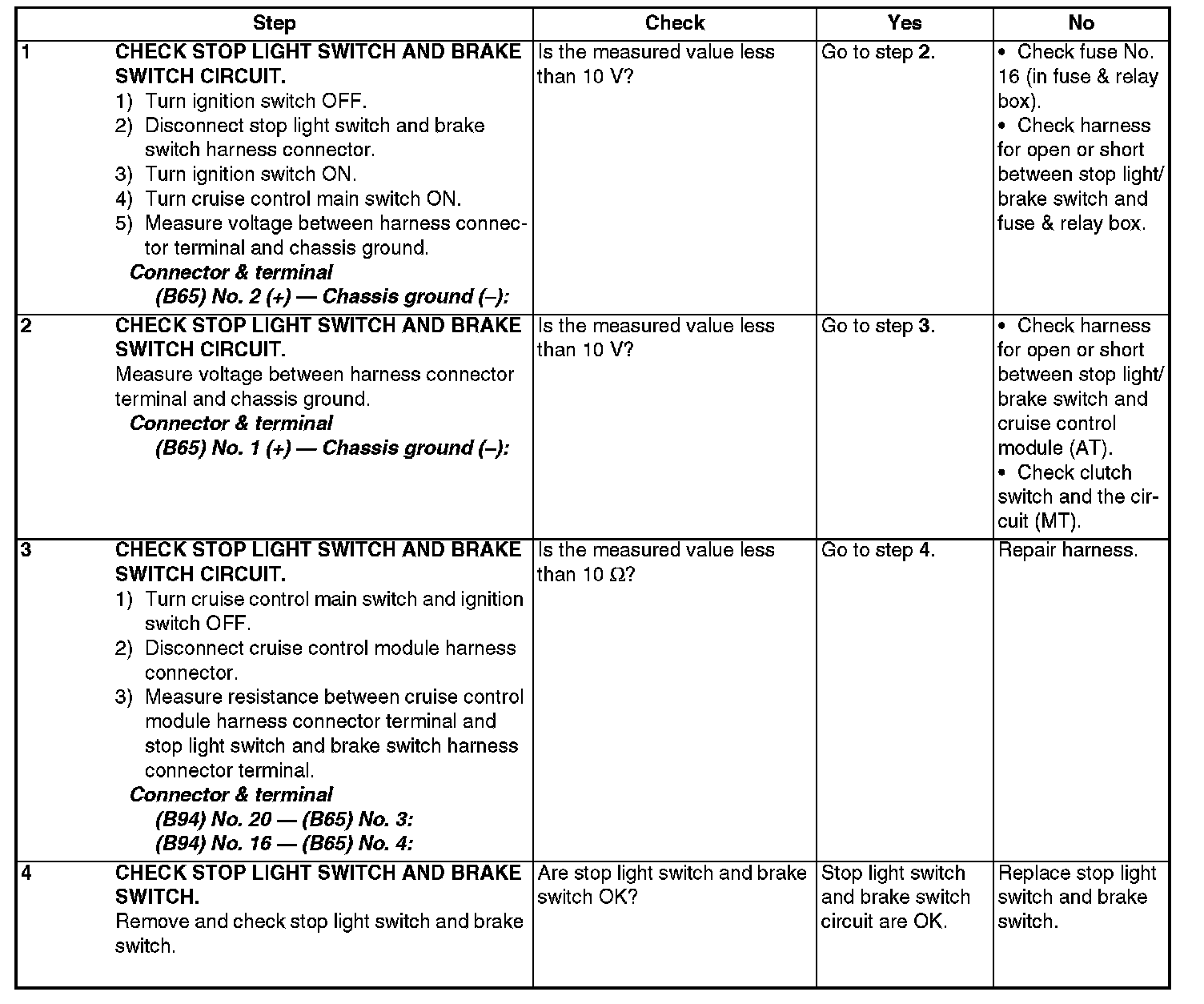

Step 1 - 4:
