Check Inhibitor Switch (AT)
Check Inhibitor Switch (AT)
CHECK INHIBITOR SWITCH (AT)
TROUBLE SYMPTOM:
Cruise control
cannot be set.

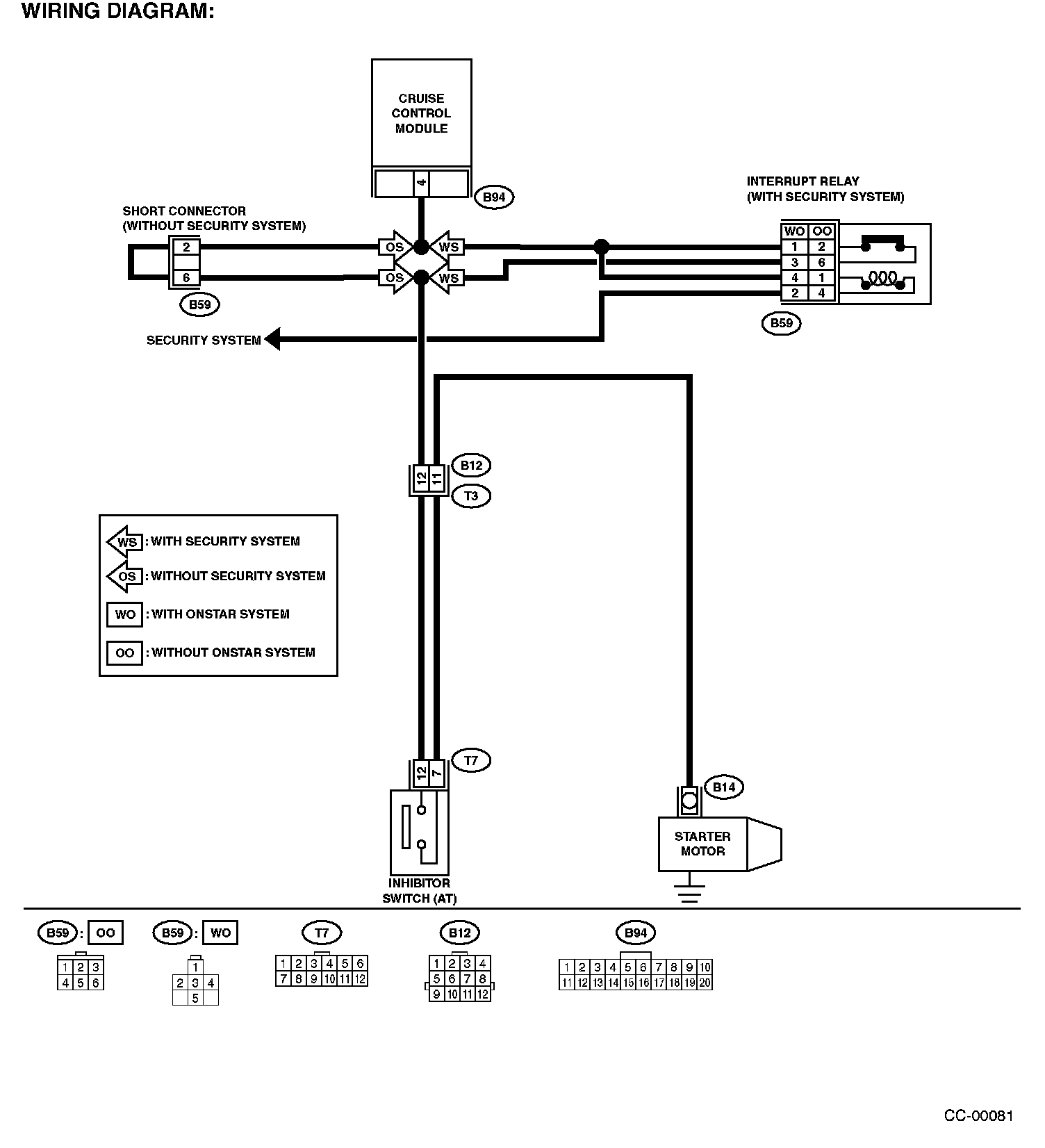

Wiring Diagram:
WIRING DIAGRAM:

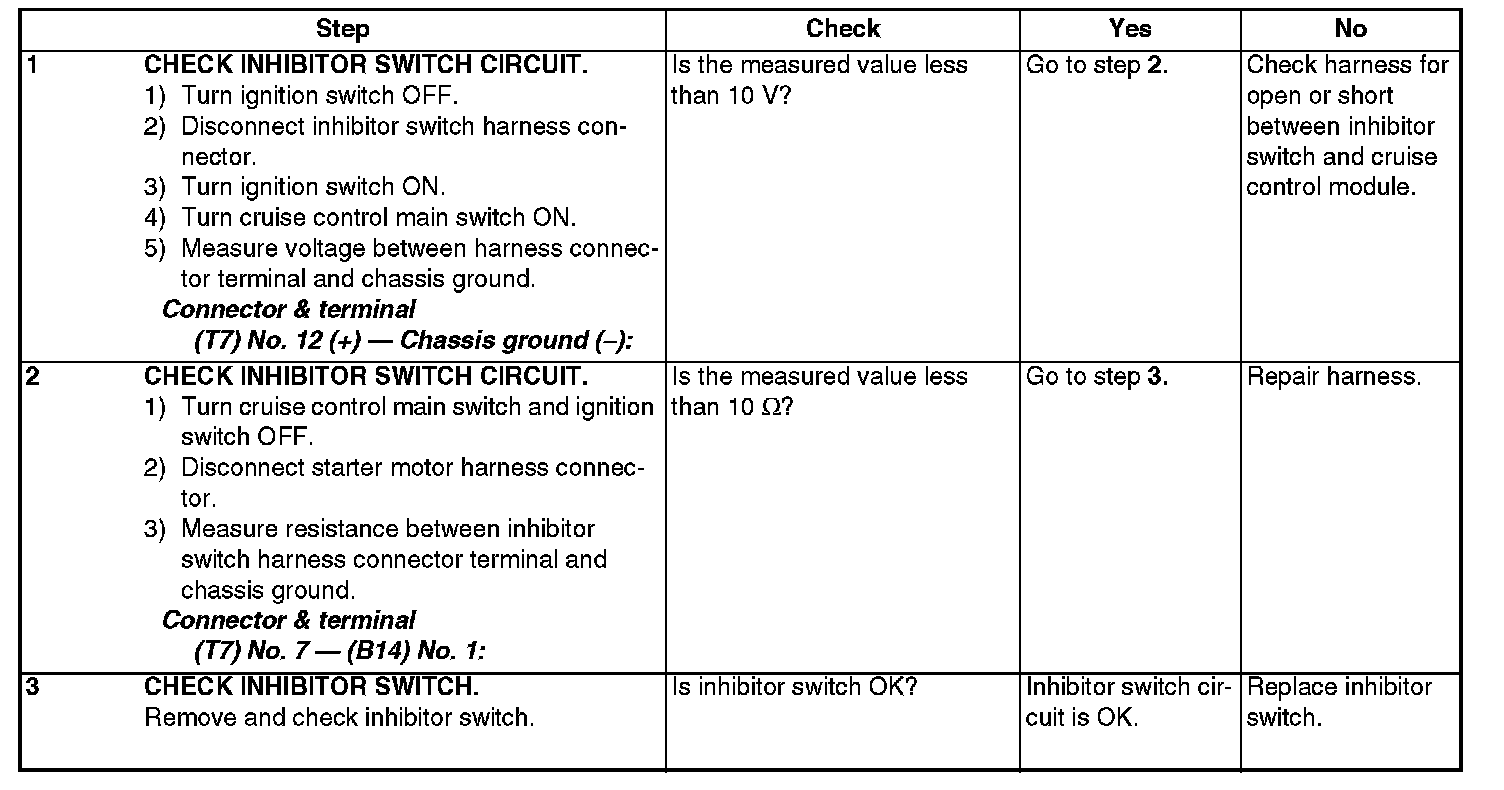

Step 1 - 3:
