6-Cylinder Engine

C/C(H6)-01:

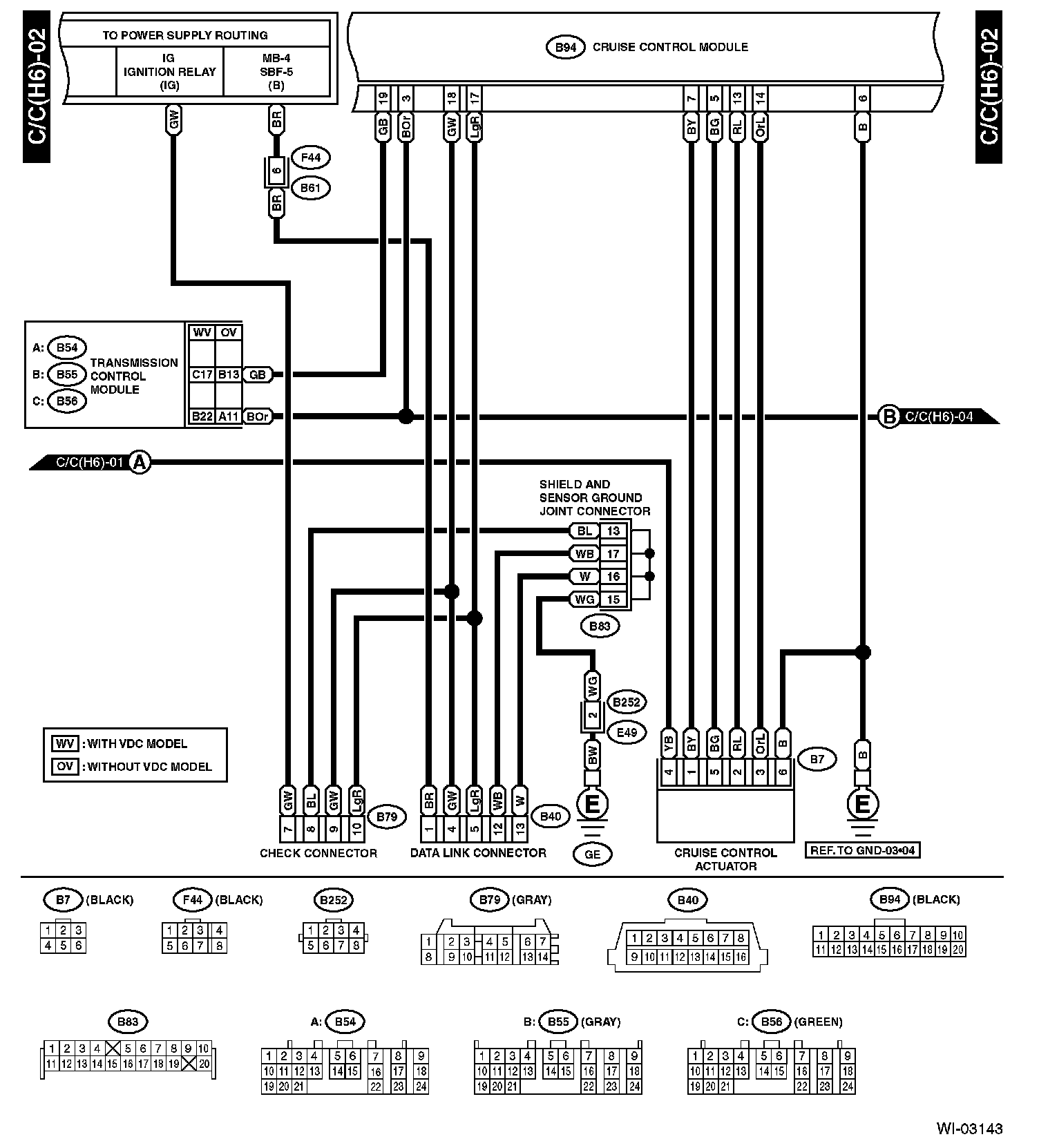

C/C(H6)-02:

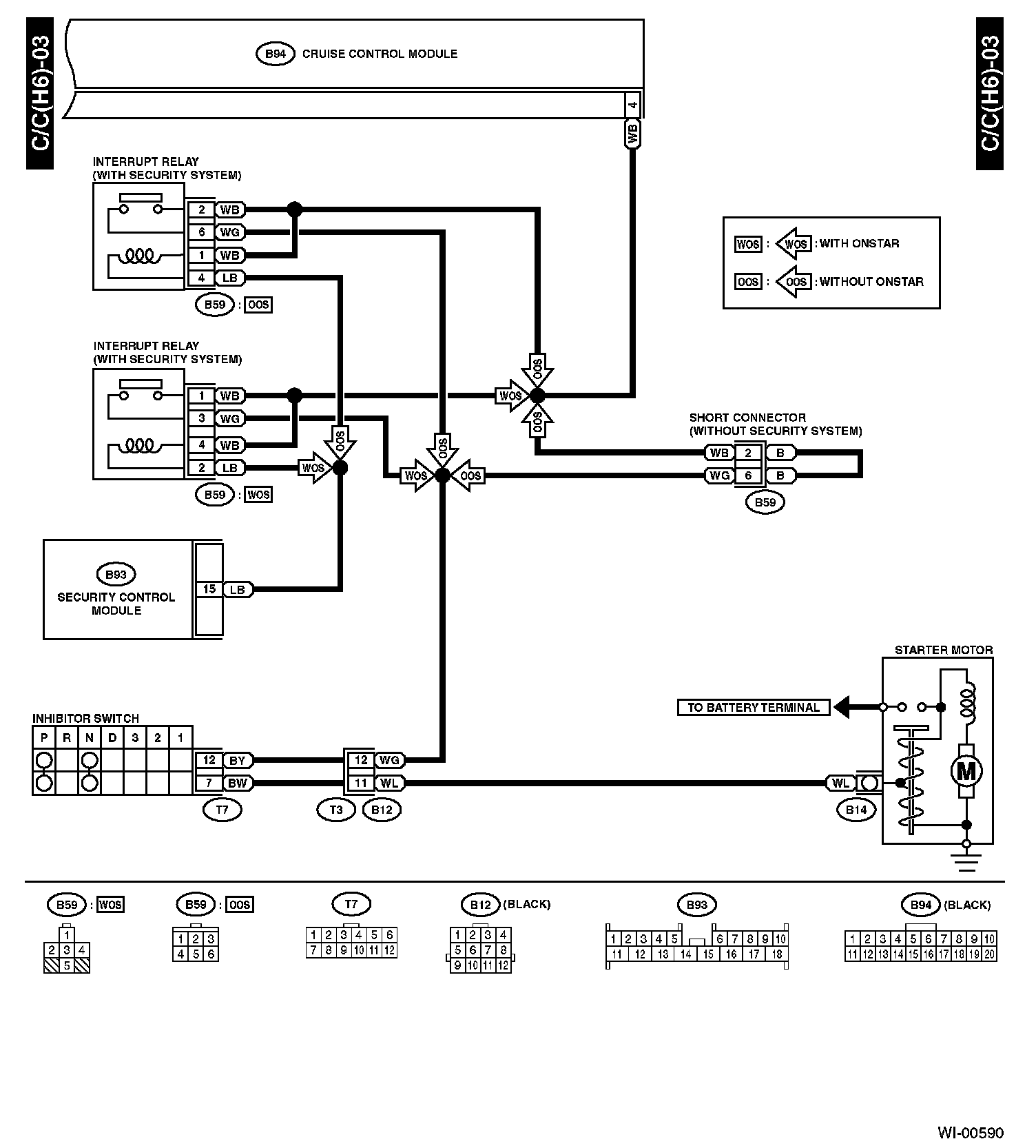

C/C(H6)-03:

C/C(H6)-04:

Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
