Check List For Interview - With VDC

CHECK
Check the following items about the vehicle's state.

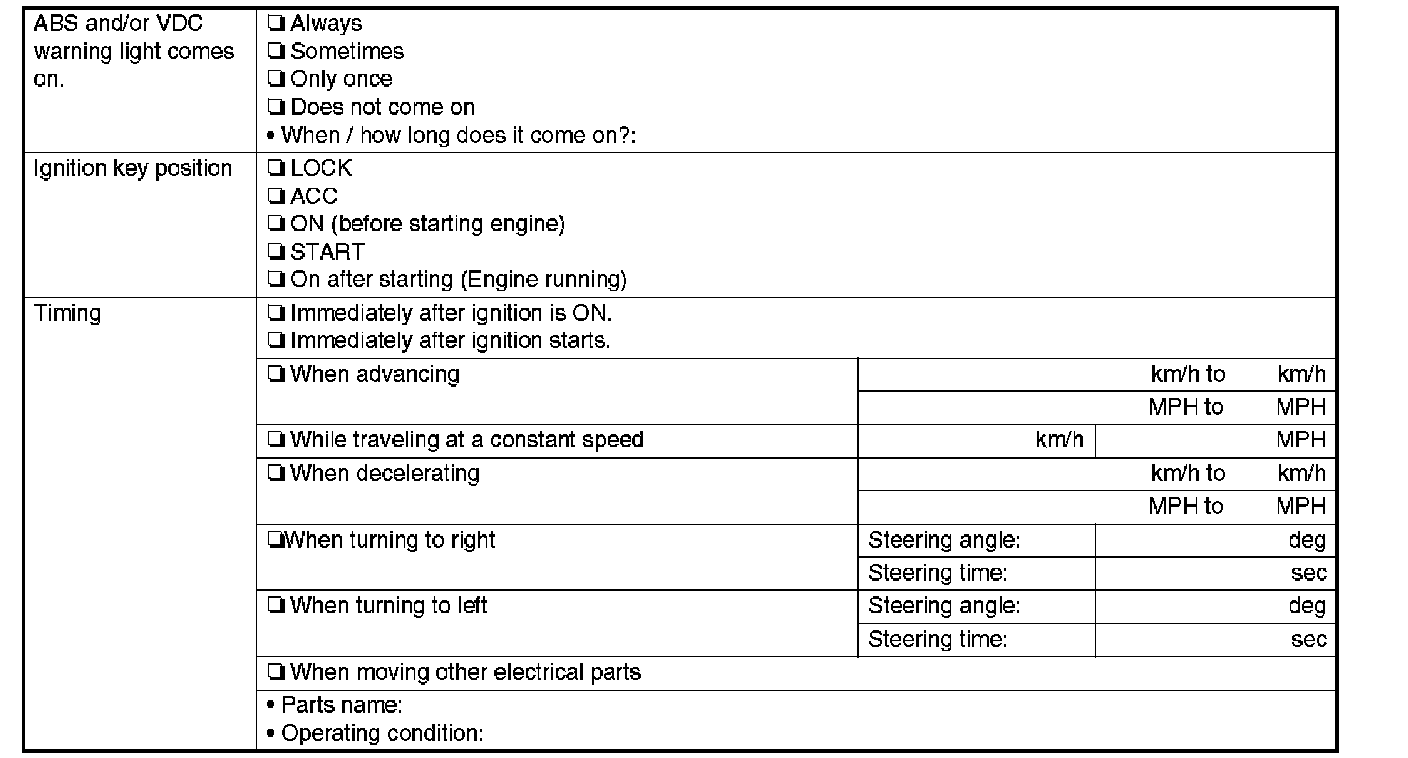

STATE OF ABS AND/OR VDC WARNING LIGHT

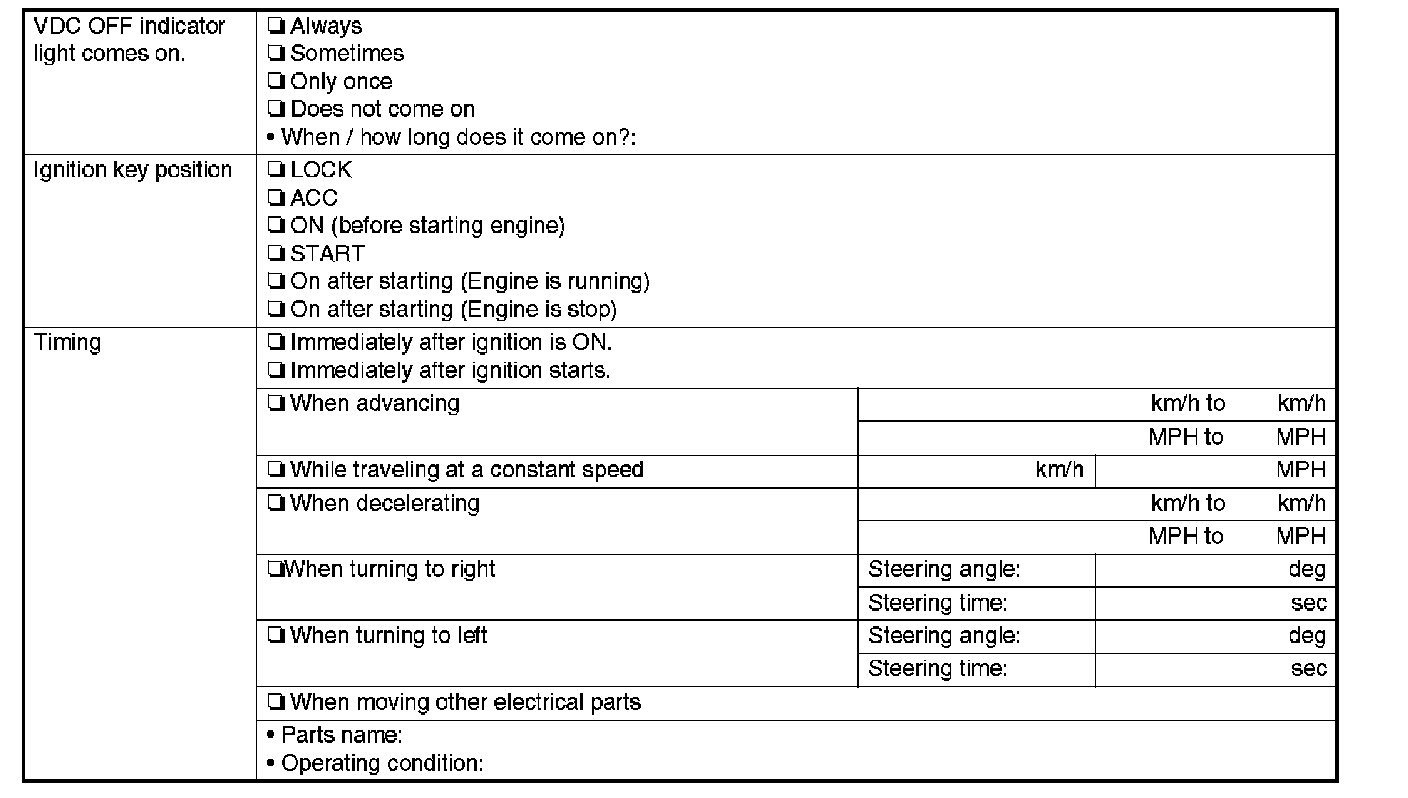

STATE OF VDC OFF INDICATOR LIGHT

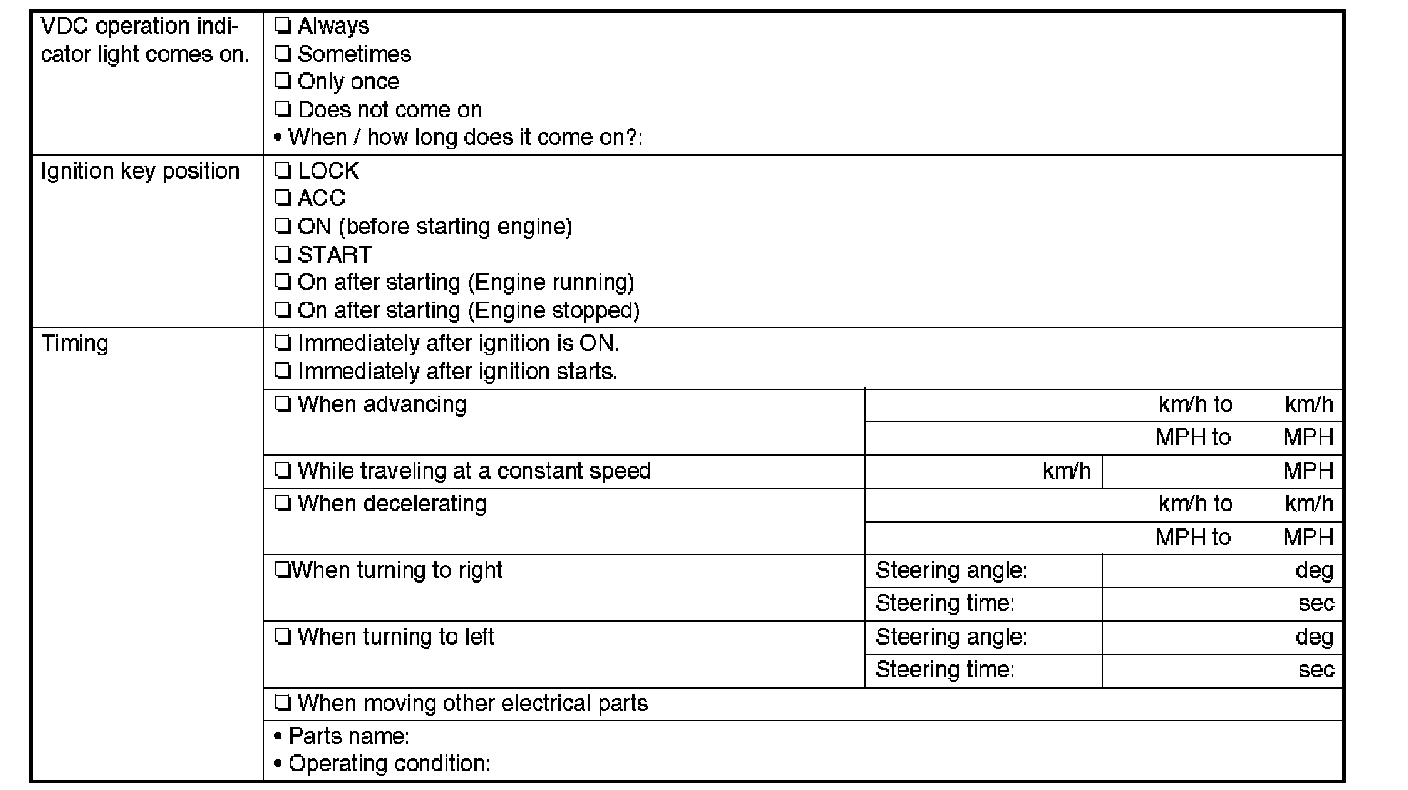

STATE OF VDC OPERATION INDICATOR LIGHT

Part 1:




Part 2:

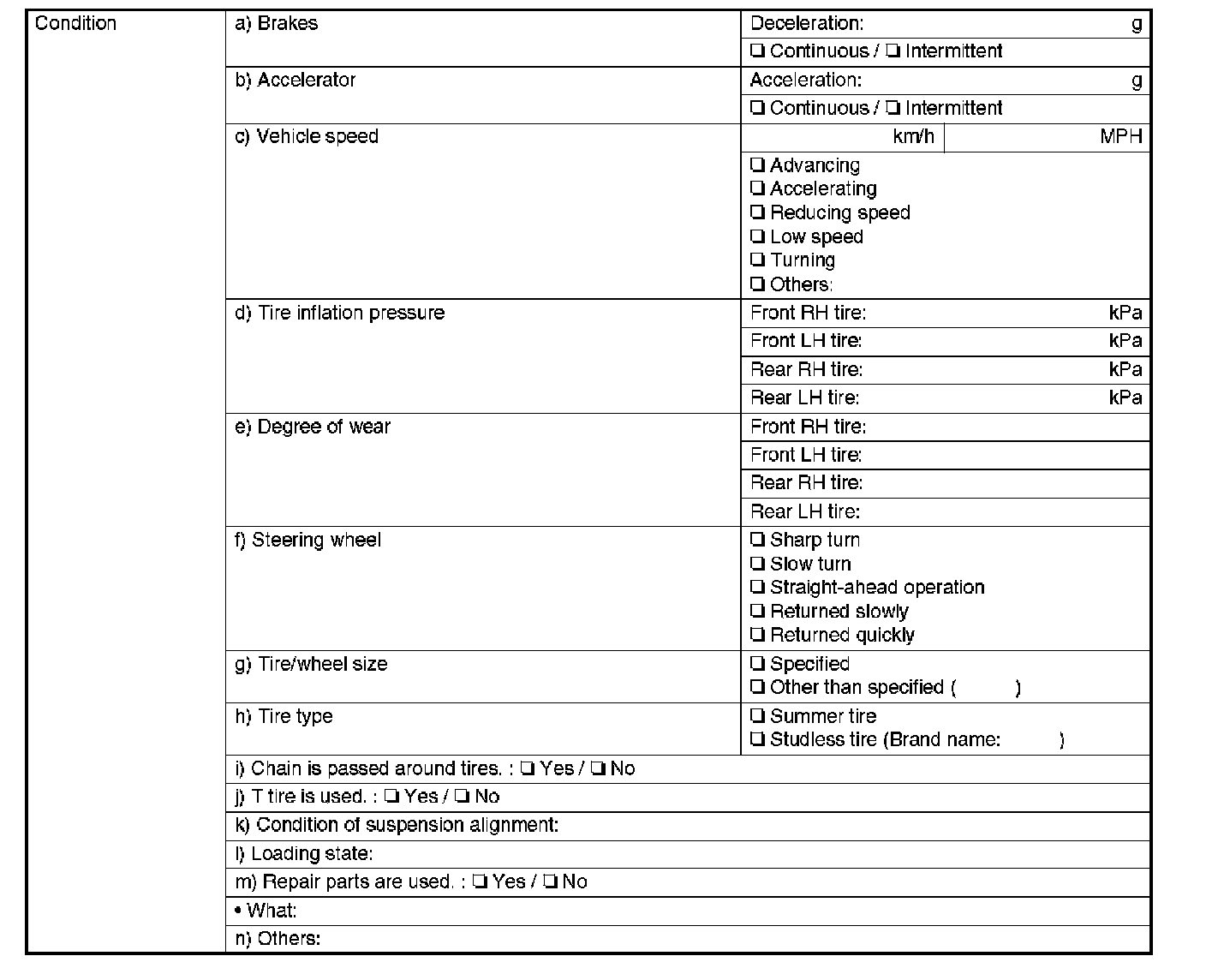

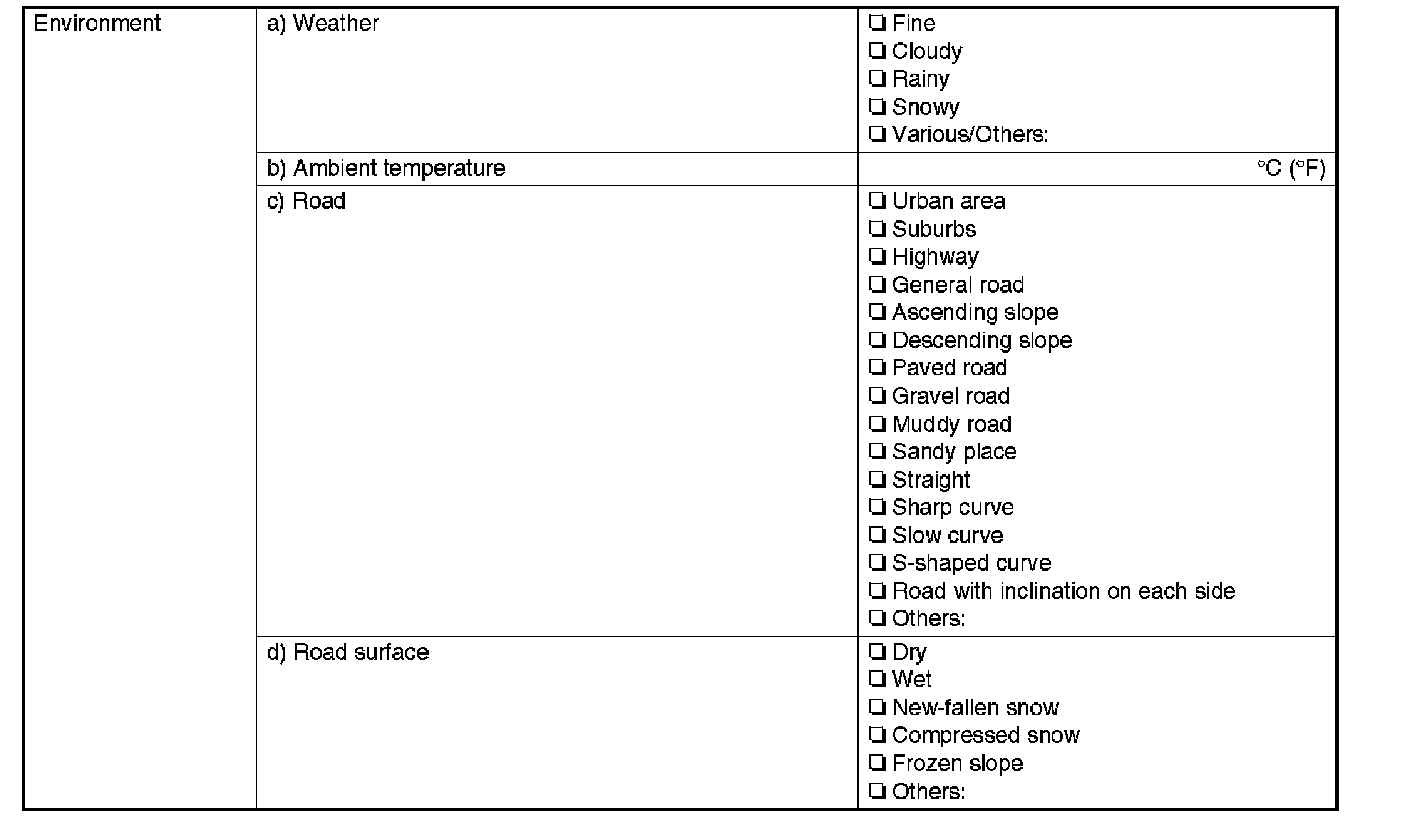

CONDITIONS UNDER WHICH TROUBLE OCCURS
