Basic Diagnostic Procedure - With VDC

PROCEDURE

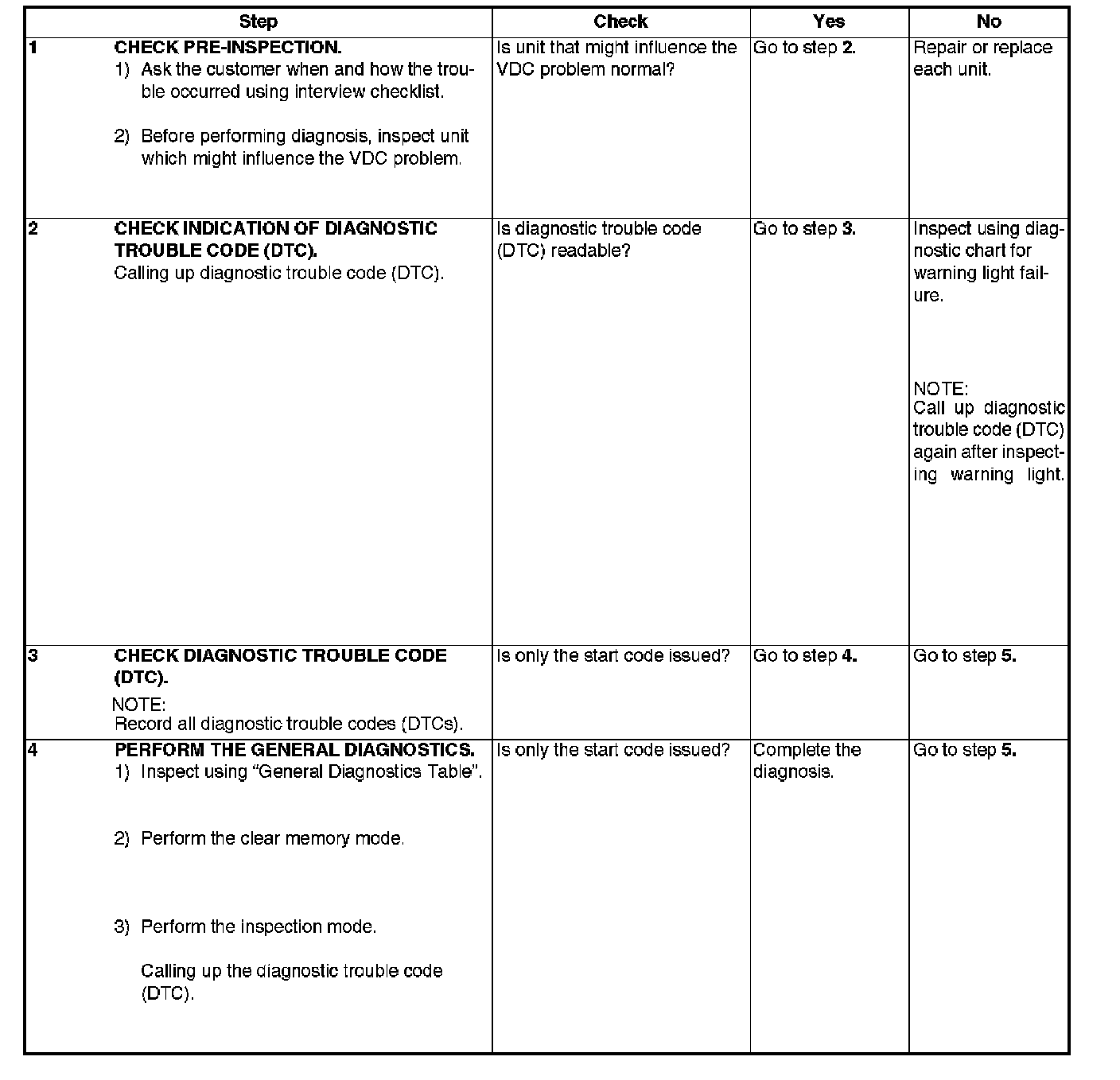

Steps 1-4:

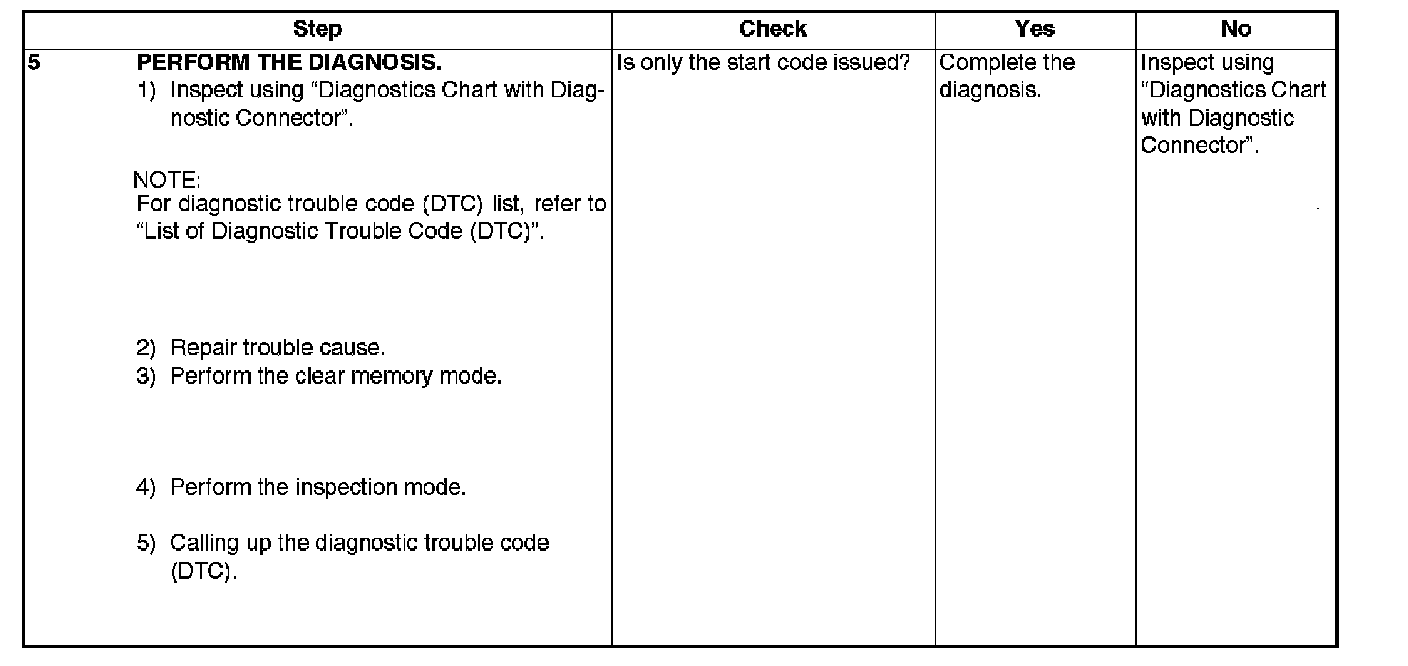

Step 5:

WITHOUT SUBARU SELECT MONITOR

CAUTION: Remove foreign matter (dust, water, etc.) from the VDCCM connector during removal and installation.

NOTE:
^ To check harness for broken wires or short circuits, shake it while holding it or the connector.
^ When ABS and/or VDC warning light illuminates, read and record diagnostic trouble code (DTC) indicated by ABS warning light.

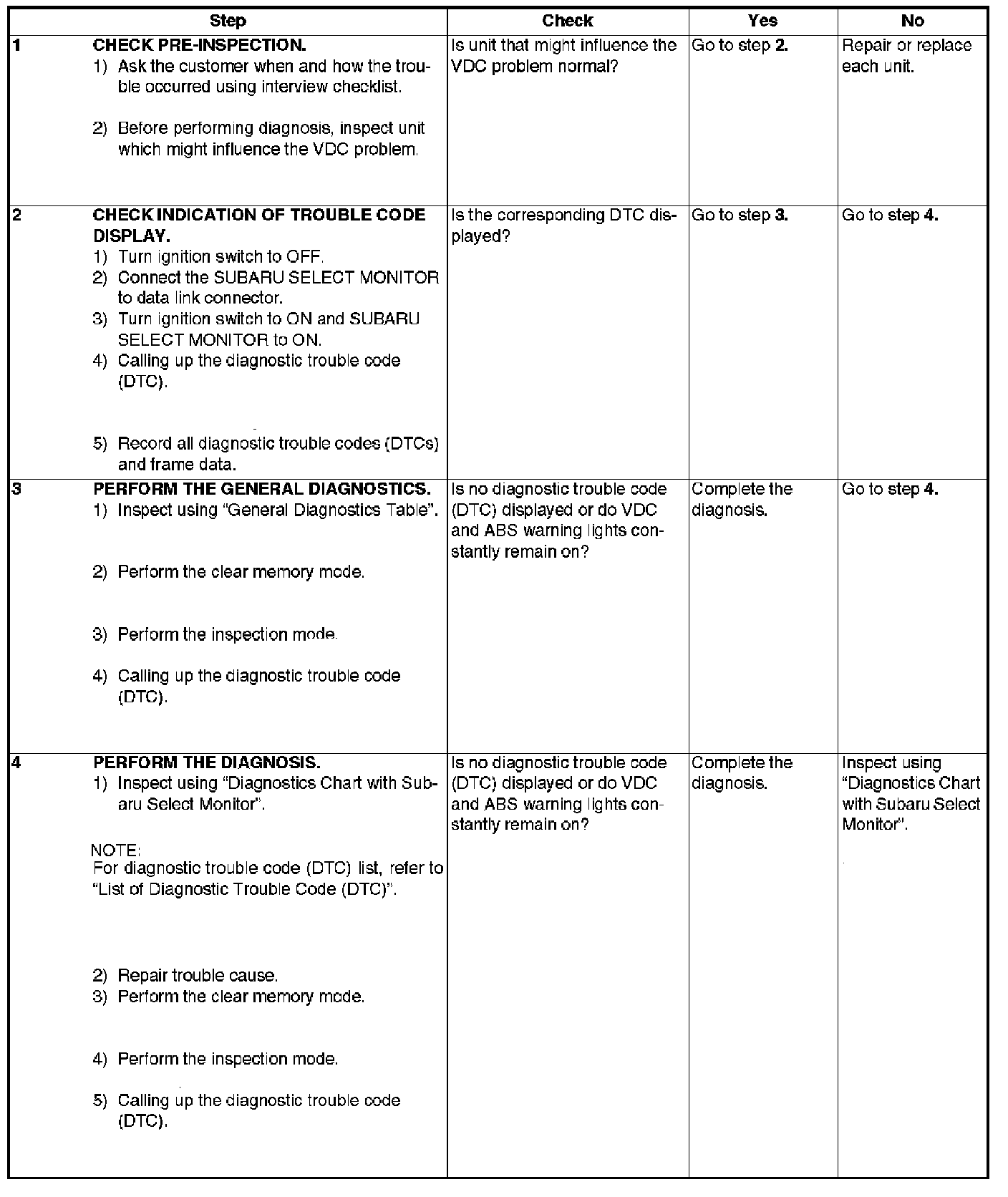

Steps 1-4:

WITH SUBARU SELECT MONITOR

NOTE:
^ To check harness for broken wires or short circuits, shake it while holding it or the connector.
^ Check list for interview.
