ABS and VDC Warning Lights Do Not Go Off

ABS AND VDC WARNING LIGHTS DO NOT GO OFF

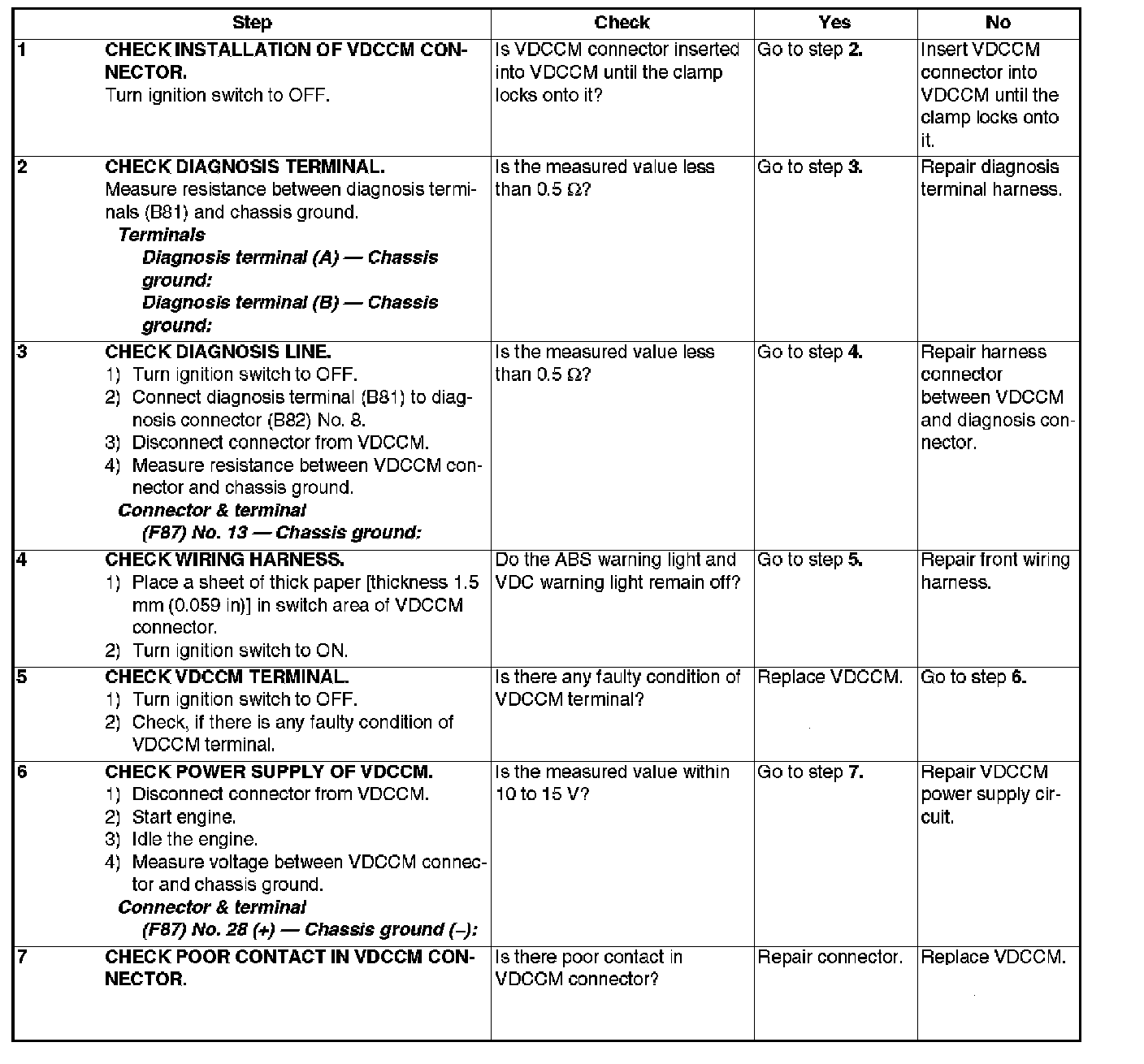

Steps 1-7:

DIAGNOSIS:
^ ABS warning light circuit is open or shorted.
^ VDC warning light circuit is open or shorted.
^ Diagnosis circuit is open.

TROUBLE SYMPTOM:
^ When starling the engine and while ABS and/or VDC warning light is kept ON.

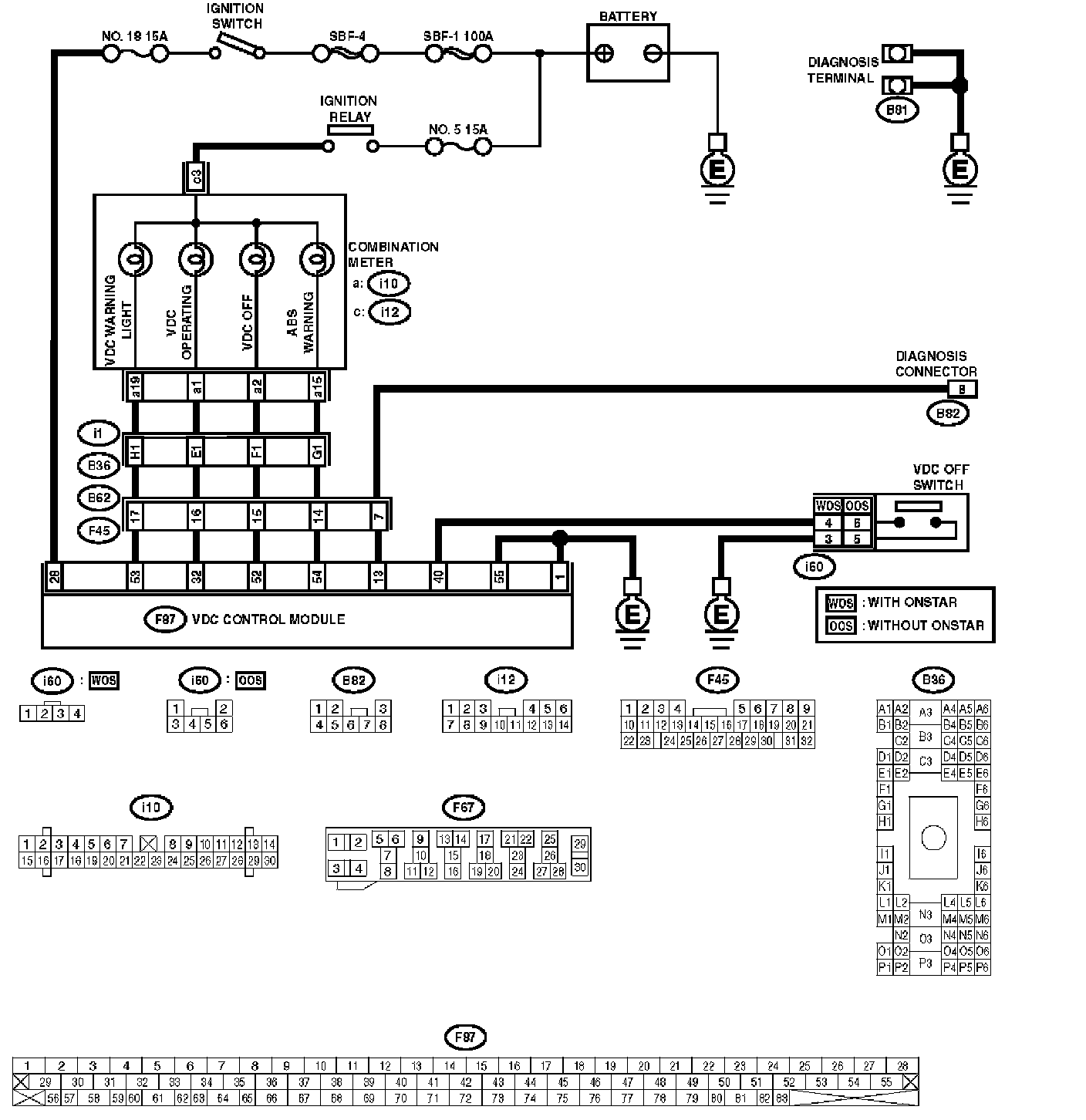

WIRING DIAGRAM
