With Subaru Select Monitor

COMMUNICATION FOR INITIALIZING IMPOSSIBLE (SELECT MONITOR COMMUNICATION FAILURE)

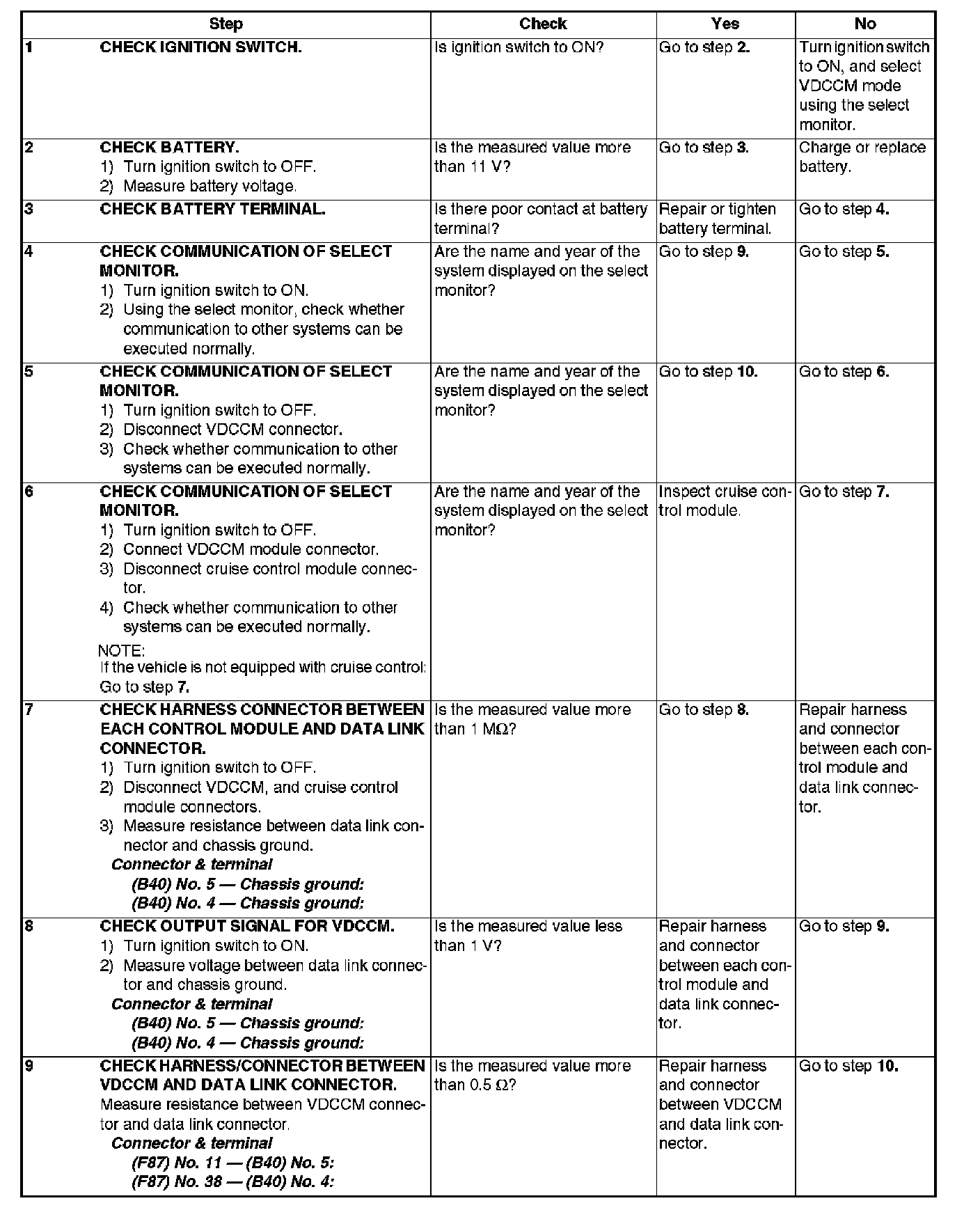

Steps 1-9:

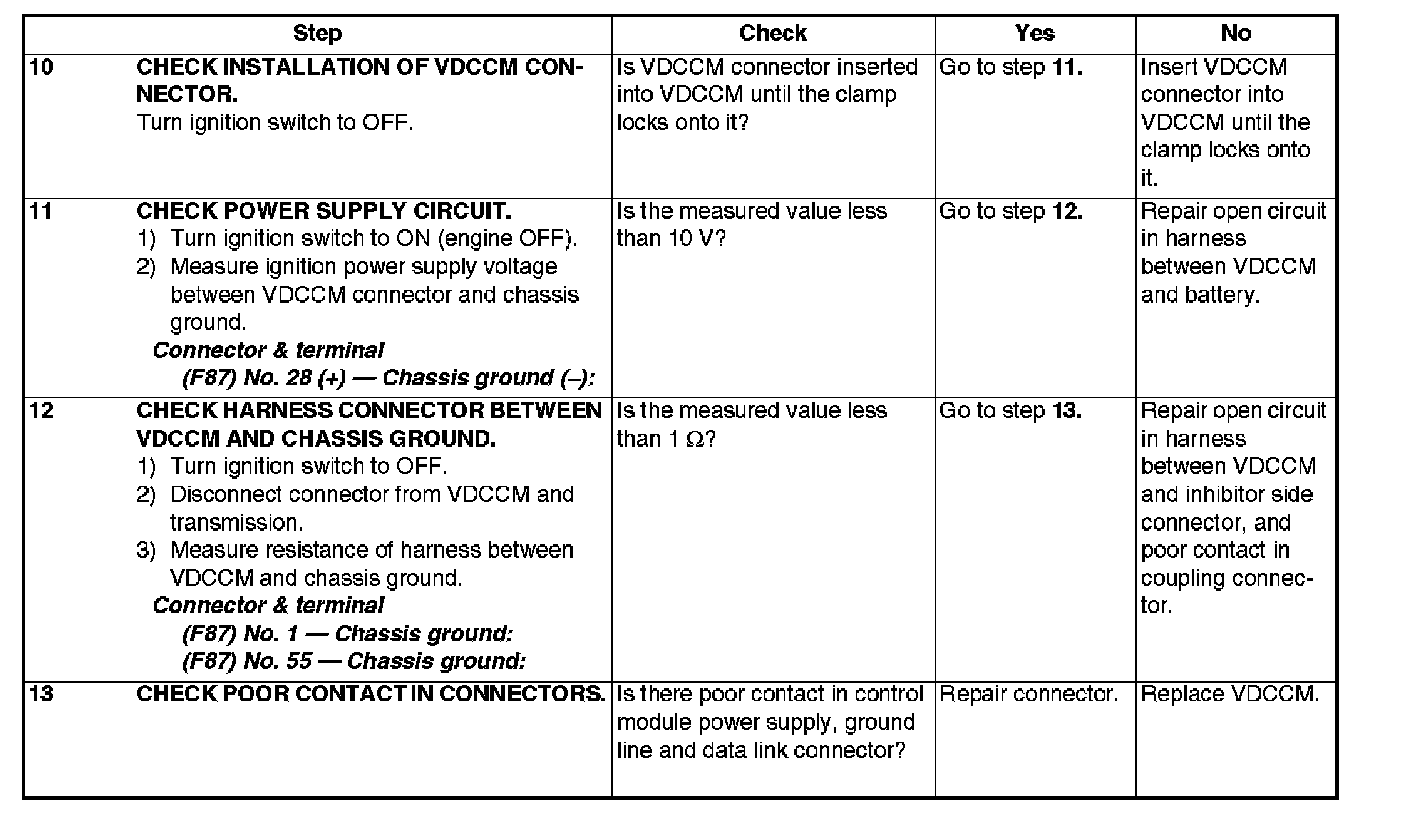

Steps 10-13:

DIAGNOSIS:
^ Faulty harness connector

TROUBLE SYMPTOM:
^ ABS warning light remains on.

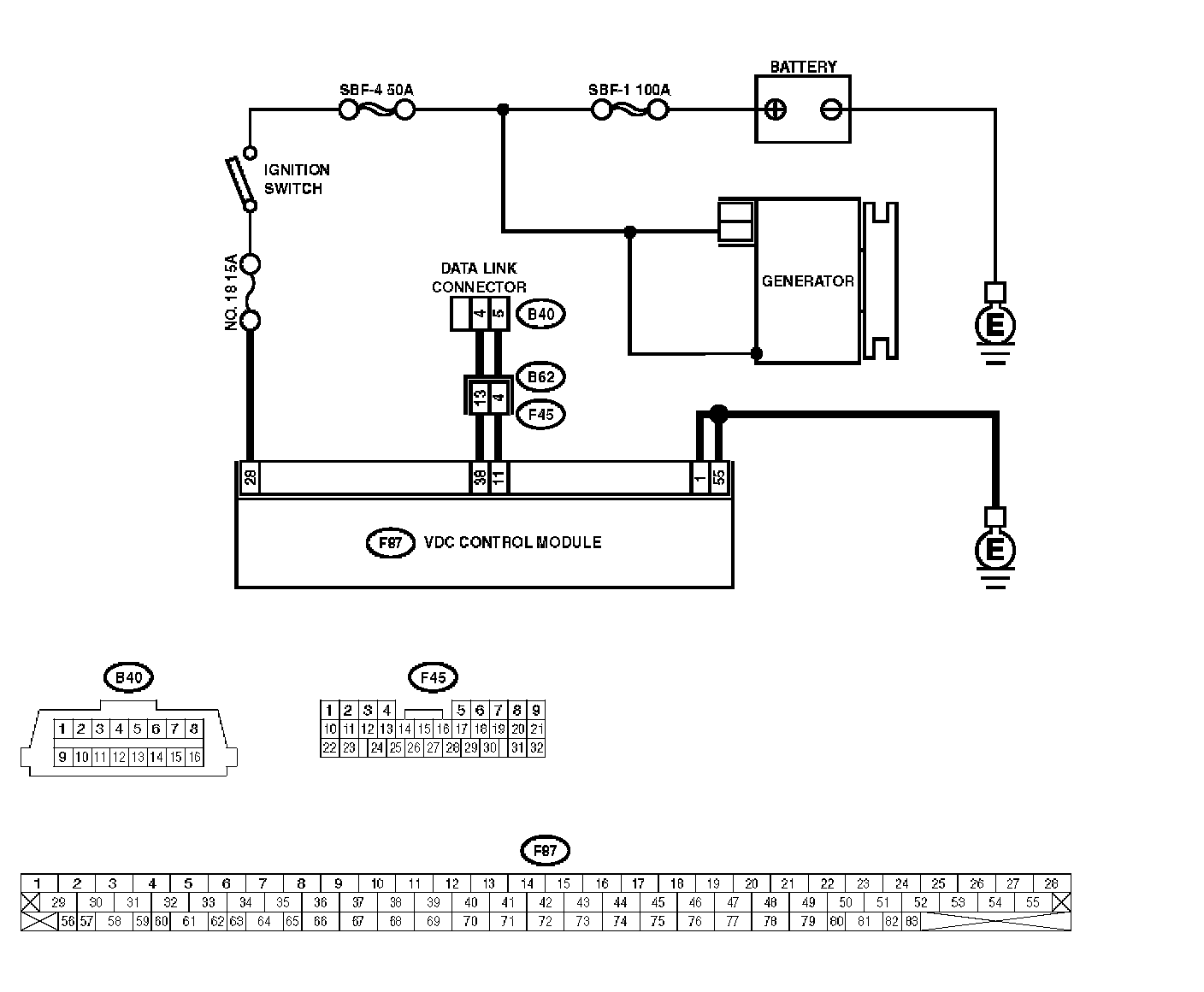

WIRING DIAGRAM
