With ABS Warning Light Does Not Come on

ABS WARNING LIGHT DOES NOT COME ON

Steps 1-9:

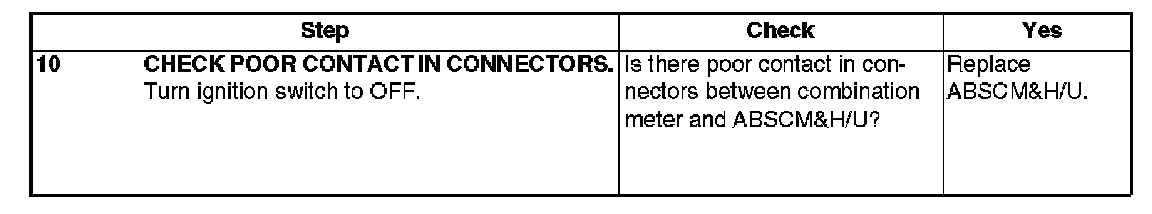

Step 10:

DIAGNOSIS:
^ ABS warning light circuit is open or shorted.

TROUBLE SYMPTOM
^ When ignition switch is turned ON (engine OFF), ABS warning light does not come on

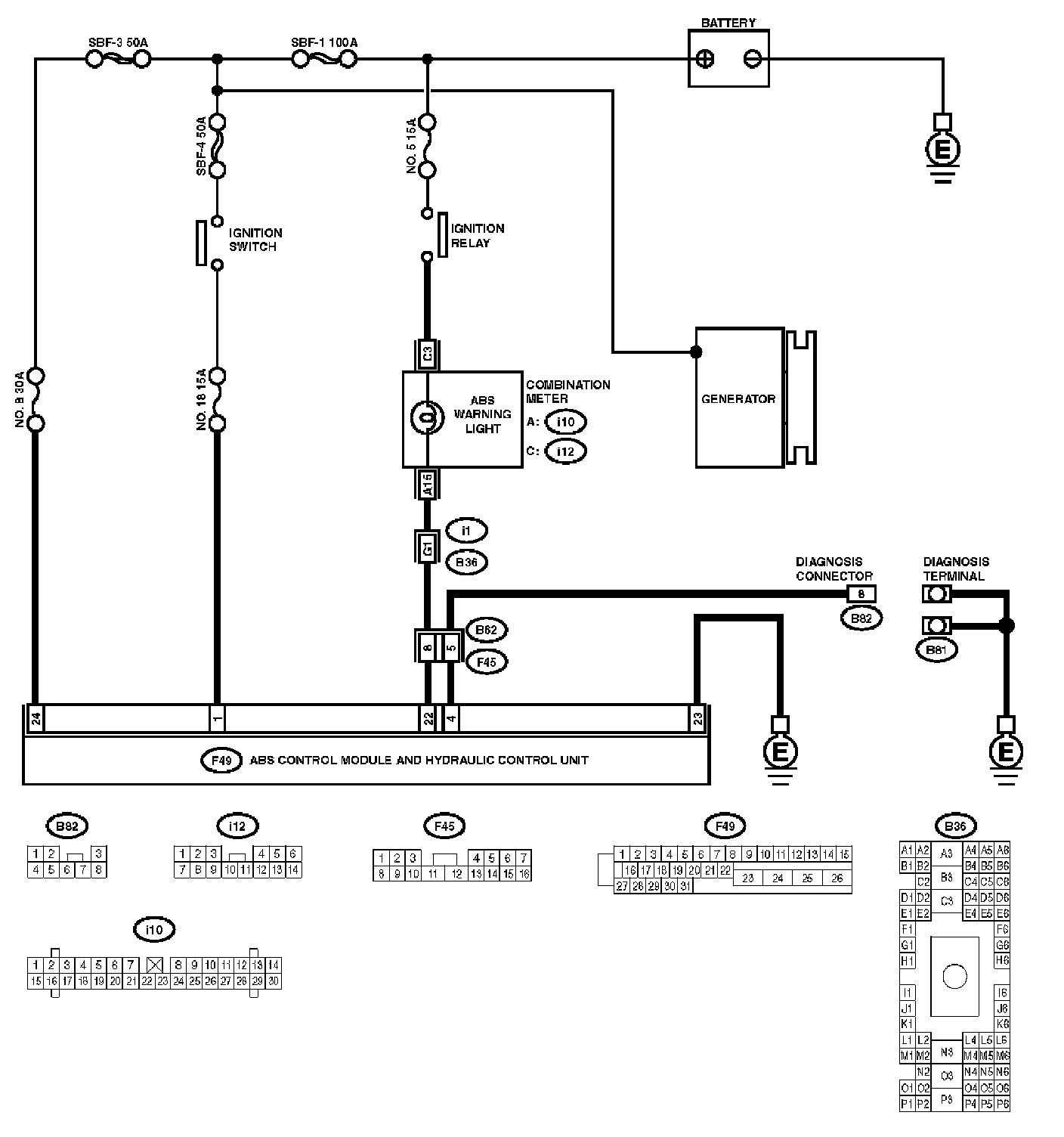

WIRING DIAGRAM
