No Trouble Code

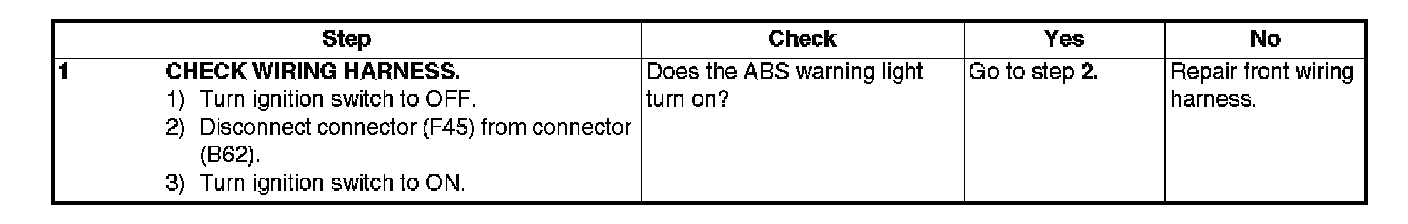

NO TROUBLE CODEStep 1:

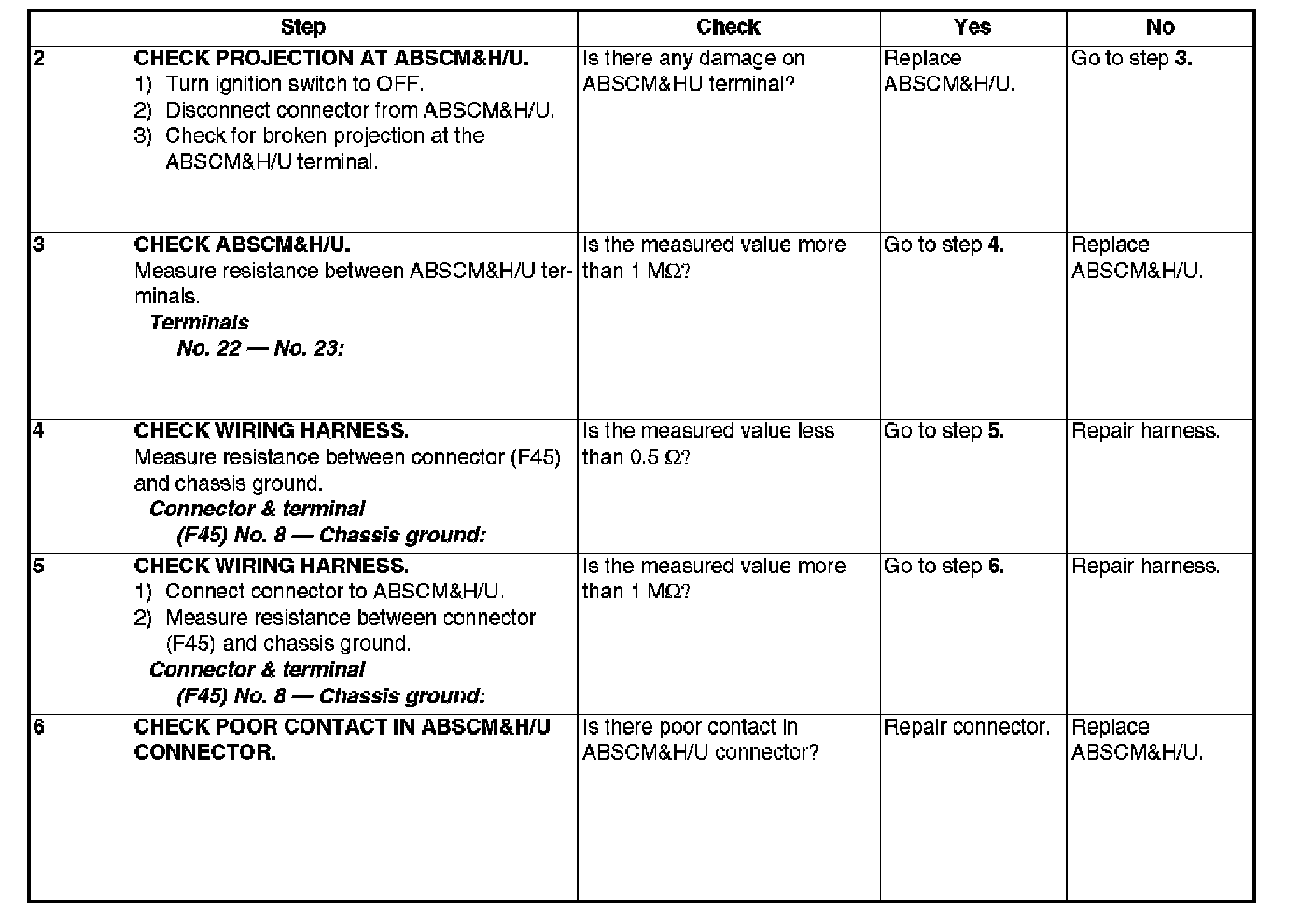

Steps 2-6:
DIAGNOSIS:
^ ABS warning light circuit is shorted.
TROUBLE SYMPTOM
^ ABS warning light remains on.
^ NO TROUBLE CODE displayed on the select monitor.
NOTE: When the ABS warning light is OFF and "NO TROUBLE CODE" is displayed on the select monitor, the system is in normal condition.
WIRING DIAGRAM
