Tail Gate Garnish

TAIL GATE GARNISH

REMOVAL

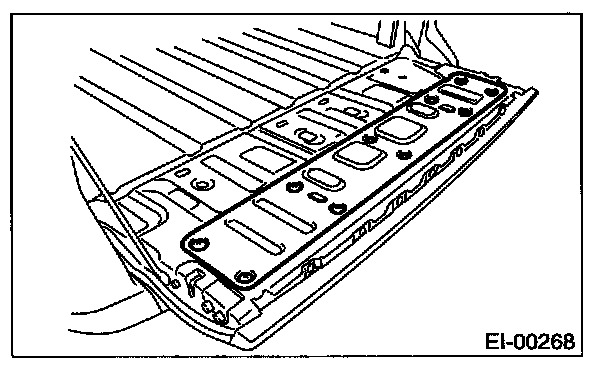

1. Remove tail gate tray.
2. Remove tail gate cover.






3. Remove rear finisher light.

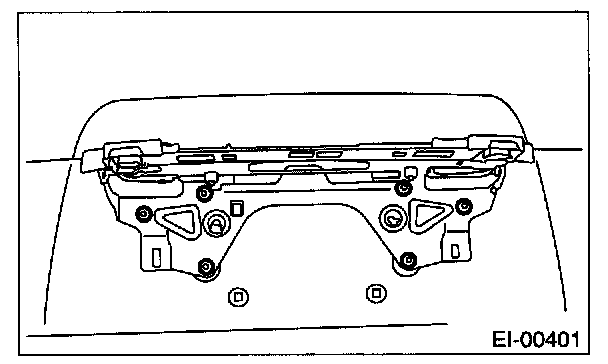

4. Remove license plate bracket using TORX(R) bit T2S.

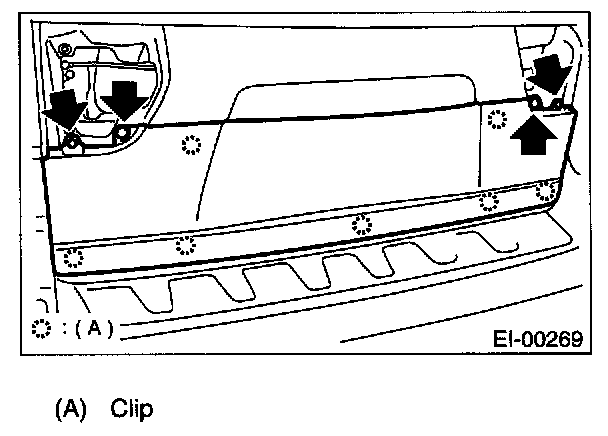

5. Remove clip and bolt and detach tail gate garnish.






INSTALLATION

Install in the reverse order of removal.
