Sunroof / Moonroof Motor: Service and Repair

Sunroof Motor

REMOVAL

CAUTION: When removing clip, use great care not to damage the roof trim.

1. SEDAN
1. Completely close the sunroof.
2. Disconnect ground cable from battery.
3. Remove sunroof lid.

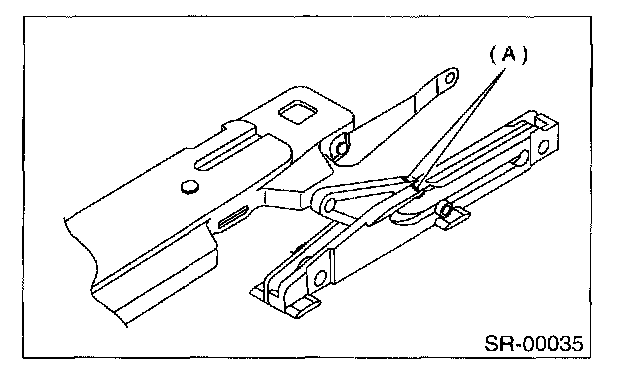

4. Confirm the matching mark (A) of sunroof bracket link and the guide from sunroof opening. (If the mark does not match, adjust to match the mark.)
5. Remove roof trim.




6. Remove motor cover.

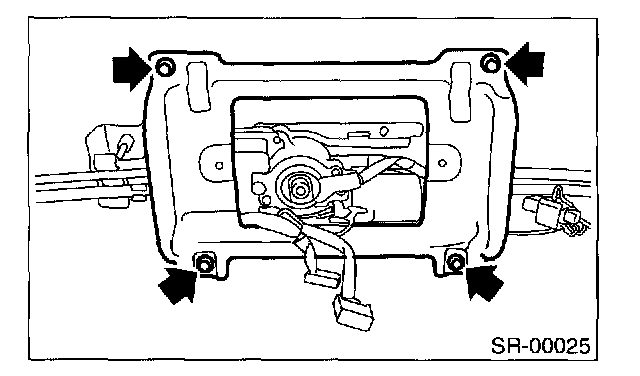

7. Disconnect harness connector and remove sunroof motor mounting screw.

2. WAGON
1. Completely close the front and rear sunroof, then tilt-up the front sunroof to the most upper position.
2. Disconnect ground cable from battery.
3. Remove rear sunroof lid.

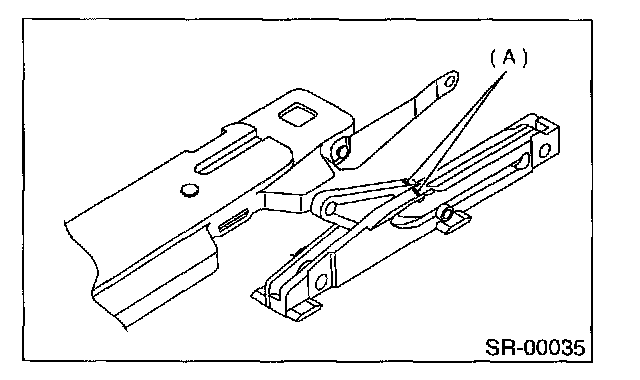

4. Confirm the matching mark (A) of rear sunroof bracket link and the guide from sunroof opening. (If the mark does not match, adjust to match the mark.)
5. Remove luggage room light.
6. Remove rear assist grips.
7. Remove rear quarter trim.

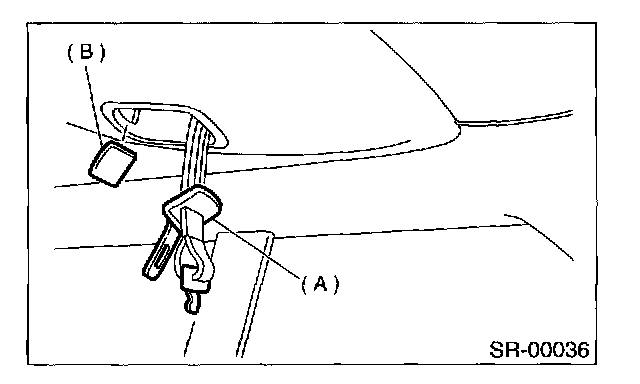

8. Remove cover (B) while detaching snap lock carefully. Put the rear center seat belt tongue (A) out to the other side of the trim through the hole.
9. Remove clips and hang down rear end of roof trim.

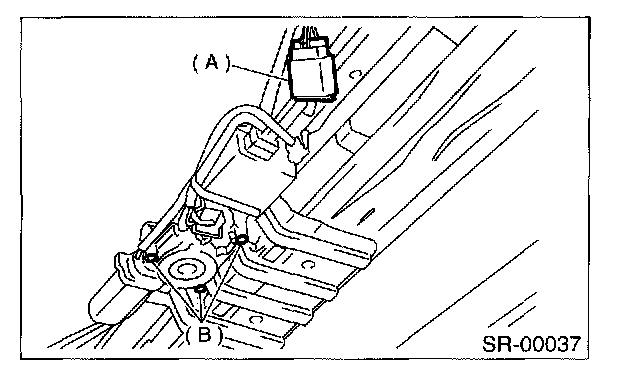

10. Disconnect harness connector (A) and remove sunroof motor mounting screw (B).

INSTALLATION

CAUTION:
- Never rotate the sunroof motor while removed.
- Be careful not to move the sunroof cable when installing sunroof motor.




1. Check the matching mark (A) of sunroof motor.

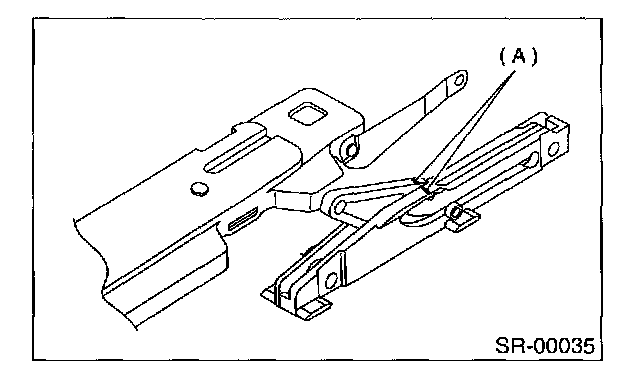

2. Confirm the matching mark (A) of sunroof bracket link.
3. Install sunroof motor.
4. After installing the motor, reconfirm the matching marks of motor side and sunroof bracket link side.
5. Connect sunroof motor harness connector and then connect battery ground cable.

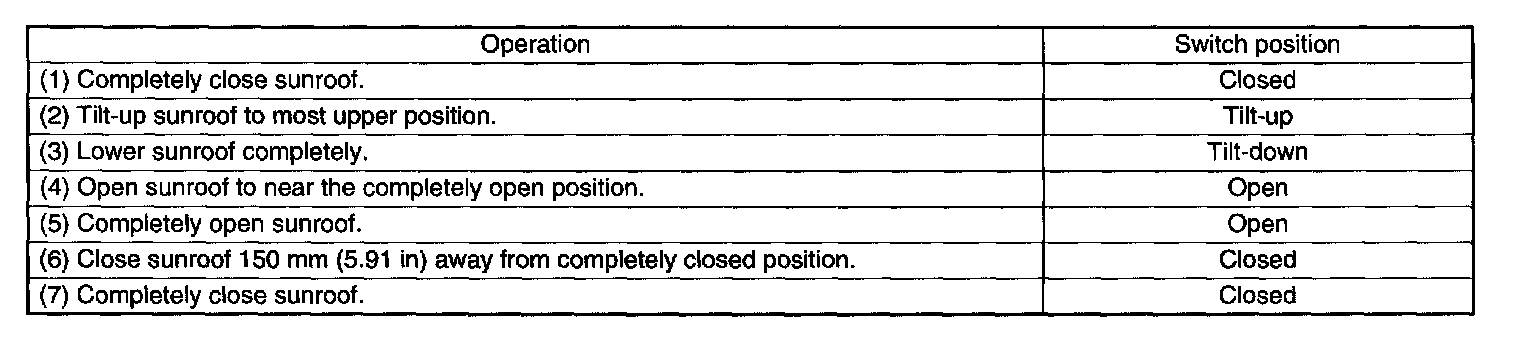

6. Check the sunroof operation with the procedure as shown in the table.




SEDAN

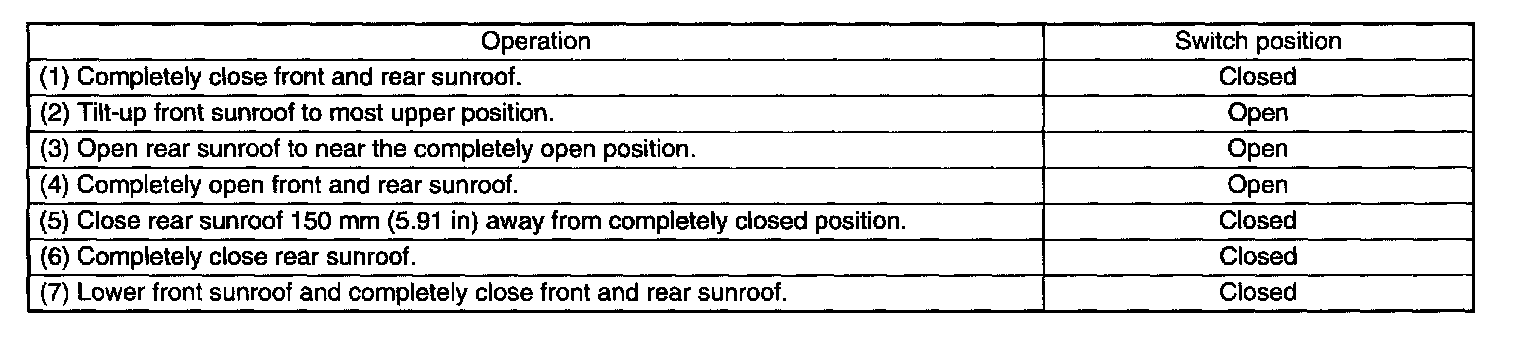

WAGON

7. Install trims in the reverse order of removal.
