License Plate Frame: Service and Repair

LICENSE PLATE BRACKET

REMOVAL

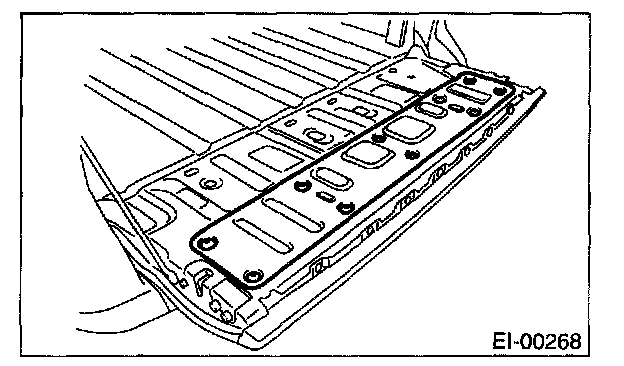

1. Removal tail gate tray.
2. Remove tail gate cover.

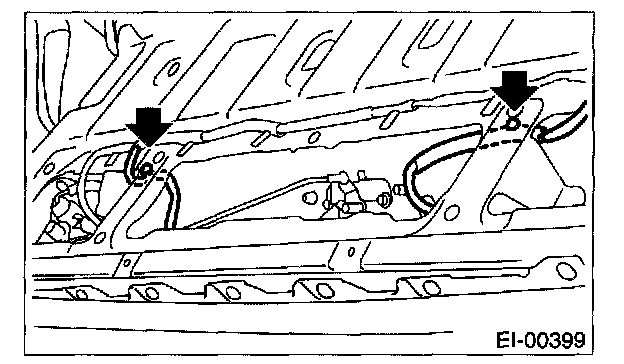

3. Disconnect license plate light connector.

4. Remove tail gate outer handle cover.

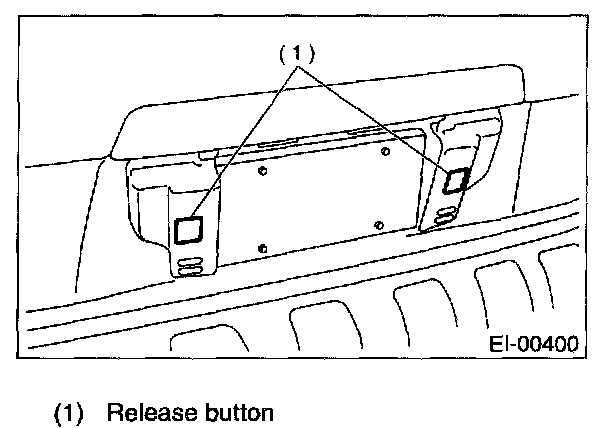

5. Press release button and release lock.

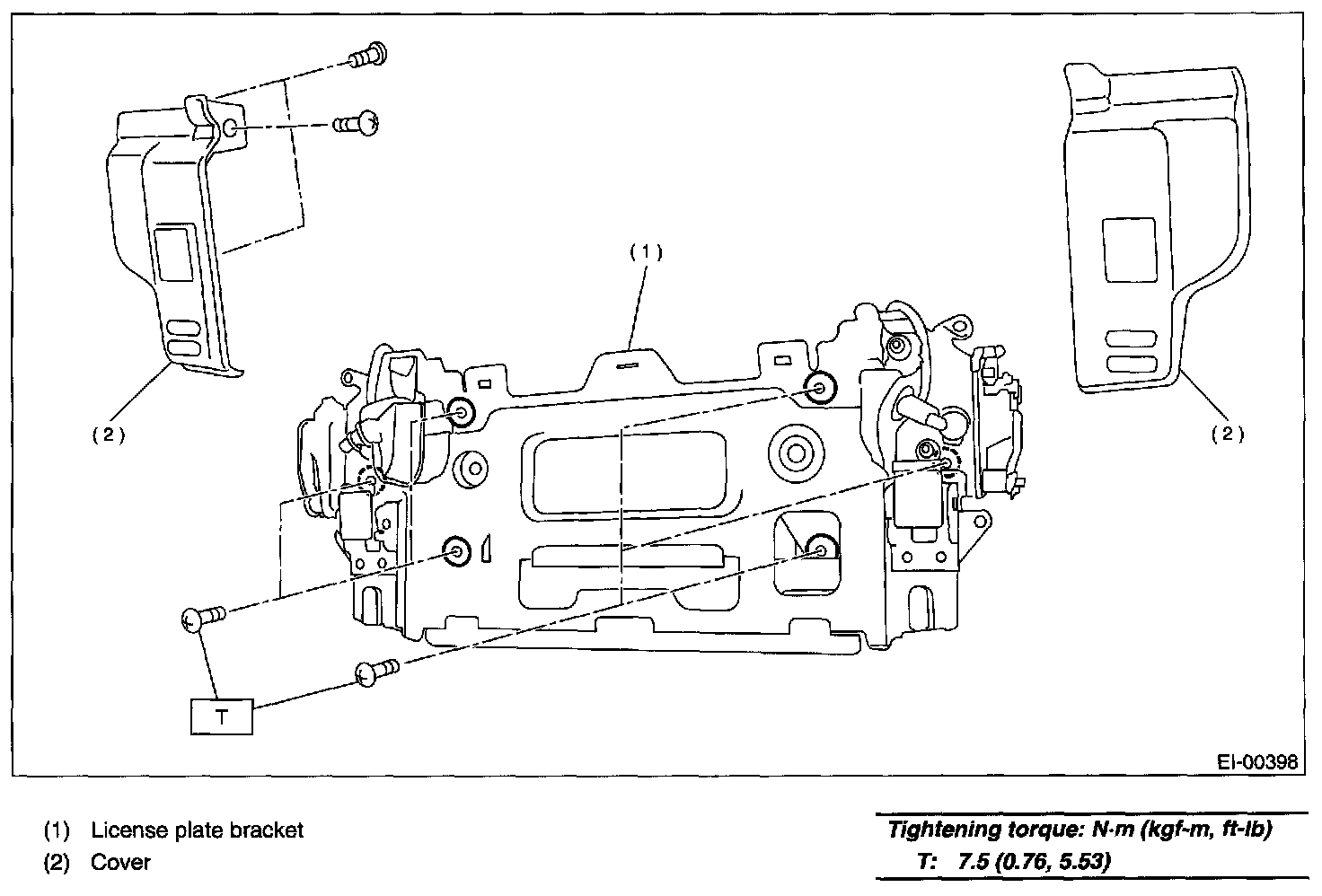

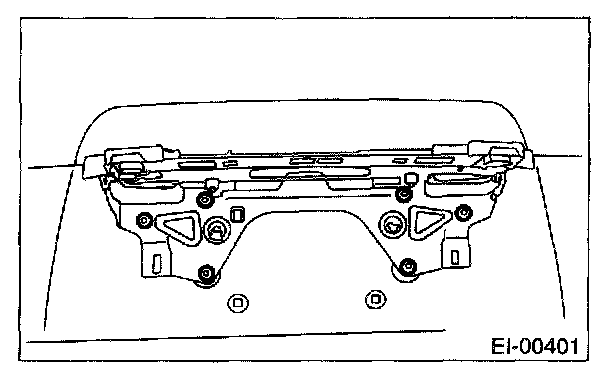

6. Lift up license plate bracket. Remove bolts using TORX(R) bit T25.

INSTALLATION

Install in the reverse order of removal.

Tightening torque: 7.5 N.m (0.76 kgf-m, 5.53 ft-lb)
