Rear Door Latch: Service and Repair

Rear Door Latch Assembly

REMOVAL

1. Disconnect ground cable from battery.
2. Remove the rear door trim.
3. Remove the sealing cover.
4. Remove the rear inner remote.

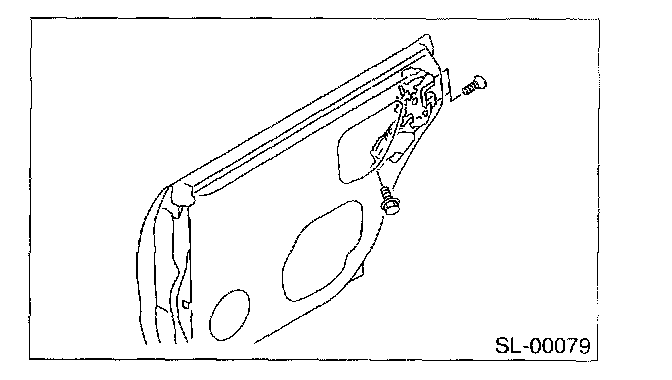

5. Remove the three screws and bolt.
6. Disconnect the connector. Remove the rear door latch assembly.

INSTALLATION

Install in the reverse order of removal.

NOTE: Make sure the lock works properly after installation.
