Front Door Latch: Service and Repair

Front Door Latch Assembly

REMOVAL

1. Disconnect ground cable from battery.
2. Remove the front door trim.
3. Remove the sealing cover.
4. Remove the front inner remote.
5. Remove the front door glass.
6. Remove three nuts, and detach the front door sash (Rear).

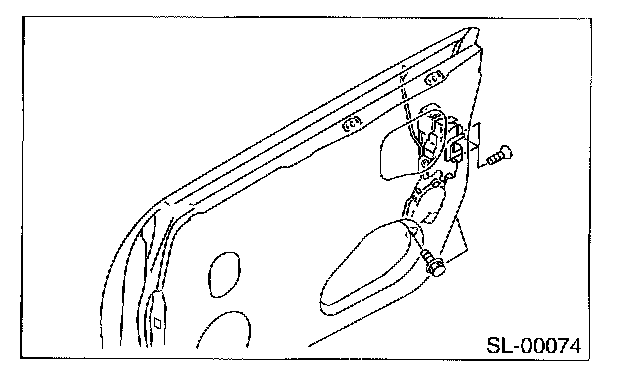

7. Remove the three screws and bolt.
8. Disconnect the connector. Remove the front door latch assembly.

INSTALLATION

Install in the reverse order of removal.

NOTE: Make sure the lock works properly after installation.
