Woofer

Woofer

REMOVAL

1. SEDAN
1. Disconnect ground cable from battery.
2. Remove rear shelf trim.

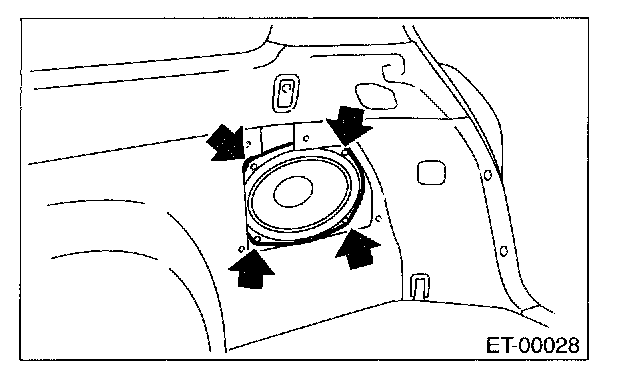

3. Remove woofer mounting screws.
4. Disconnect harness connector, and then remove woofer.

2. WAGON
1. Disconnect ground cable from battery.

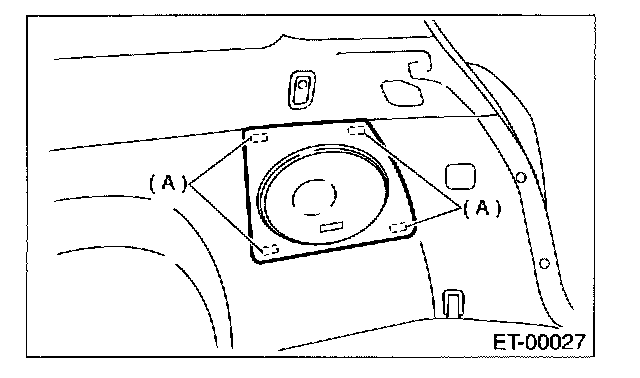

2. Remove hook (A) and then remove trim of woofer.




3. Remove woofer mounting screws.
4. Disconnect harness connector, and then remove woofer.

INSTALLATION

Install in the reverse order of removal.
