Radio Body

Radio Body

REMOVAL

1. Disconnect ground cable from battery.

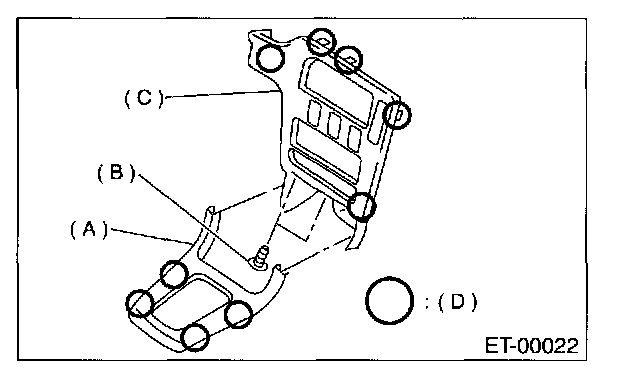

2. Remove hook (D) and then remove front cover (A).




3. Remove two screws (B) and hook (D), then remove center panel (C) while disconnecting connector.

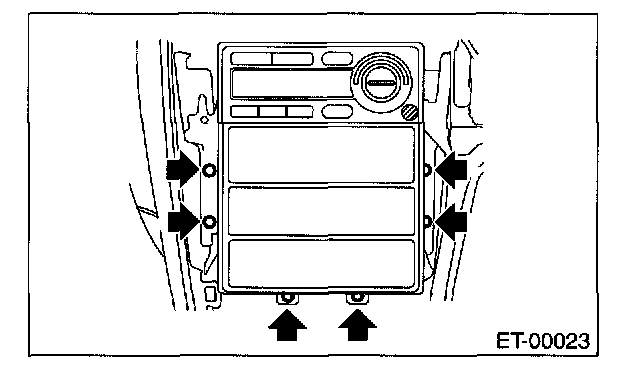

4. Remove fitting screws, and slightly pull radio out from center console.
5. Disconnect electric connectors and antenna feeder cord and then disconnect heater control unit.

INSTALLATION

Install in the reverse order of removal.
