Home >> Subaru >> 2004 >> Outback F6-3.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom >> Onstar (R) Led Does Not Operate

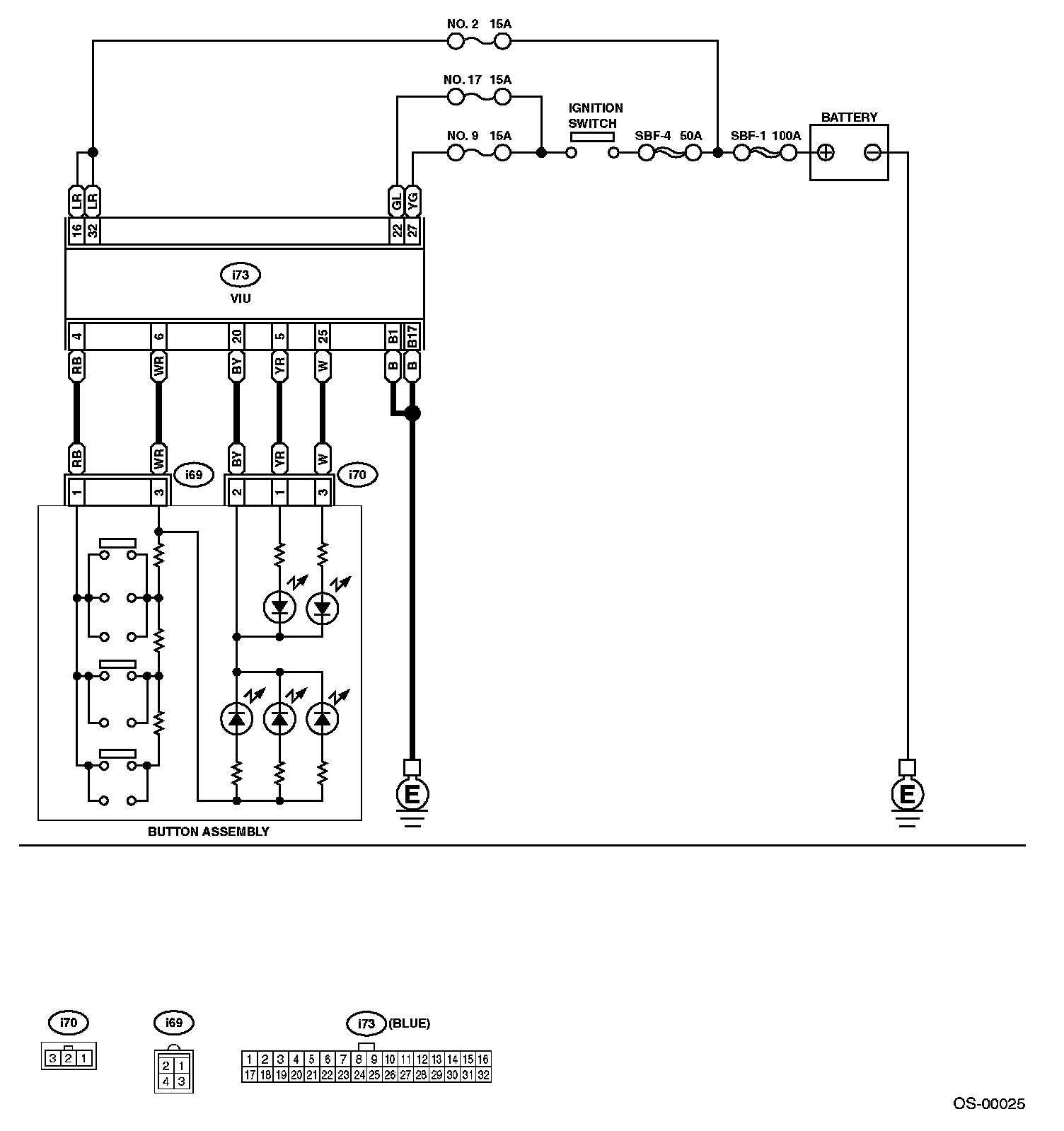

Onstar (R) Led Does Not Operate

DEFINITION:
When ignition switch is turned to ON, OnStar (R) green LED does not illuminate.

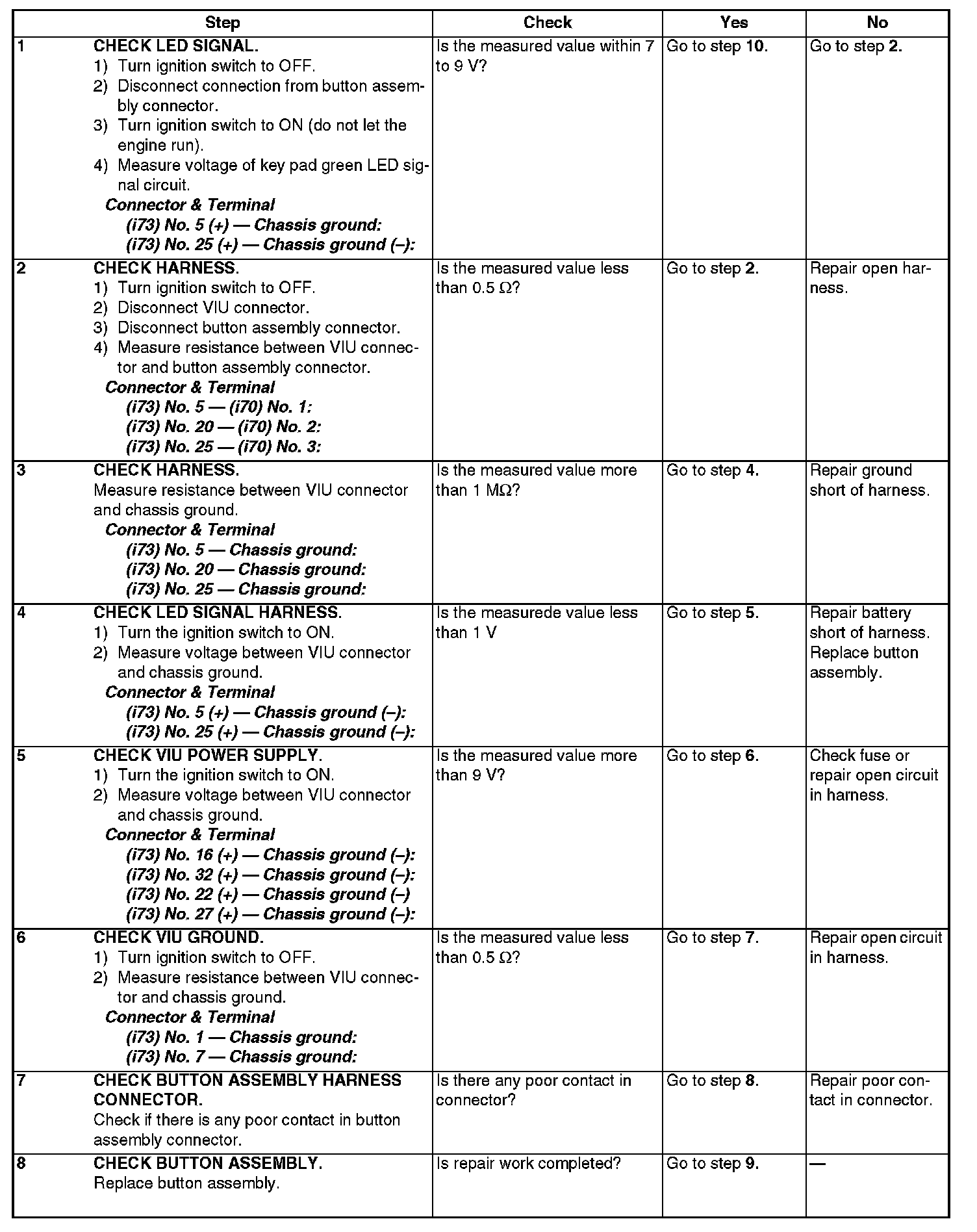

Step 1 - 8:

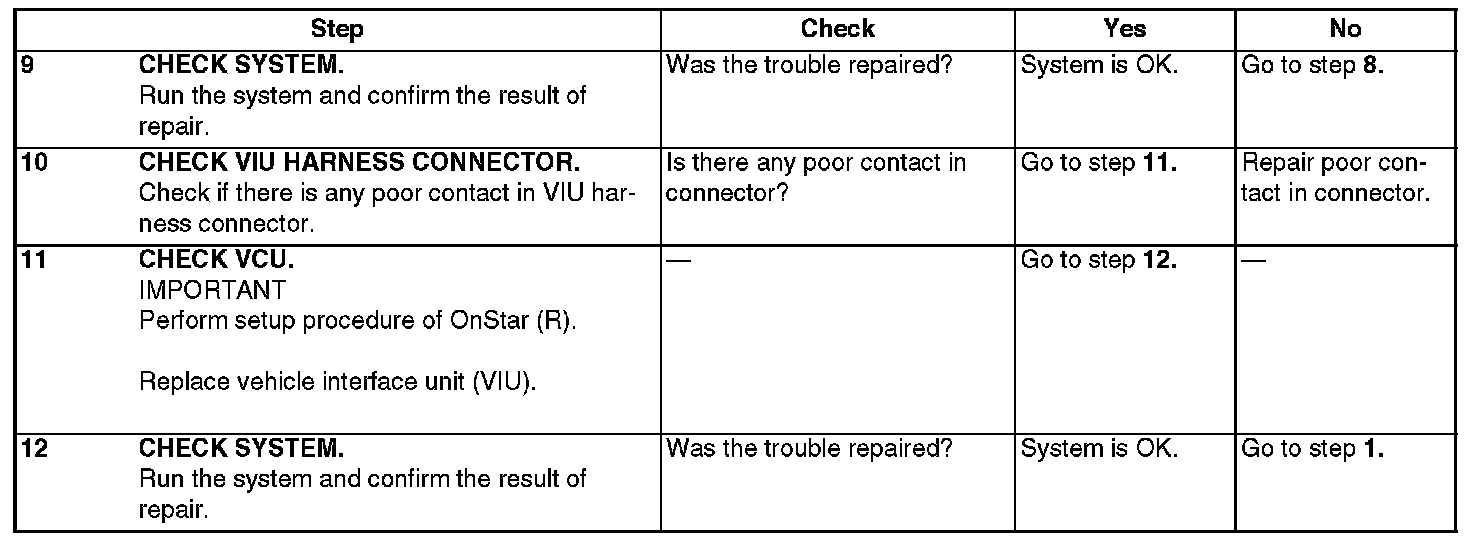

Step 9 - 12:
