P2097

DTC P2097 - POST CATALYST FUEL TRIM SYSTEM TOOL RICH BANK 1

DTC DETECTING CONDITION
Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

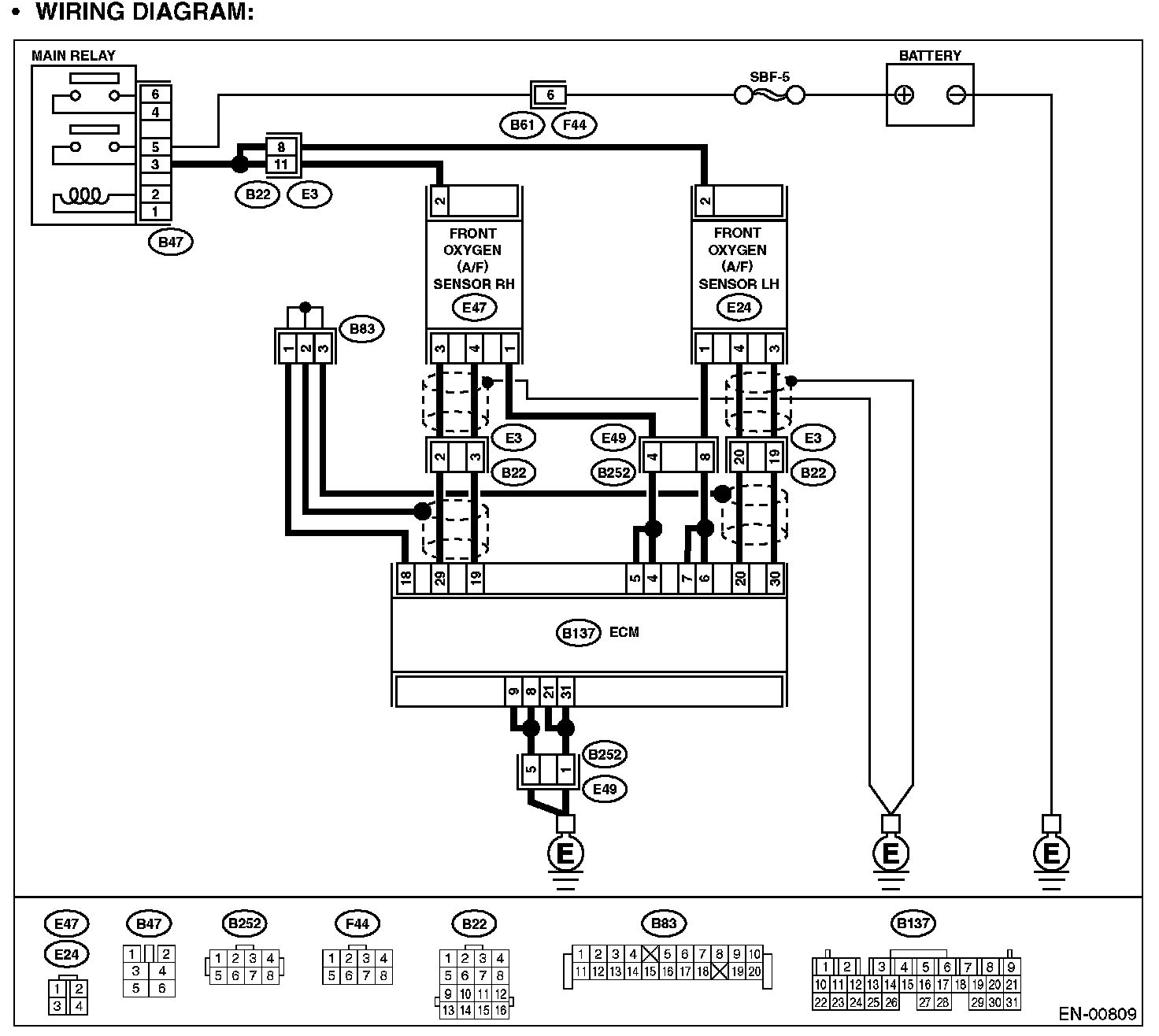

Wiring Diagram:

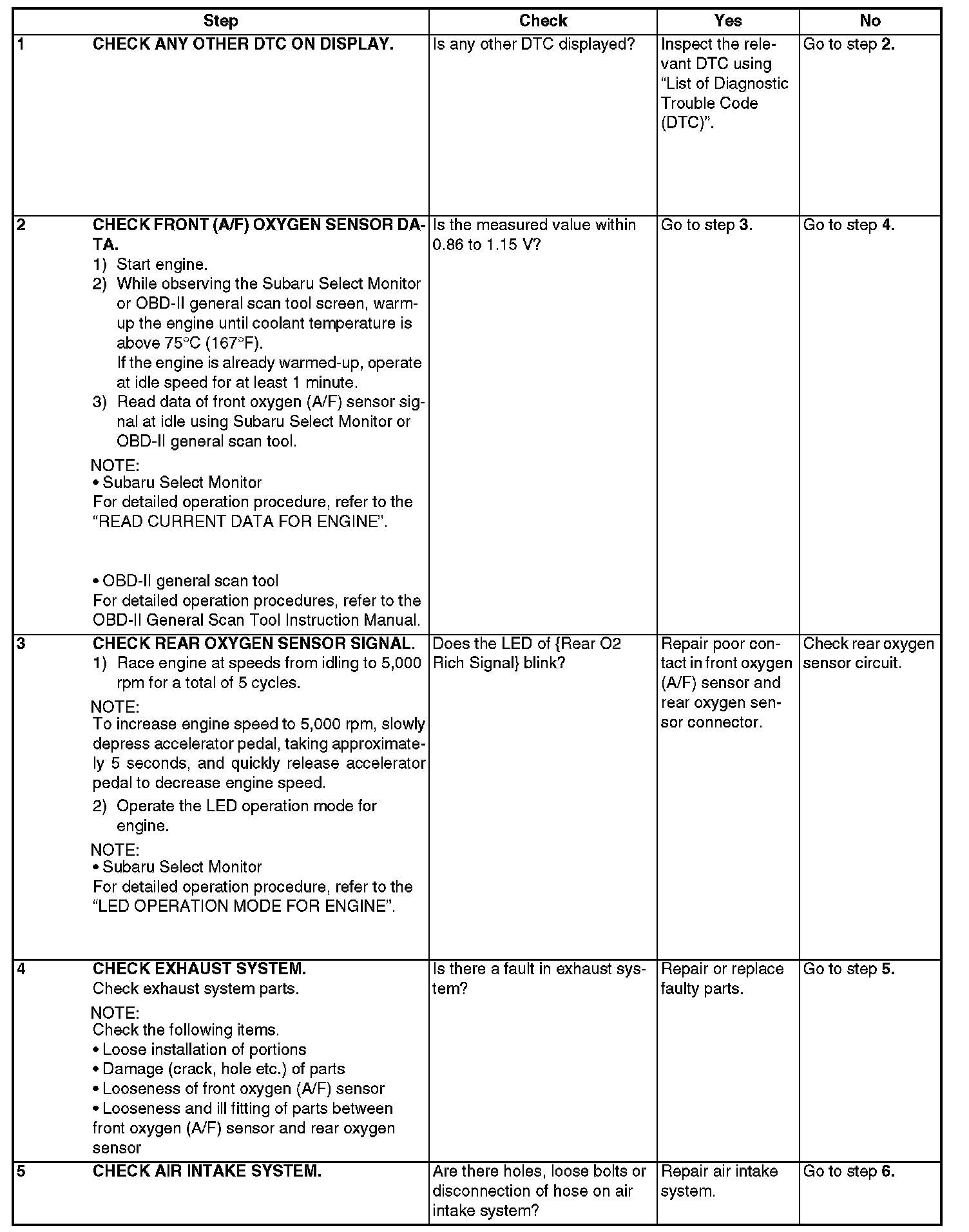

Step 1 - 5:

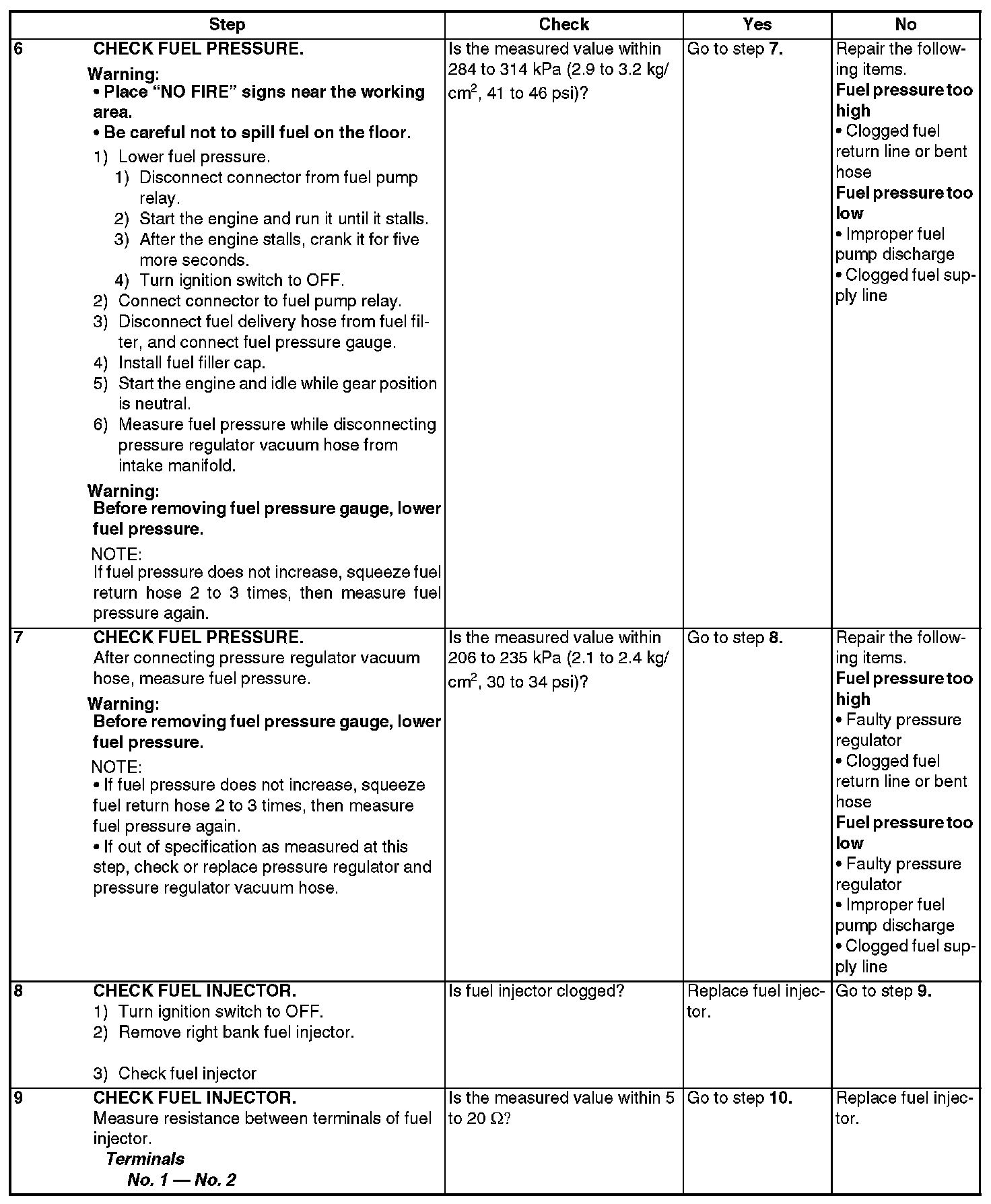

Step 6 - 9:

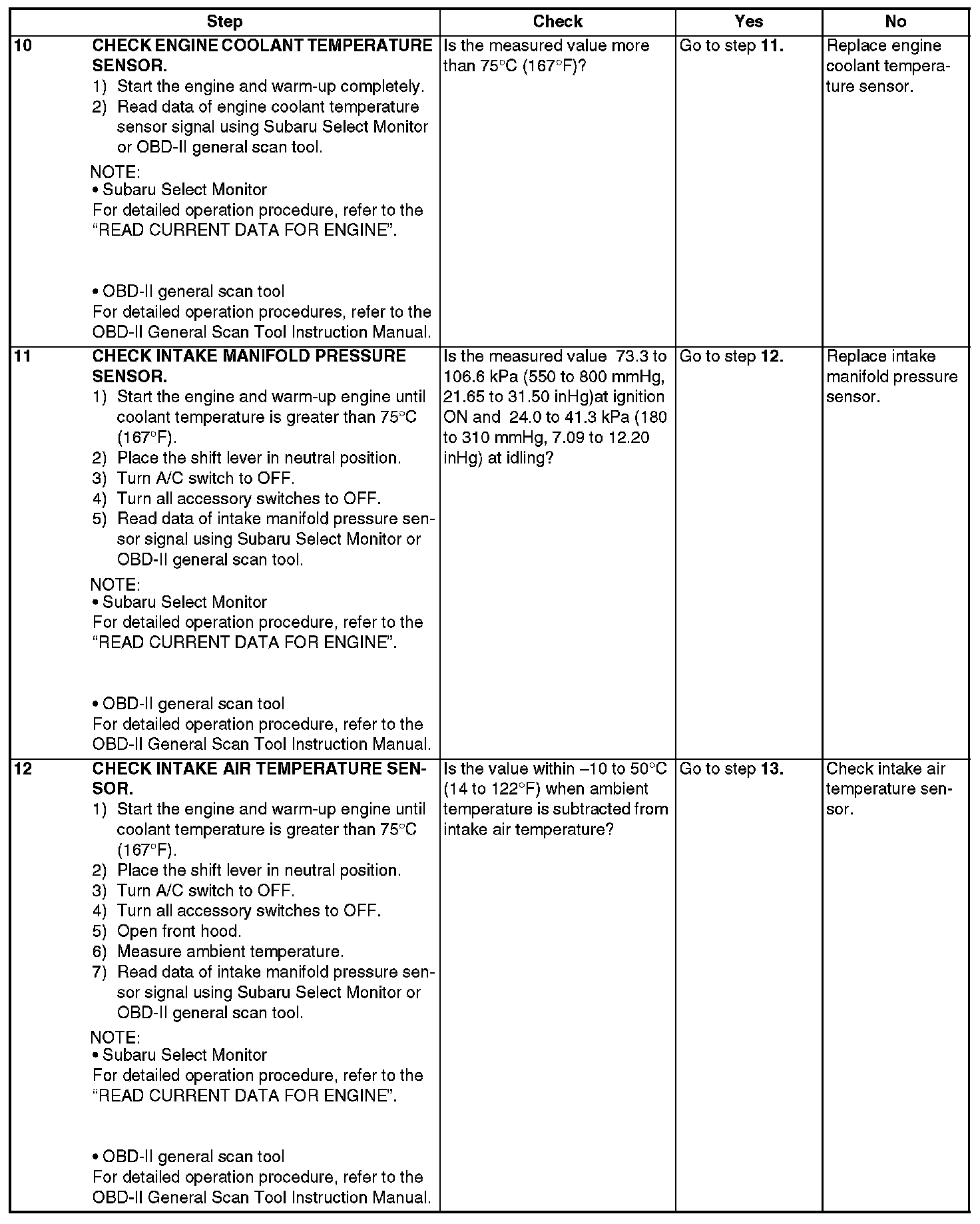

Step 10 - 12:

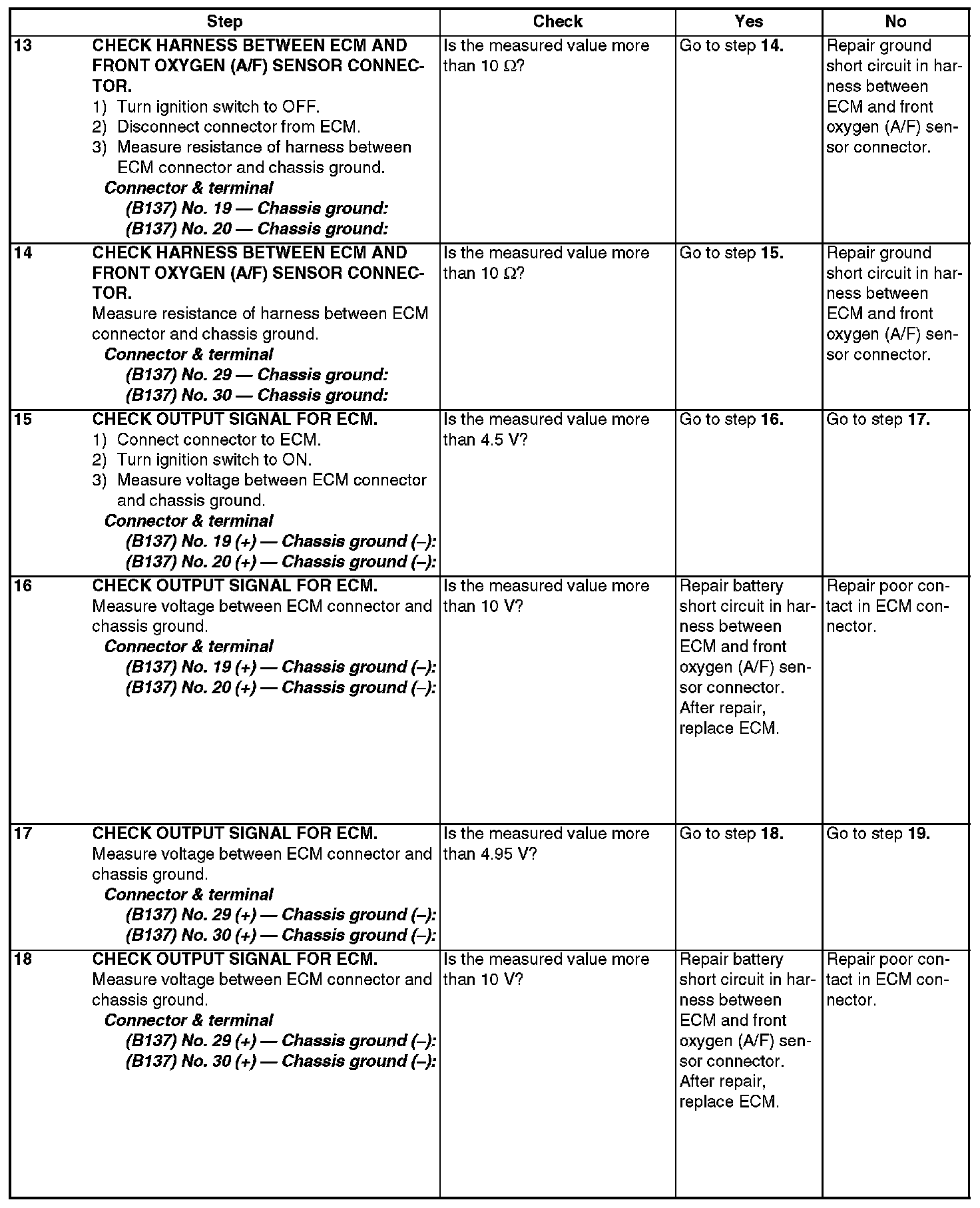

Step 13 - 18:

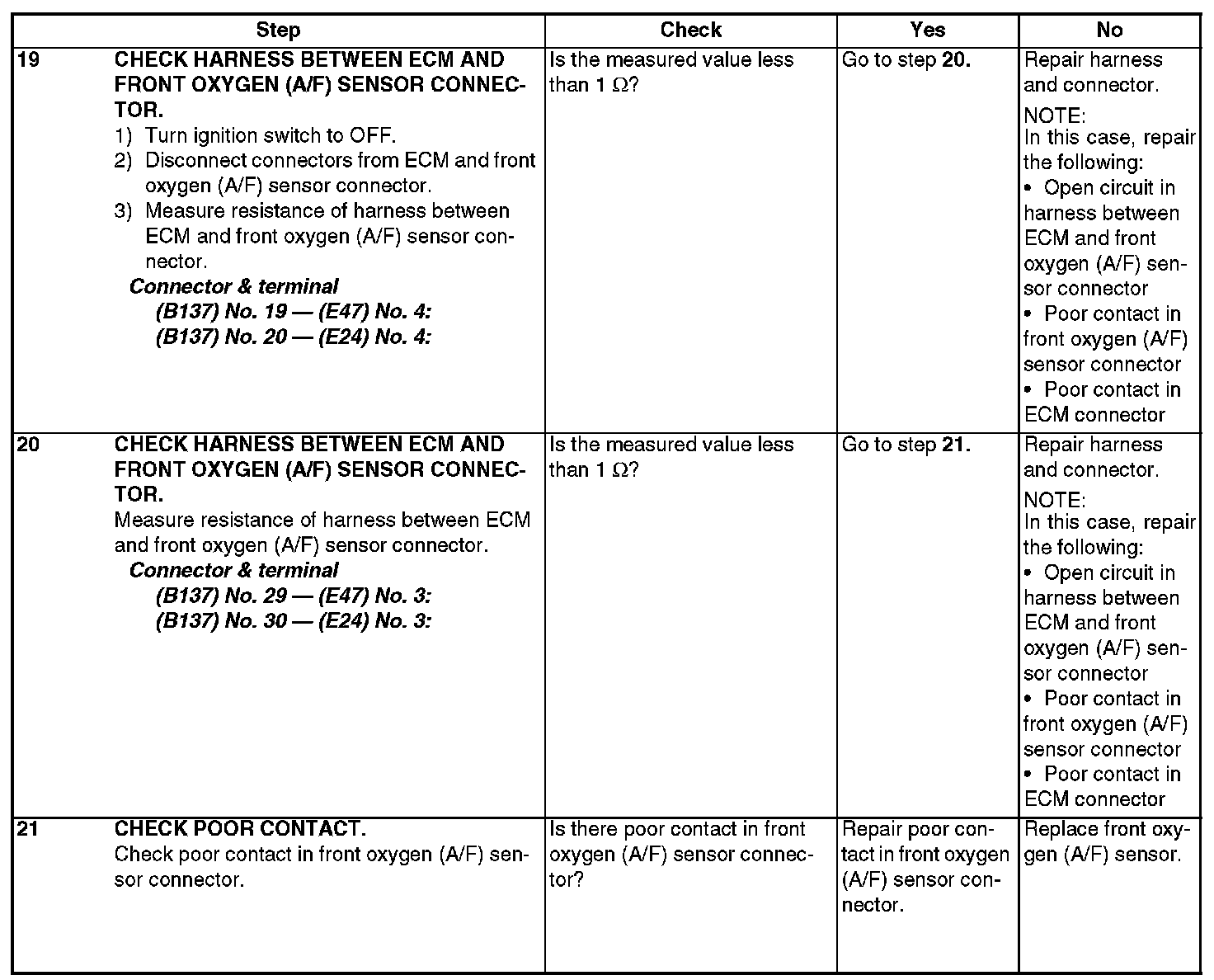

Step 19 - 21:
