P1708

DTC P1708 - THROTTLE POSITION SENSOR CIRCUIT LOW INPUT -

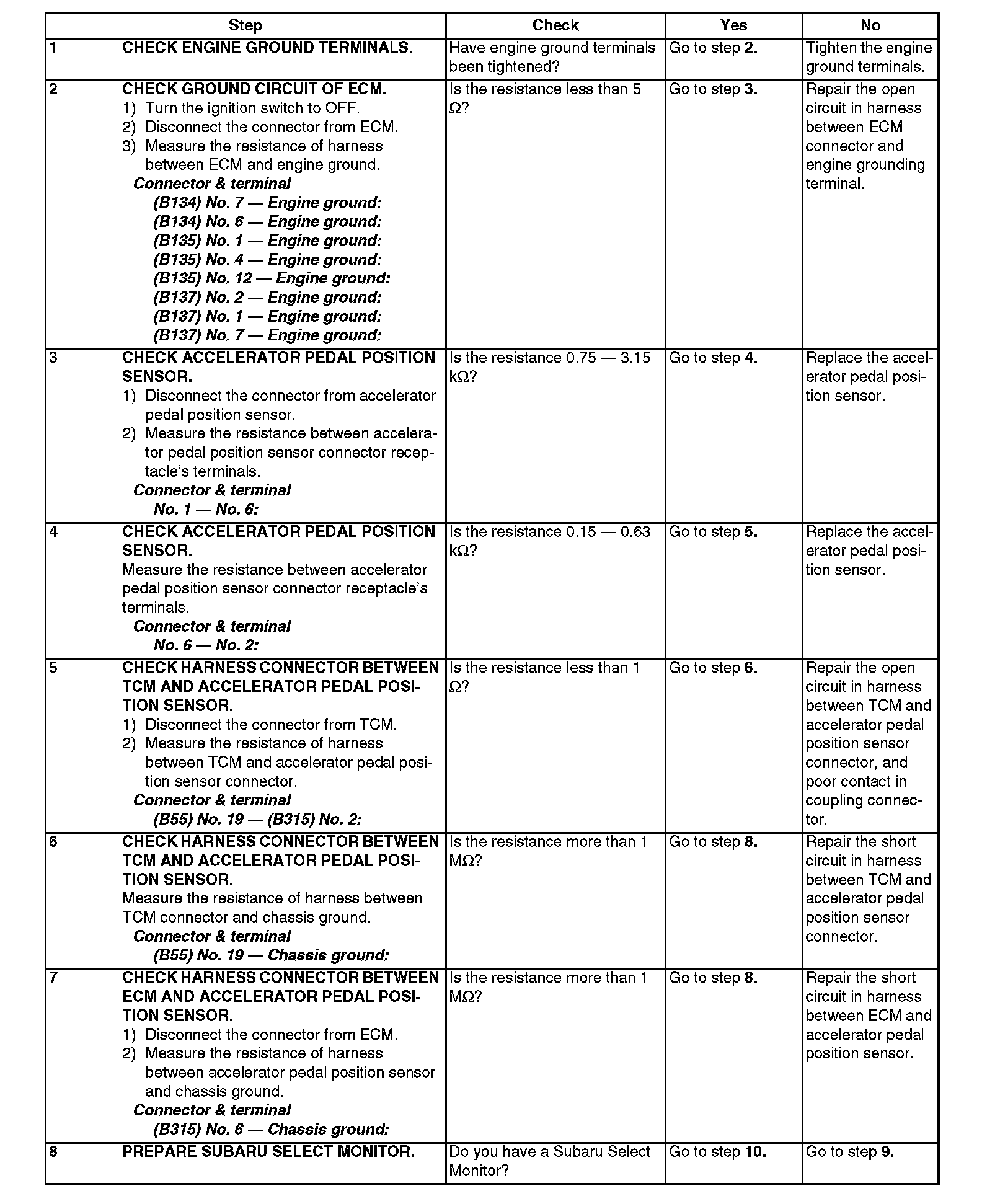

Steps 1-8:

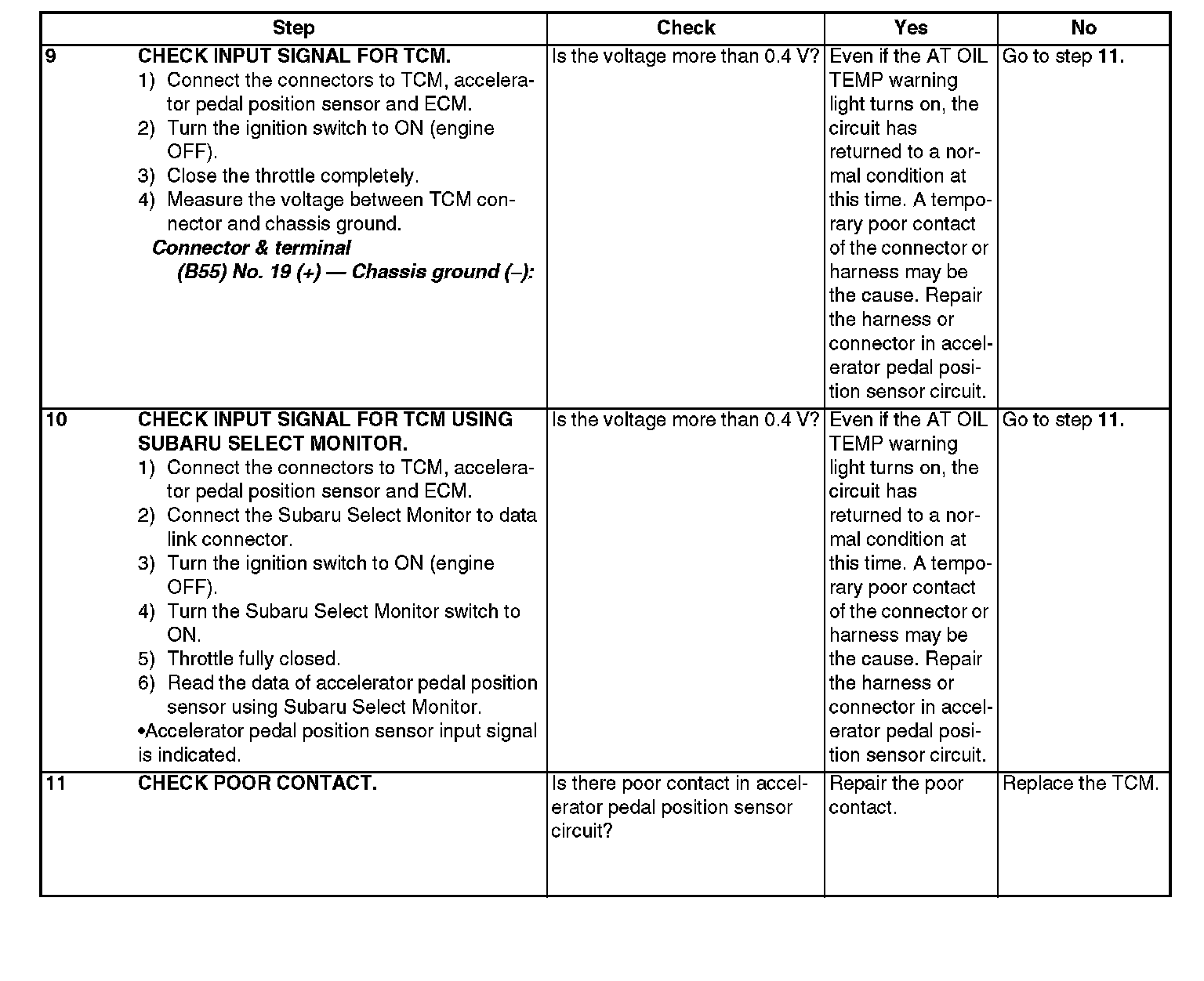

Steps 9-11:

DIAGNOSIS:
The input signal circuit of accelerator pedal position sensor is open or shorted.

TROUBLE SYMPTOM:
^ Shift point too high or too low.
^ Excessive shift shock.
^ Excessive tight corner "braking".

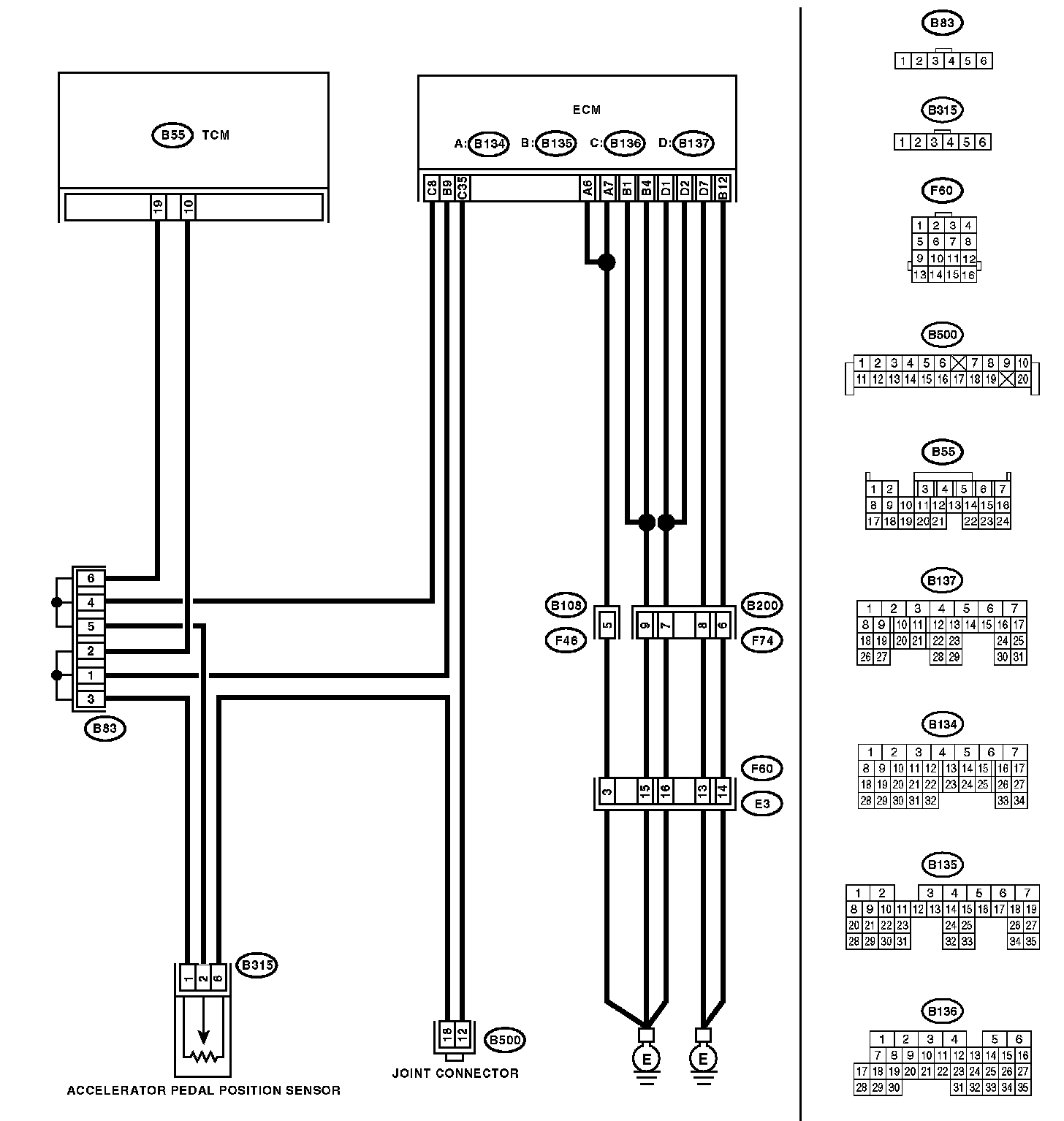

WIRING DIAGRAM
