P1706

DTC P1706 - AT VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION (REAR WHEEL)-

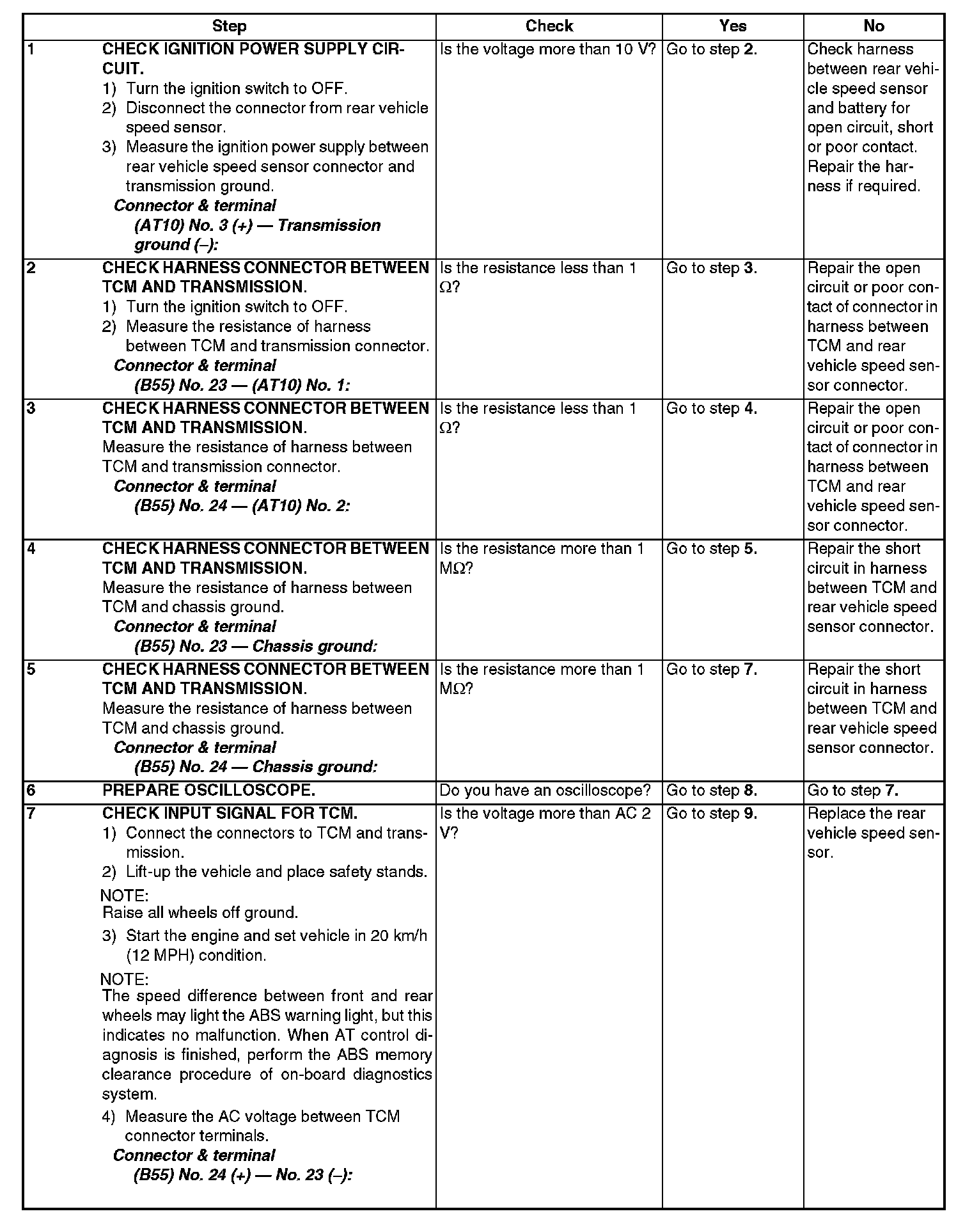

Steps 1-7:

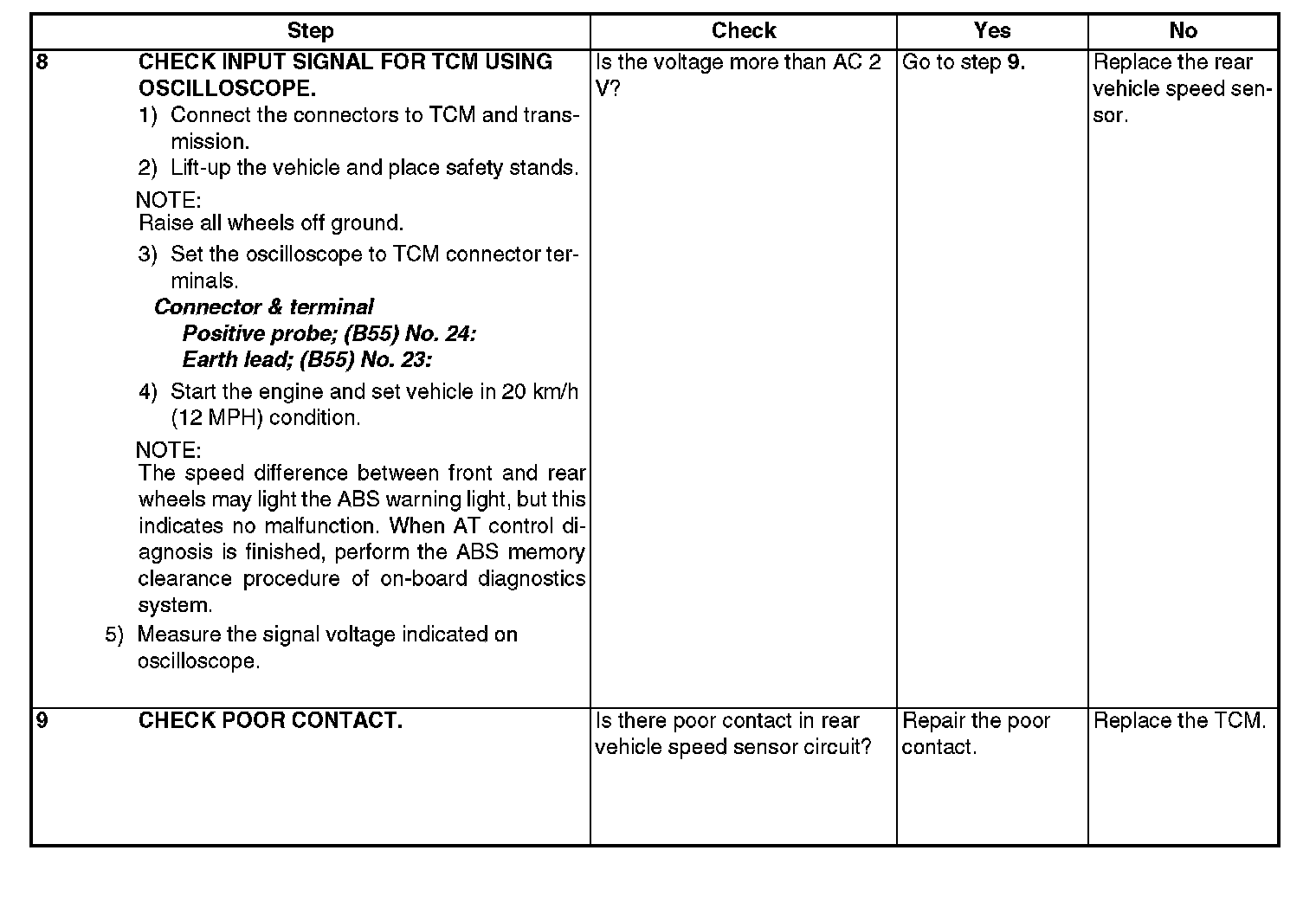

Steps 8 & 9:

DIAGNOSIS:
The input signal circuit of TCM is open or shorted.

TROUBLE SYMPTOM:
No lock-up or excessive tight corner "braking".

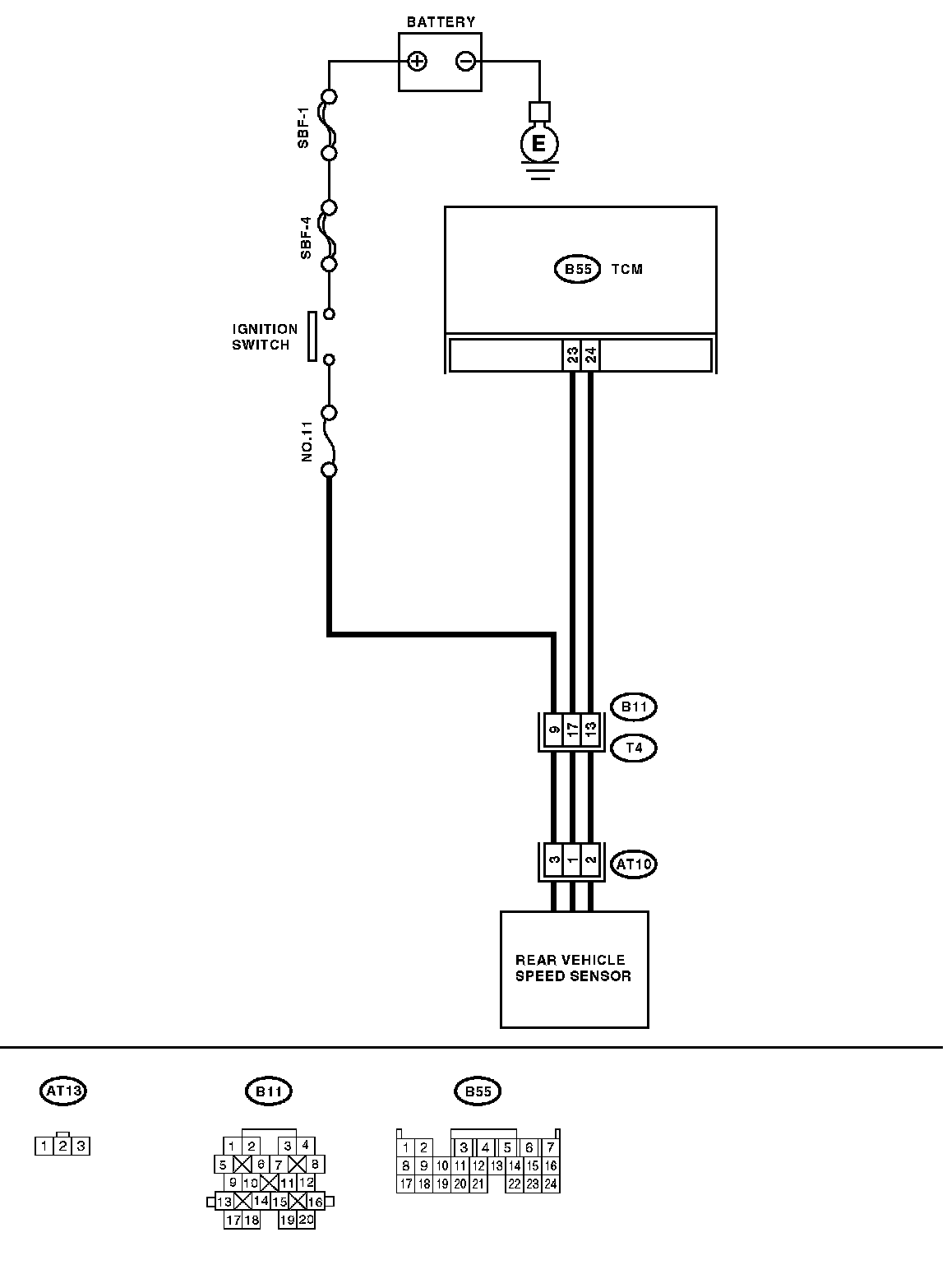

WIRING DIAGRAM
