P0768

DTC P0768 - SHIFT SOLENOID "D" ELECTRICAL -

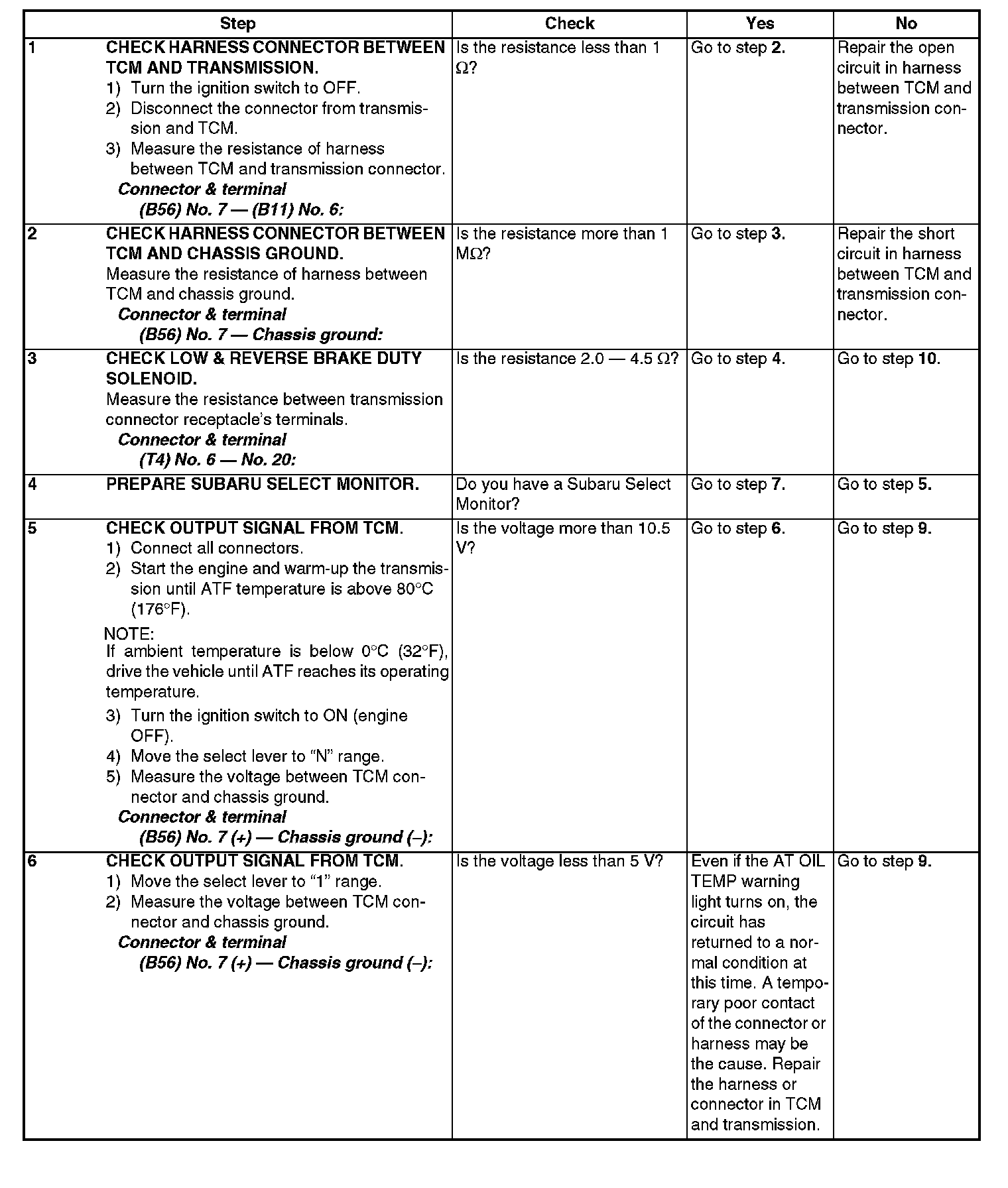

Steps 1-6:

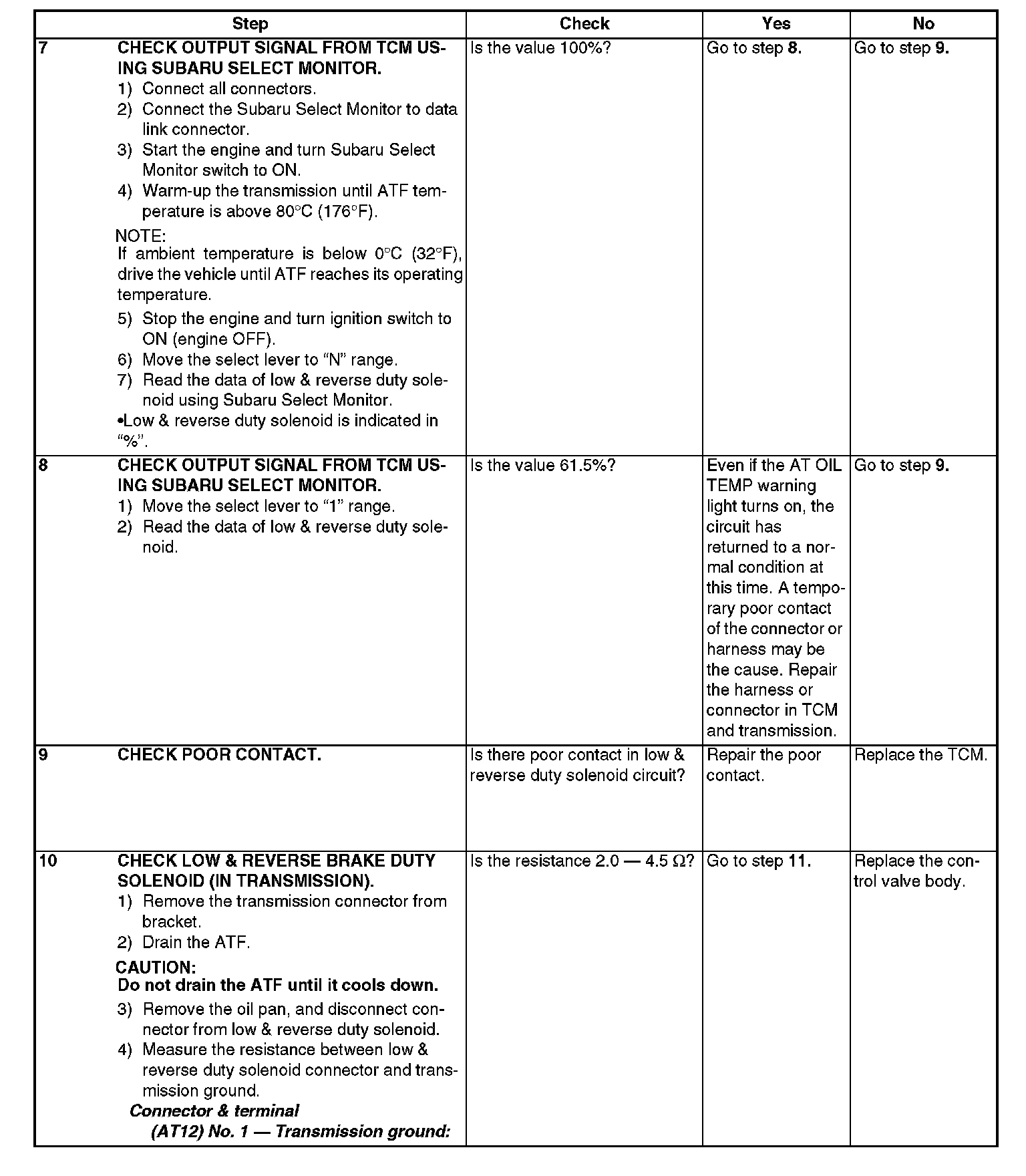

Steps 7-10:

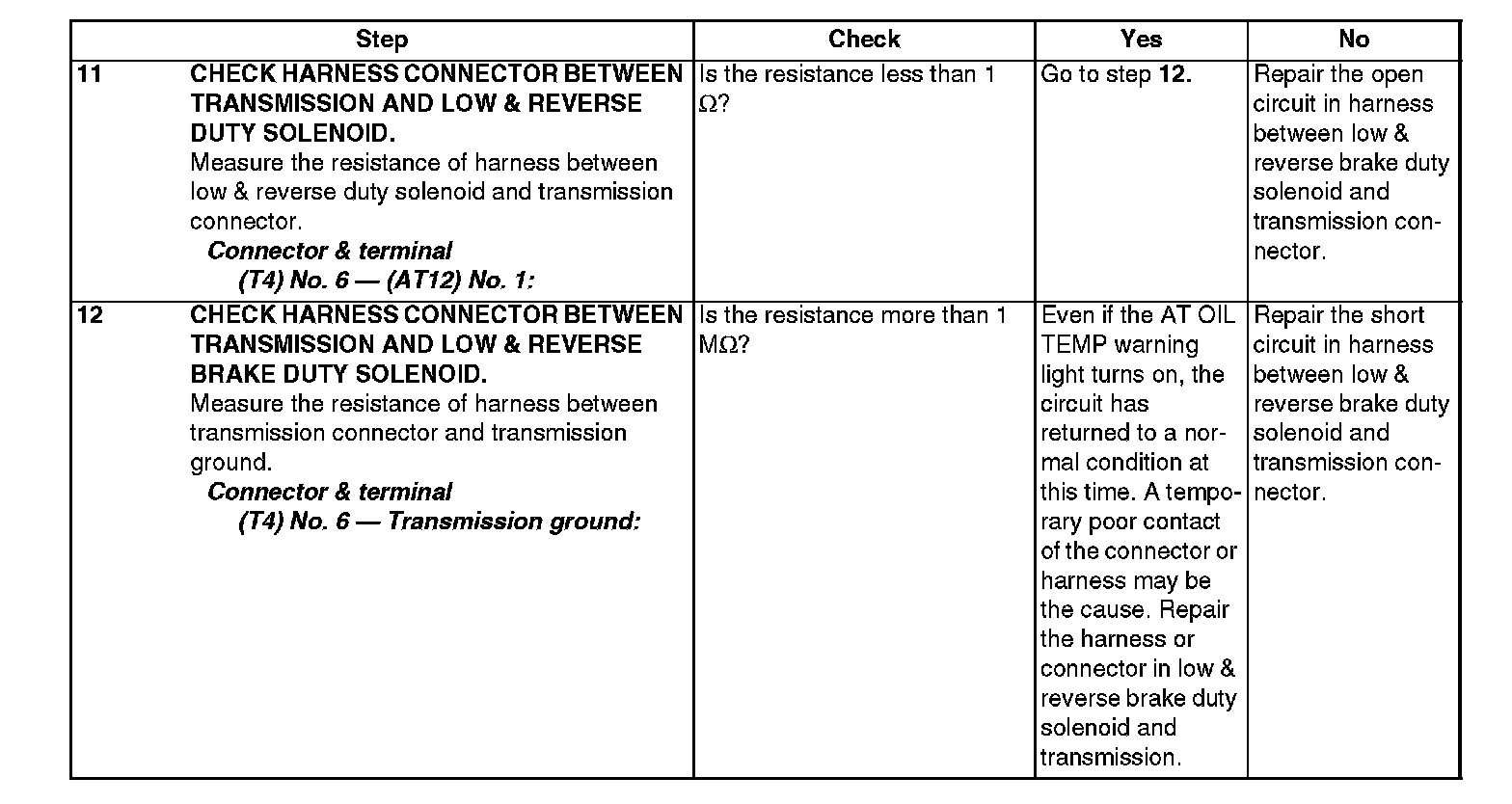

Steps 11 & 12:

DIAGNOSIS:
The output signal circuit of low & reverse duty solenoid is open or shorted.

TROUBLE SYMPTOM:
Gear is not changed.

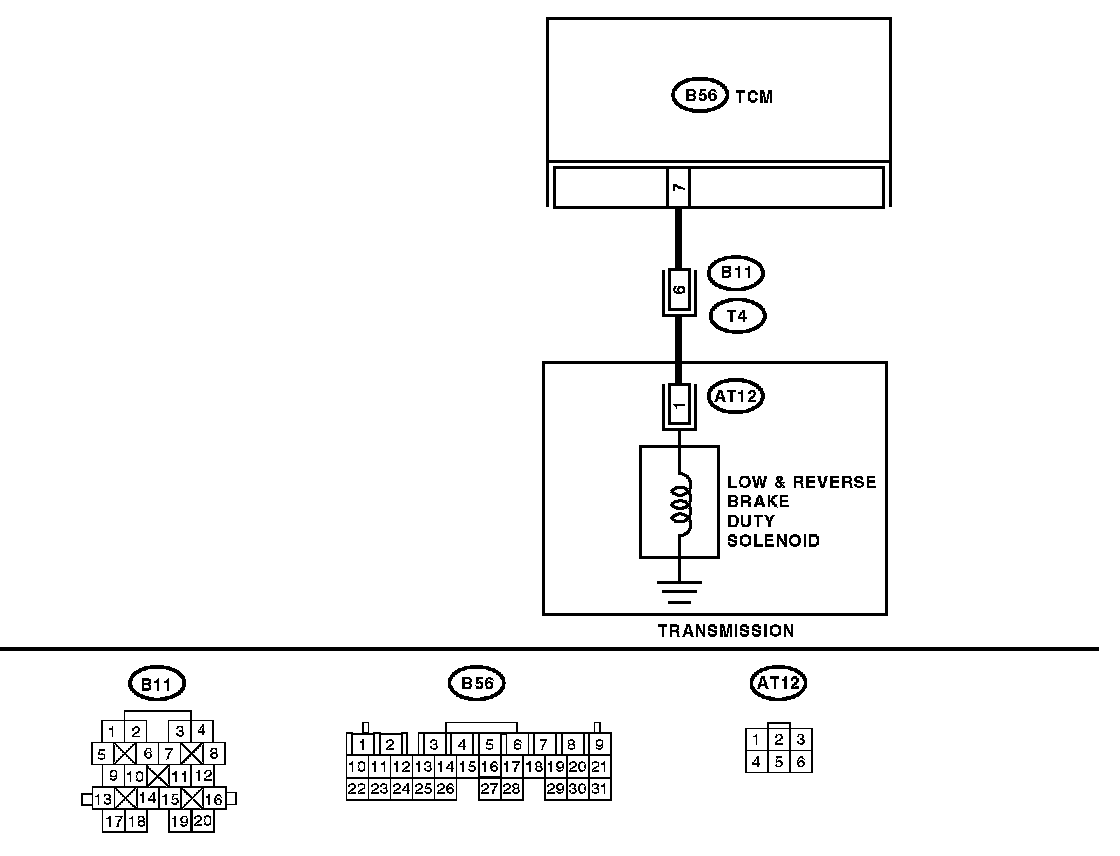

WIRING DIAGRAM
