P0763

DTC P0763 - SHIFT SOLENOID "C" ELECTRICAL -

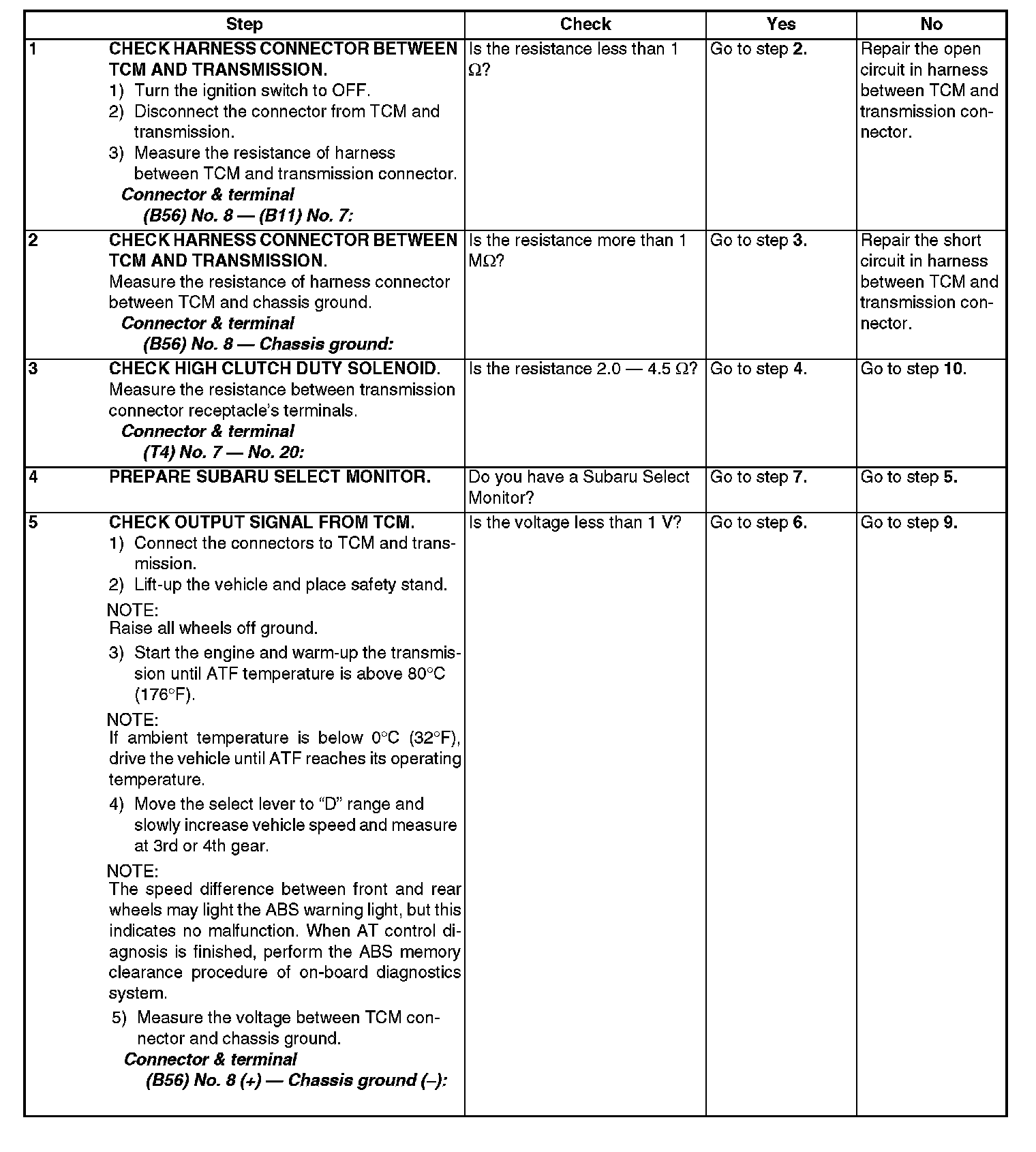

Steps 1-5:

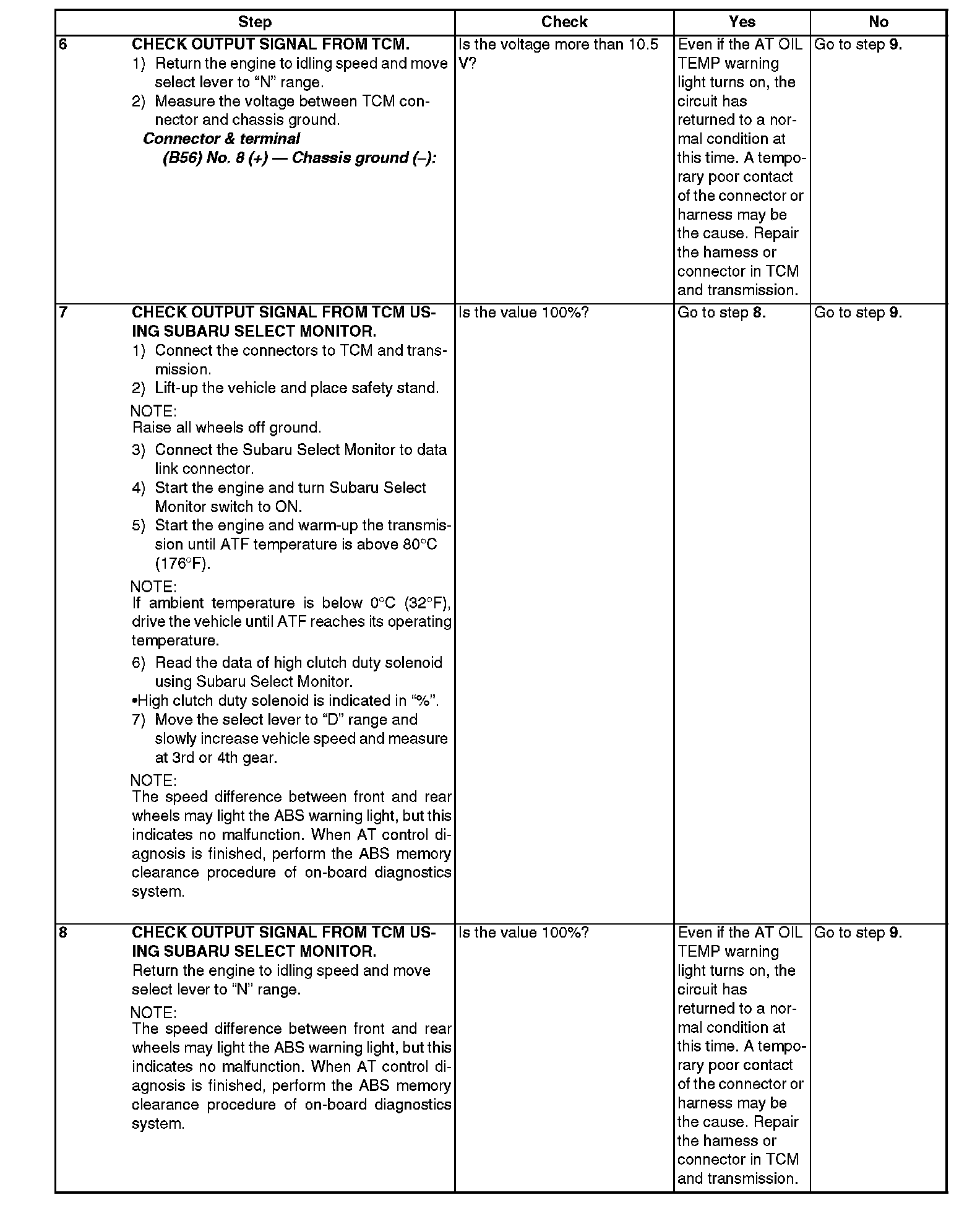

Steps 6-8:

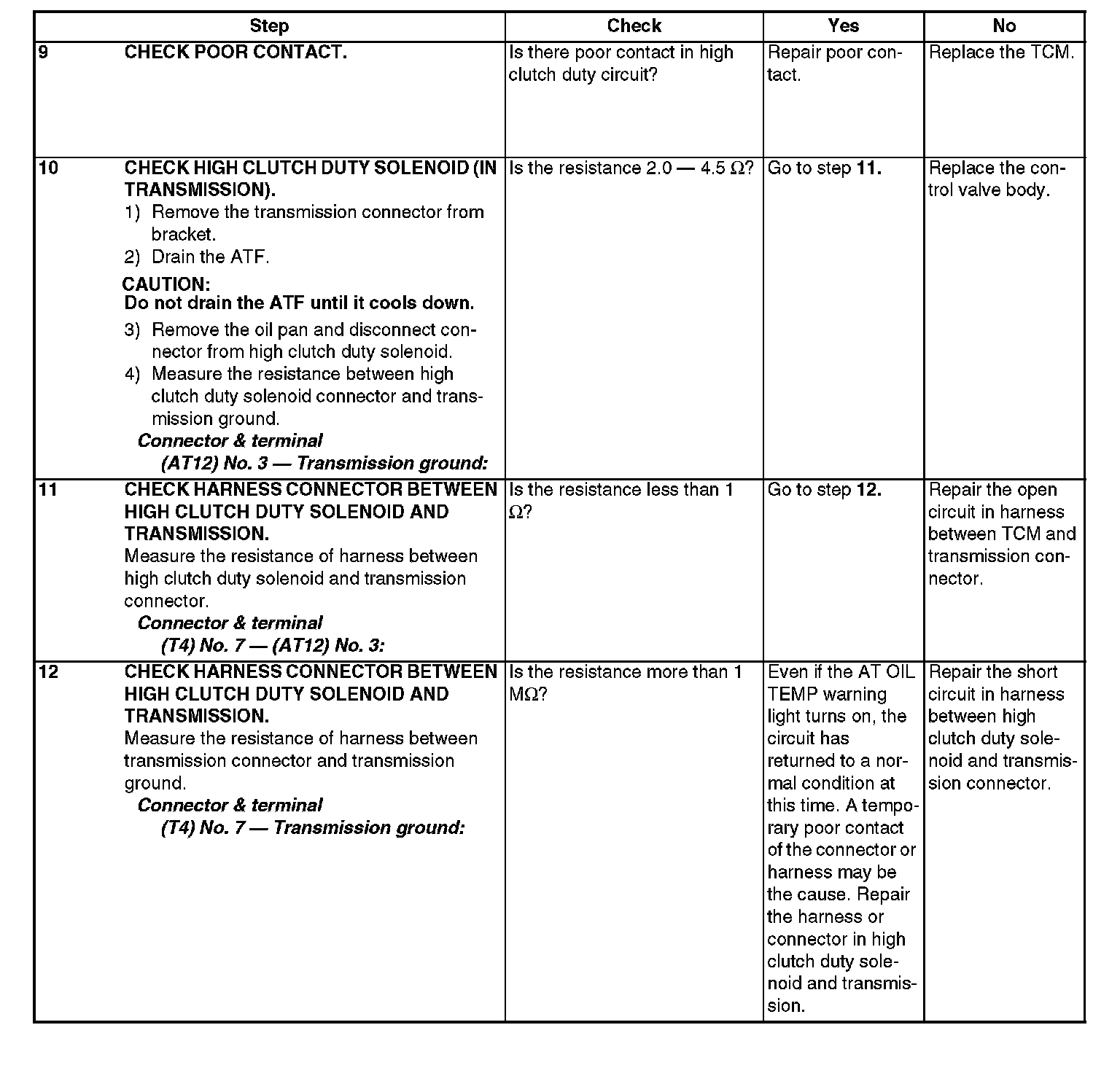

Steps 9-12:

DIAGNOSIS:
The output signal circuit of high clutch duty solenoid is open or shorted.

TROUBLE SYMPTOM:
Excessive shift shock.

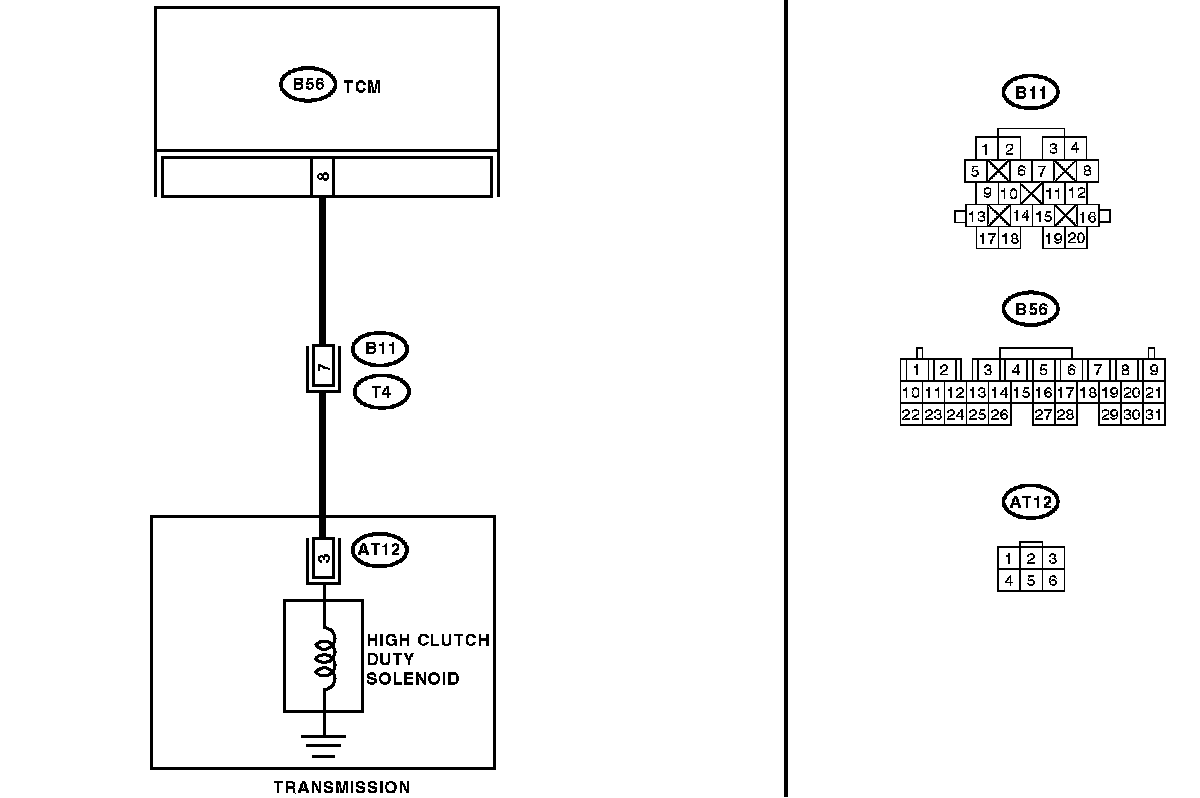

WIRING DIAGRAM
