P0753

DTC P0753 - SHIFT SOLENOID "A" ELECTRICAL -

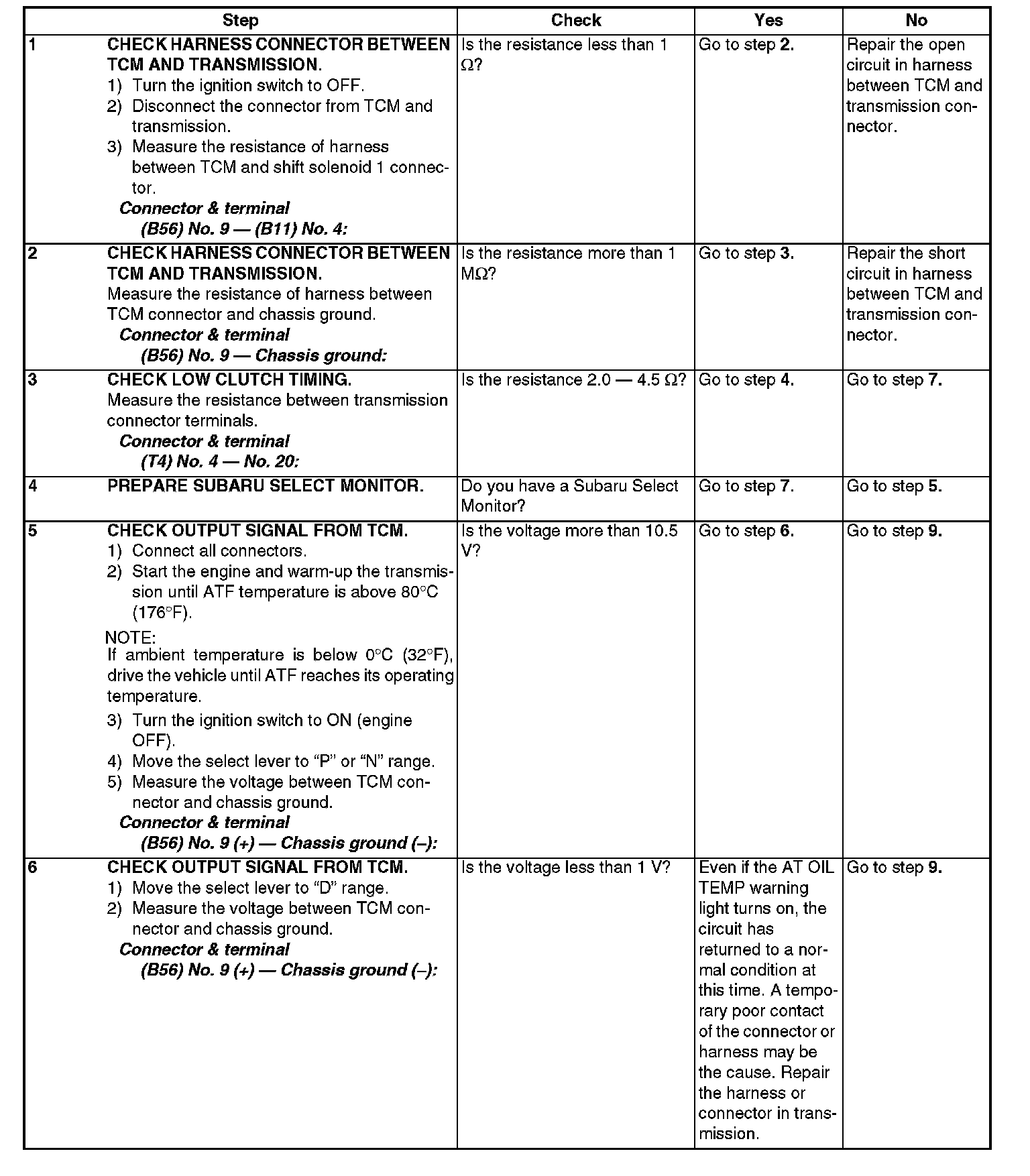

Steps 1-6:

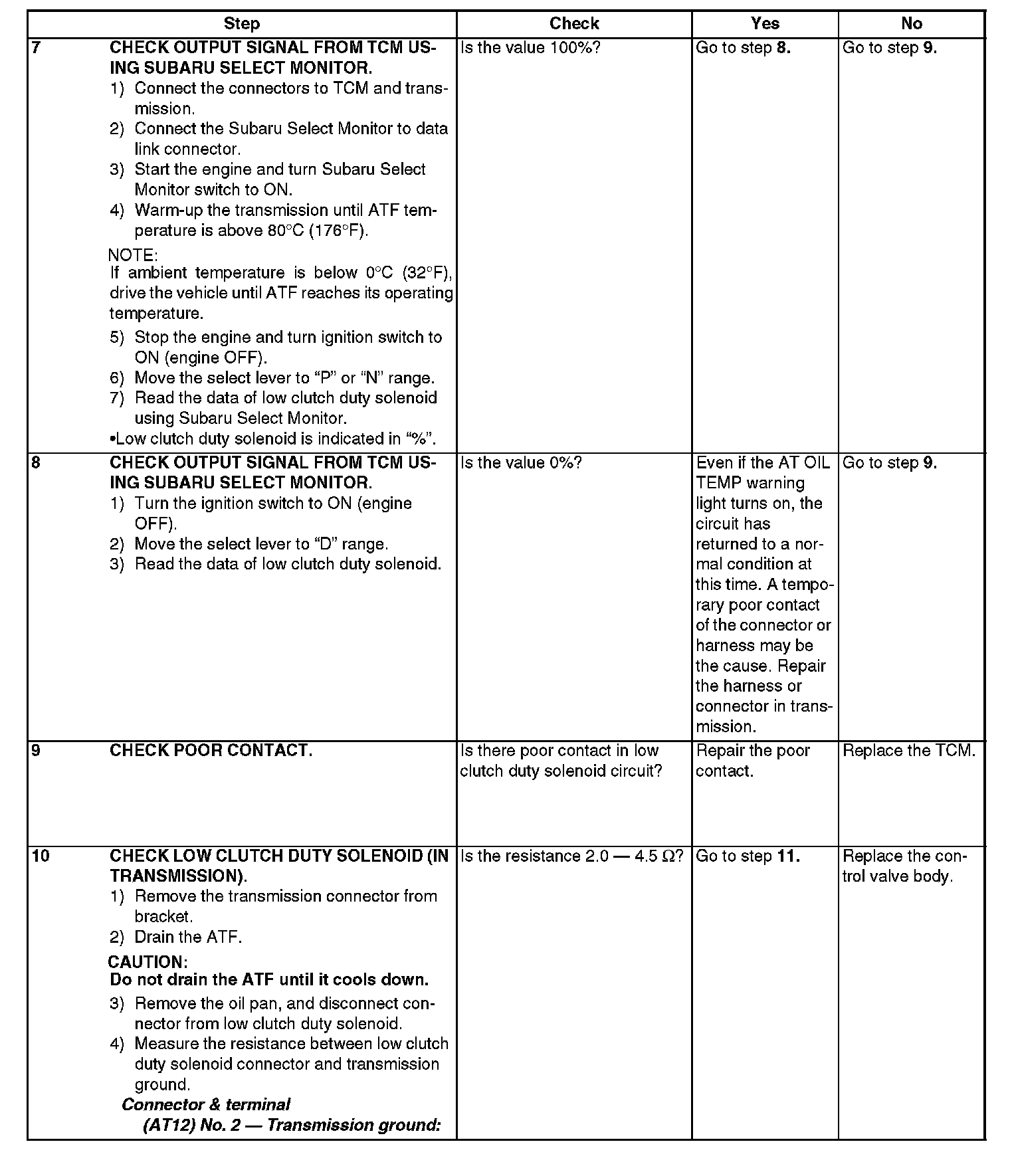

Steps 7-10:

Steps 11 & 12:

DIAGNOSIS:
The output signal circuit of low clutch timing solenoid is open or shorted.

TROUBLE SYMPTOM:
Excessive shift shock.

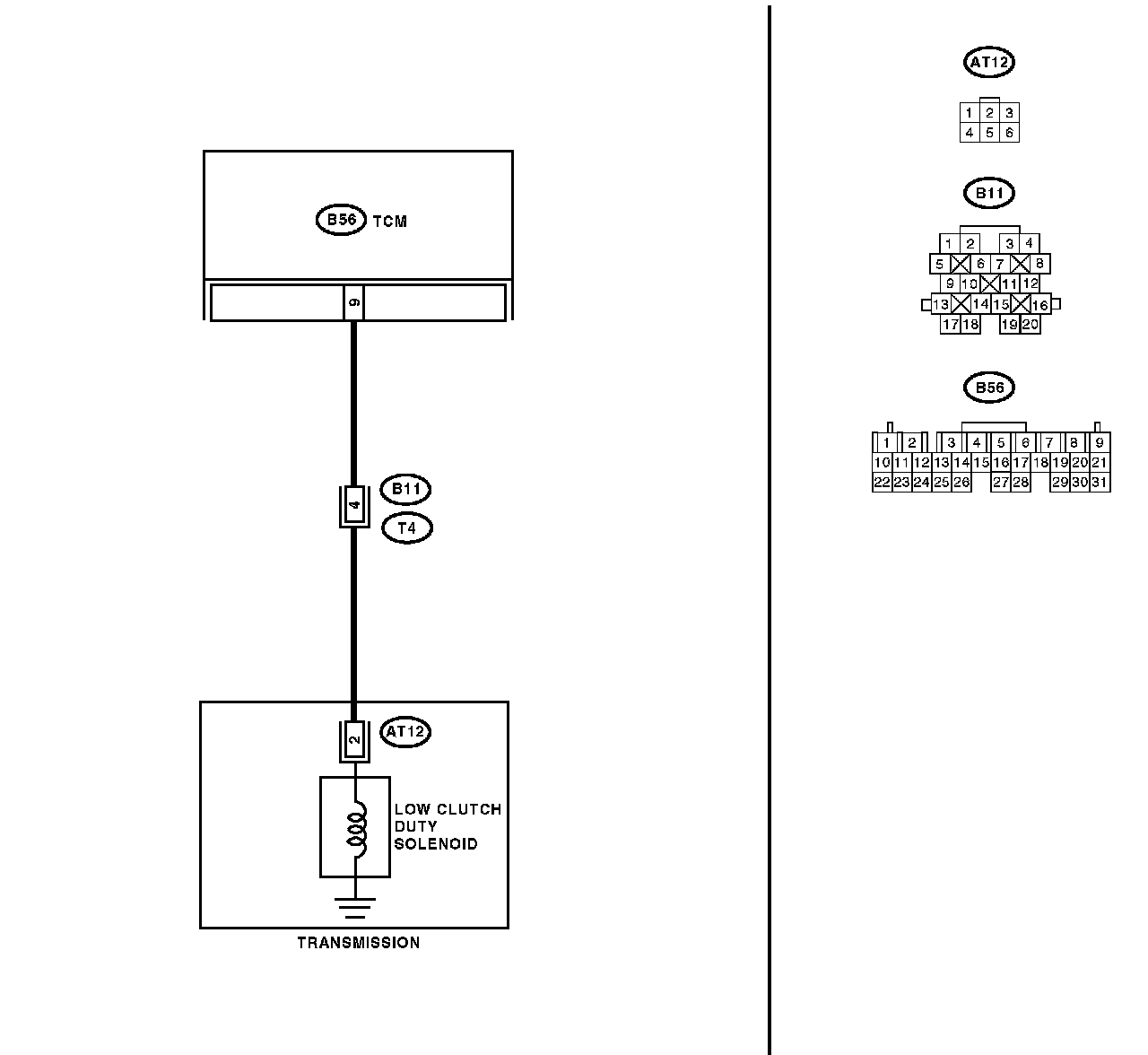

WIRING DIAGRAM
