P0725

DTC P0725 -ENGINE SPEED INPUT CIRCUIT -

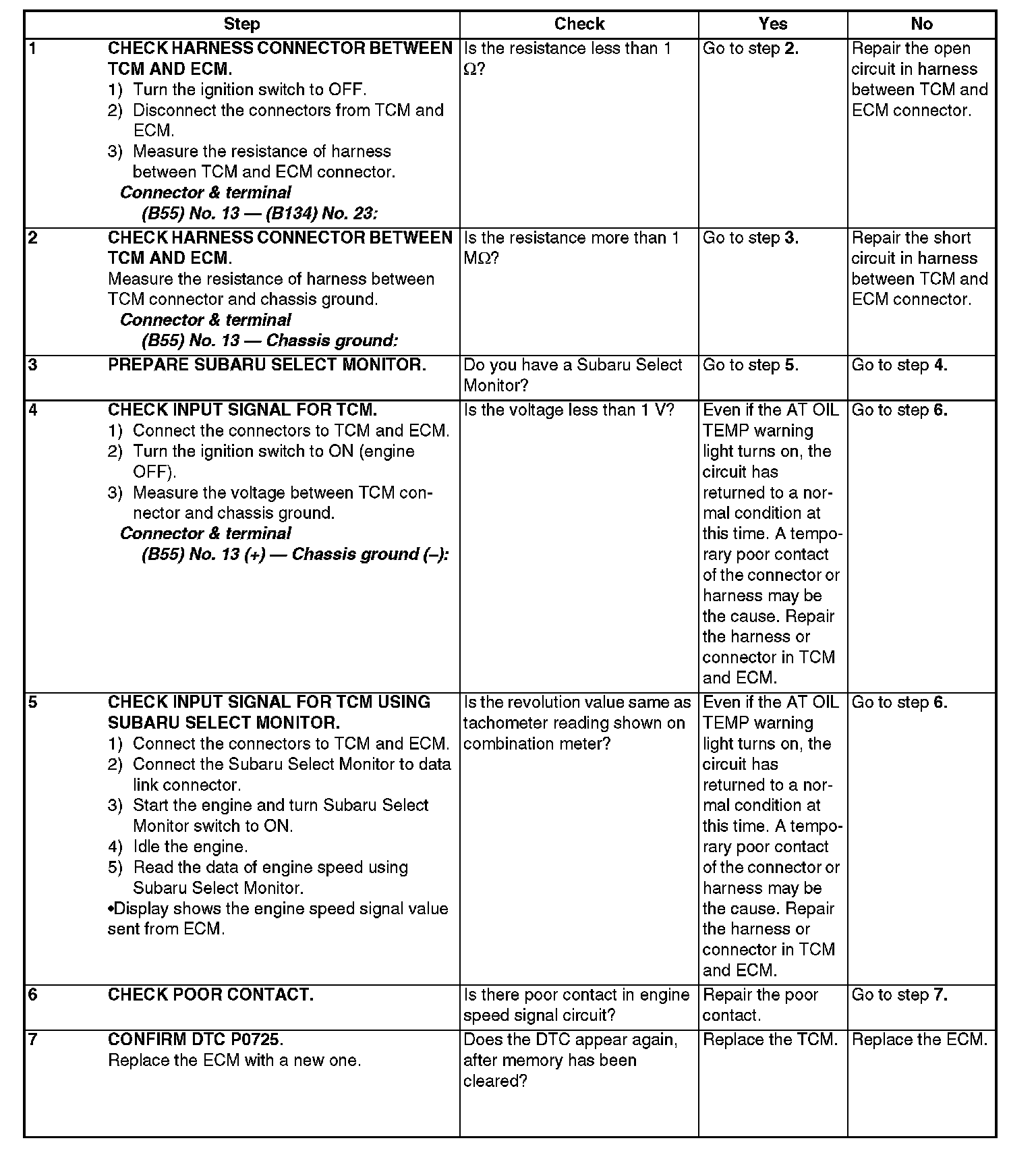

Steps 1-7:

DIAGNOSIS:
The engine speed input signal circuit is open or shorted.

TROUBLE SYMPTOM:
- No lock-up (after engine warm-up).
- The AT OIL TEMP warning light remains on when vehicle speed is "0".

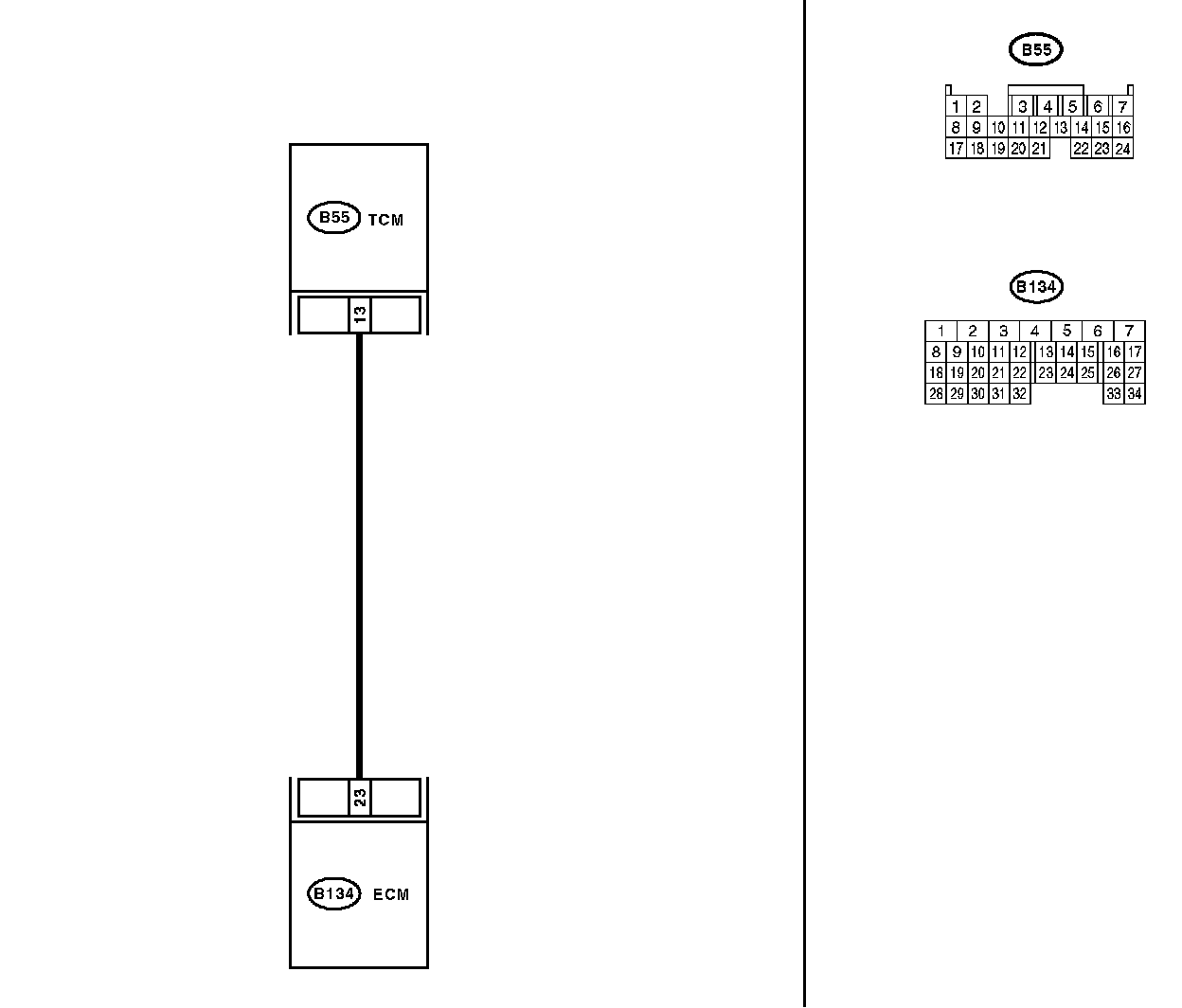

WIRING DIAGRAM
