P0724

DTC P0724 - TORQUE CONVERTER/BRAKE SWITCH "B" CIRCUIT HIGH -

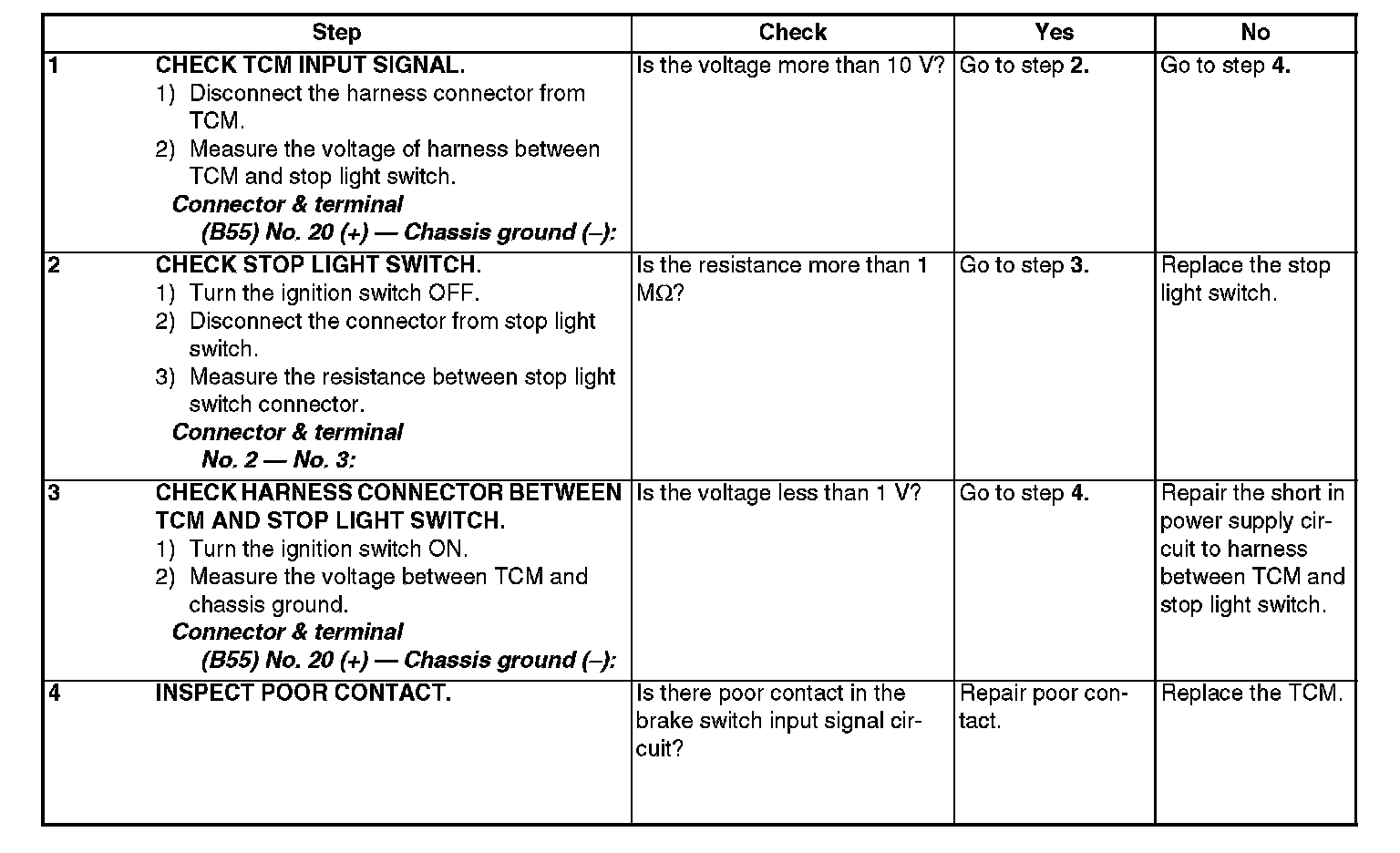

Steps 1-4:

DIAGNOSIS:
Brake switch malfunction or open brake switch input signal circuit.

TROUBLE SYMPTOM:
Gear is not shifted down when climbing hill.

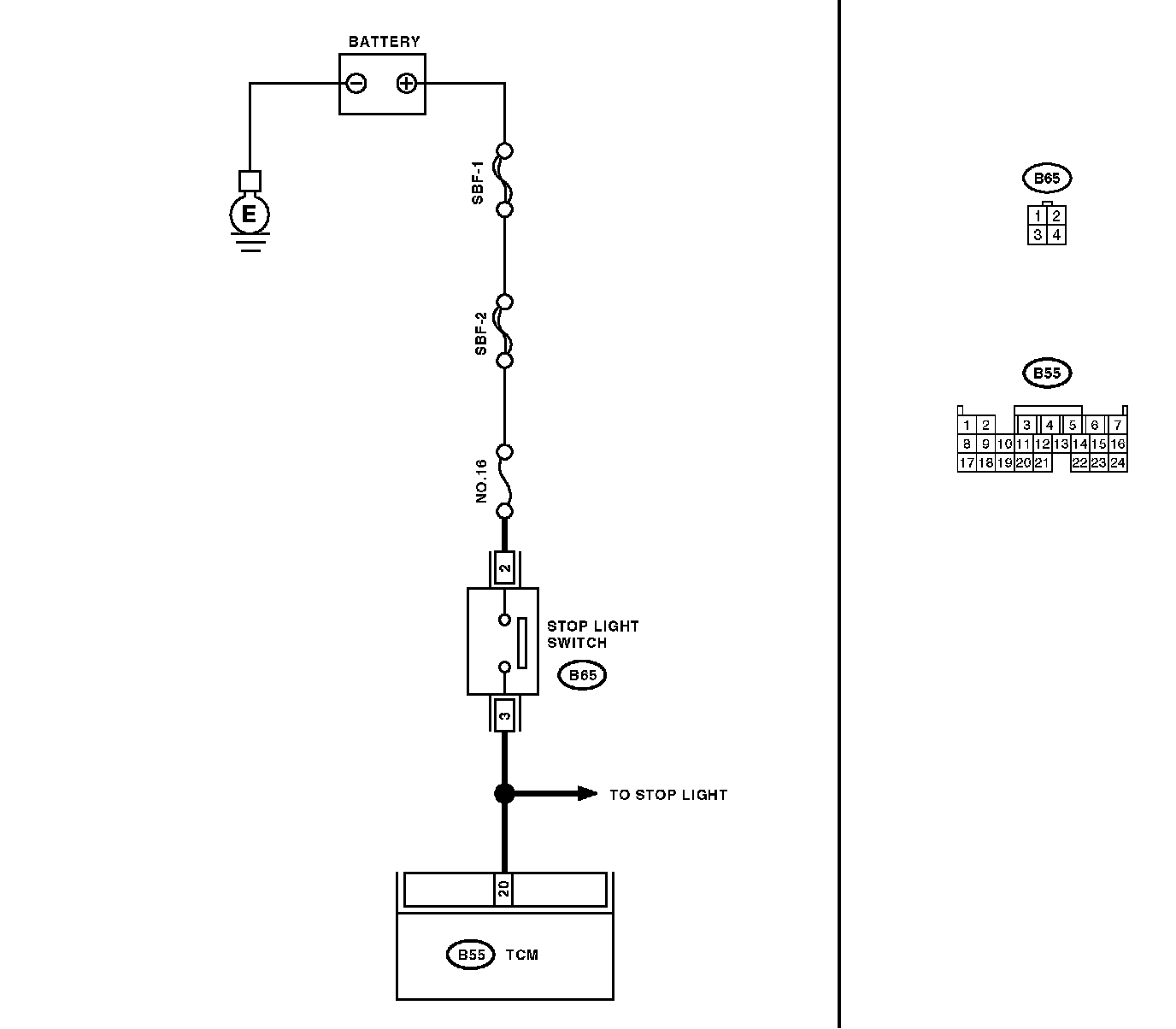

WIRING DIAGRAM
