P0720

DTC P0720 - AT VEHICLE SPEED SENSOR CIRCUIT -

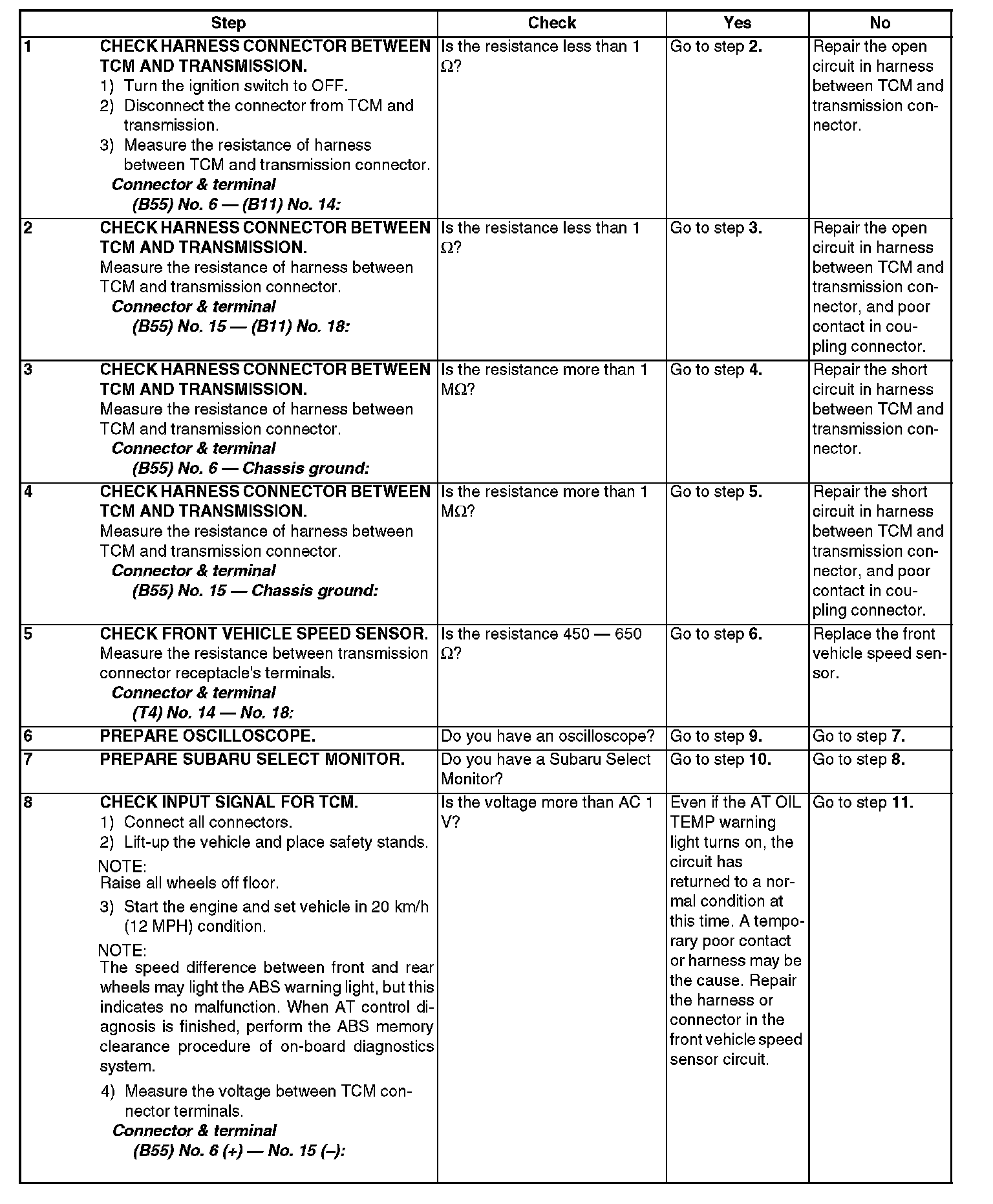

Steps 1-8:

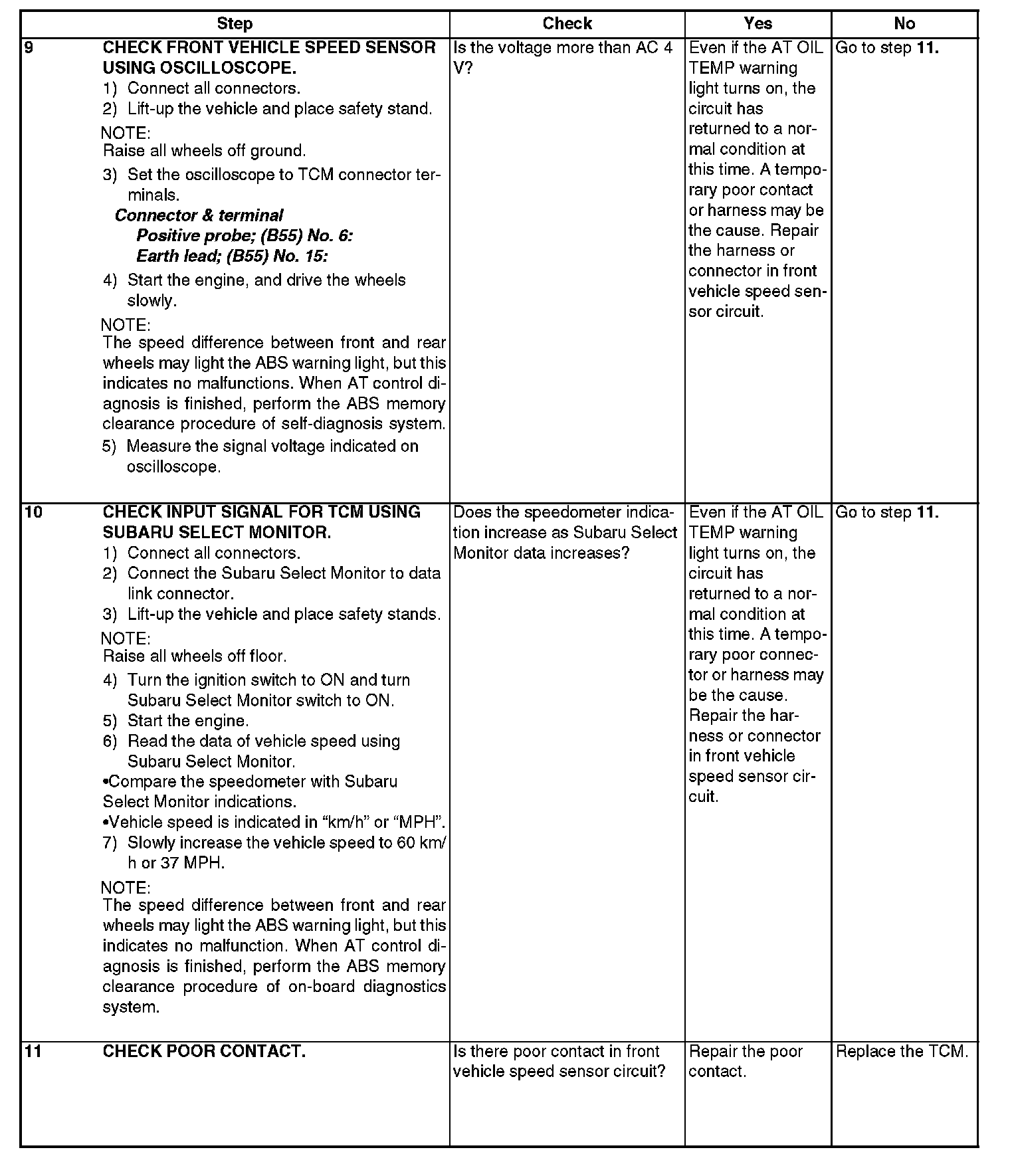

Steps 9-11:

DIAGNOSIS:
- The vehicle speed signal is abnormal.
- The circuit in combination meter is faulty.
- The harness connector between TCM and vehicle speed sensor is in short or open.

TROUBLE SYMPTOM:
- Erroneous idling.
- Engine stalls.
- Poor driving performance.

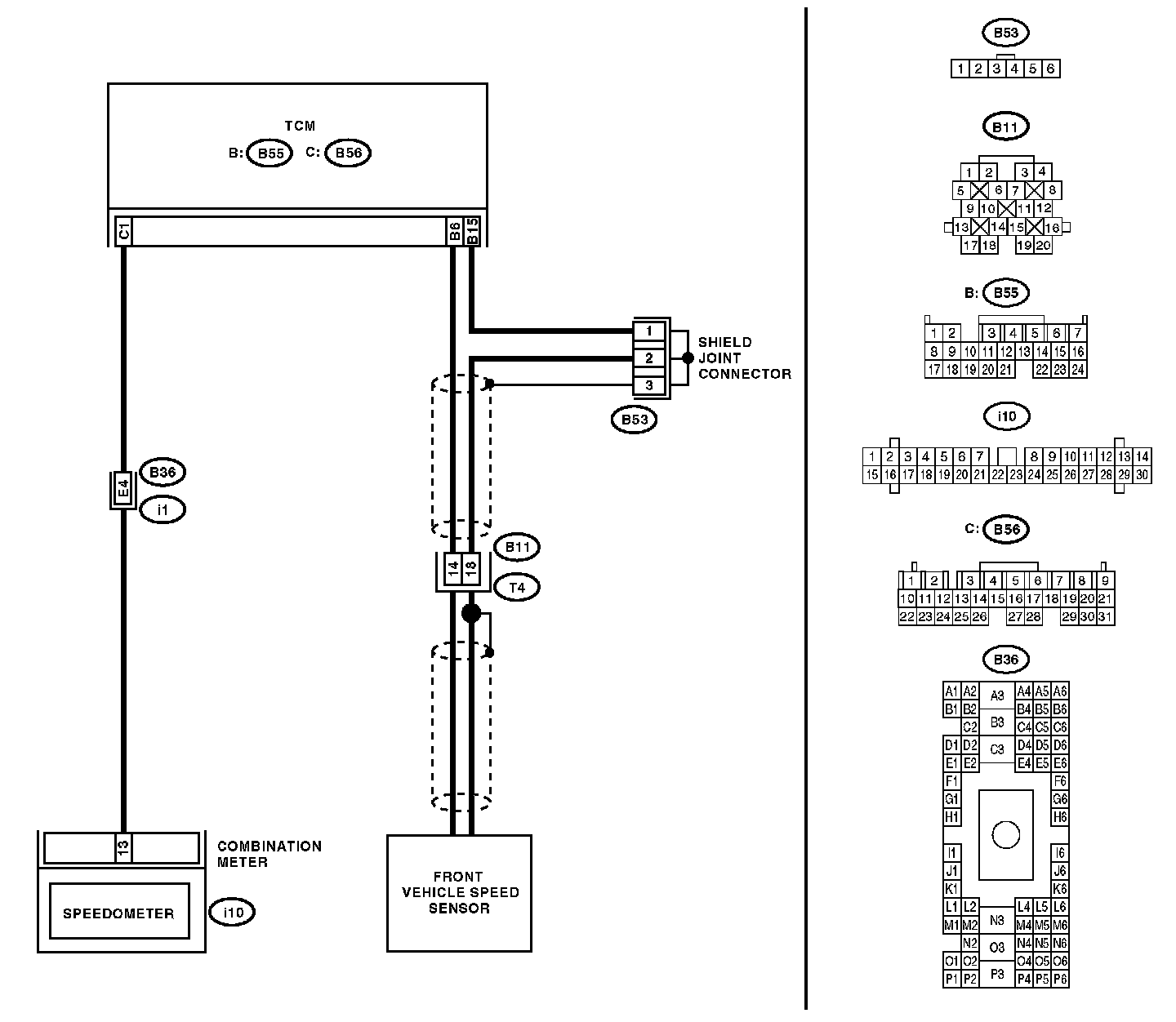

WIRING DIAGRAM
