P0712

DTC P0712 - TRANSMISSION FLUID TEMPERATURE SENSOR CIRCUIT LOW INPUT-

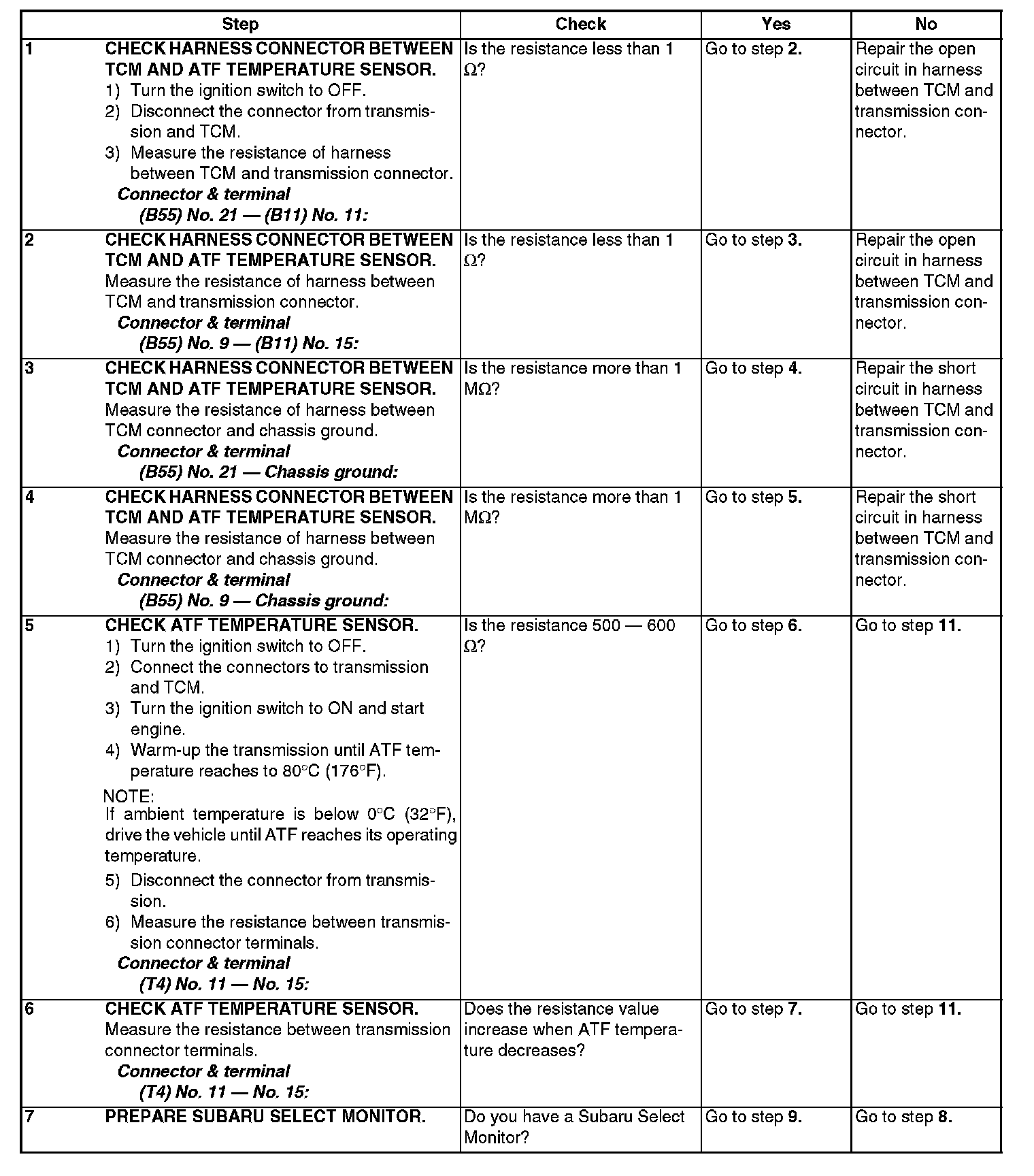

Steps 1-7:

Steps 8-11:

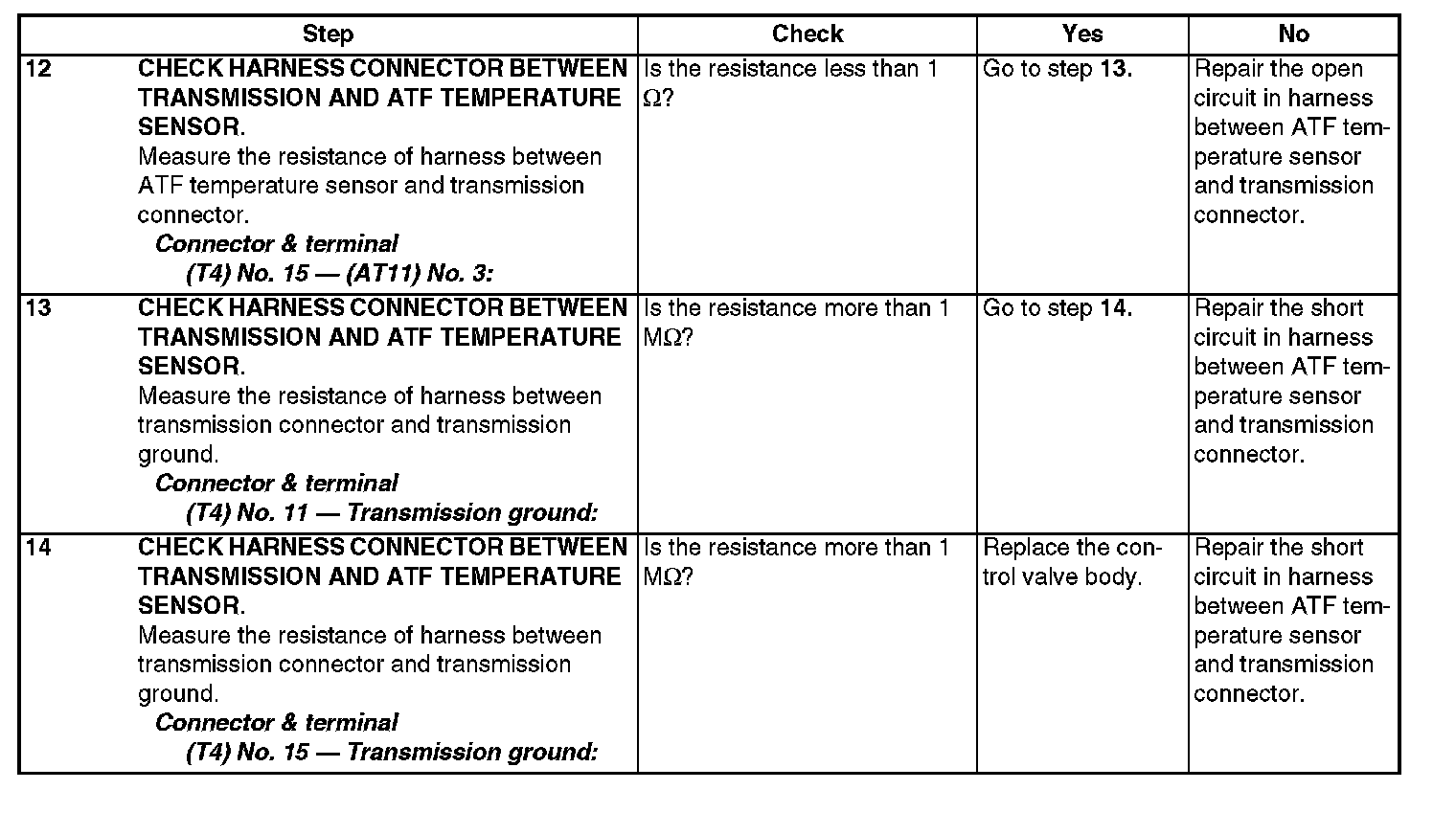

Steps 12-14:

DIAGNOSIS:
The input signal circuit of TCM to ATF temperature sensor is open or shorted.

TROUBLE SYMPTOM:
Excessive shift shock.

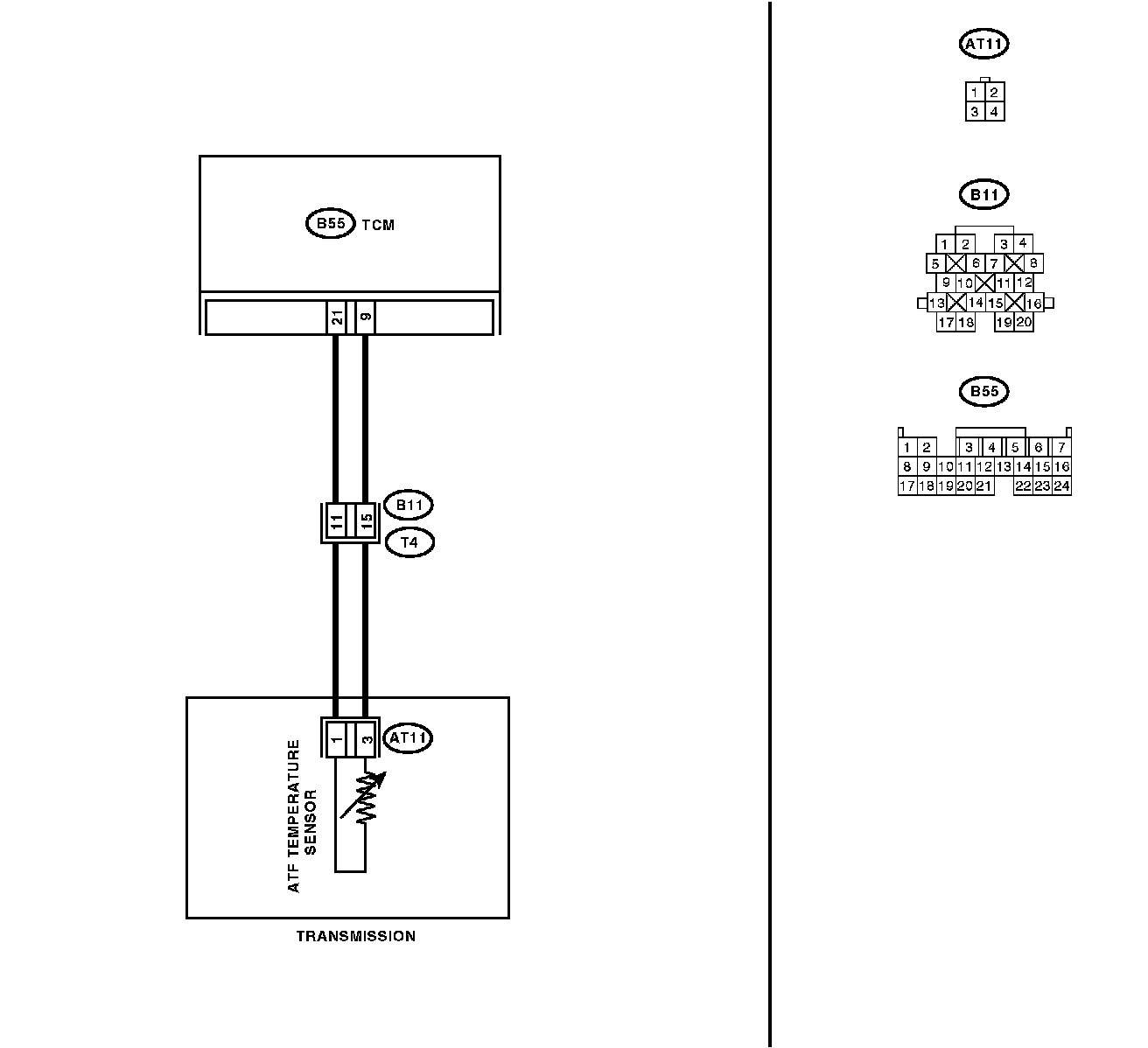

WIRING DIAGRAM
