P0183

DTC P0183 - FUEL TEMPERATURE SENSOR "A" CIRCUIT HIGH INPUT

DTC DETECTING CONDITION
Detected simultaneously at fault occurrence

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

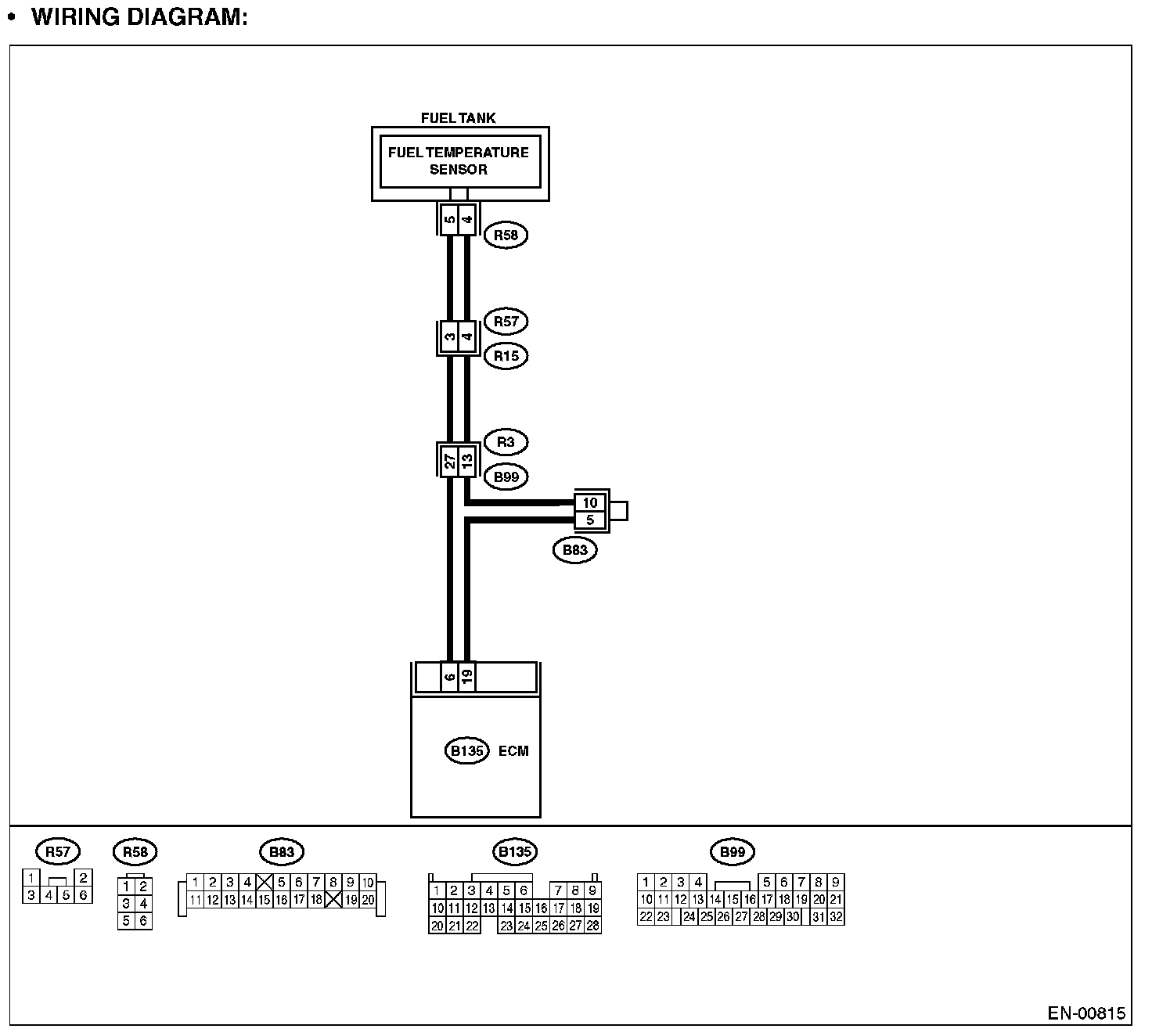

Wiring Diagram:

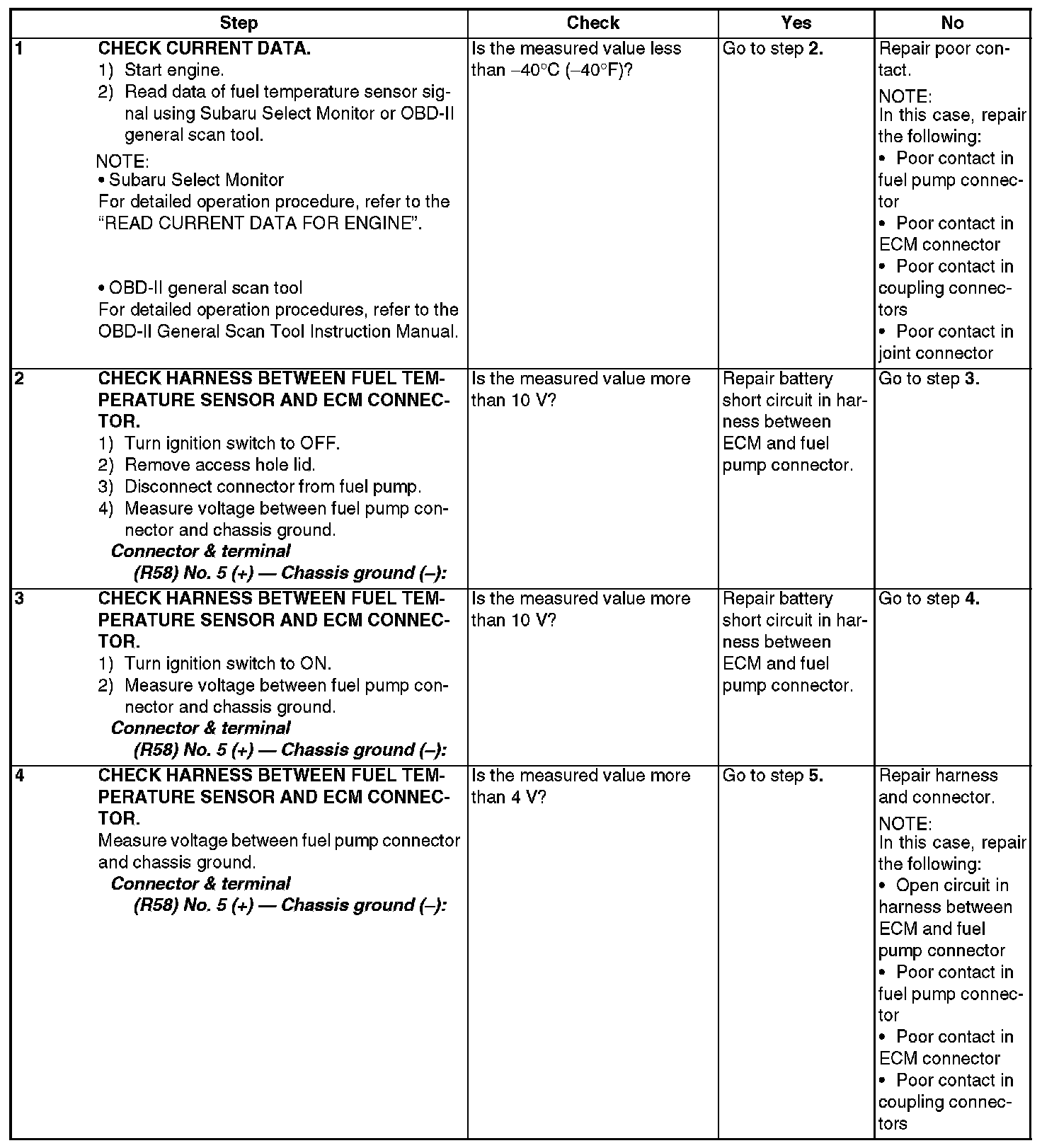

Step 1 - 4:

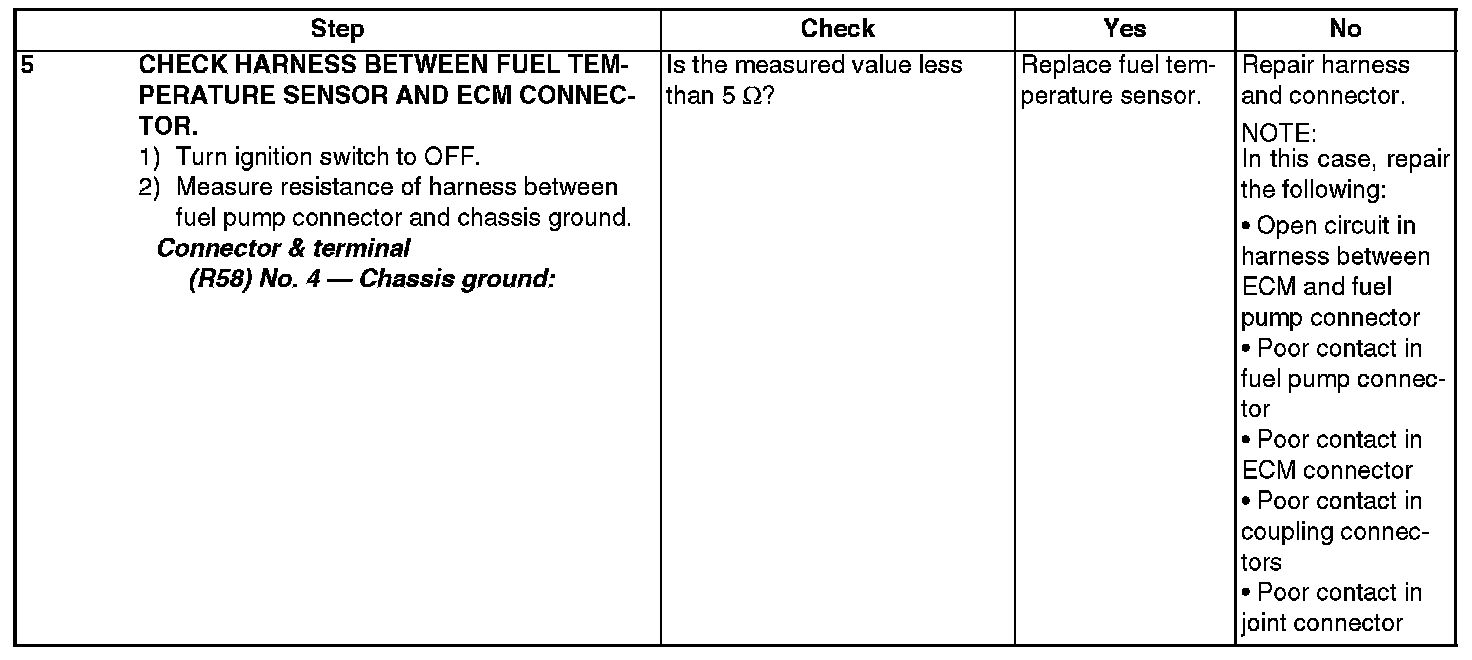

Step 5:
