P0118

DTC P0118 - ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT

DTC DETECTING CONDITION
Detected simultaneously at fault occurrence

TROUBLE SYMPTOM
- Hard to start
- Erroneous idling
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

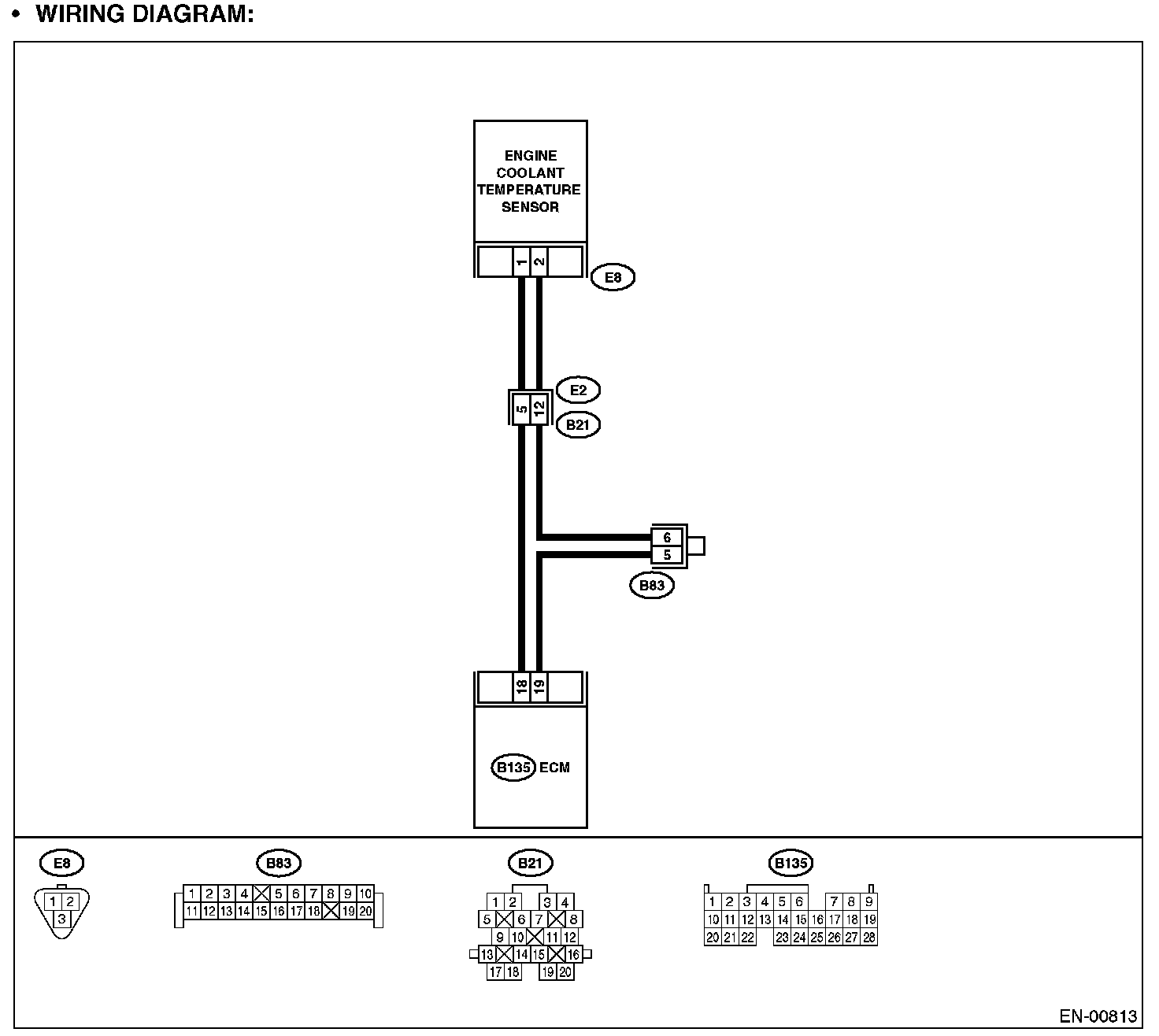

Wiring Diagram:

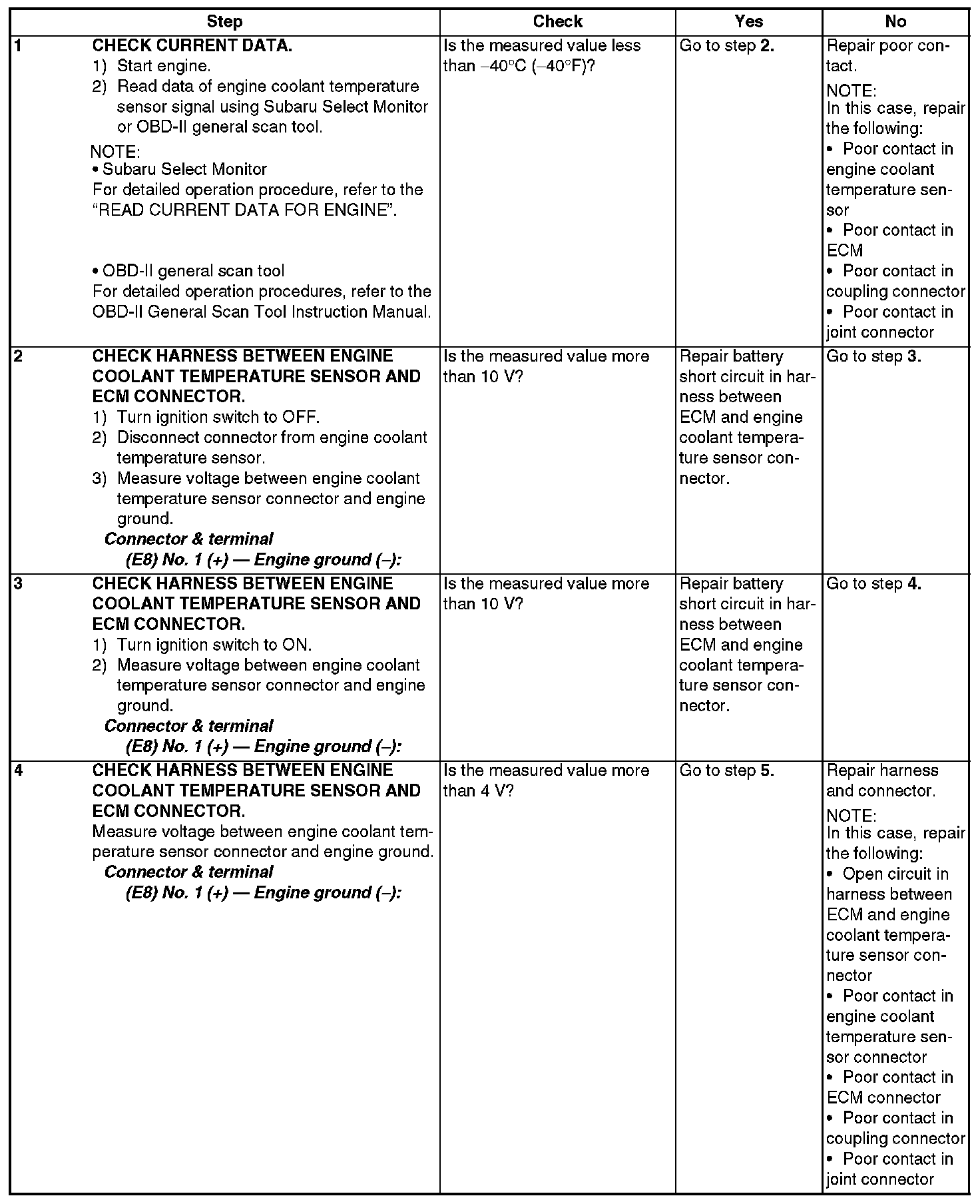

Step 1 - 4:

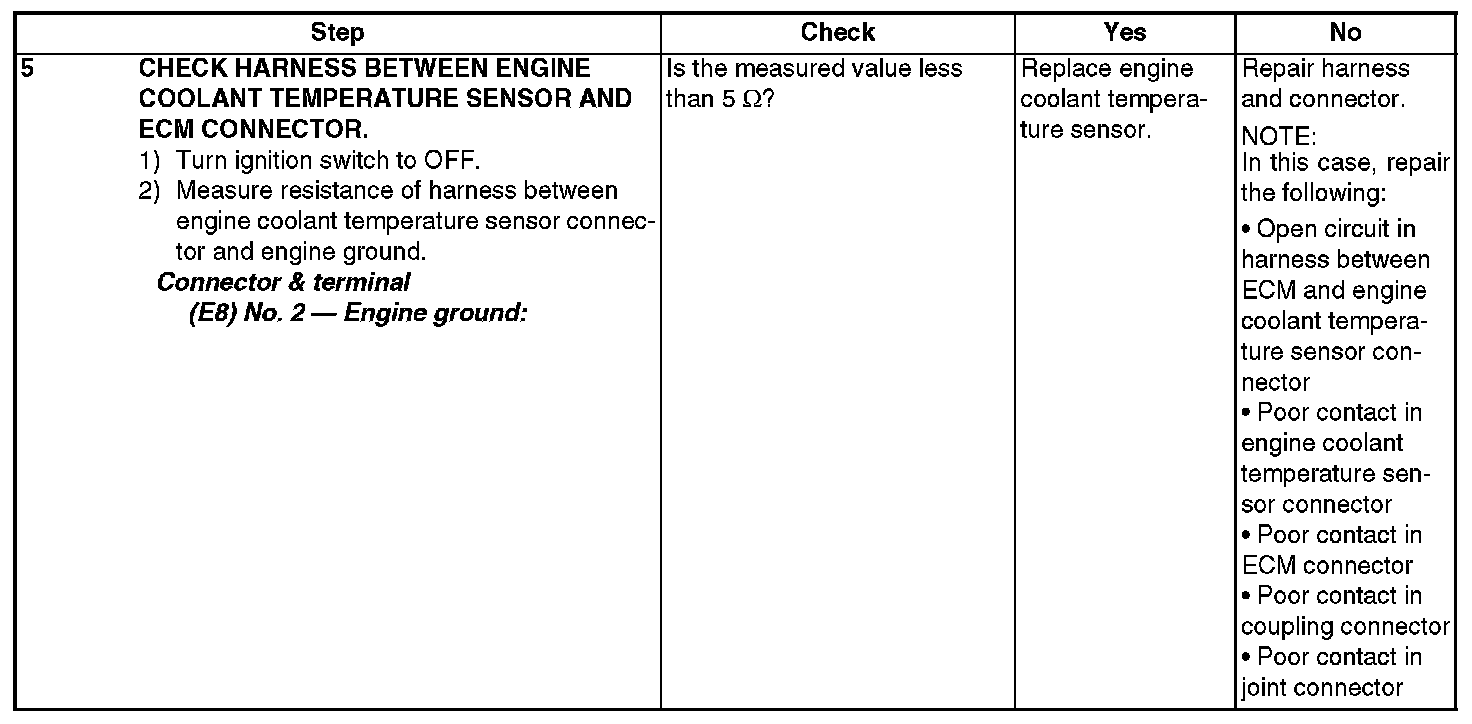

Step 5:
