P0108
DTC P0108 - MANIFOLD ABSOLUTE PRESSURE/BAROMETRIC PRESSURE CIRCUIT HIGH INPUTDTC DETECTING CONDITION
Detected simultaneously at fault occurrence
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

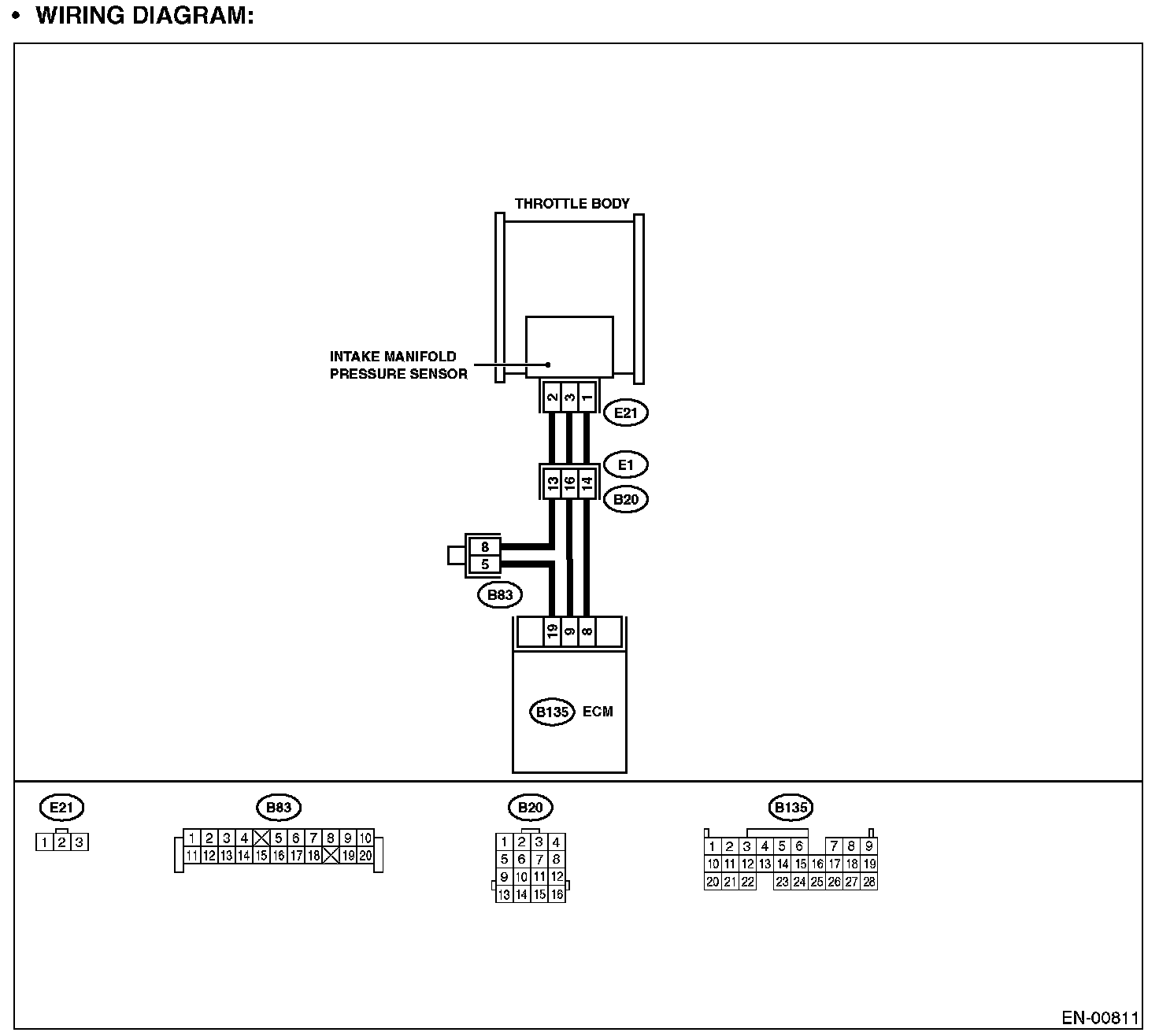

Wiring Diagram:

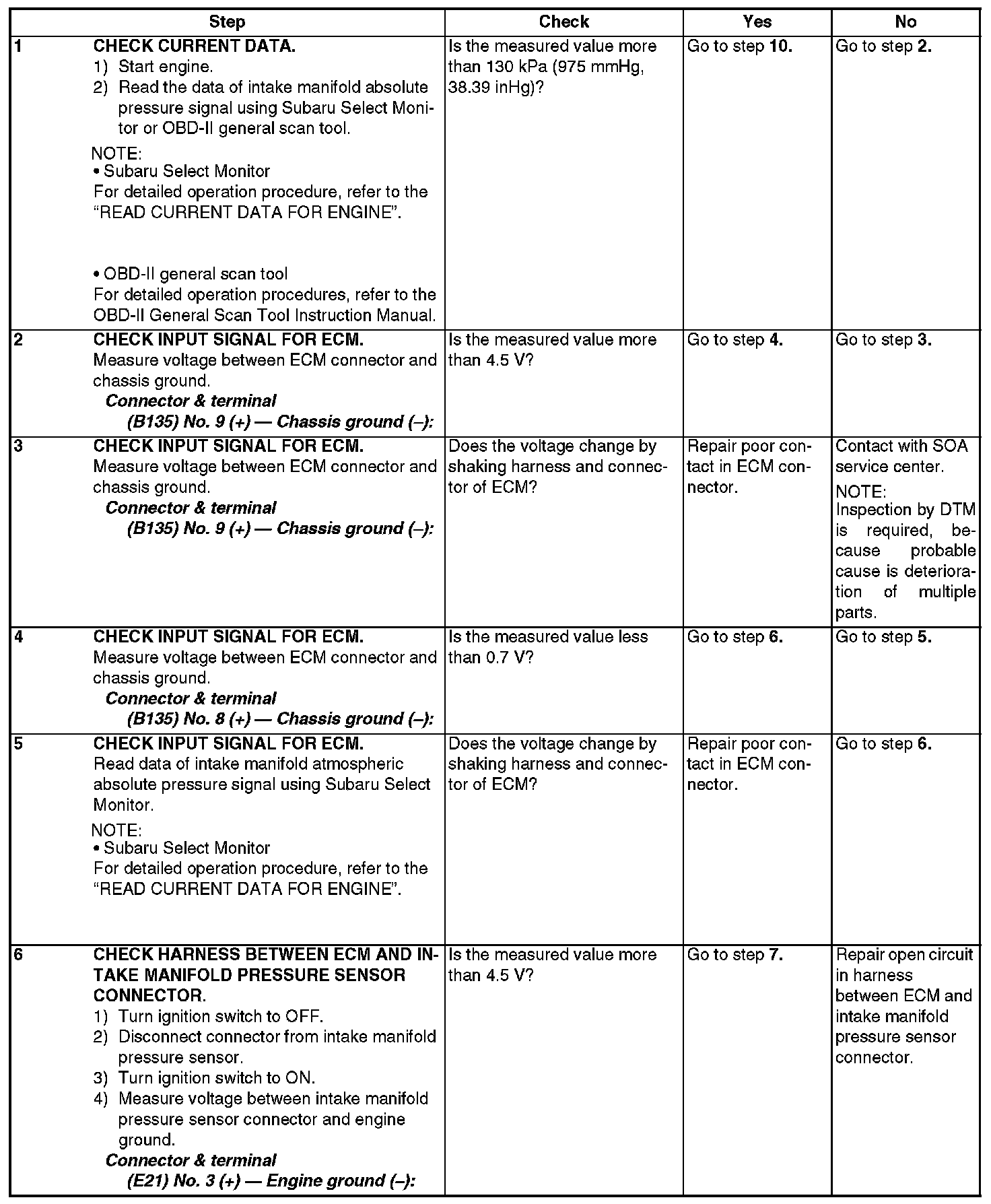

Step 1 - 6:

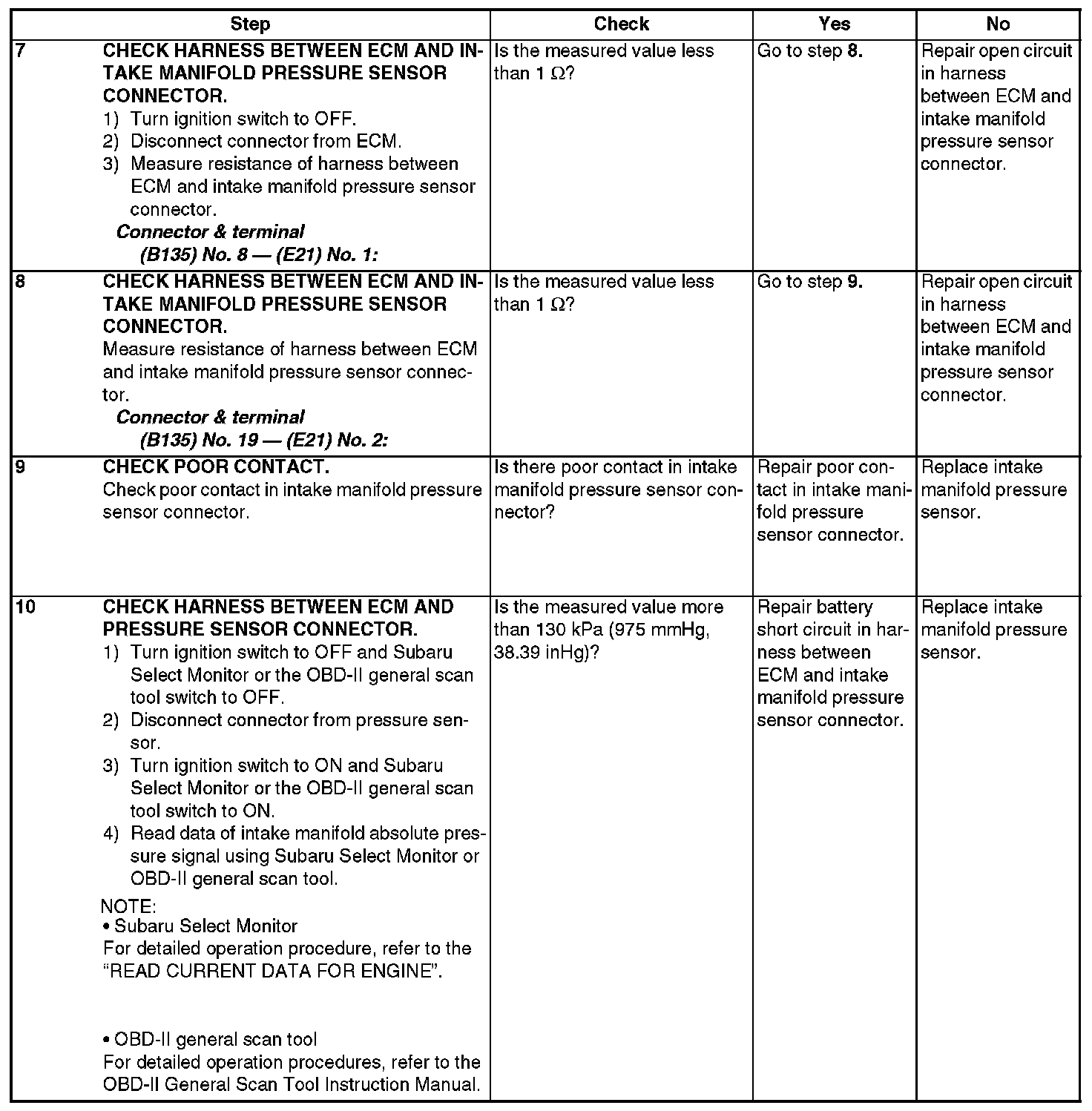

Step 7 - 10:
