P0107

DTC P0107 - MANIFOLD ABSOLUTE PRESSURE/BAROMETRIC PRESSURE CIRCUIT LOW INPUT

DTC DETECTING CONDITION
Detected simultaneously at fault occurrence

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

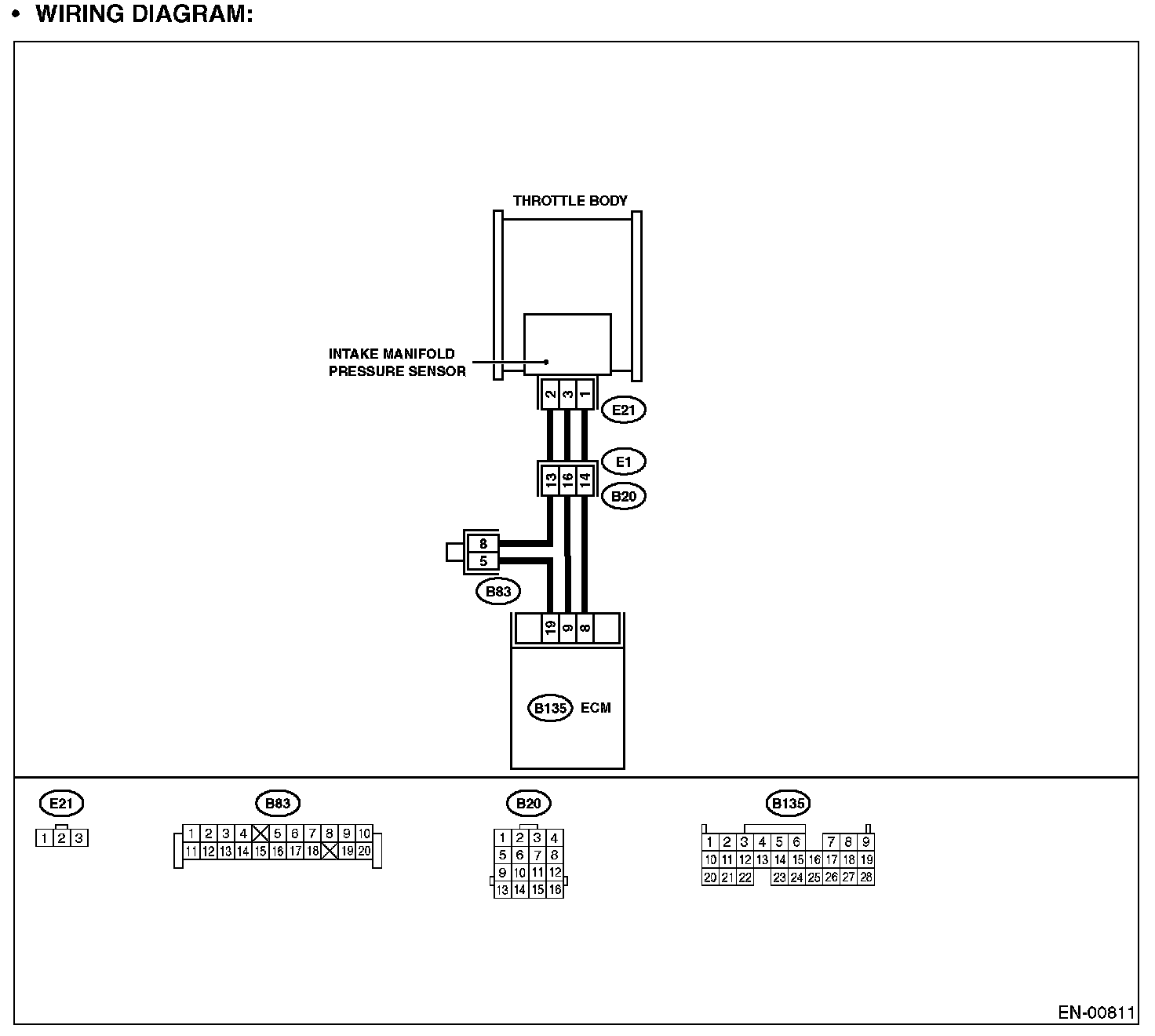

Wiring Diagram:

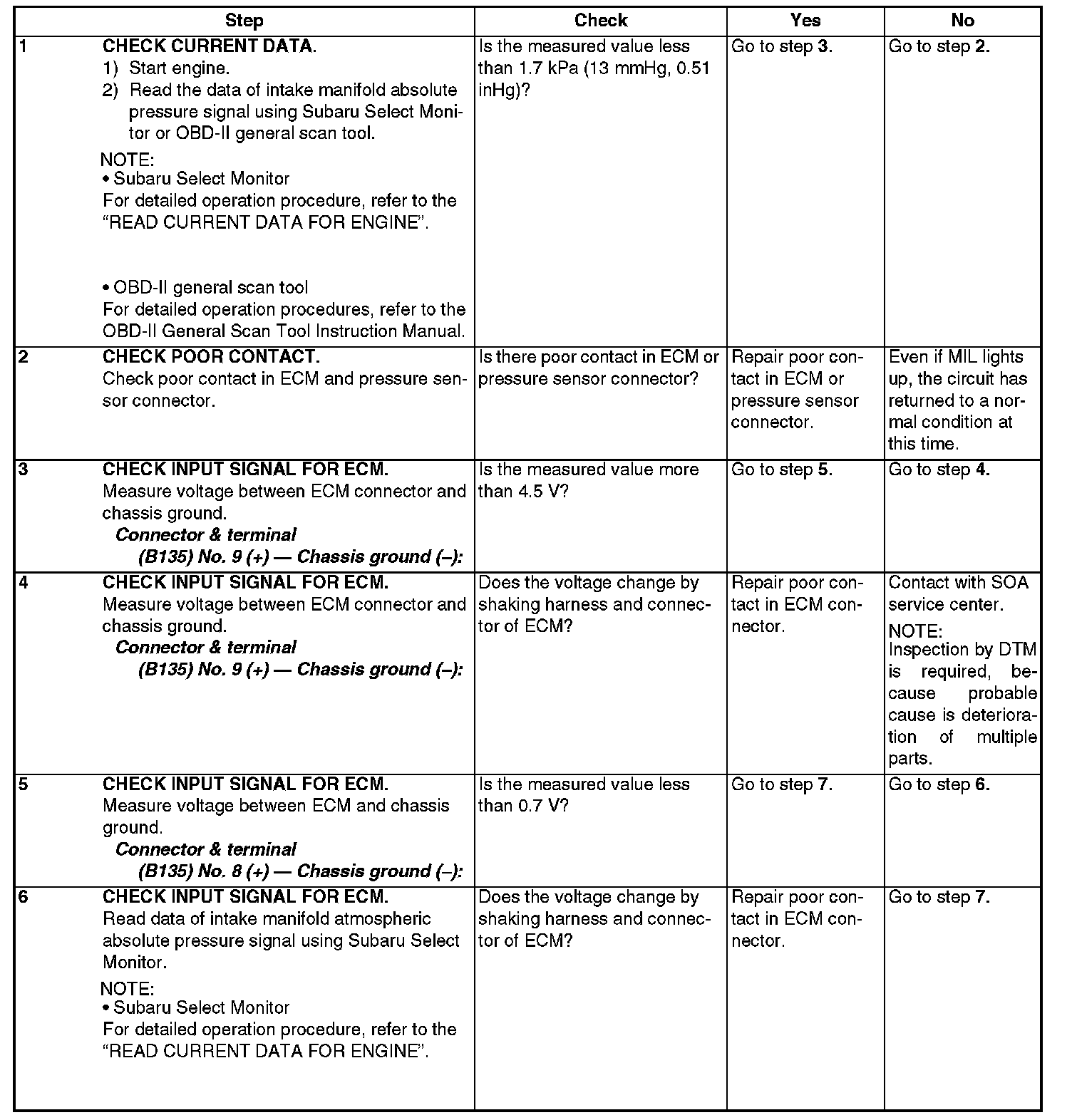

Step 1 - 6:

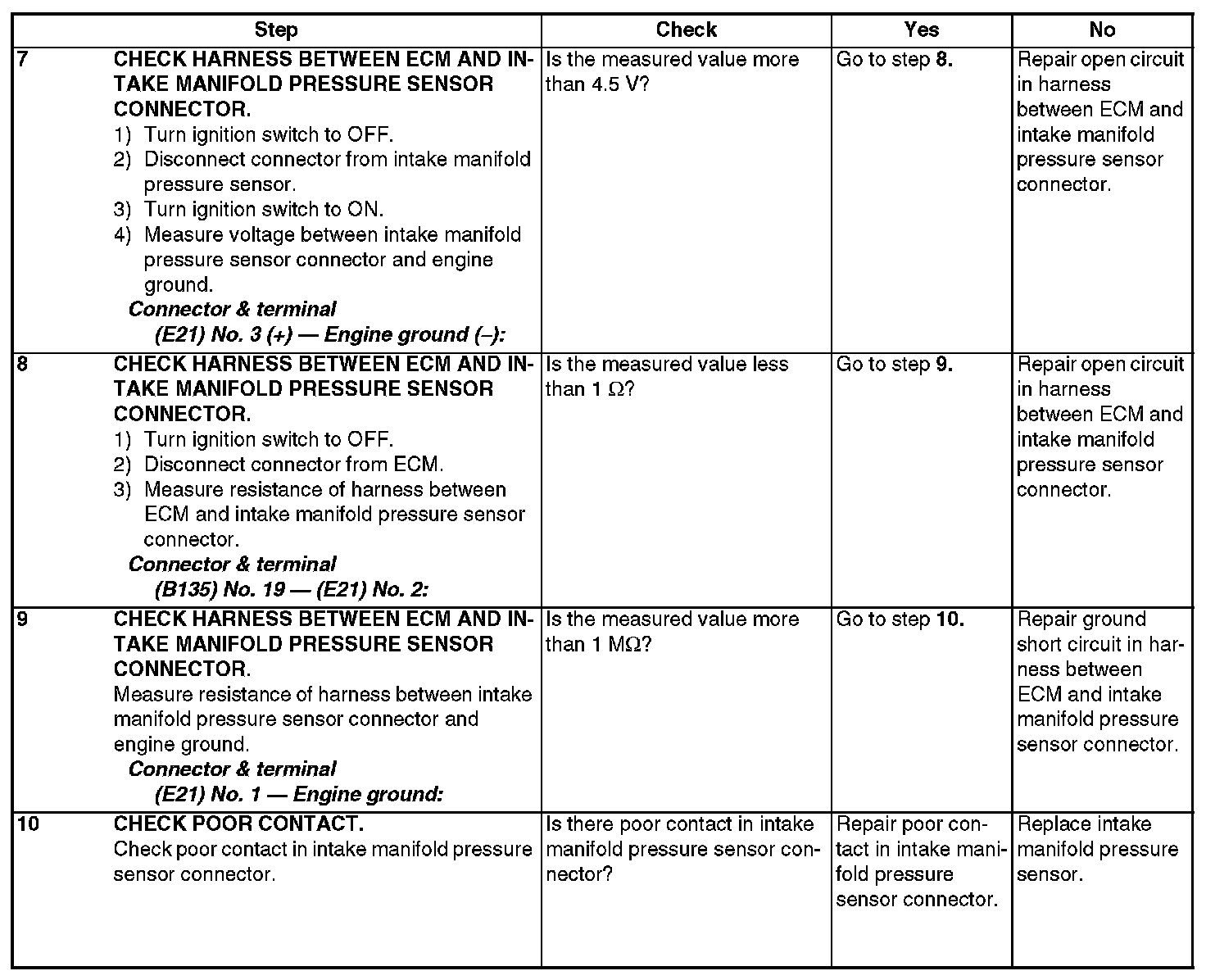

Step 7 - 10:
