P0051

DTC P0051 - HO2S HEATER CONTROL CIRCUIT LOW (BANK 2 SENSOR 1)

DTC DETECTING CONDITION
Detected simultaneously at fault occurrence

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

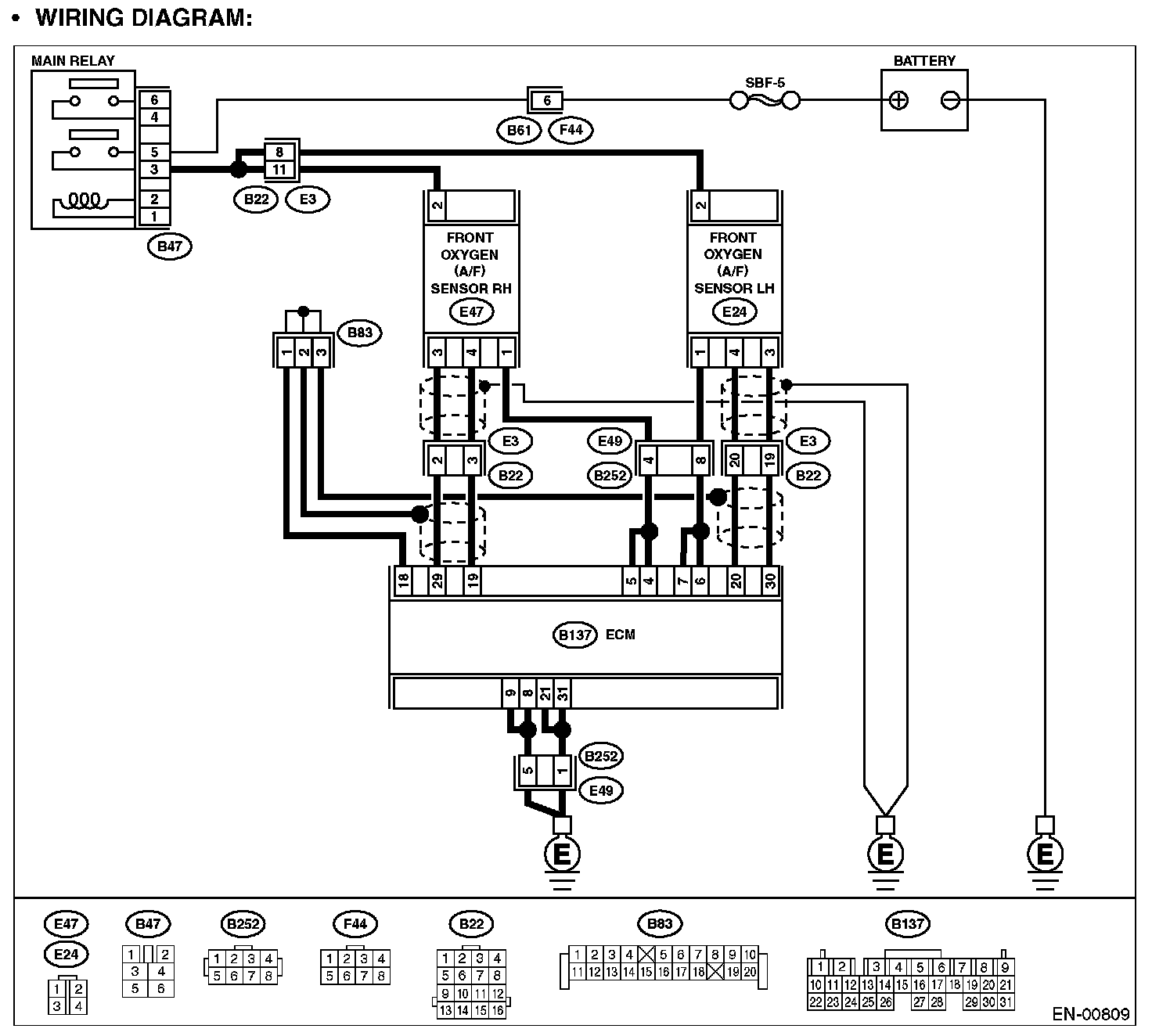

Wiring Diagram:

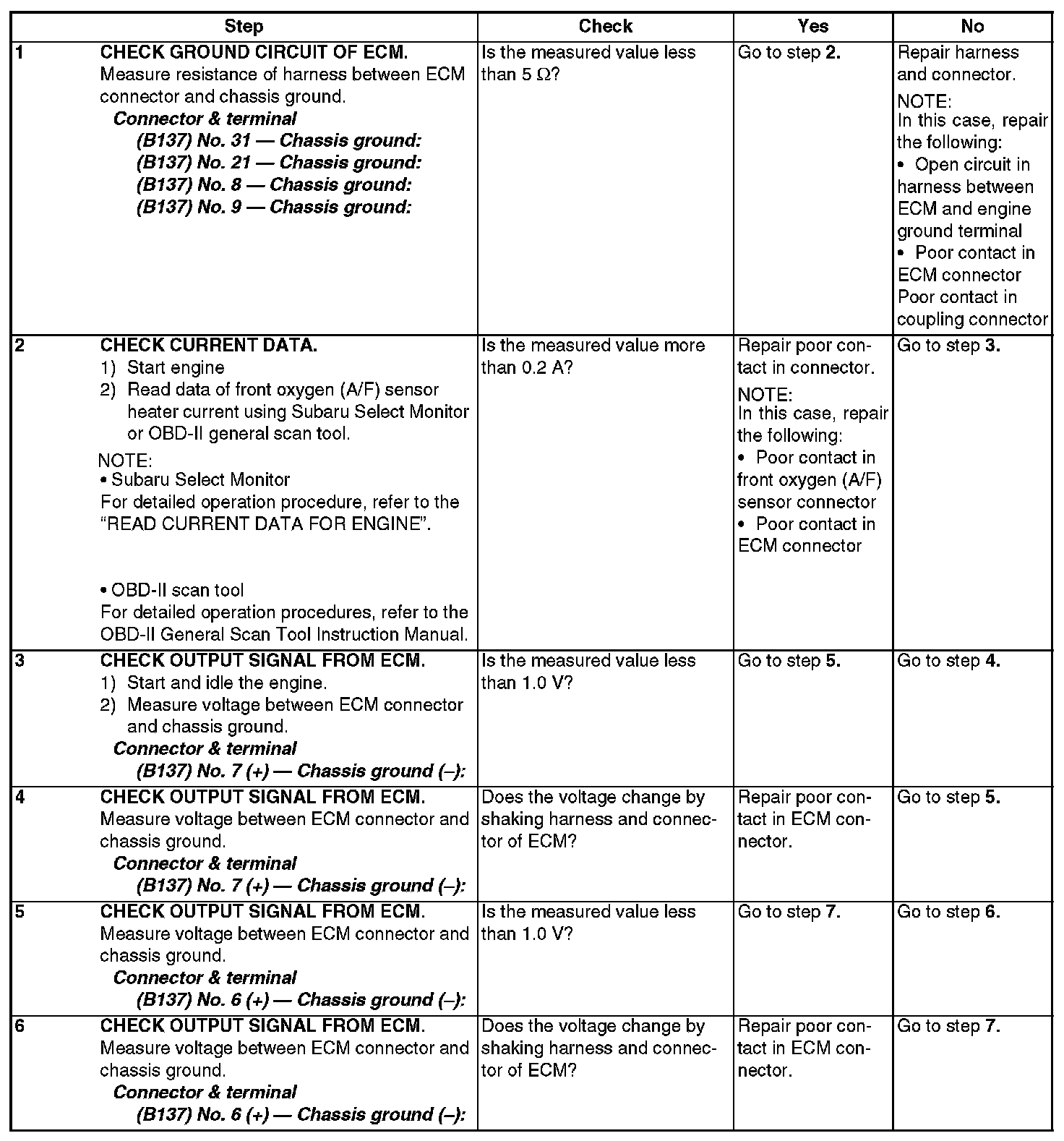

Step 1 - 6:

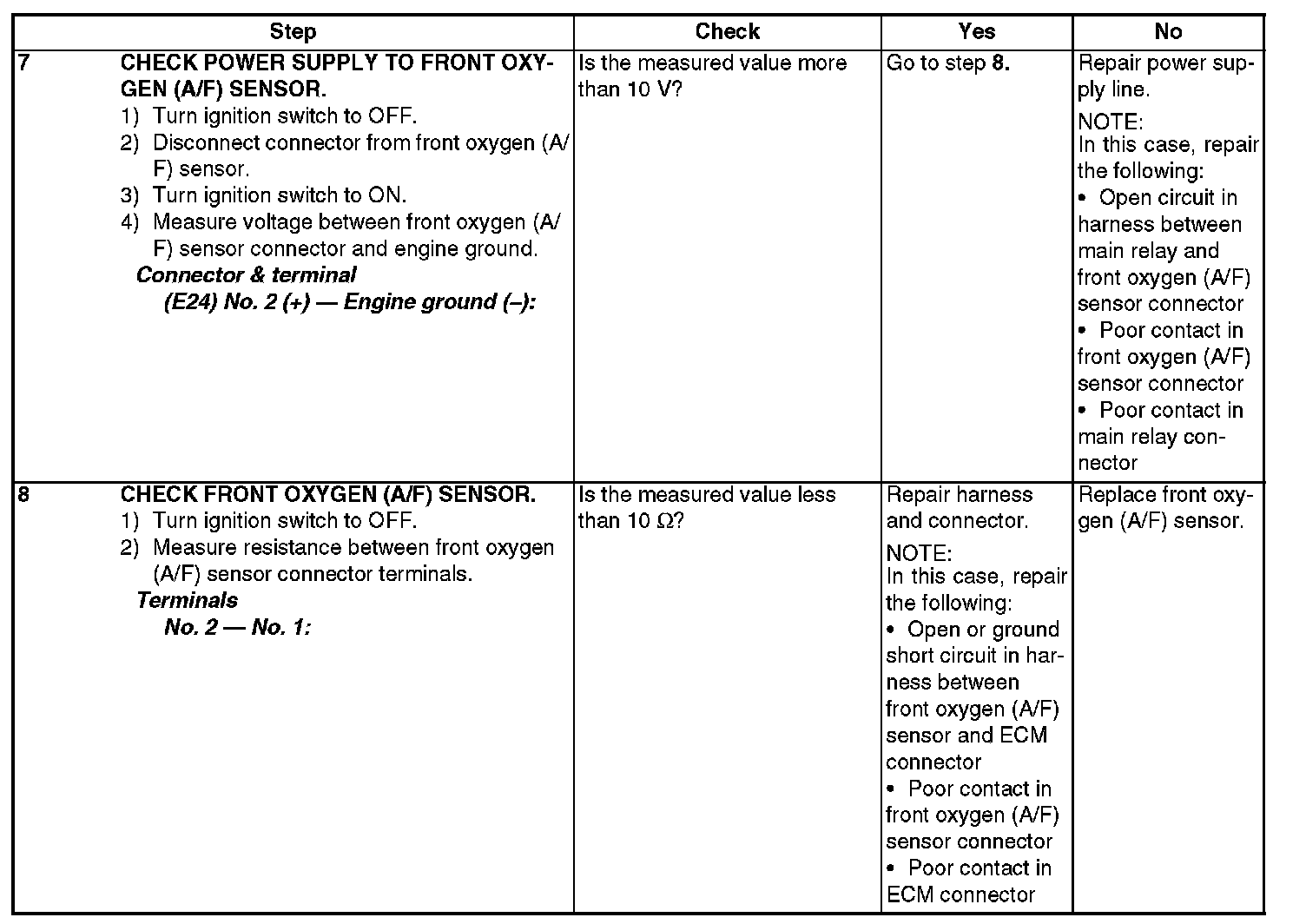

Step 7 - 8:
