Pressure Sensor 2 Offset Is Too Big.(Secondary Pressure Sensor)

DTC 74 PRESSURE SENSOR 2 OFFSET IS TOO BIG. (SECONDARY PRESSURE SENSOR)

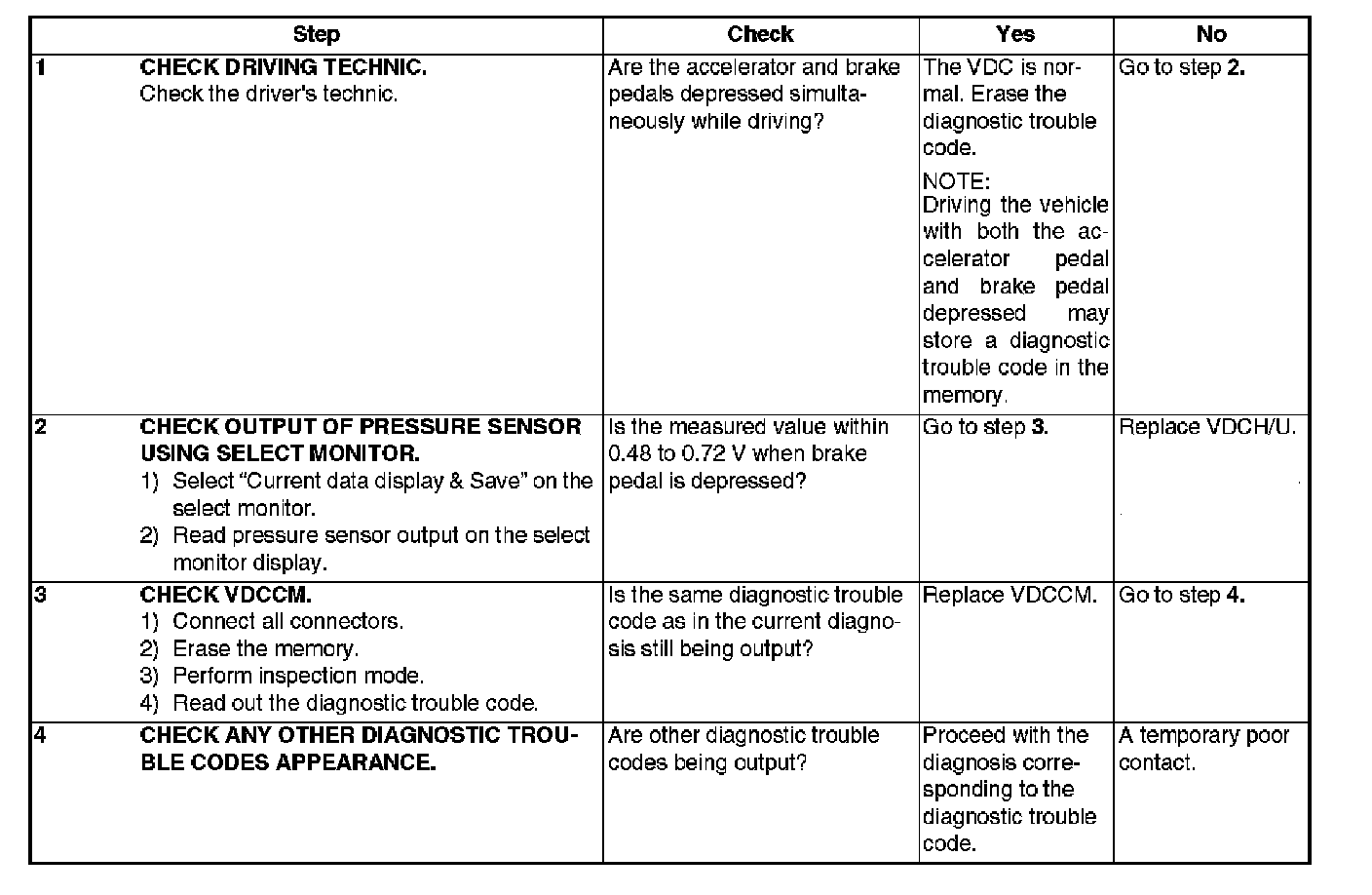

Steps 1-4:

DIAGNOSIS:
^ Faulty pressure sensor

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

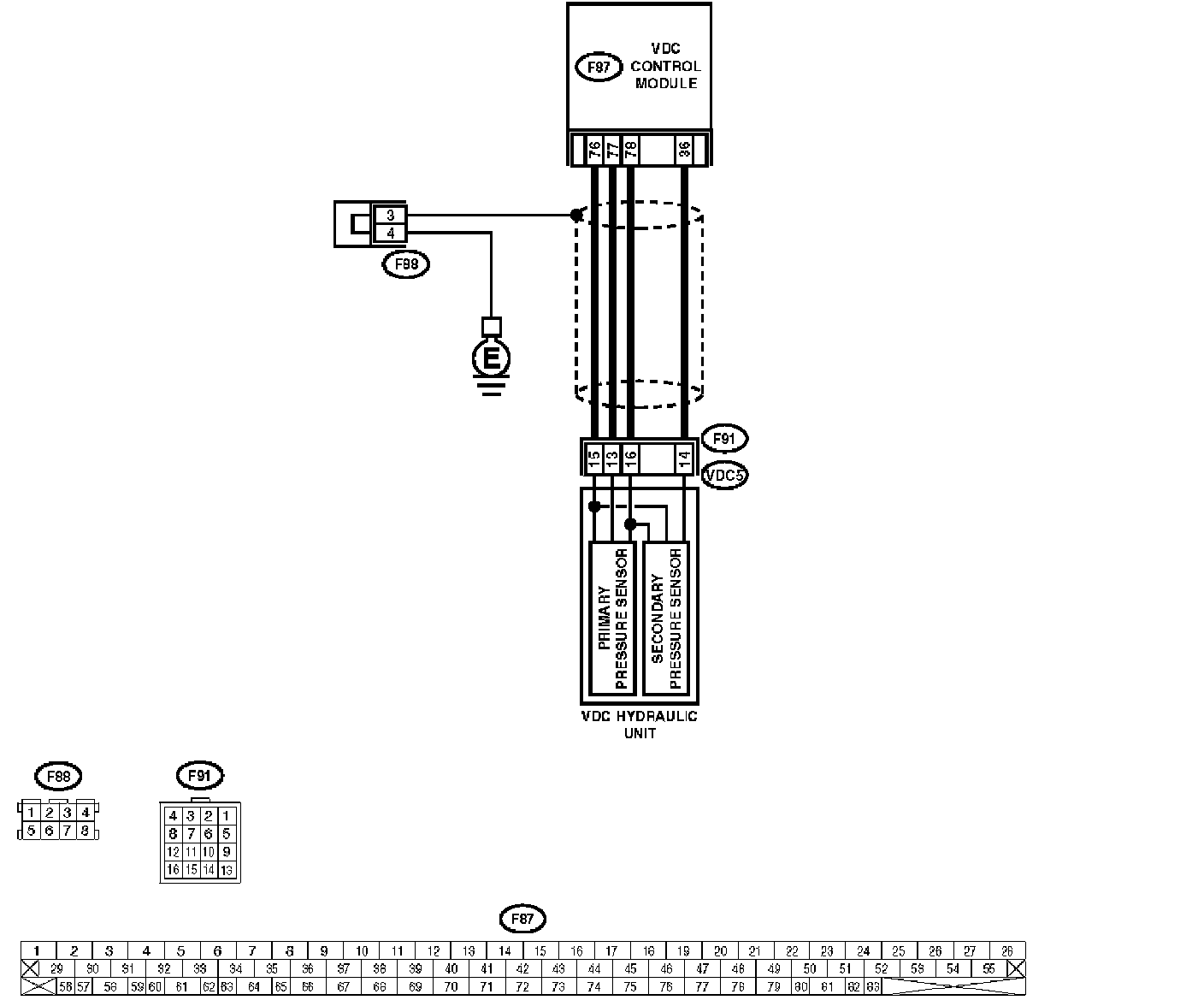

WIRING DIAGRAM
