Vdc System Trouble Code Charts For Warning Light Codes

DTC 73 ABNORMAL LATERAL G SENSOR

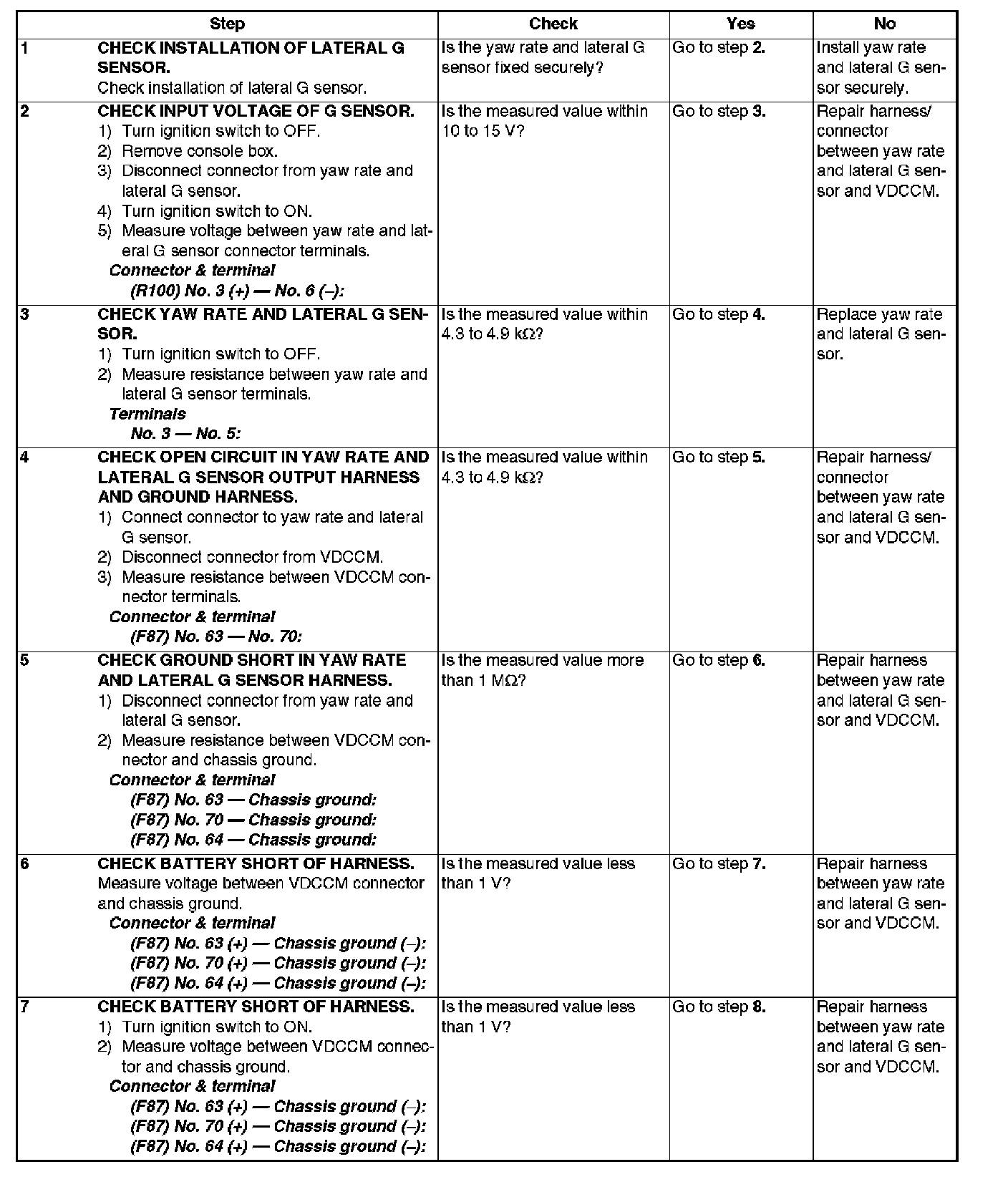

Steps 1-7:

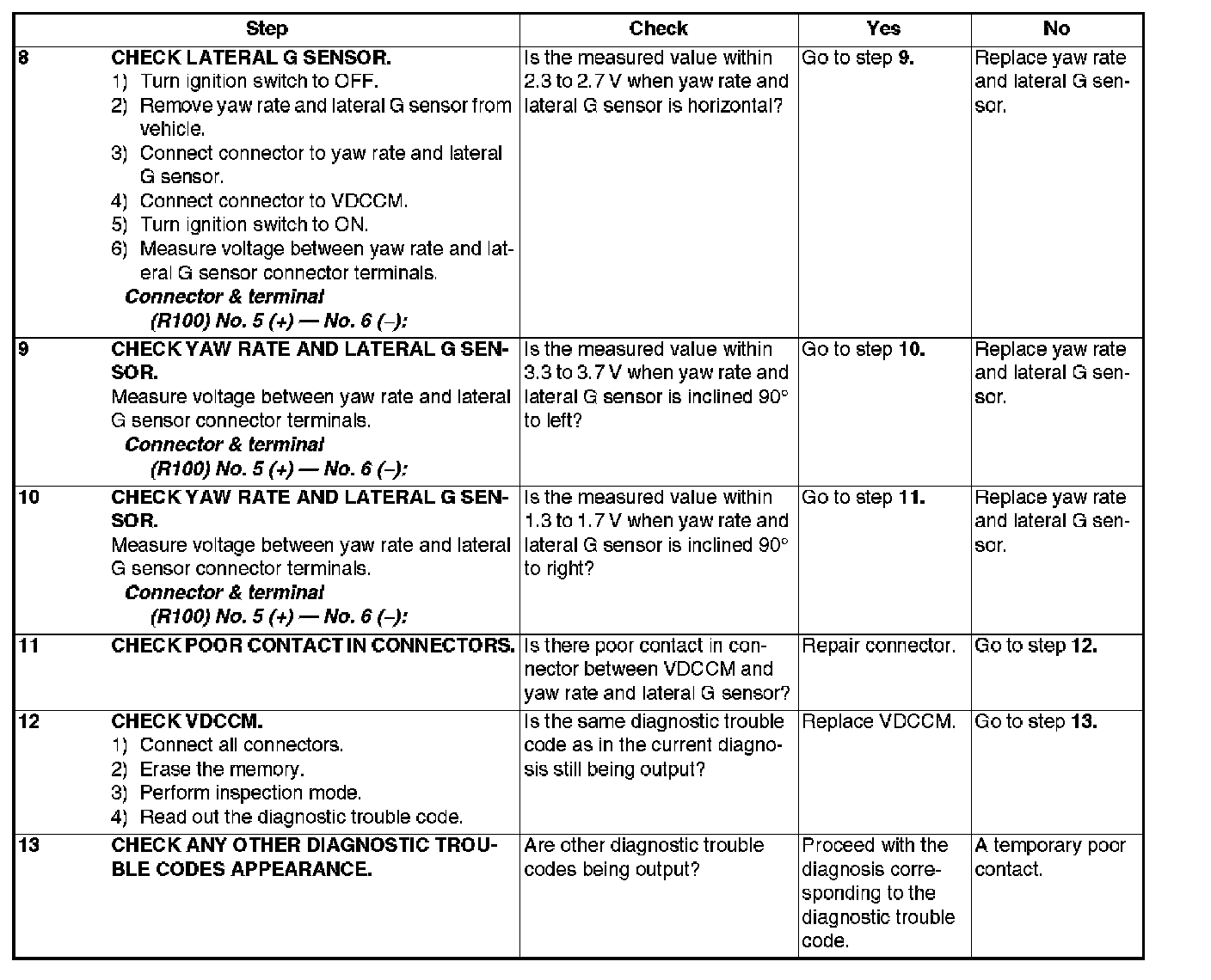

Steps 8-13:

DIAGNOSIS:
^ Faulty lateral G sensor

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

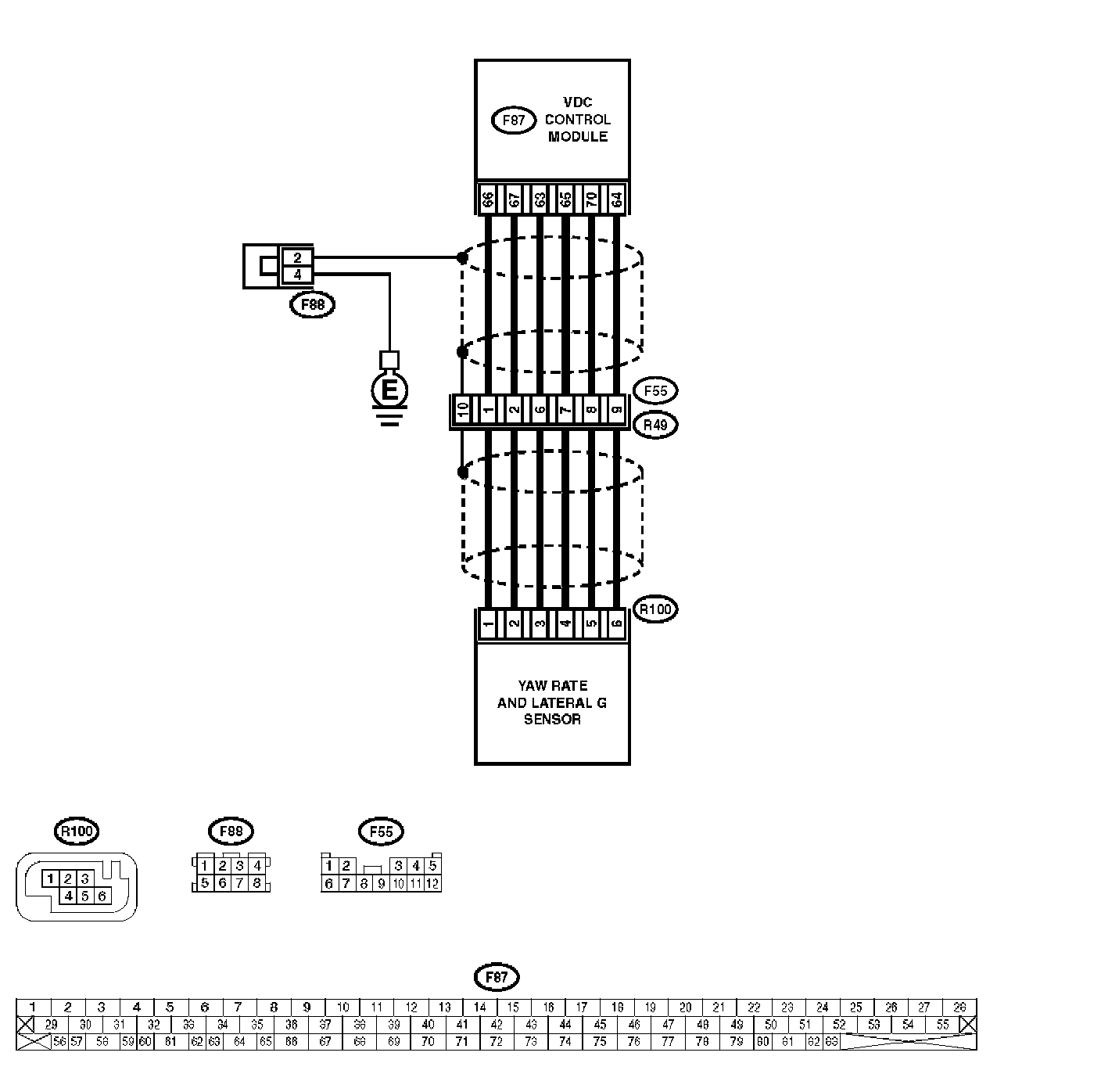

WIRING DIAGRAM
