Vdc System Trouble Code Charts For Warning Light Codes

DTC 72 ABNORMAL YAW RATE SENSOR

Steps 1-7:

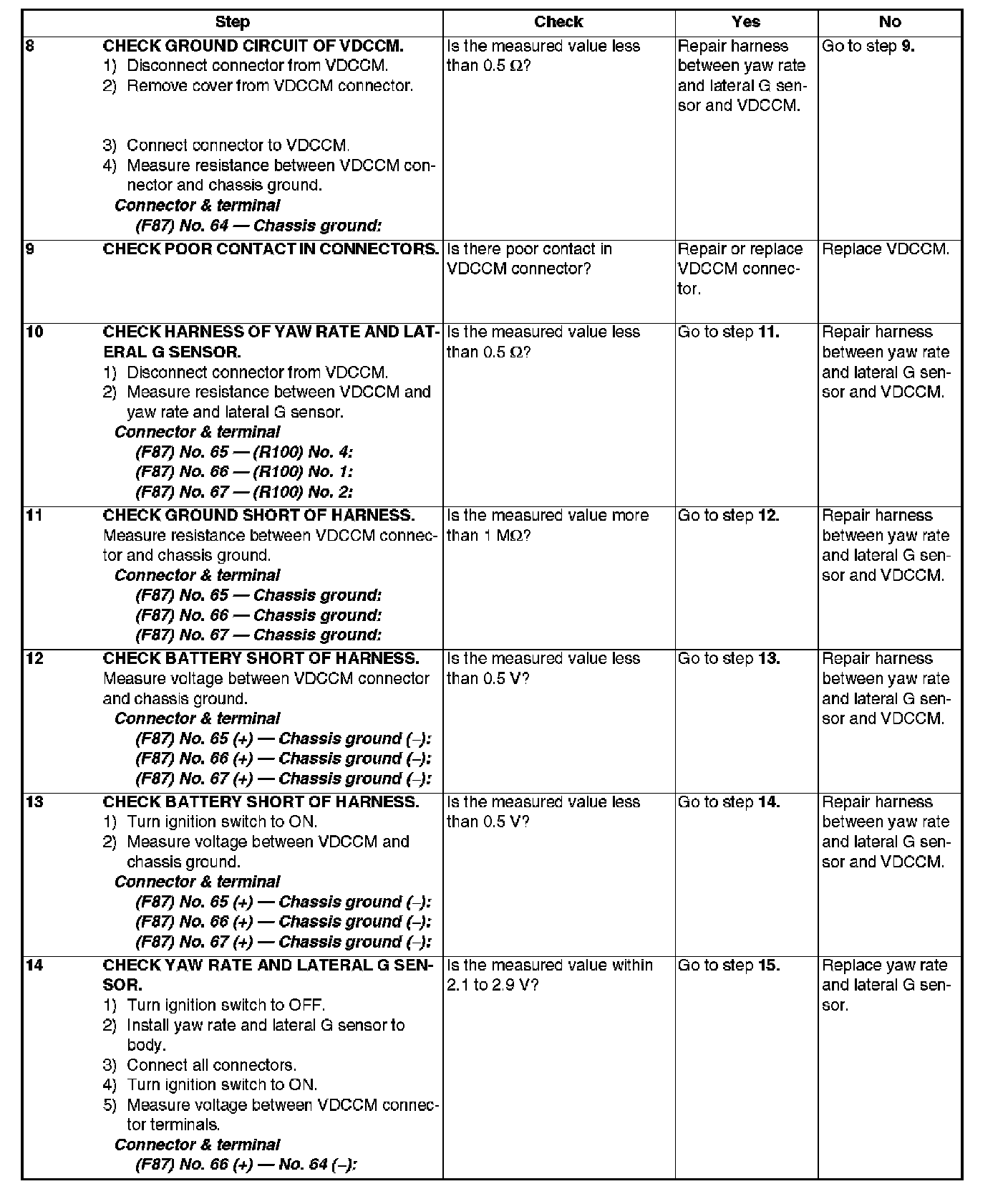

Steps 8-14:

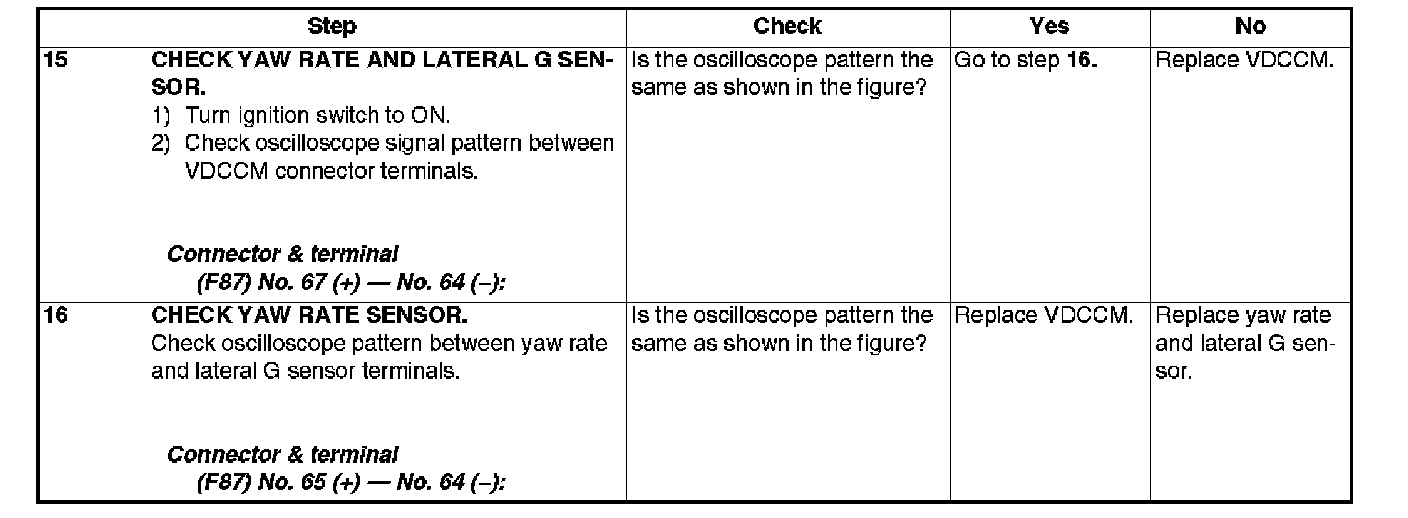

Steps 15 & 16:

DIAGNOSIS:
^ Faulty yaw rate sensor

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

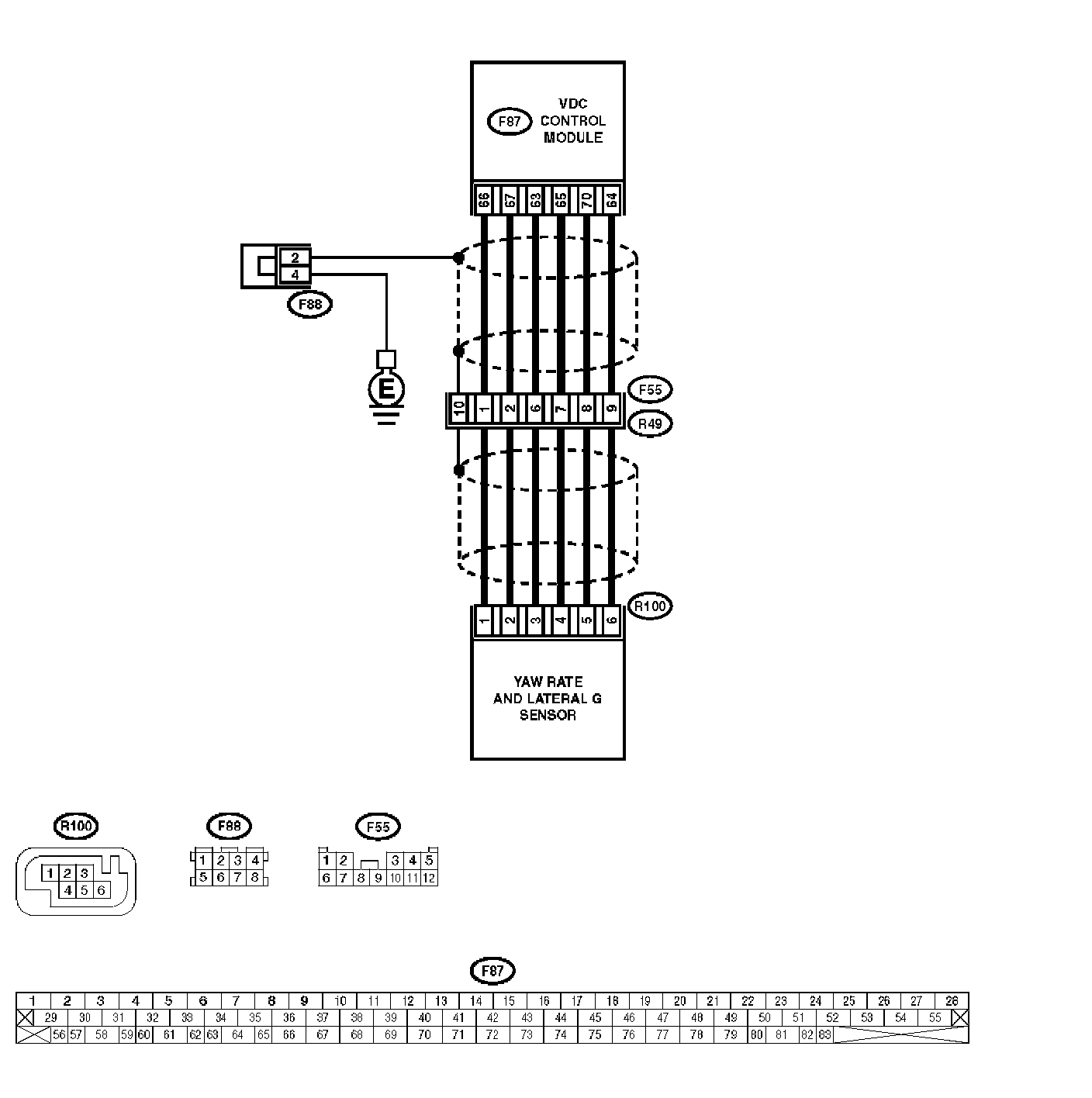

WIRING DIAGRAM
