Change Range of Yaw Rate Sensor Signal Is Too Big

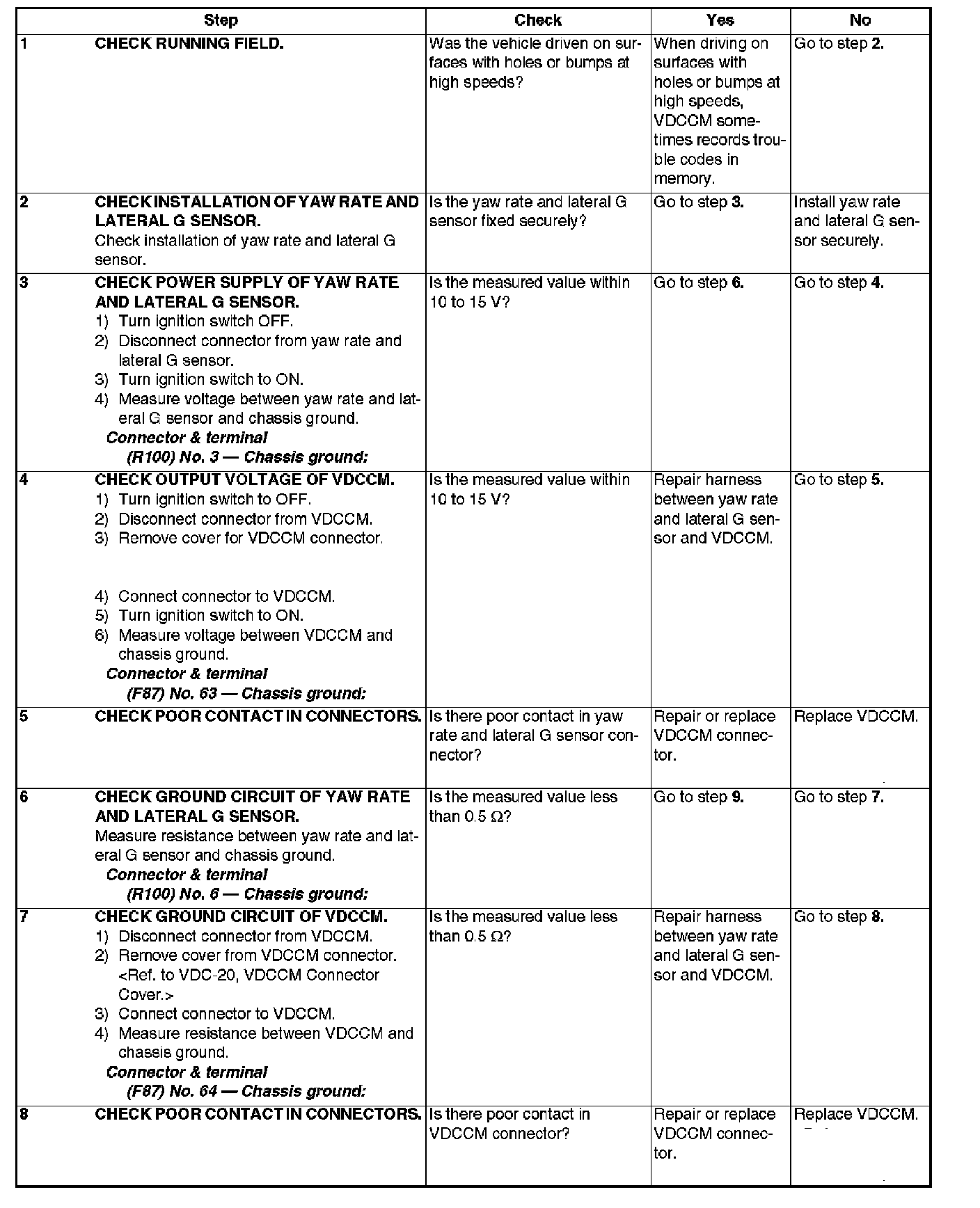

DTC 72 CHANGE RANGE OF YAW RATE SENSOR SIGNAL IS TOO BIG.Steps 1-8:

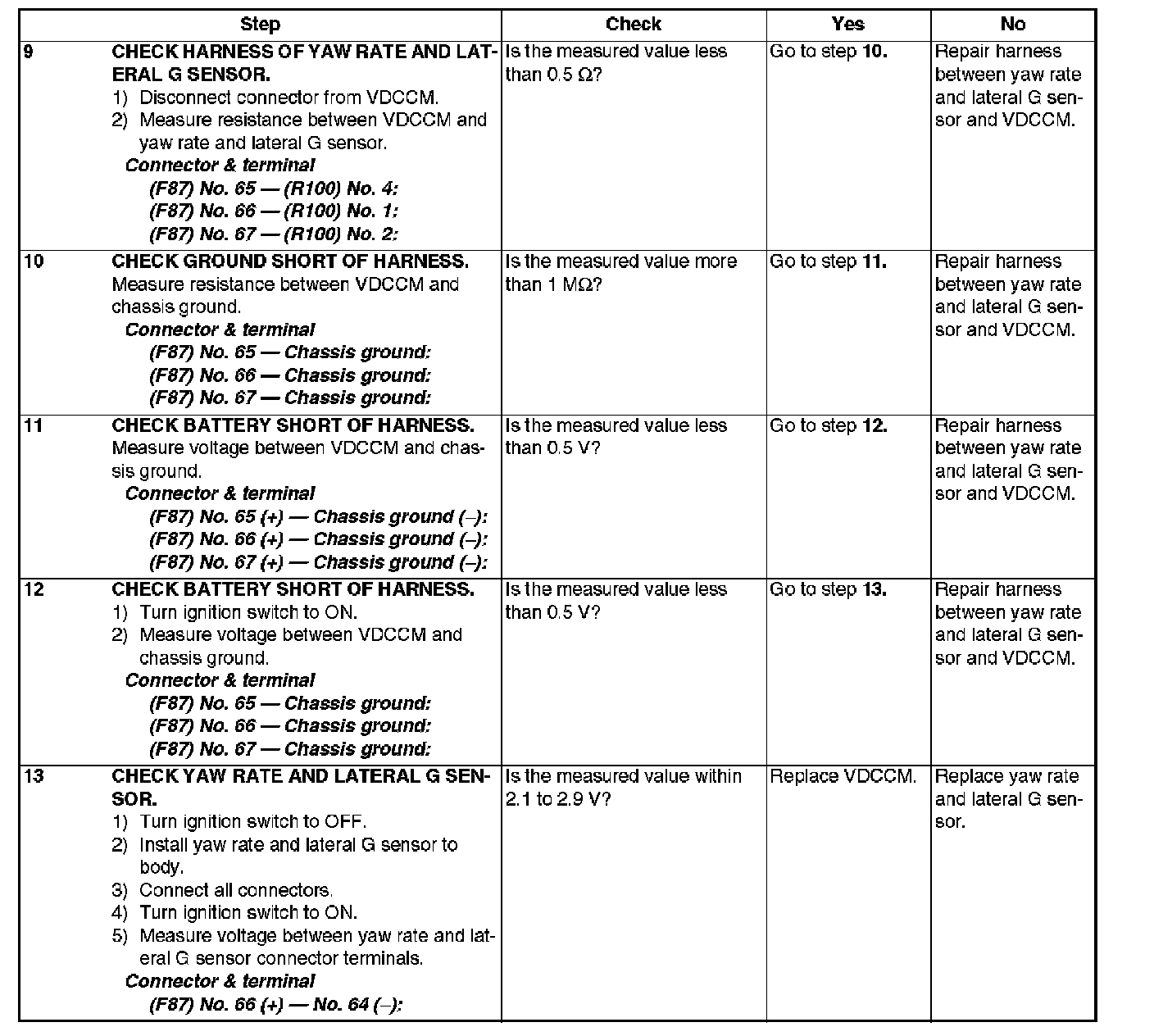

Steps 9-13:
DIAGNOSIS:
^ Faulty yaw rate sensor
TROUBLE SYMPTOM:
^ VDC does not operate.

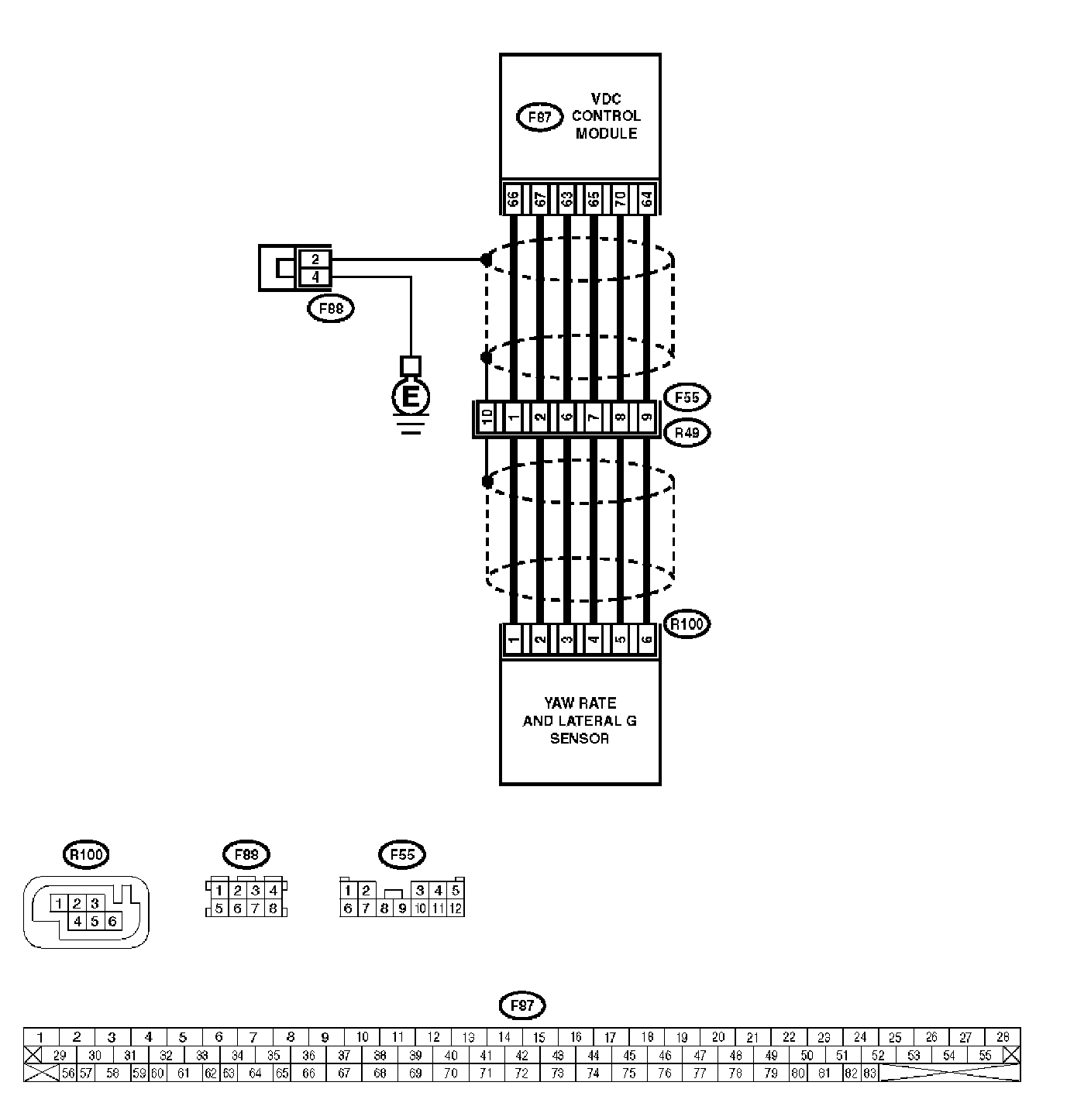

WIRING DIAGRAM
DIAGNOSIS:
^ Faulty yaw rate sensor
TROUBLE SYMPTOM:
^ VDC does not operate.
WIRING DIAGRAM
