No Signal From Steering Angle Sensor

DTC 71 NO SIGNAL FROM STEERING ANGLE SENSOR

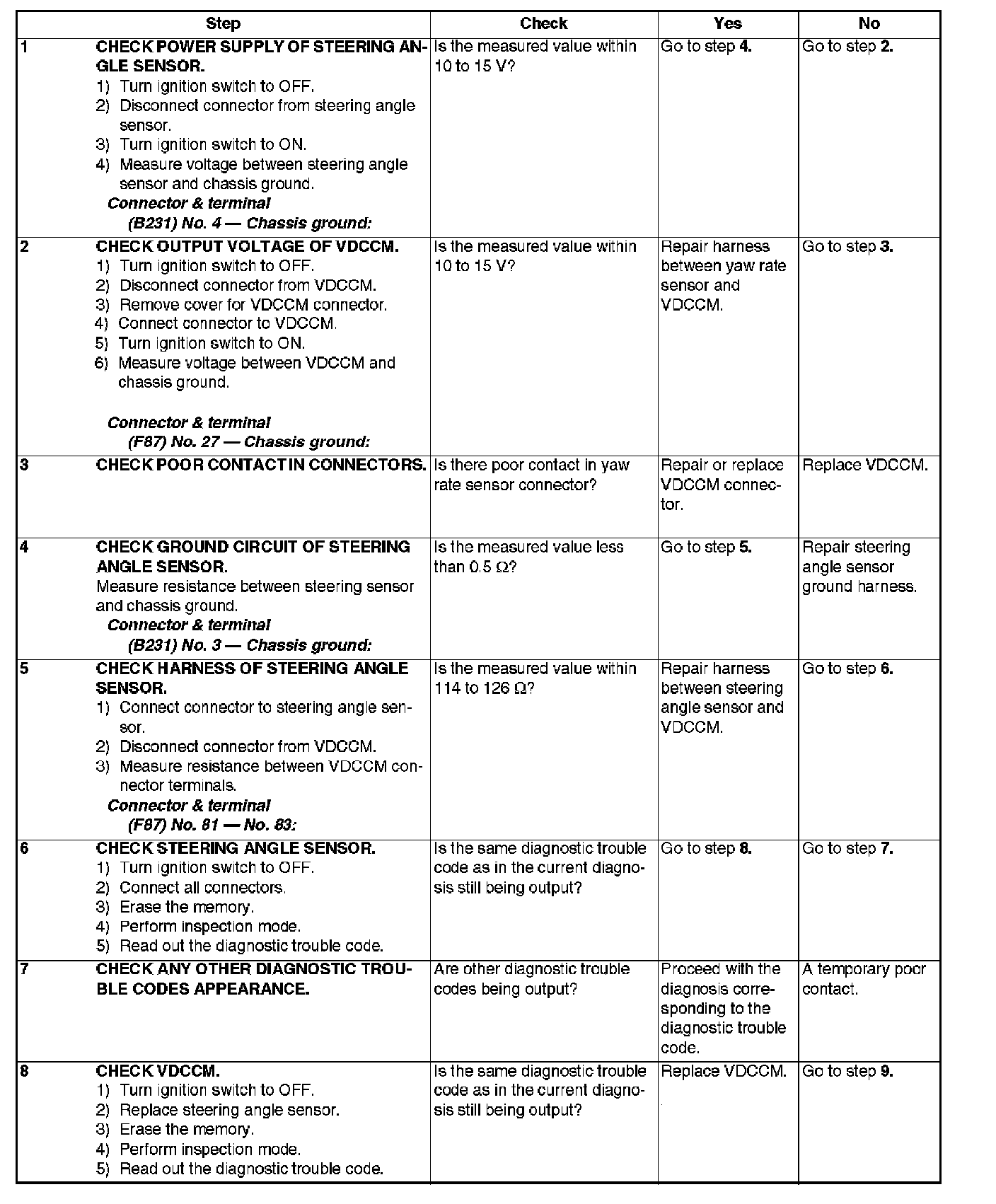

Steps 1-8:

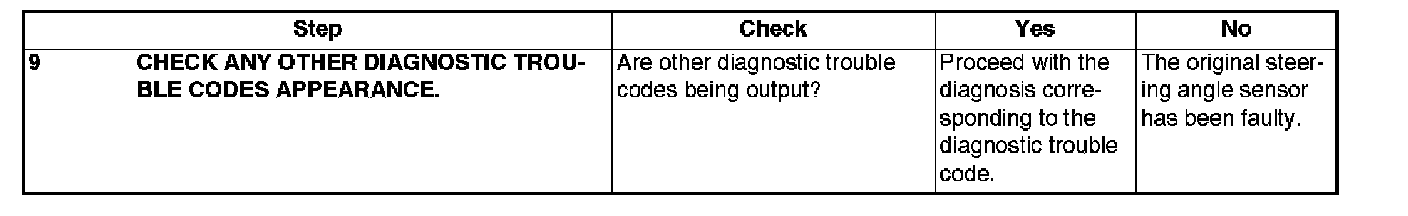

Step 9:

DIAGNOSIS:
^ Faulty steering angle sensor

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.





WIRING DIAGRAM
