Vdc System Trouble Code Charts For Warning Light Codes

DTC 64 ABNORMAL OUTLET AND SUCTION SOLENOID VALVE CIRCUIT(S) (SECONDARY SUCTION)

Steps 1-3:

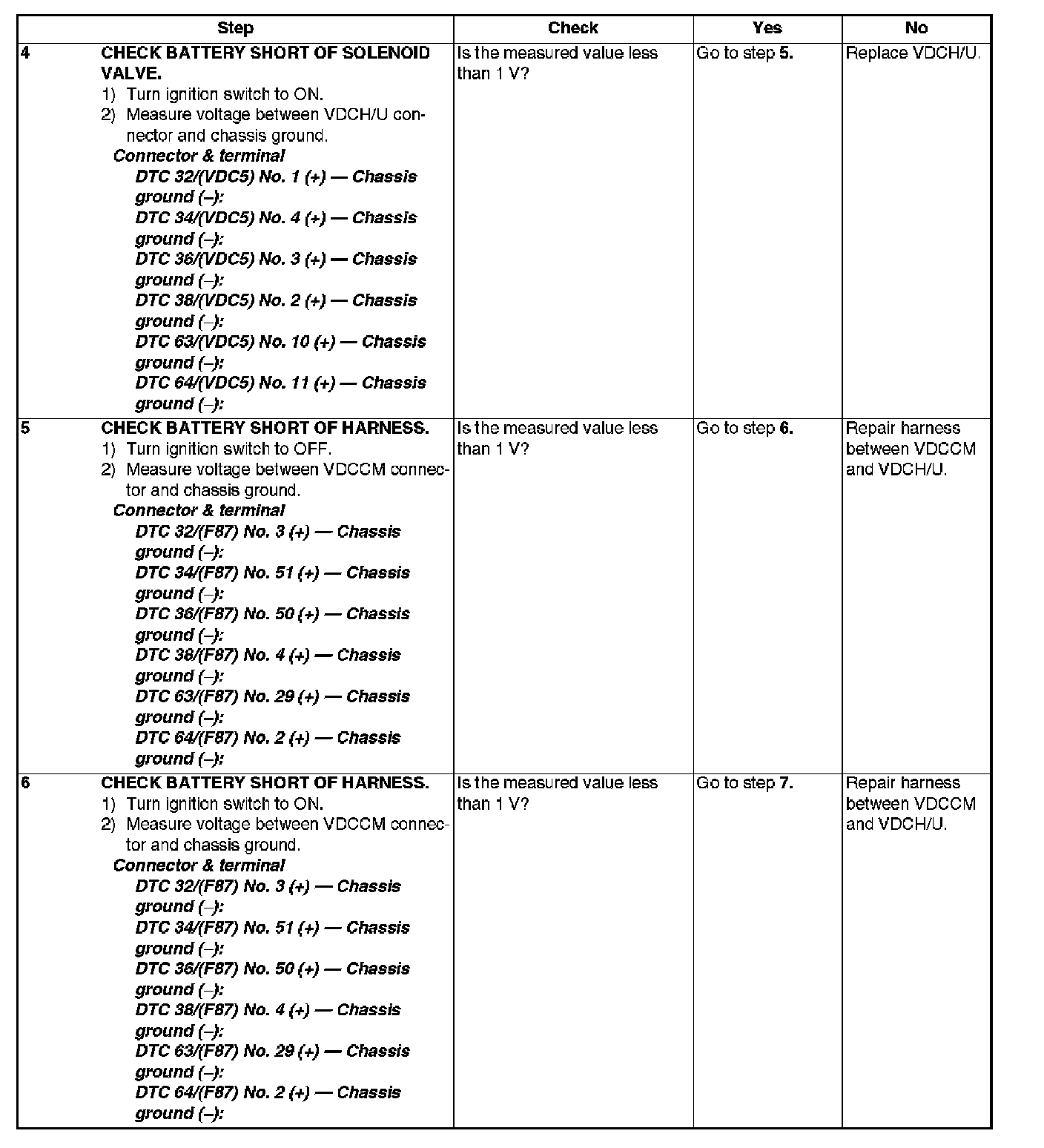

Steps 4-6:

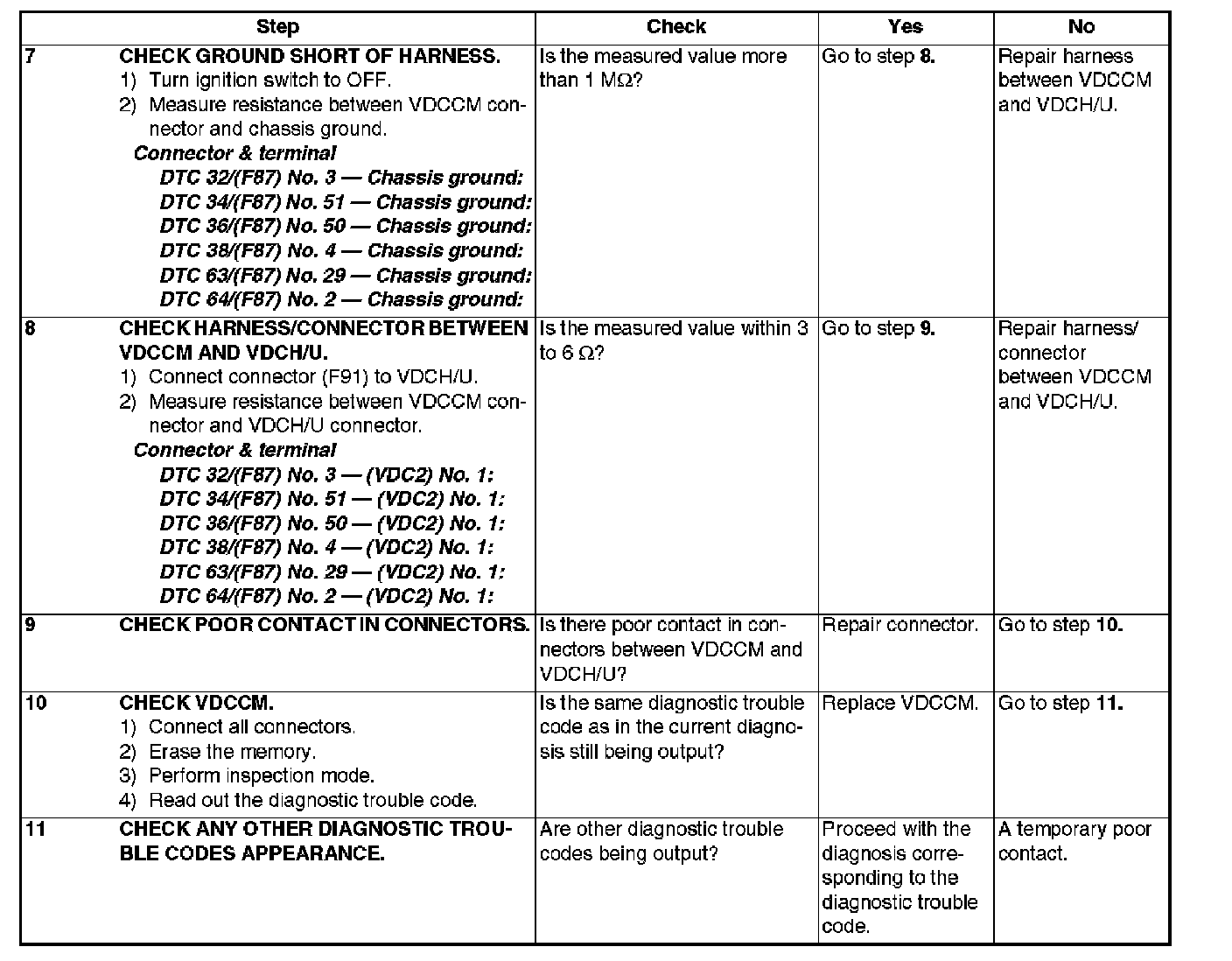

Steps 7-11:

DIAGNOSIS:
^ Faulty harness/connector
^ Faulty solenoid valve in VDCH/U

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

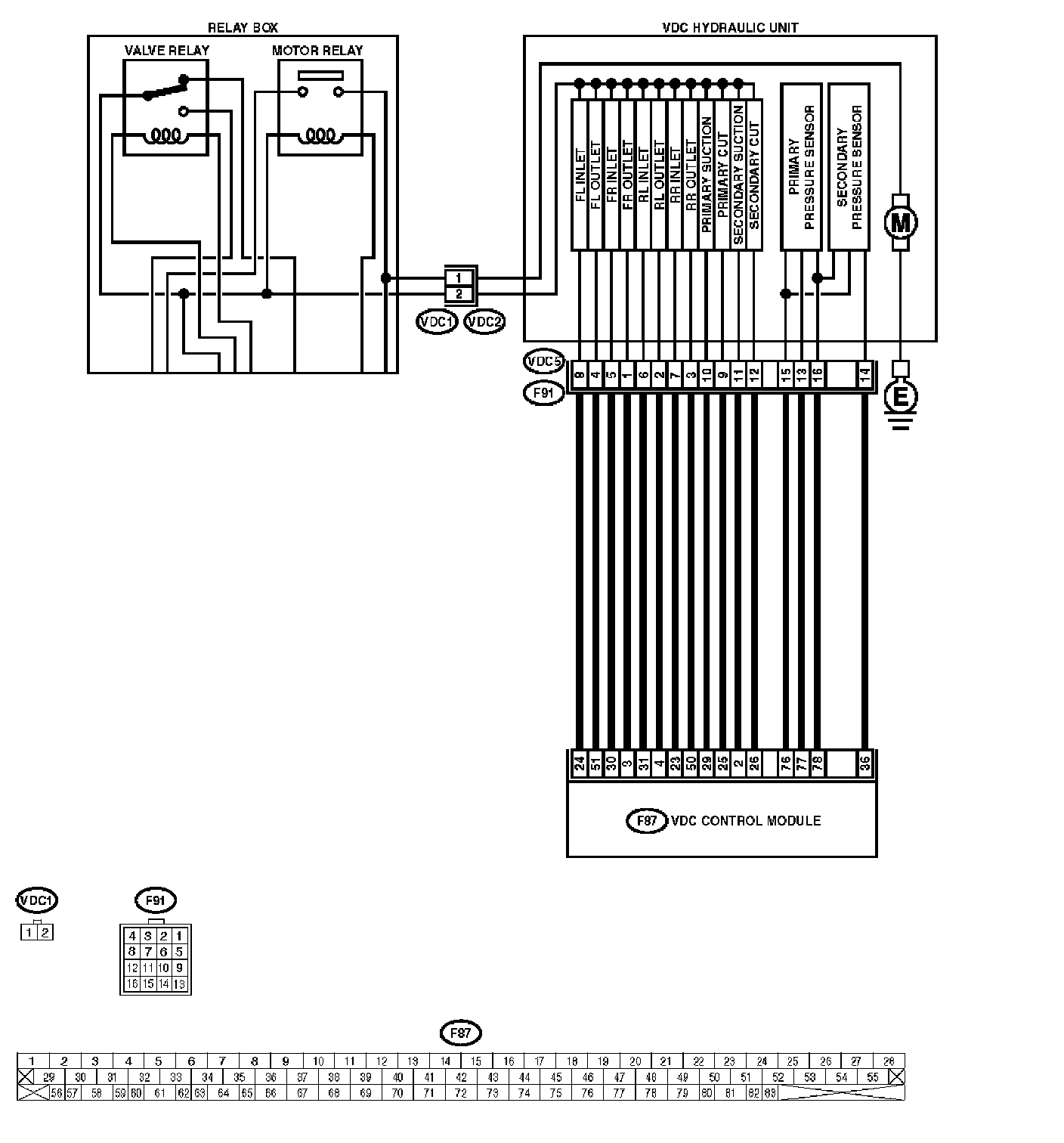

WIRING DIAGRAM
