Vdc System Trouble Code Charts For Select Monitor Results

DTC 64 NORMAL CLOSING VALVE 1 MALFUNCTION (SECONDARY SUCTION VALVE MALFUNCTION)

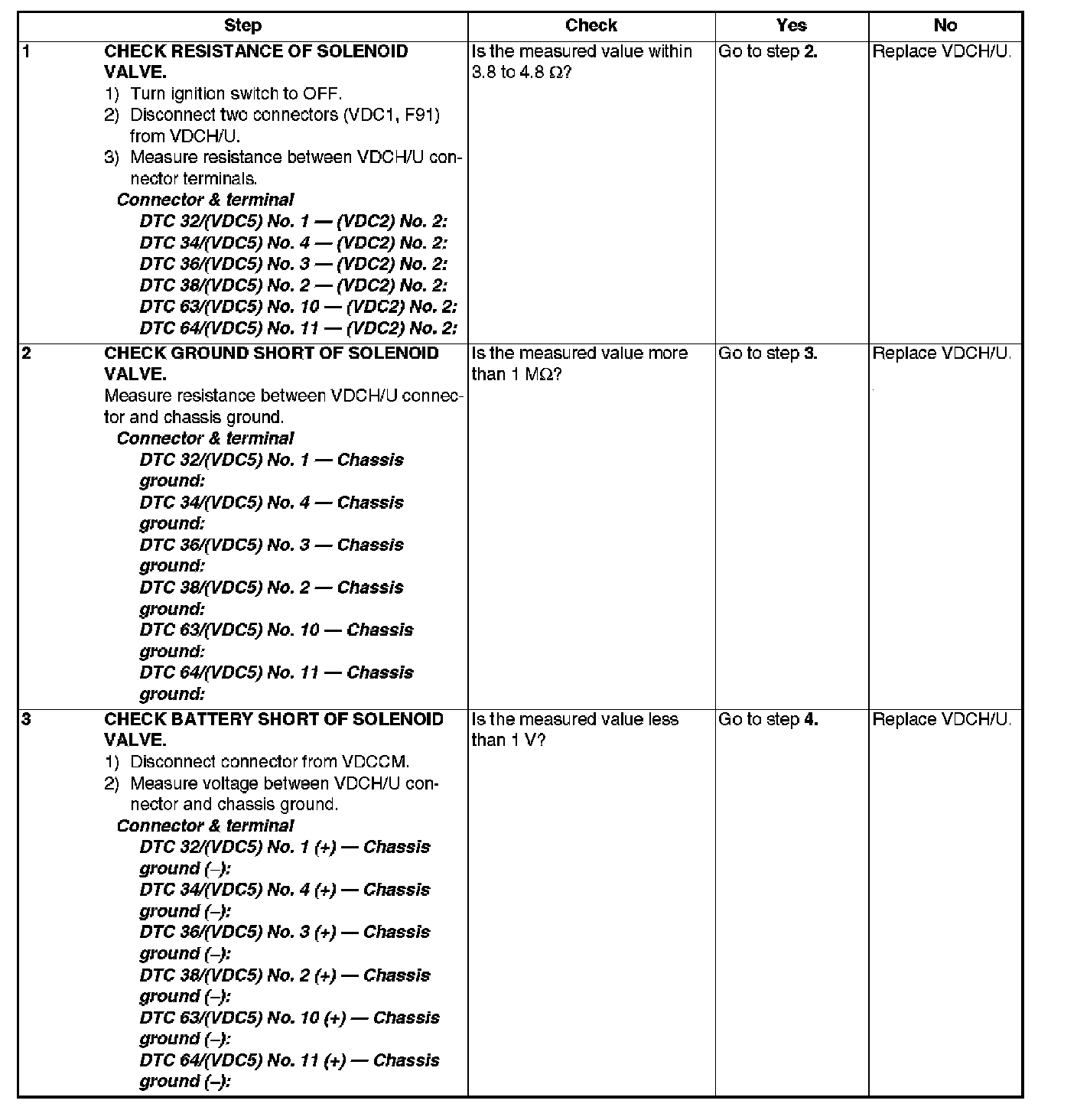

Steps 1-3:

Steps 4-6:

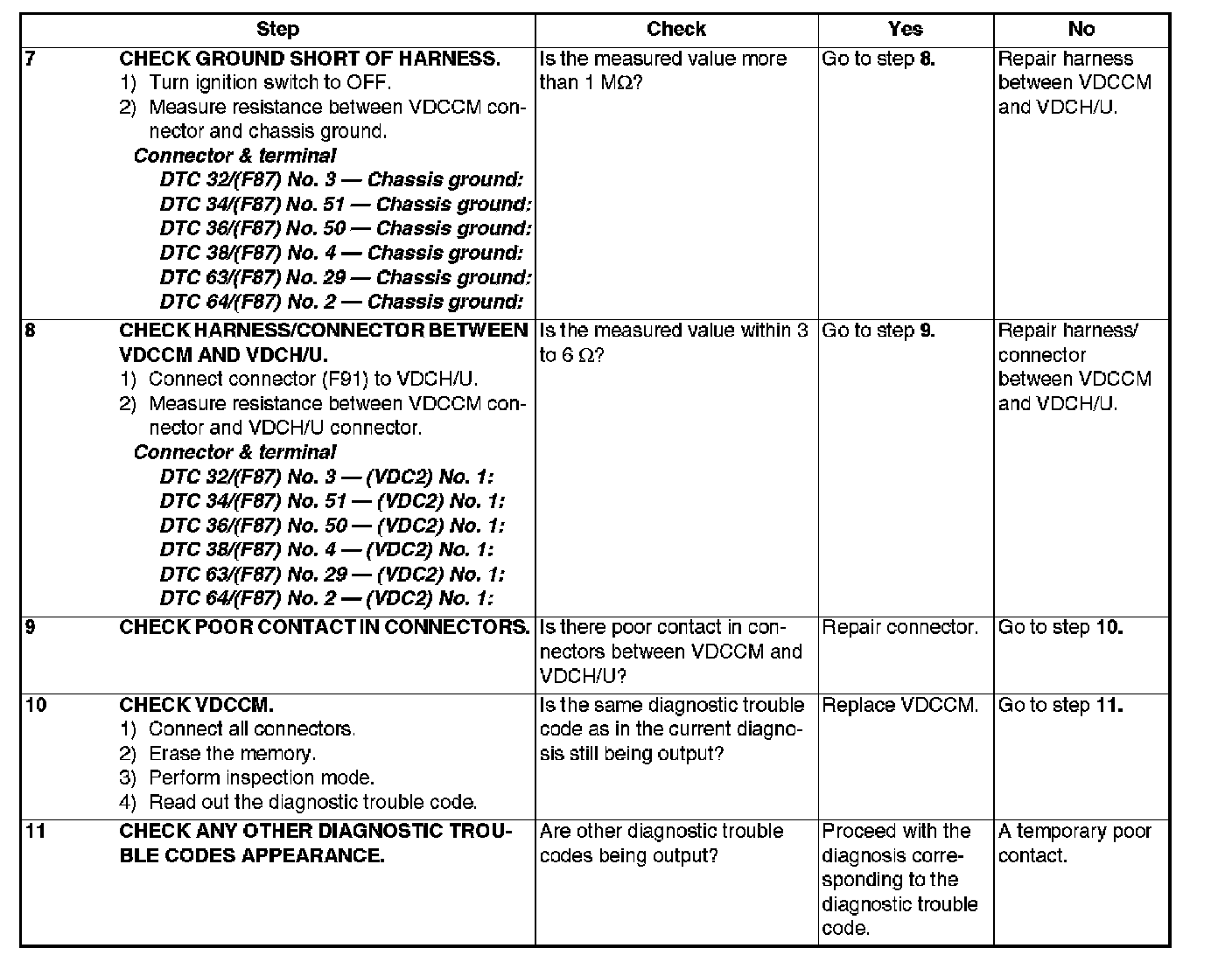

Steps 7-11:

DIAGNOSIS:
^ Faulty harness/connector
^ Faulty solenoid valve in VDCH/U

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

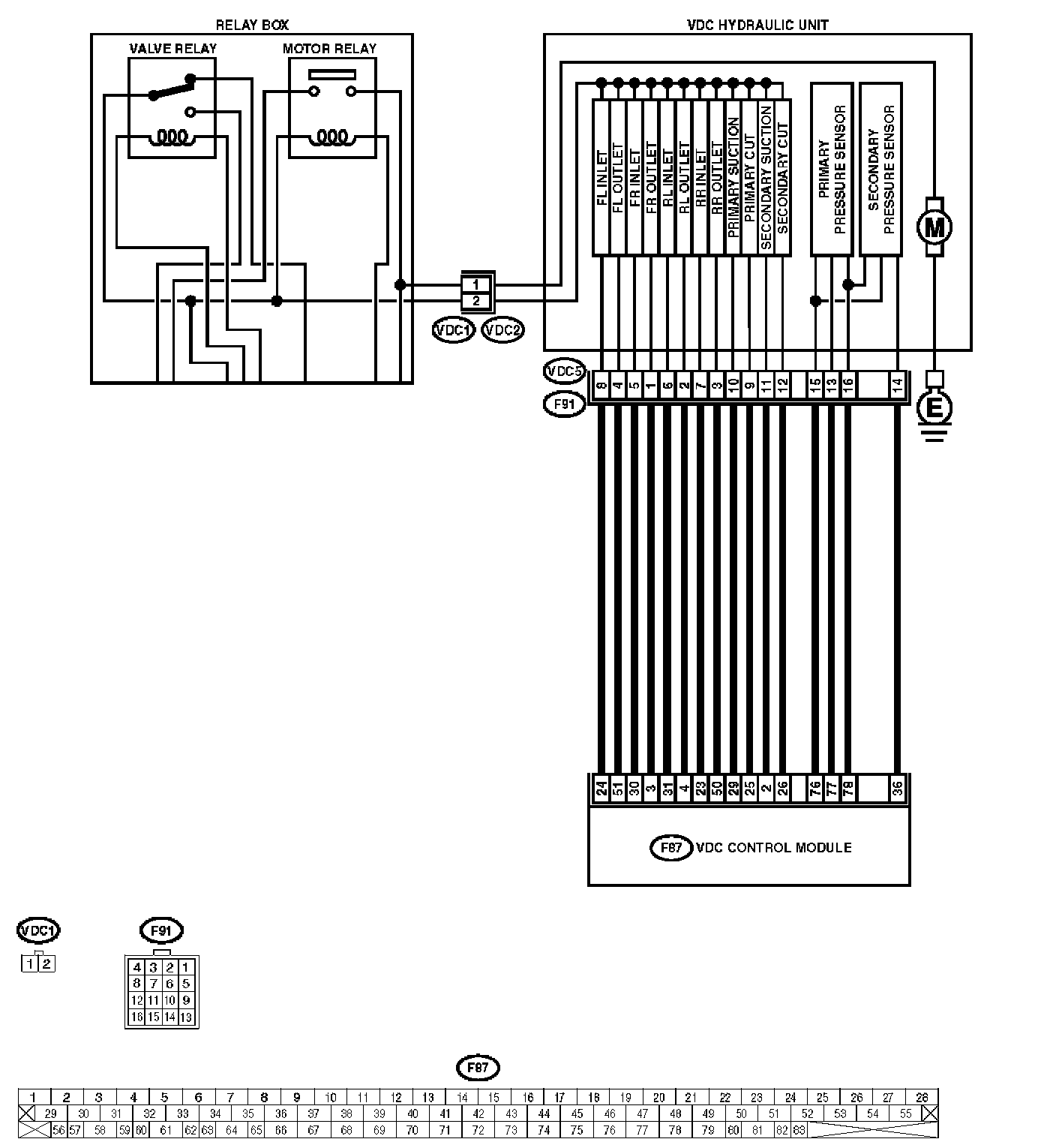

WIRING DIAGRAM
