Heating and Air Conditioning System

DTC 21 OR-21 (AMBIENT SENSOR)

TROUBLE SYMPTOM:
Fan speed, outlets and inlets are not switched when AUTO or ECON switch is ON.

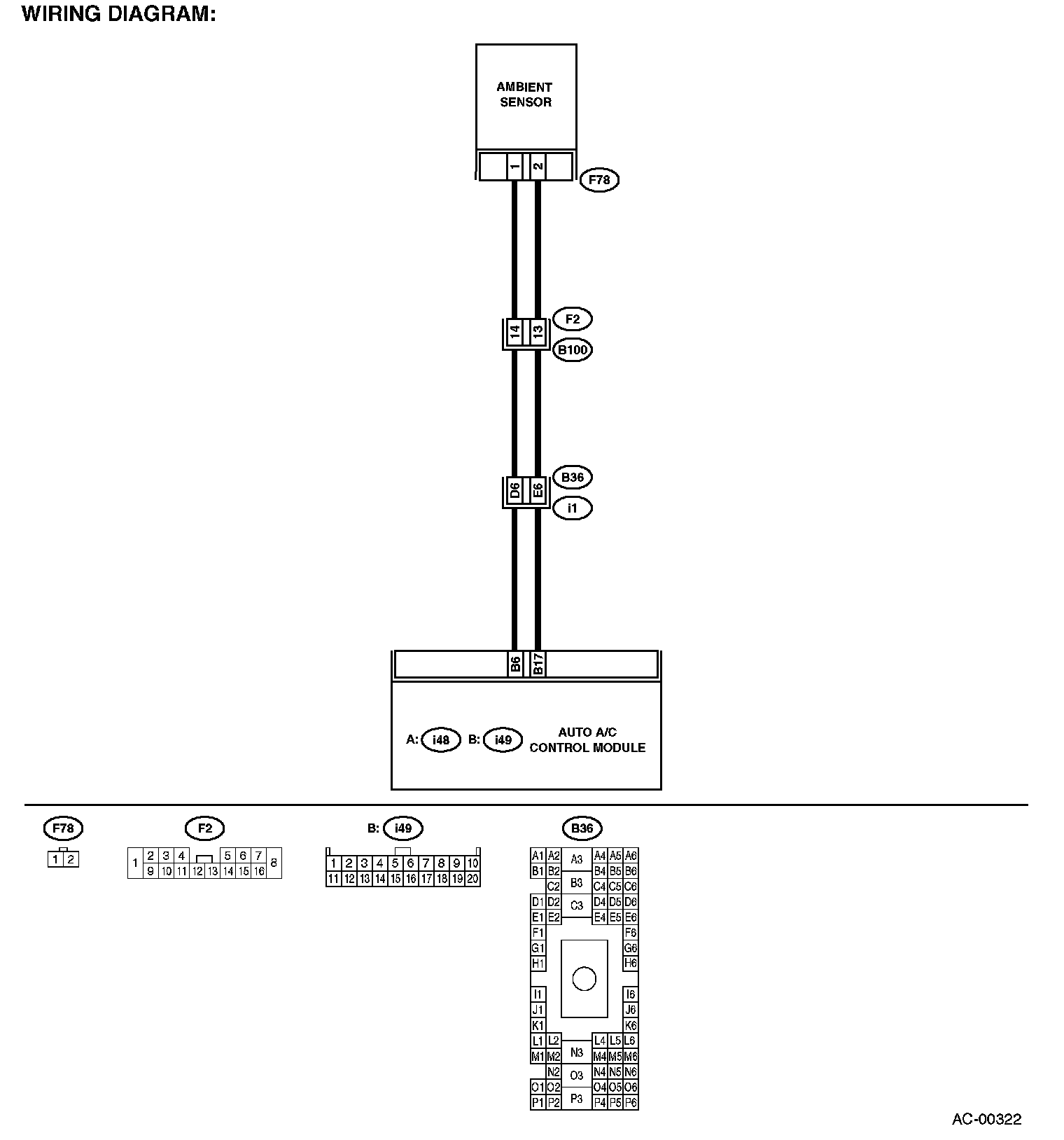

Wiring Diagram:




WIRING DIAGRAM:

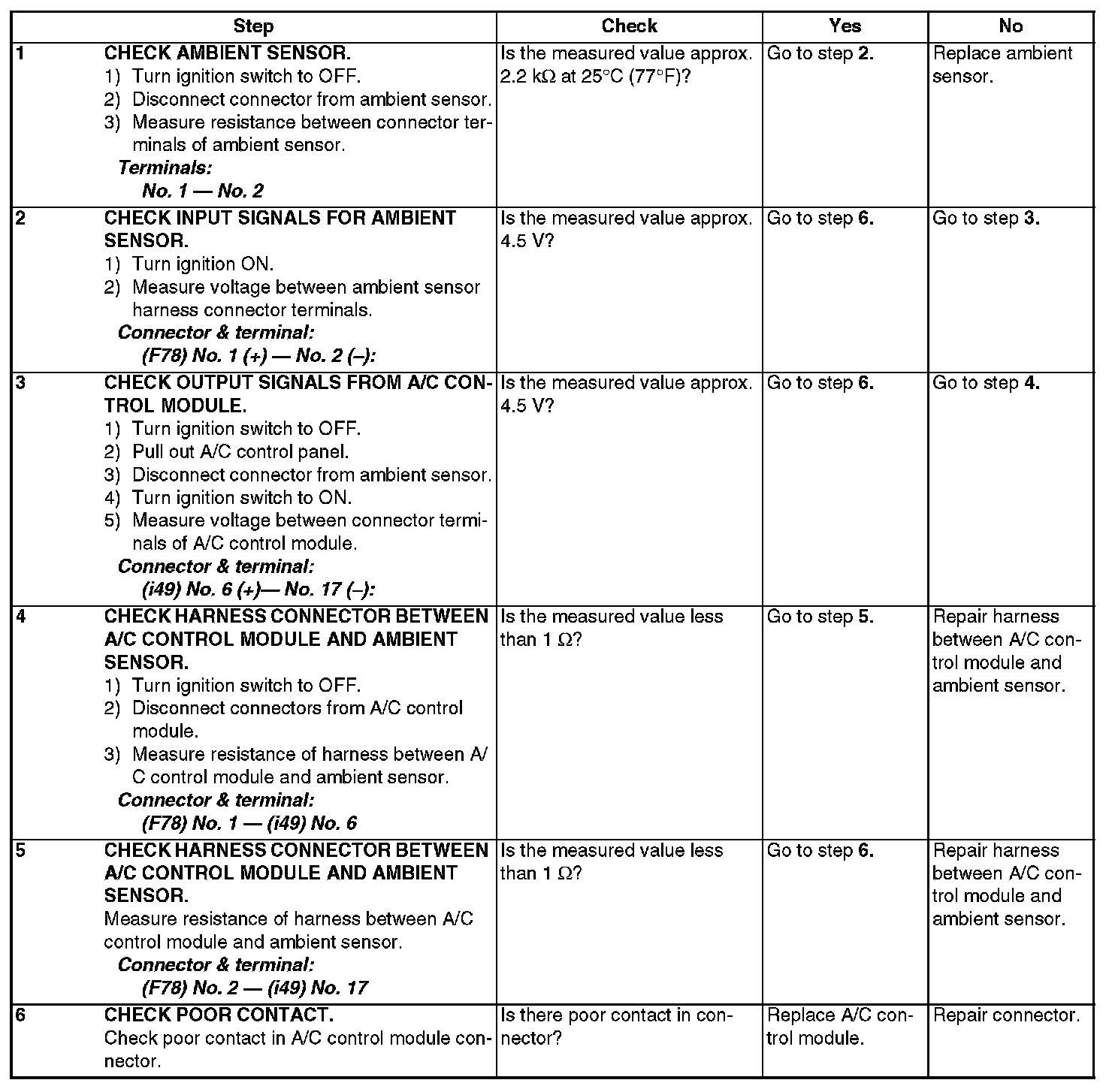

Step 1 - 6:
