Open or Short Circuit In G Sensor Circuit

DTC 56 OPEN OR SHORT CIRCUIT IN G SENSOR CIRCUIT

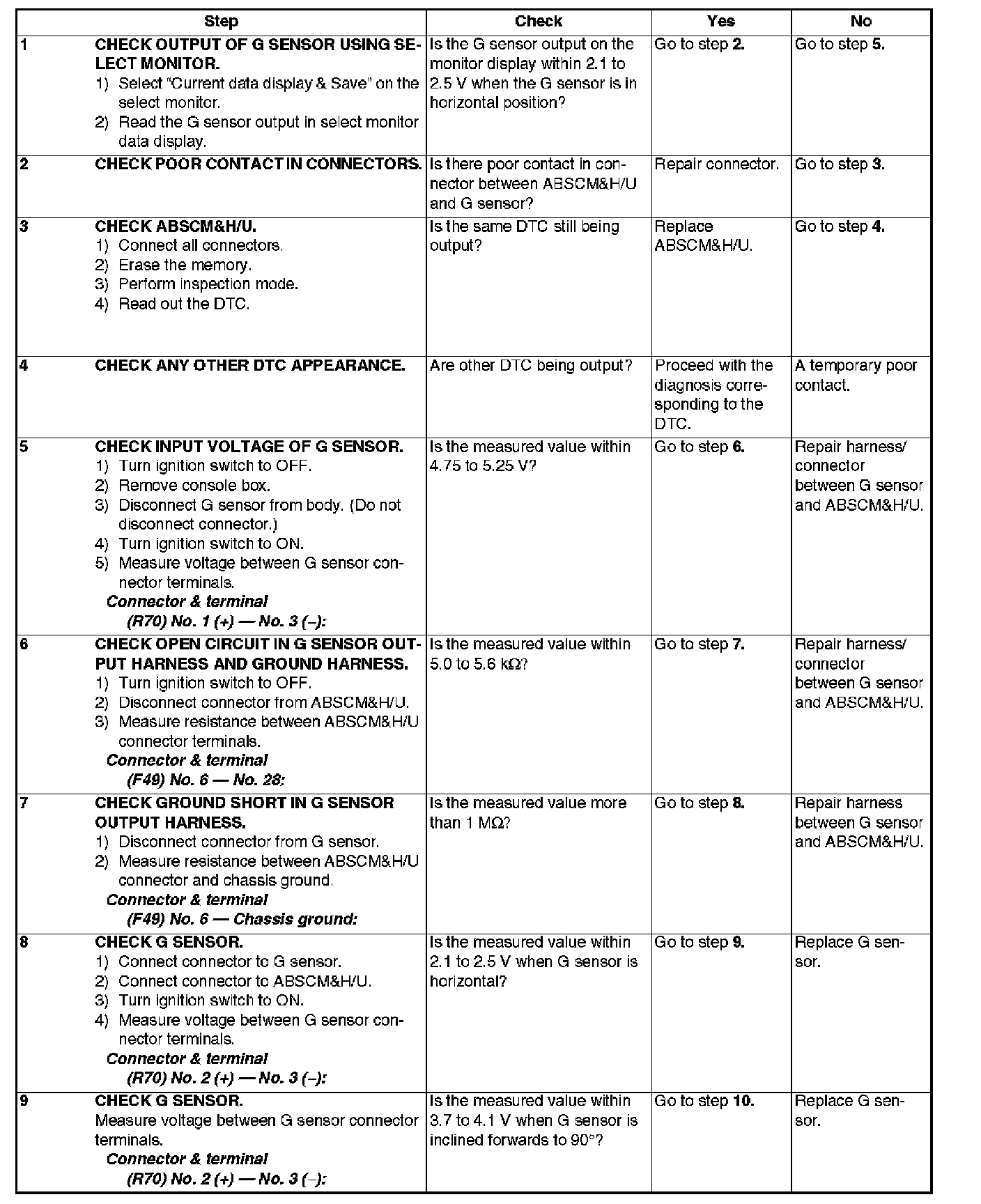

Steps 1-9:

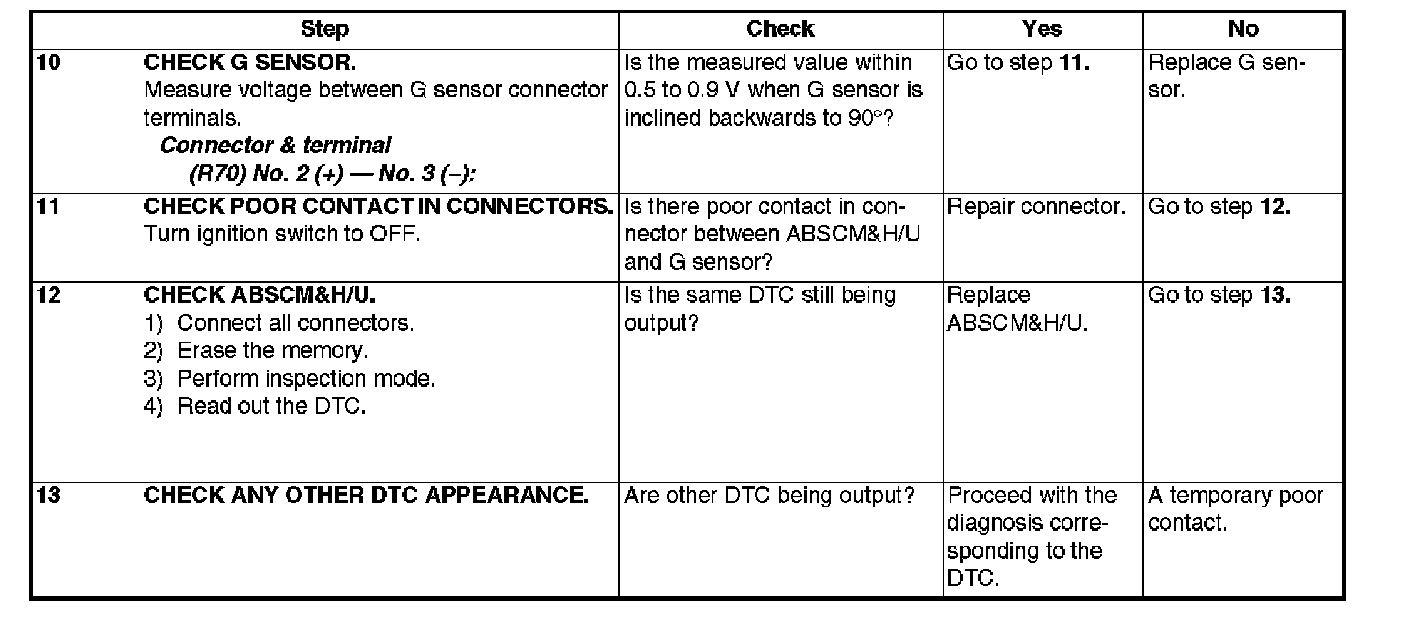

Steps 10-13:

DIAGNOSIS:
^ Faulty G sensor output voltage

TROUBLE SYMPTOM:
^ ABS does not operate.

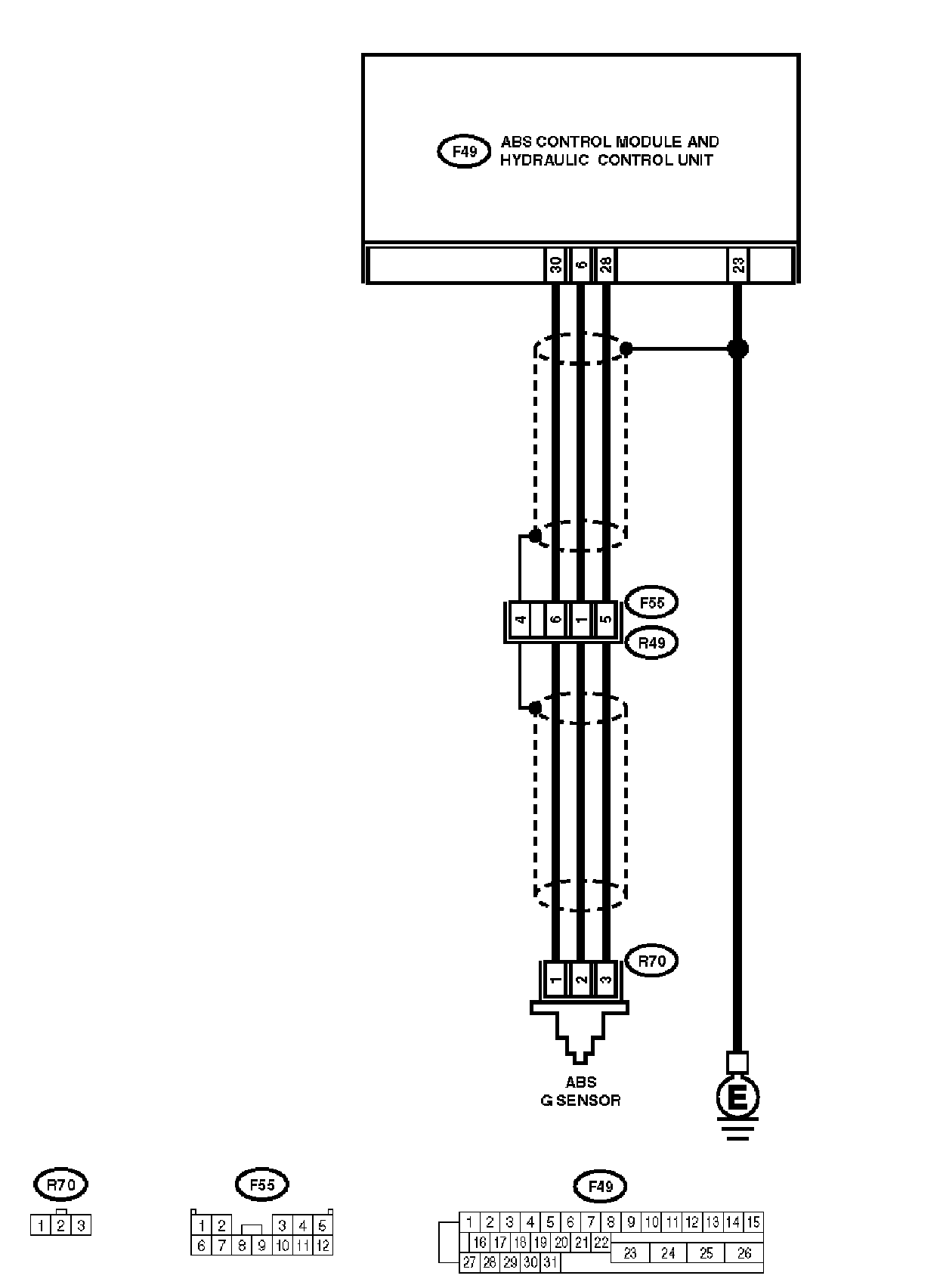

WIRING DIAGRAM
