Battery Short In G Sensor Circuit

DTC 56 BATTERY SHORT IN G SENSOR CIRCUIT

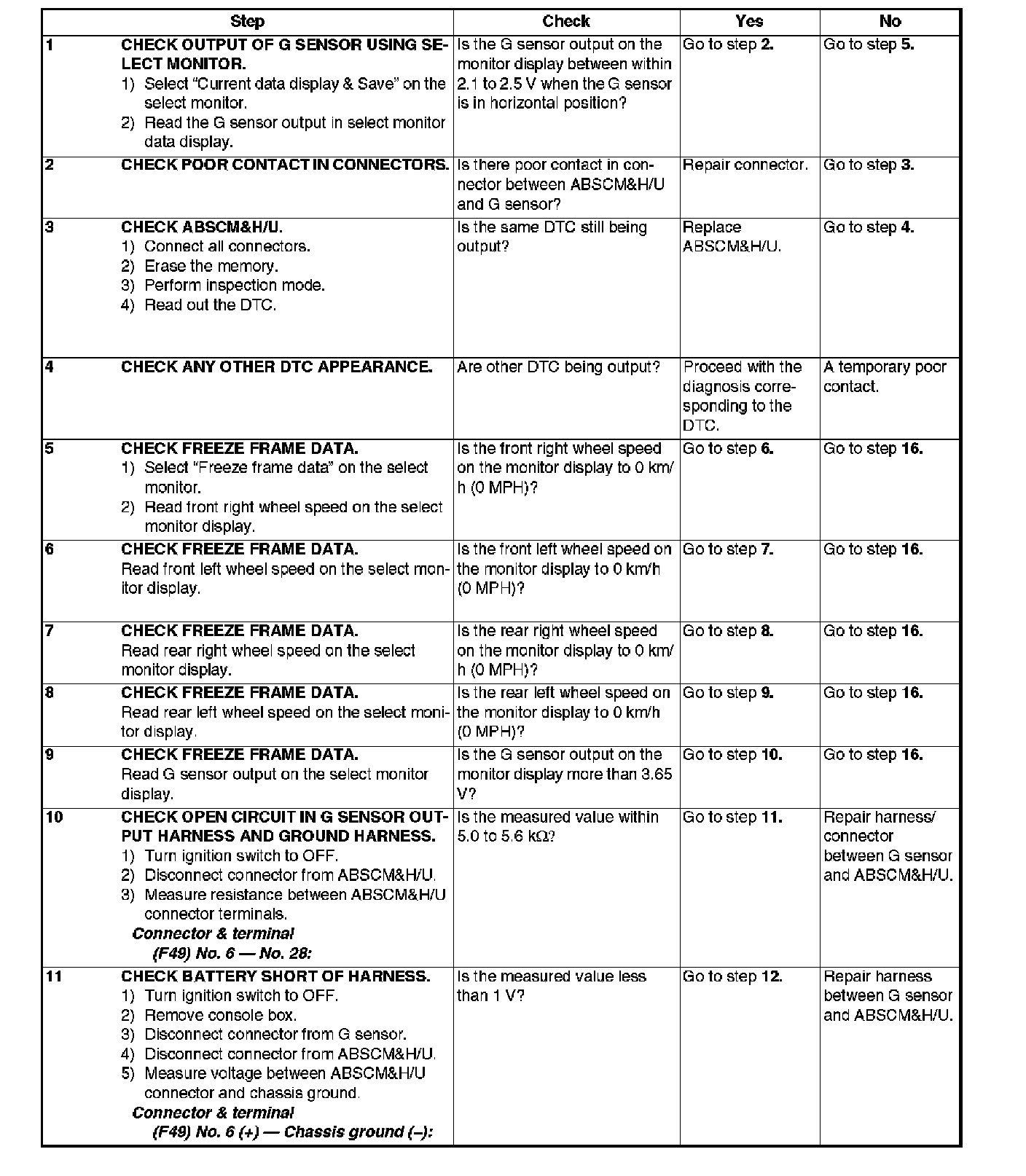

Steps 1-11:

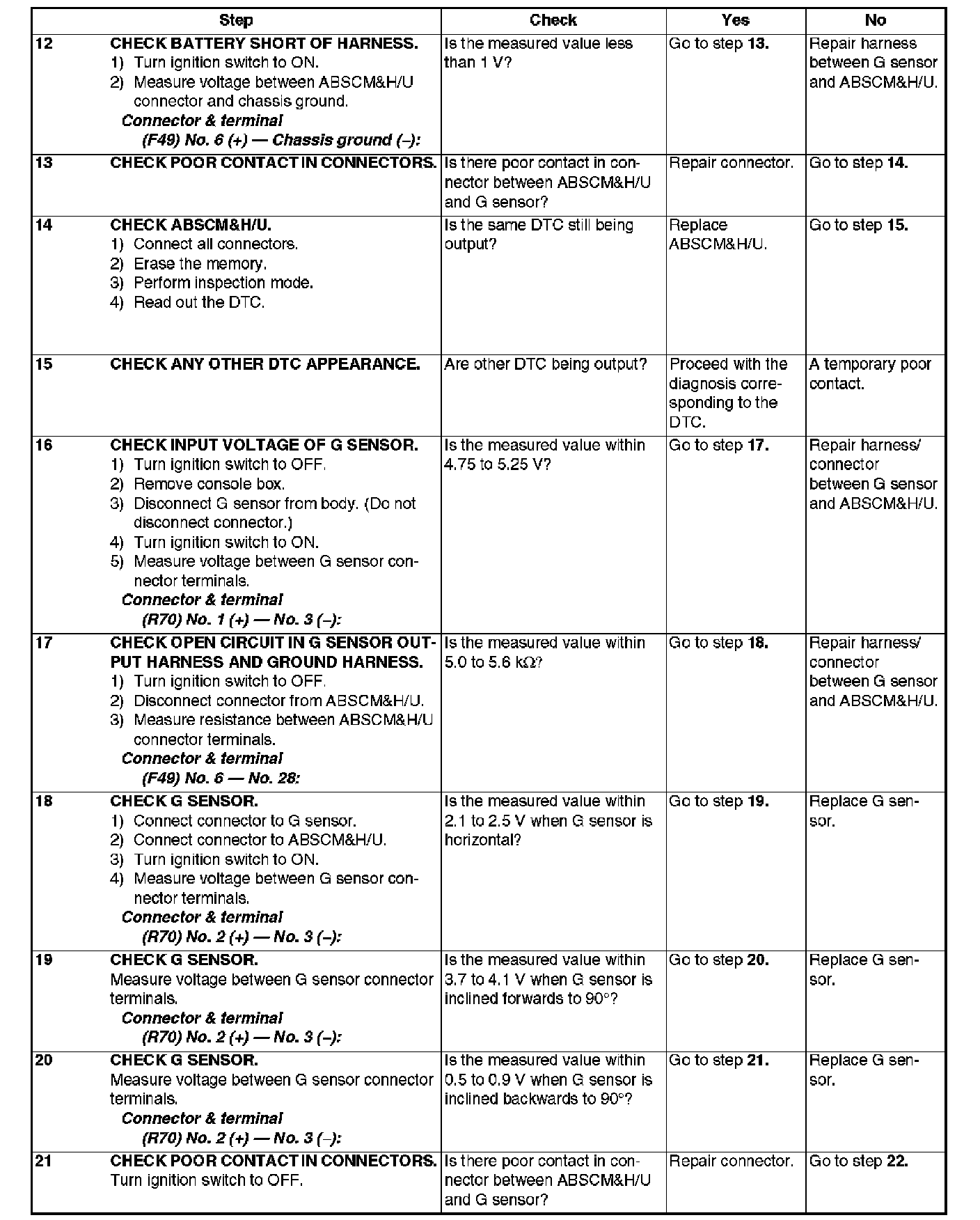

Steps 12-21:

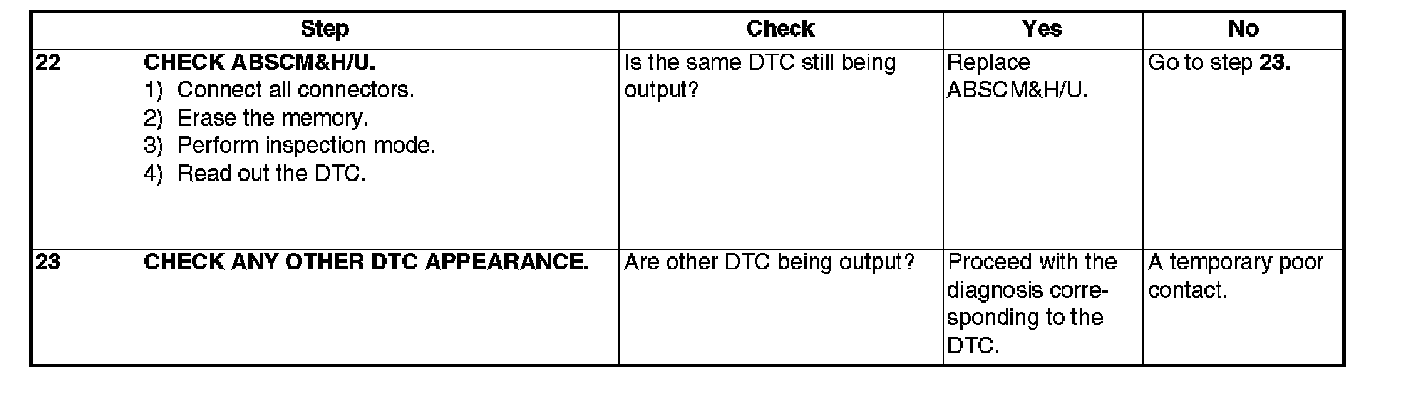

Steps 22 & 23:

DIAGNOSIS:
^ Faulty G sensor output voltage

TROUBLE SYMPTOM:
^ ABS does not operate.

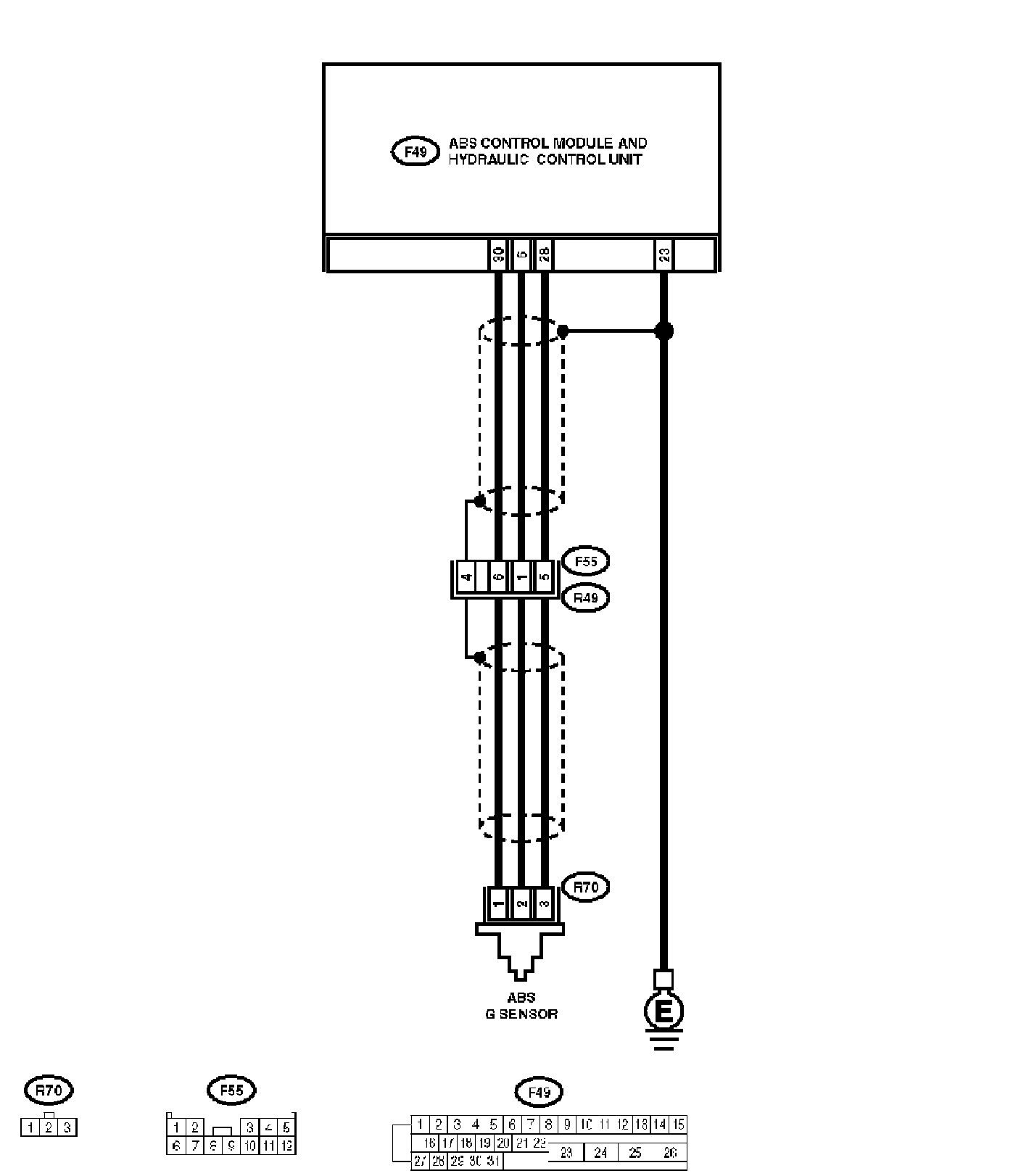

WIRING DIAGRAM
