Abnormal G Sensor High (Range) Output

DTC 56 ABNORMAL G SENSOR HIGH (Range) OUTPUT

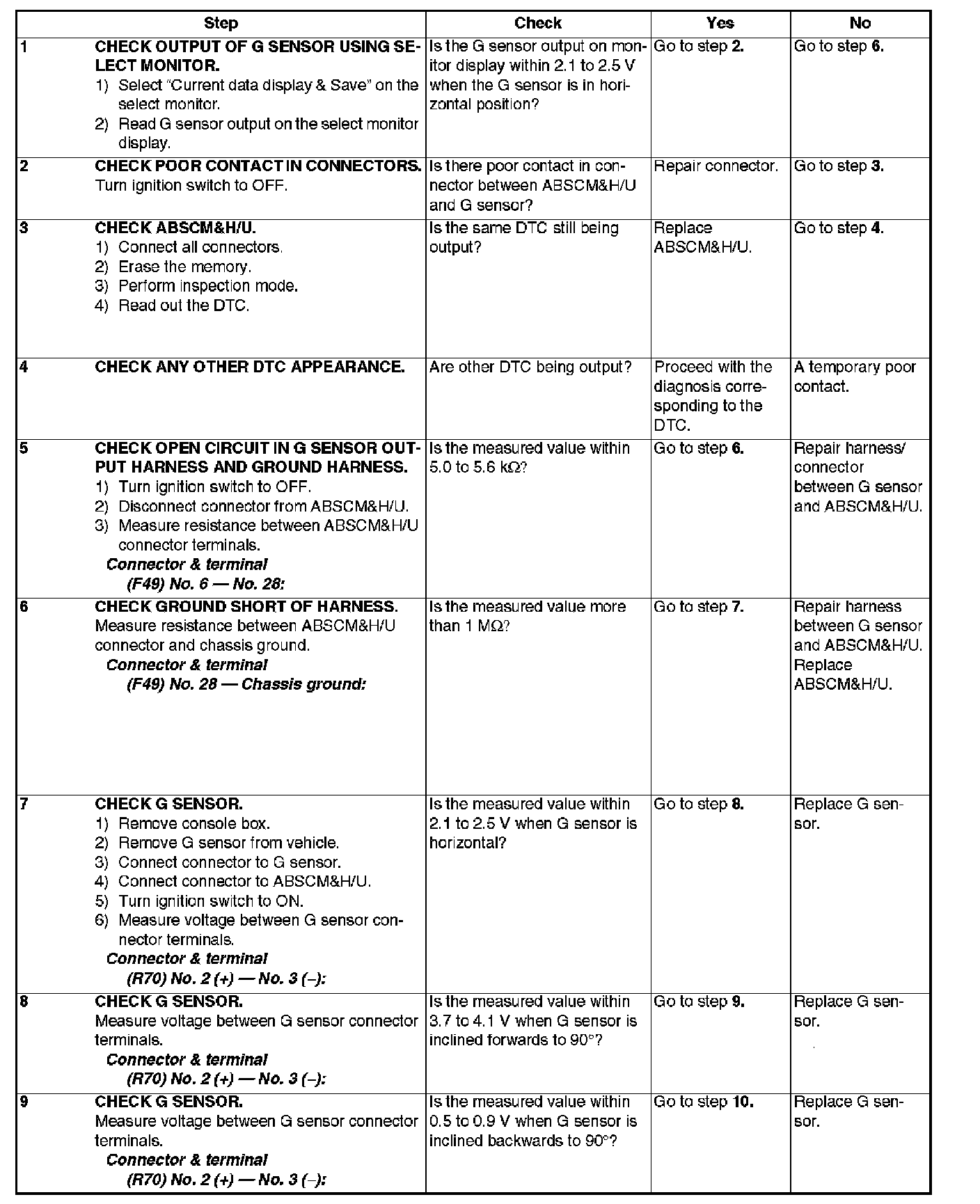

Steps 1-9:

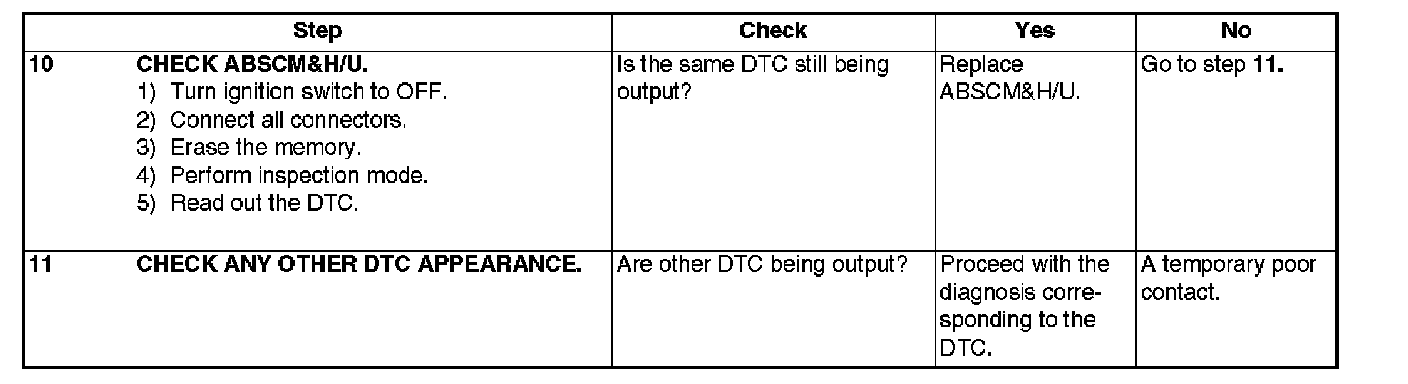

Steps 10 & 11:

DIAGNOSIS:
^ Faulty G sensor output voltage

TROUBLE SYMPTOM:
^ ABS does not operate.

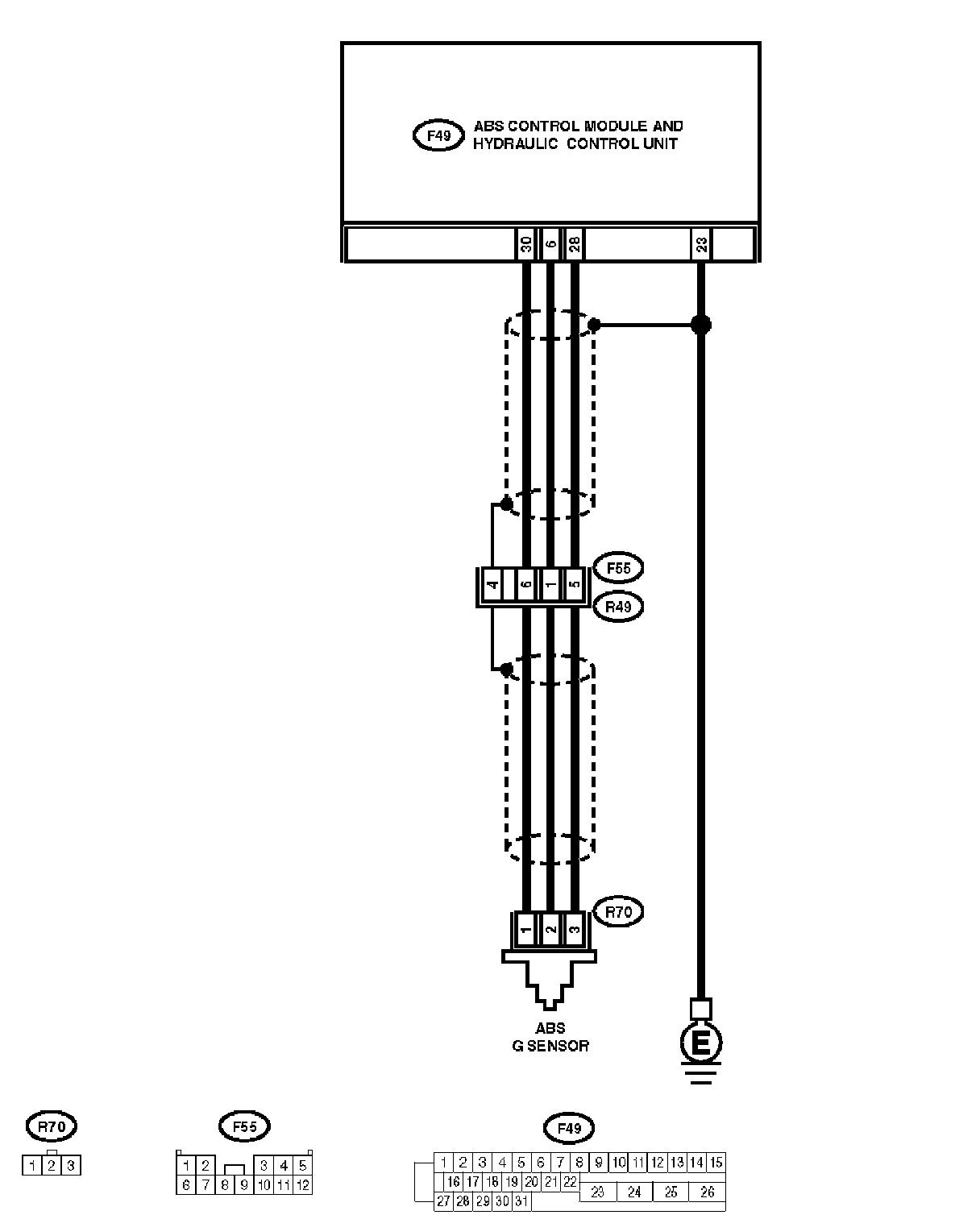

WIRING DIAGRAM
