ABS Trouble Code Charts For Warning Light Codes

DTC 56 ABNORMAL G SENSOR OUTPUT VOLTAGE

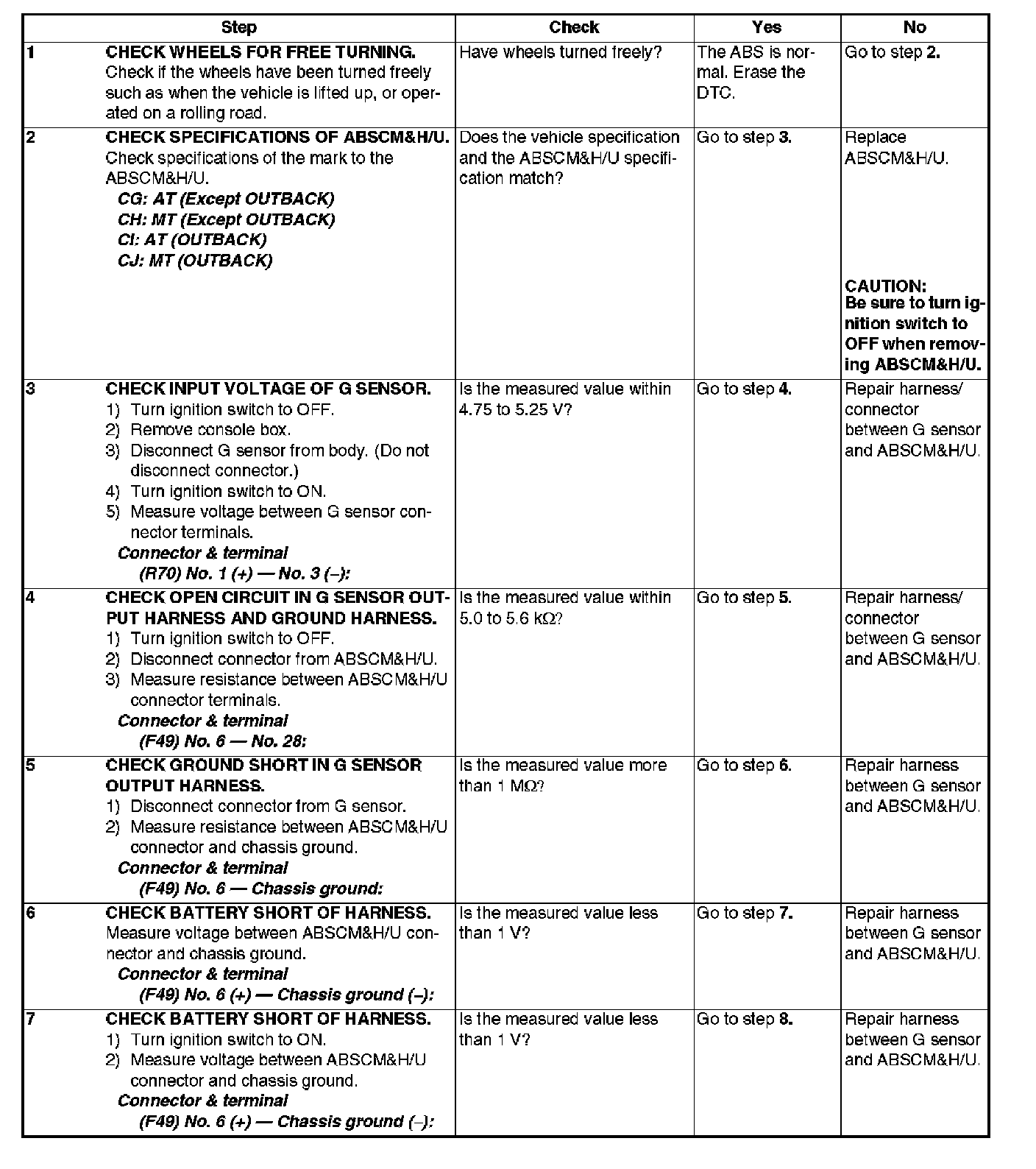

Steps 1-7:

Steps 8-14:

DIAGNOSIS:
^ Faulty G sensor output voltage

TROUBLE SYMPTOM:
^ ABS does not operate.

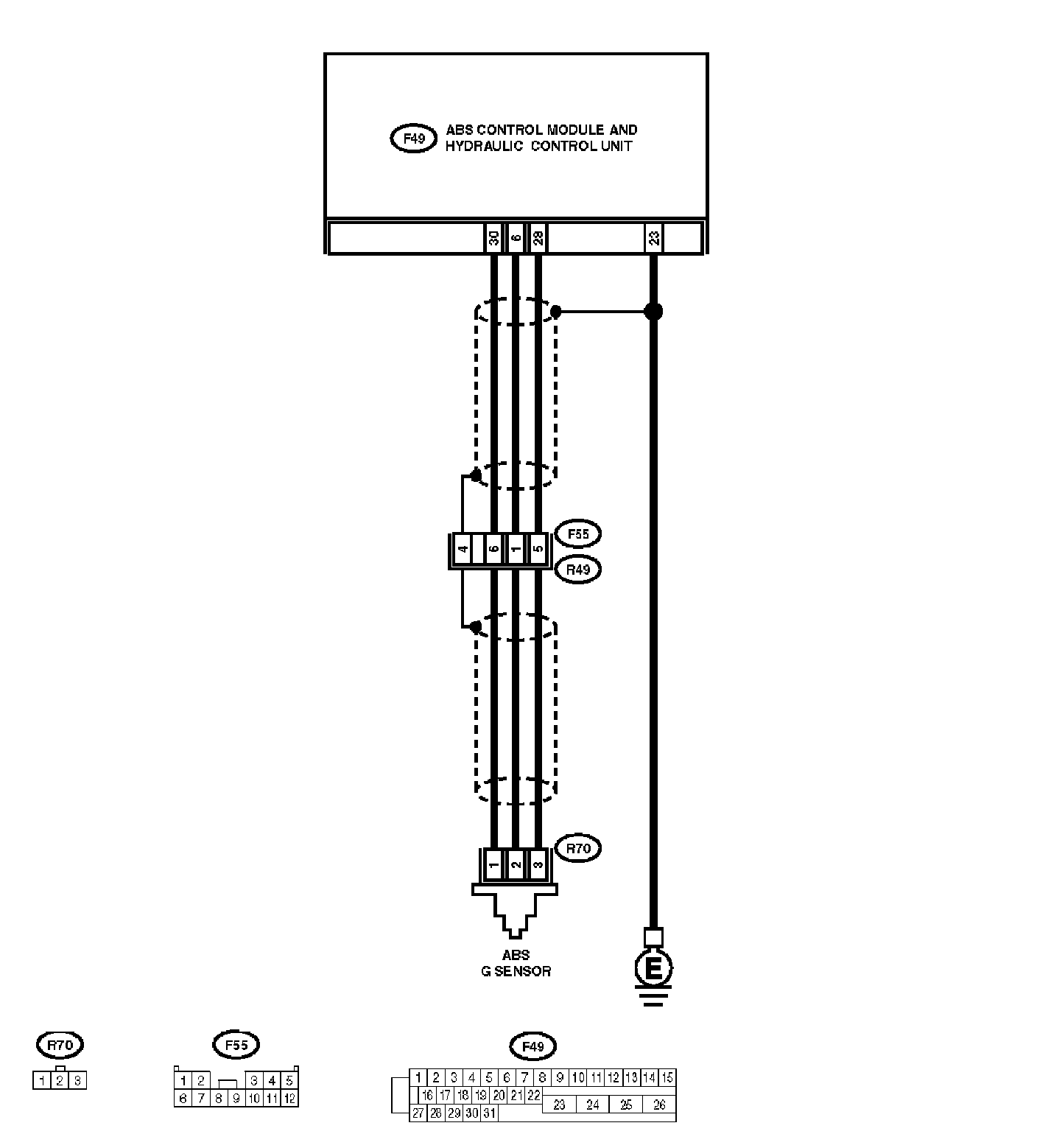

WIRING DIAGRAM
