Vdc System

DTC 52 ABNORMAL MOTOR AND/OR MOTOR RELAY

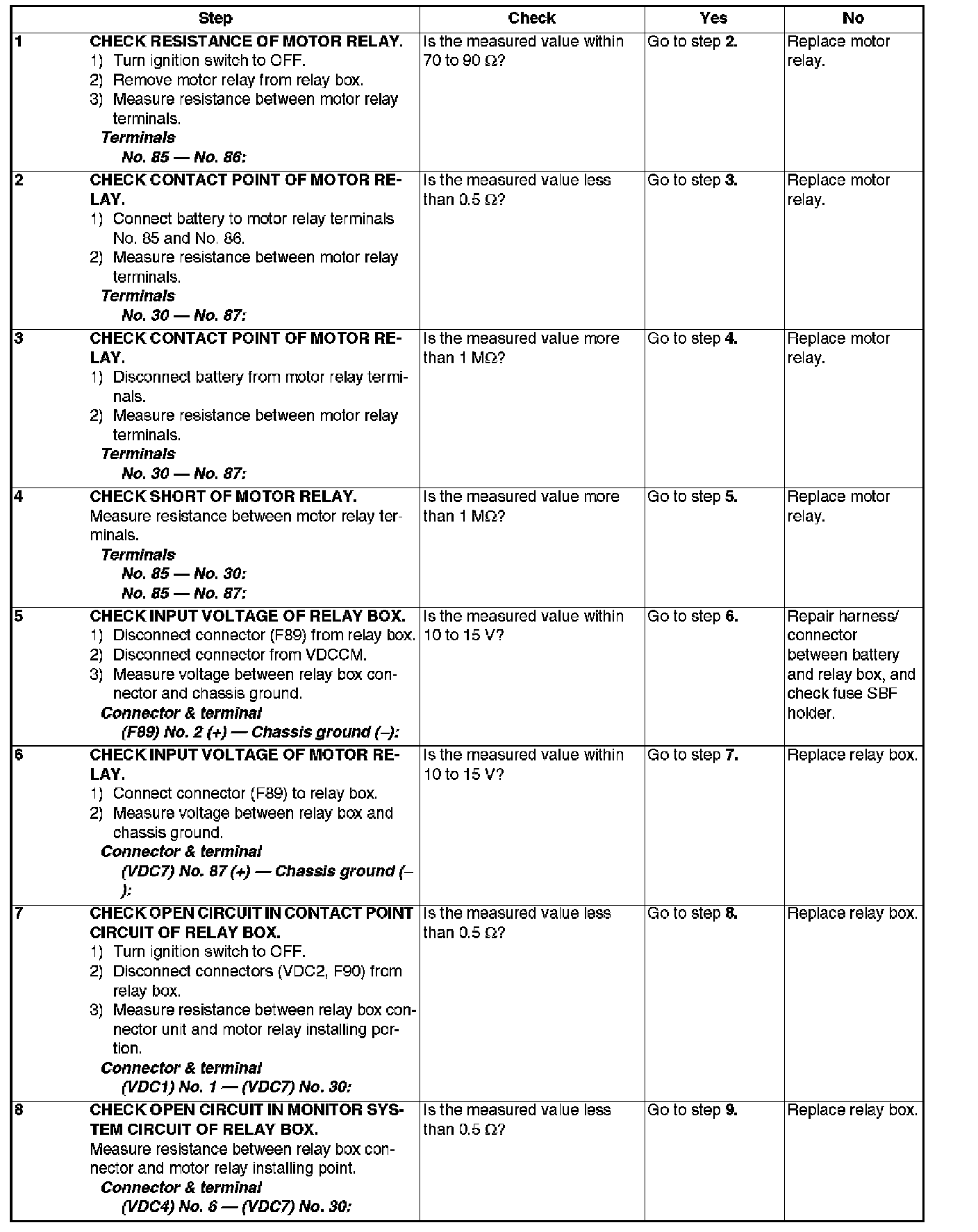

Steps 1-8:

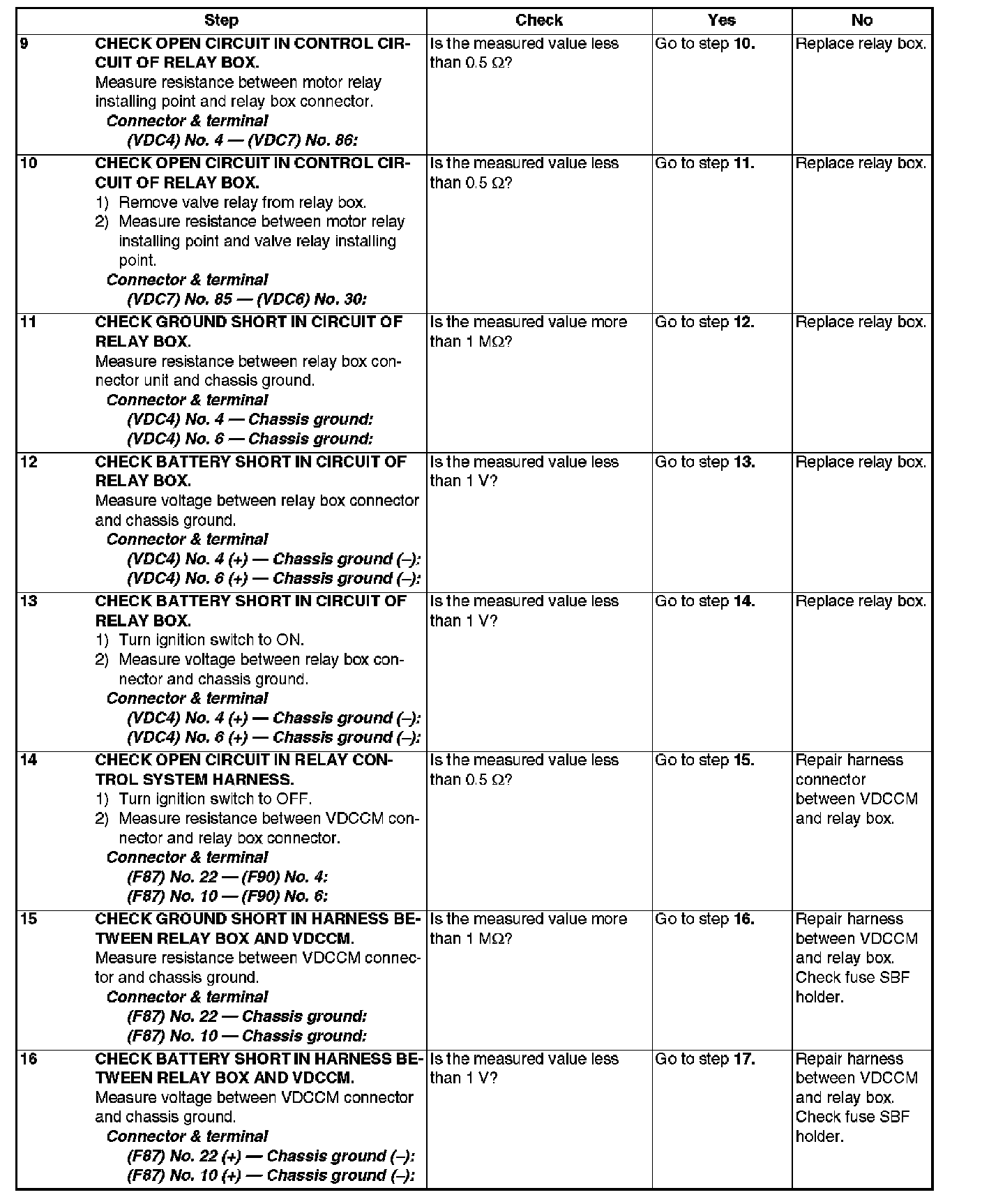

Steps 9-16:

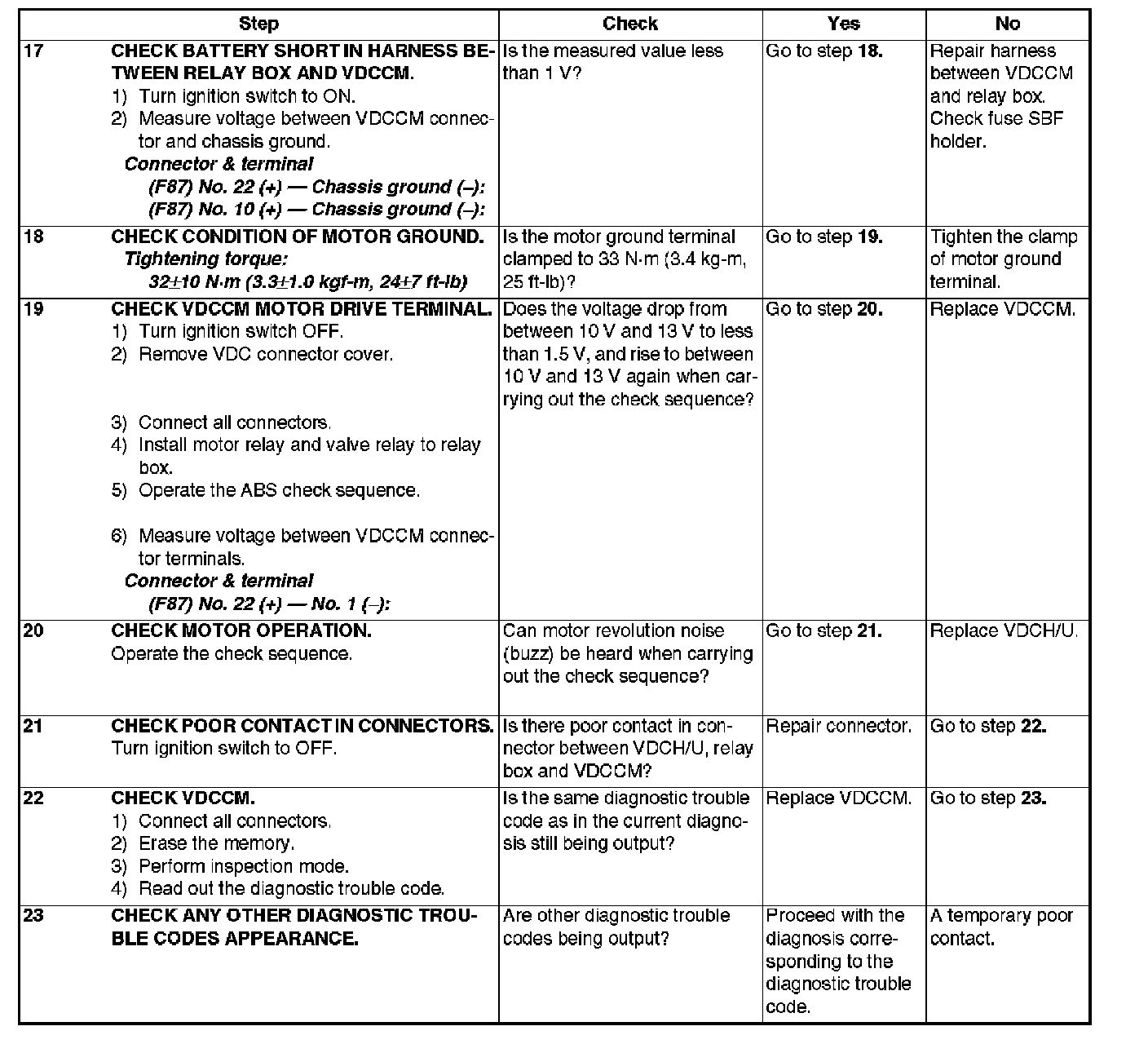

Steps 17-23:

DIAGNOSIS:
^ Faulty motor
^ Faulty motor relay
^ Faulty harness connector

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

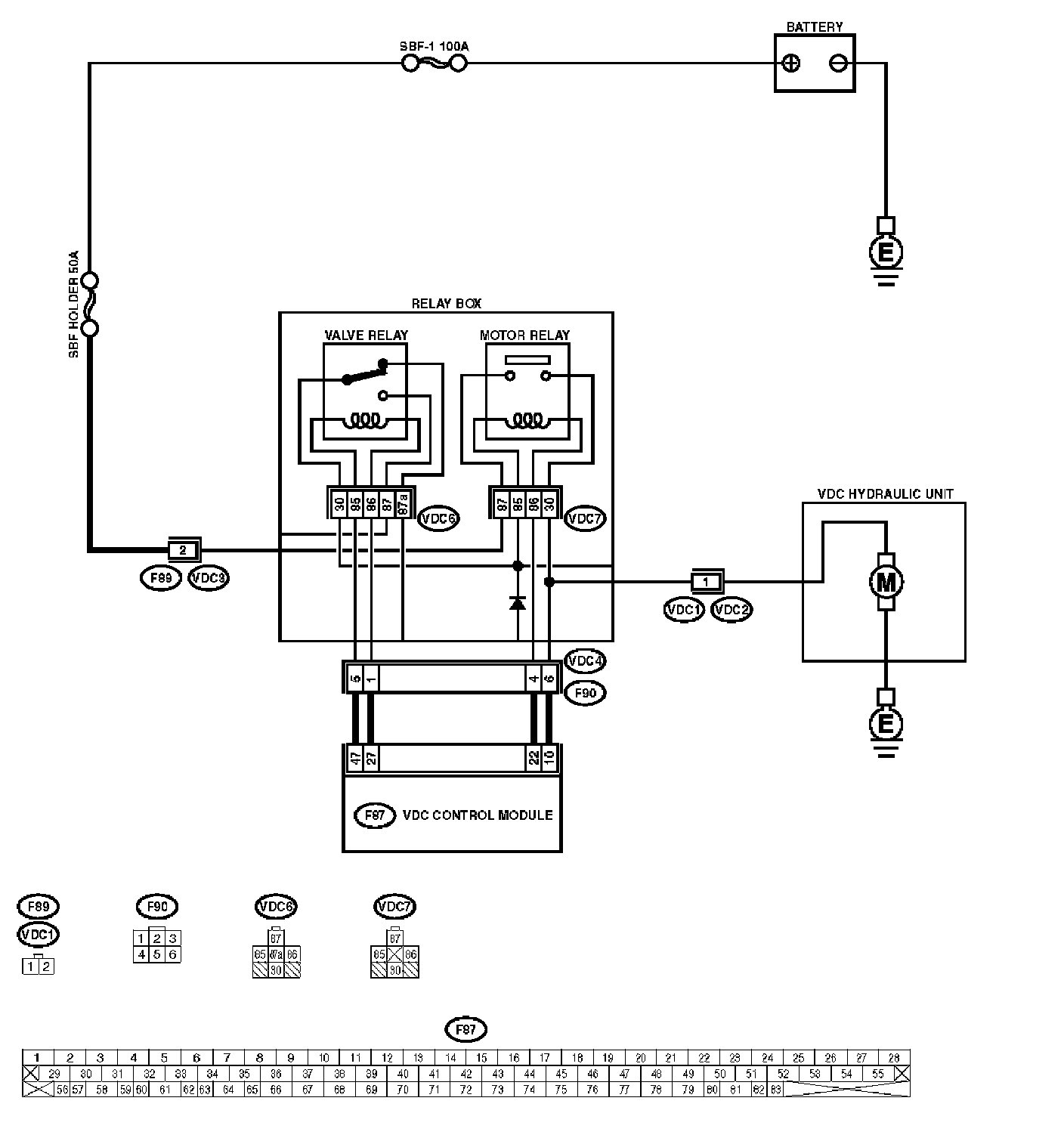

WIRING DIAGRAM
