Vdc System Trouble Code Charts For Select Monitor Results

DTC 52 MOTOR MALFUNCTION

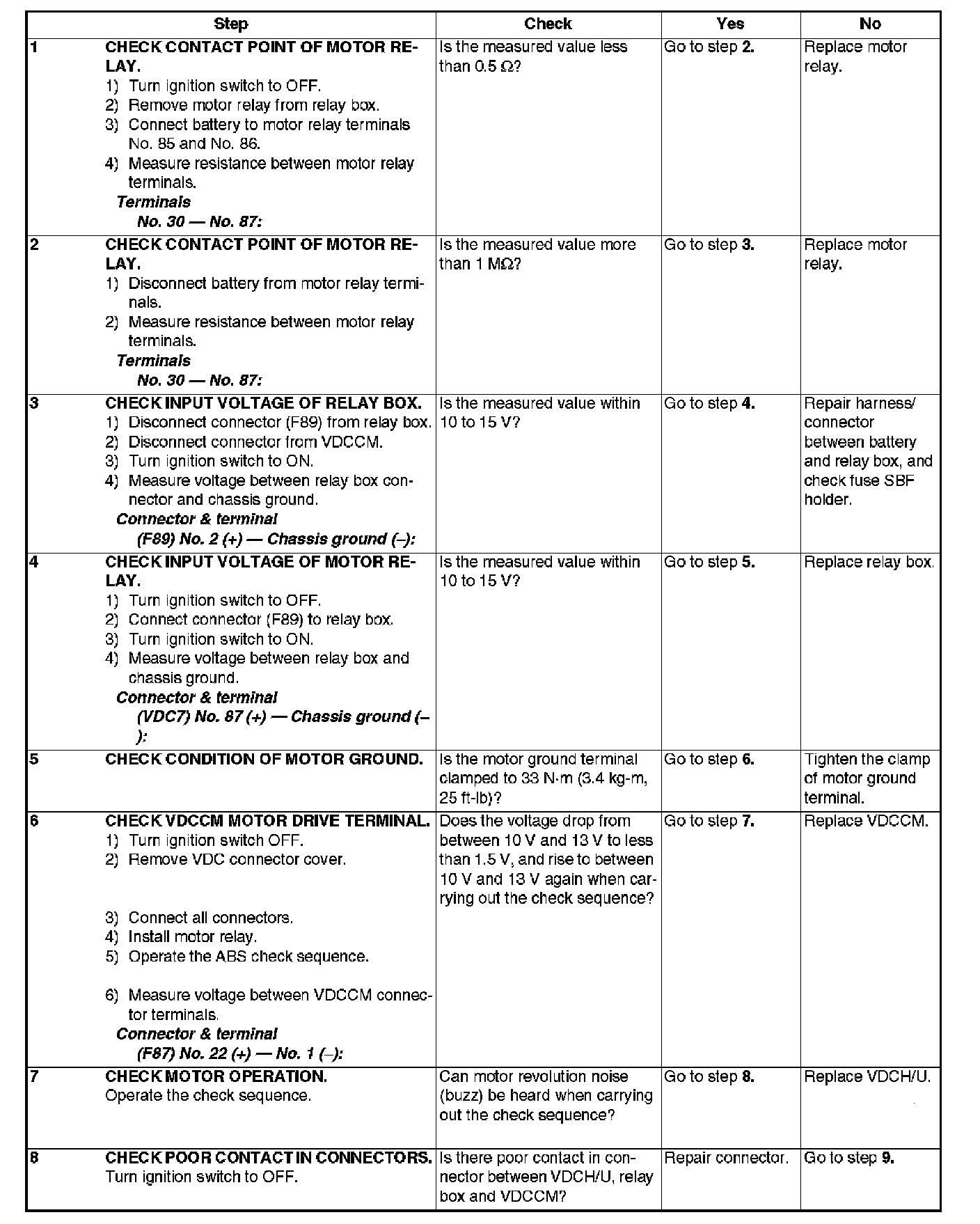

Steps 1-8:

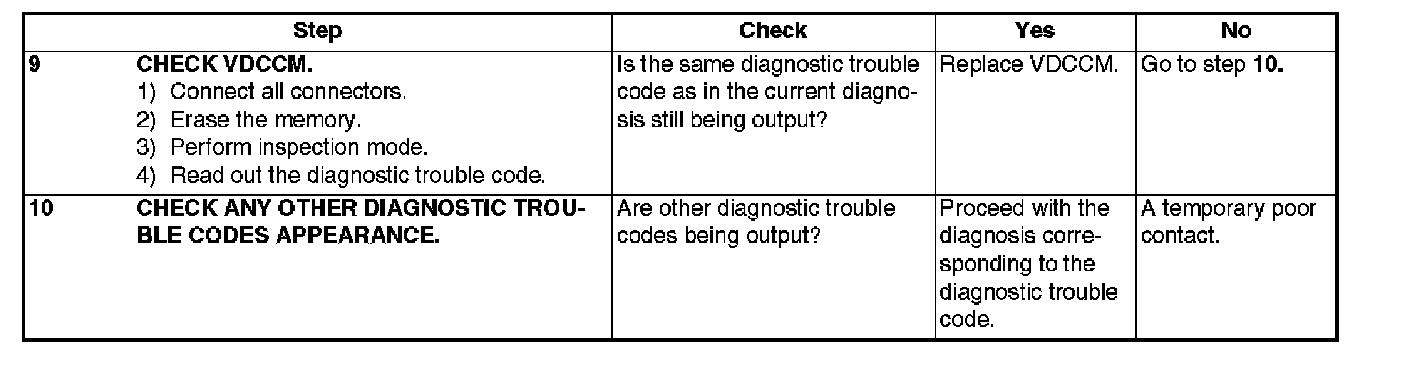

Steps 9 & 10:

DIAGNOSIS:
^ Faulty motor
^ Faulty motor relay
^ Faulty harness connector

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

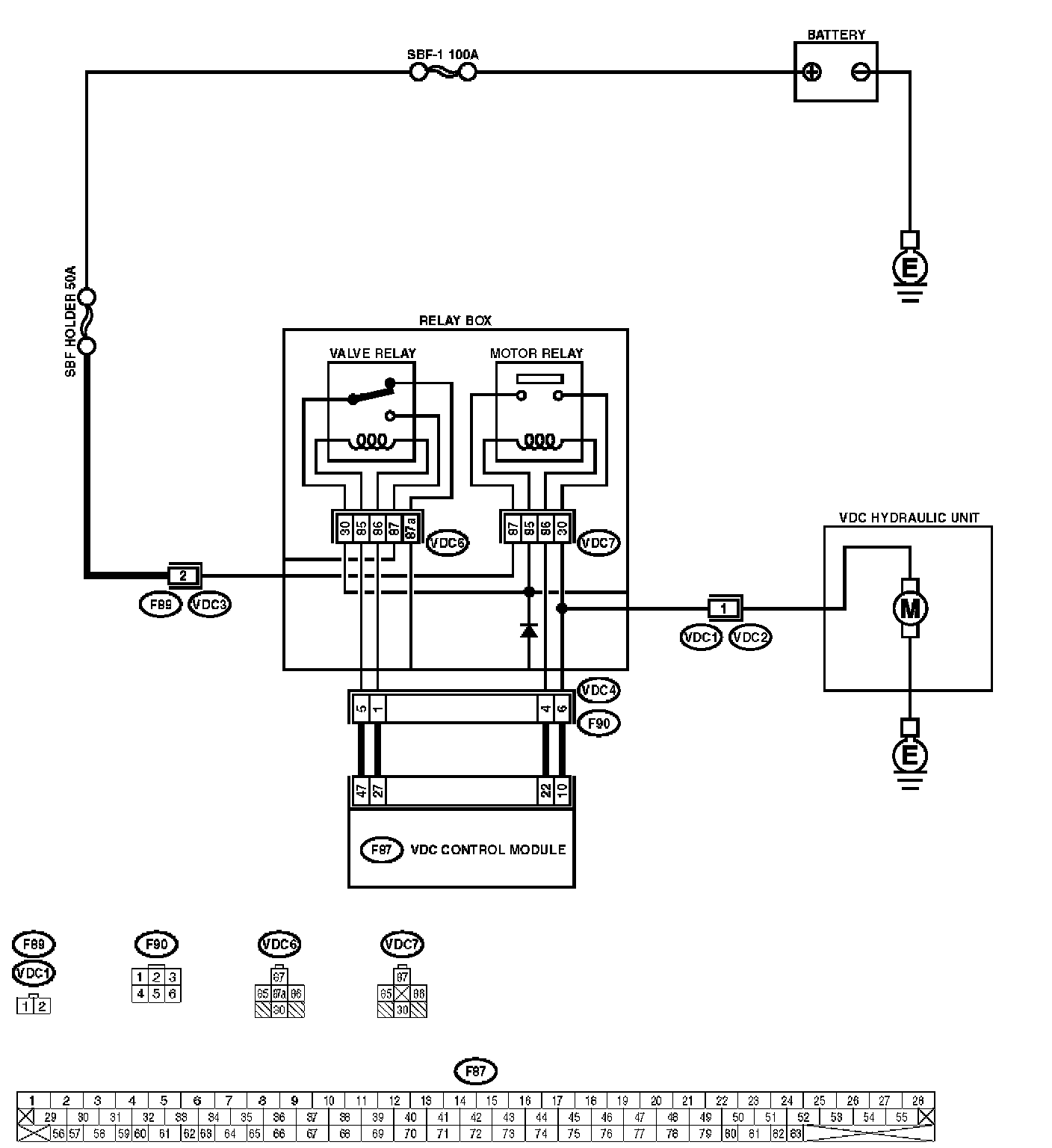

WIRING DIAGRAM
