Motor and Motor Relay on Failure

DTC 52 MOTOR AND MOTOR RELAY ON FAILURE

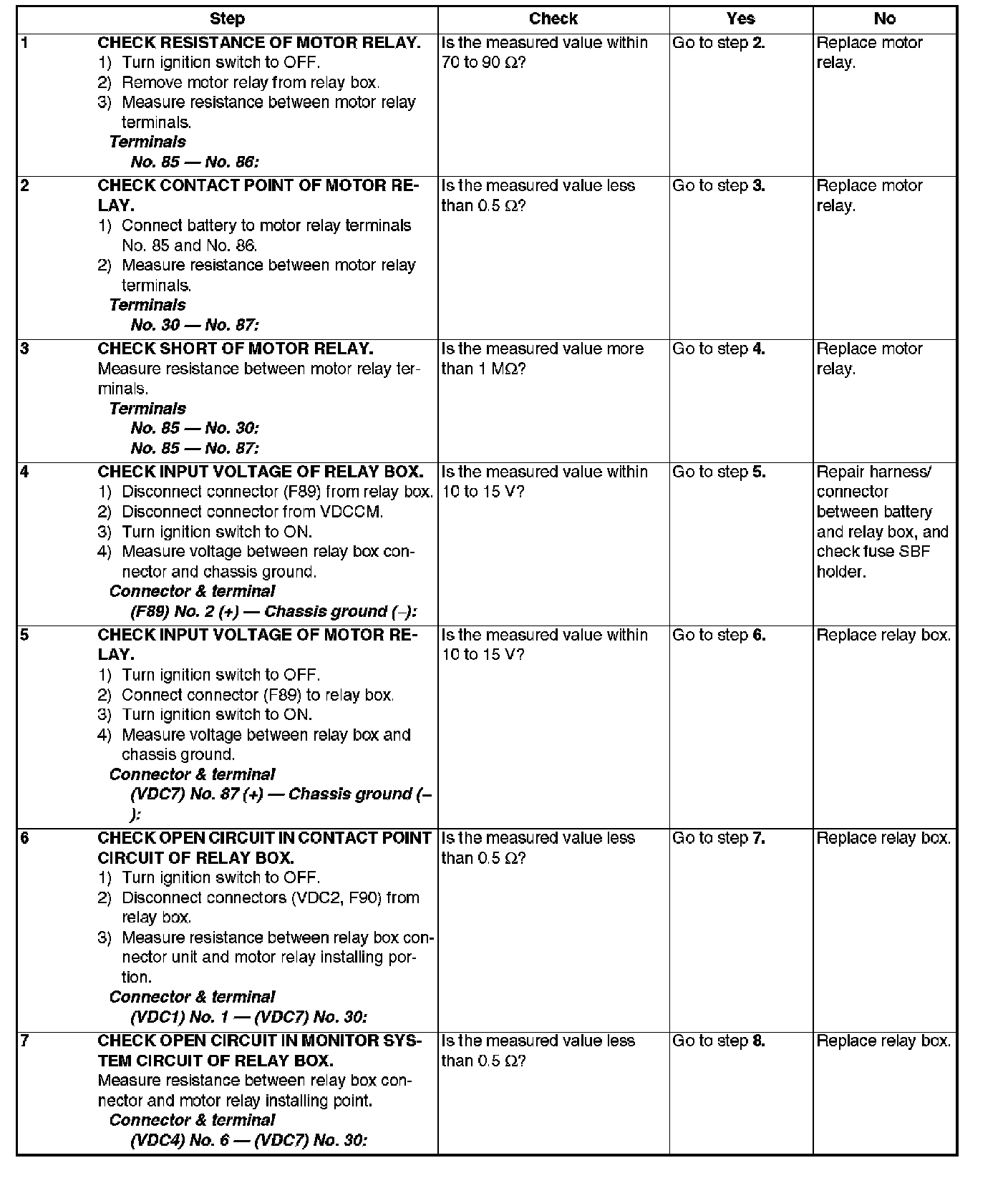

Steps 1-7:

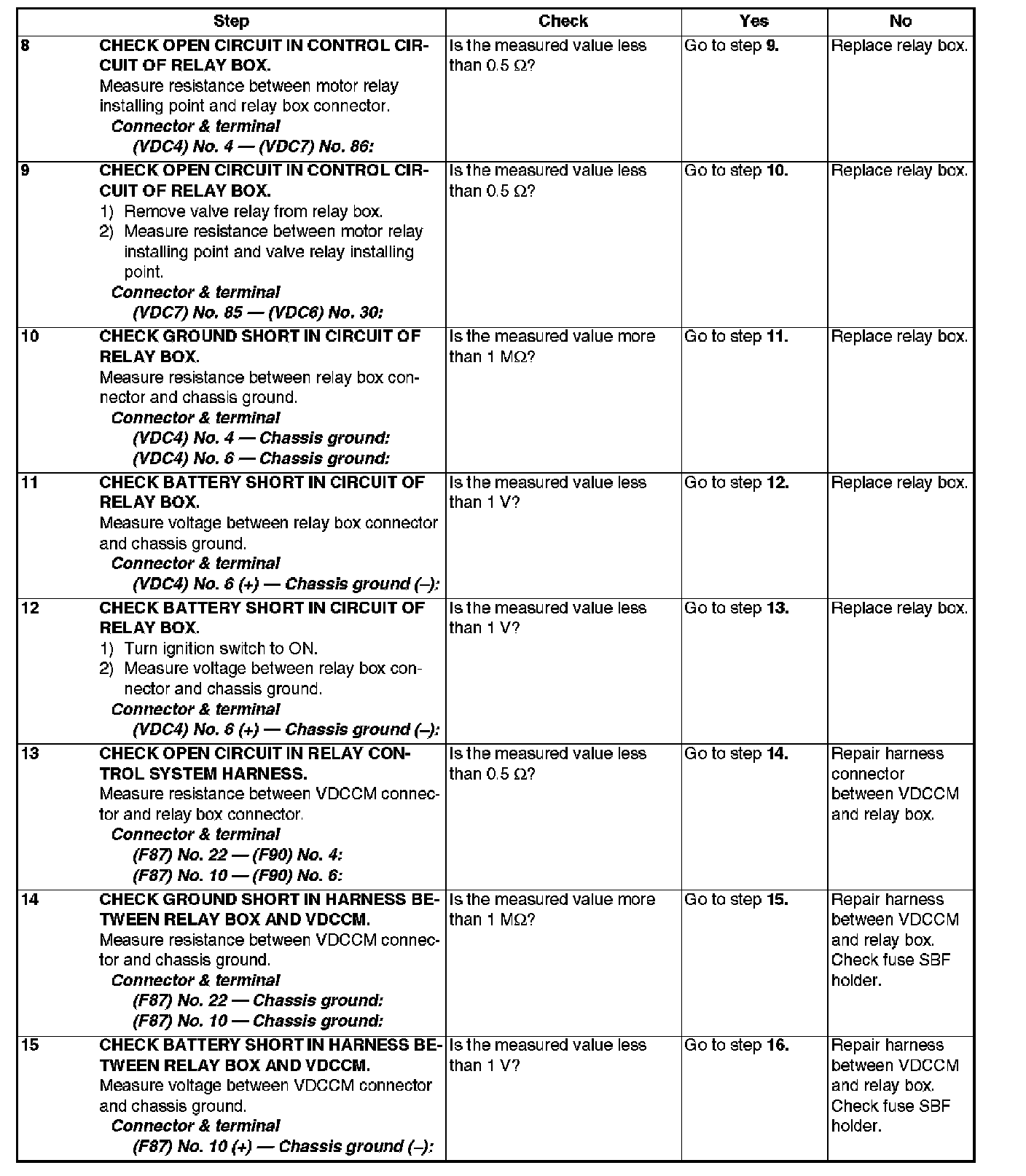

Steps 8-15:

Steps 16-19:

DIAGNOSIS:
^ Faulty motor relay
^ Faulty harness connector

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

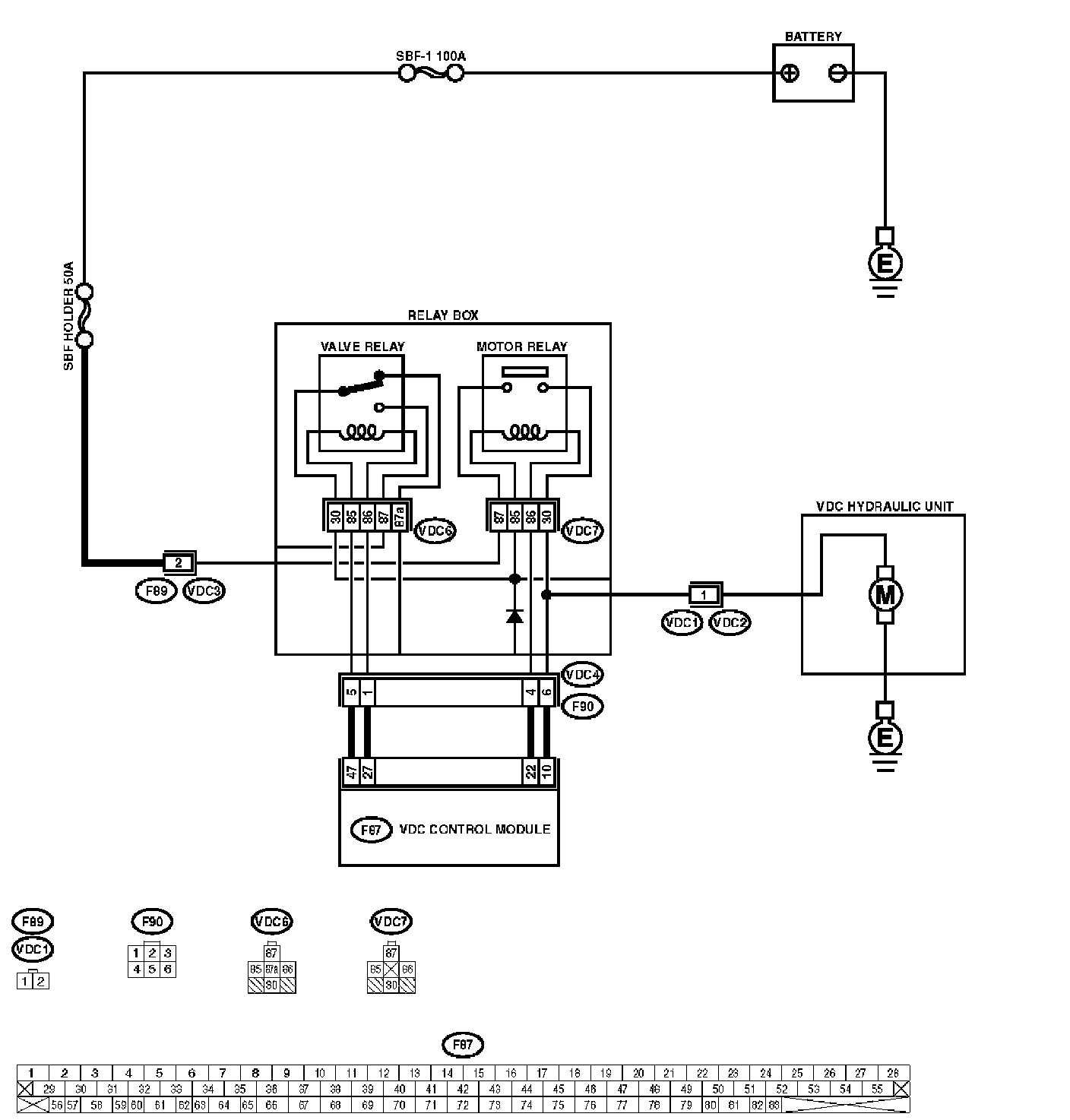

WIRING DIAGRAM
