Vdc System Trouble Code Charts For Warning Light Codes

DTC 51 ABNORMAL VALVE RELAY

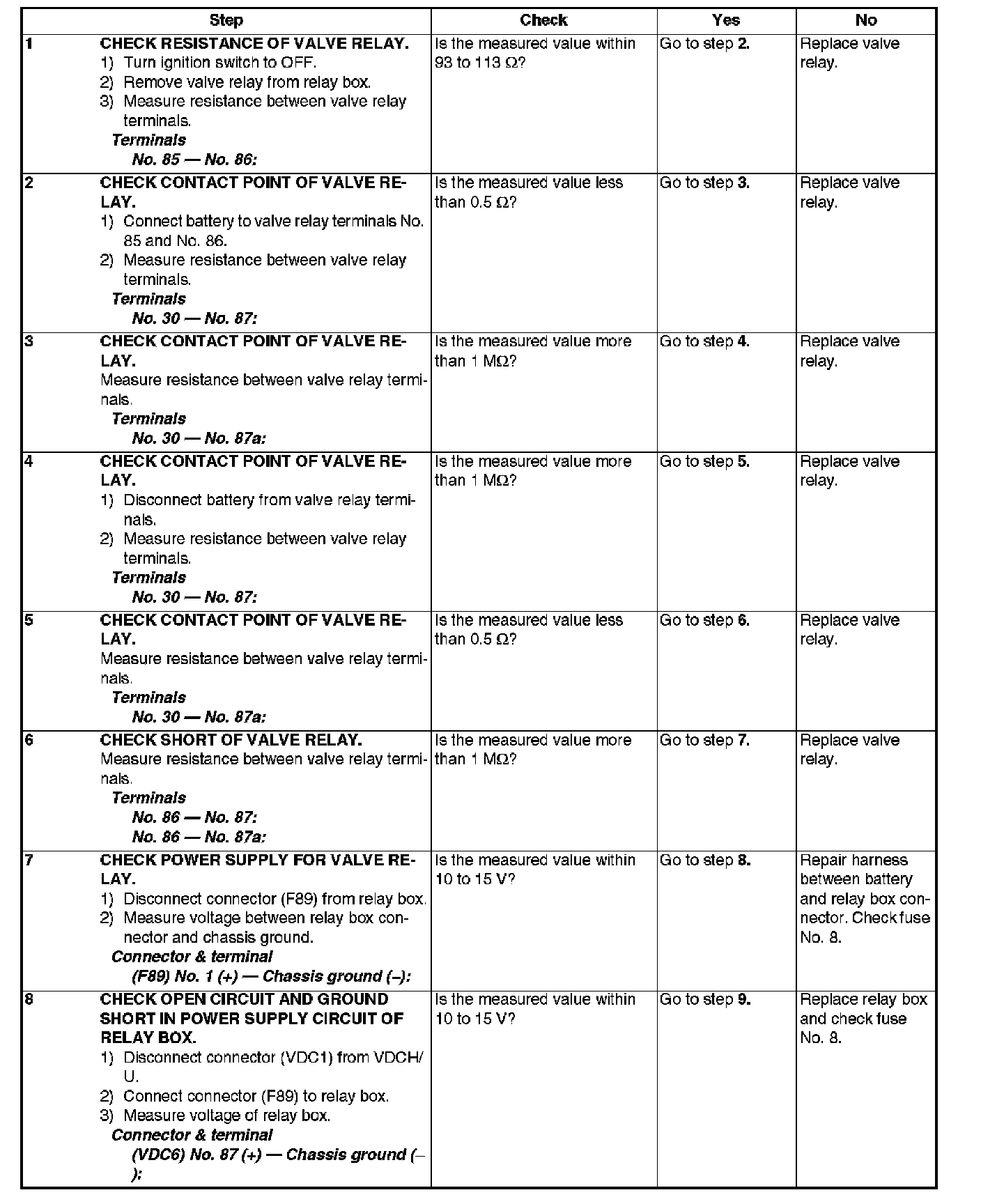

Steps 1-8:

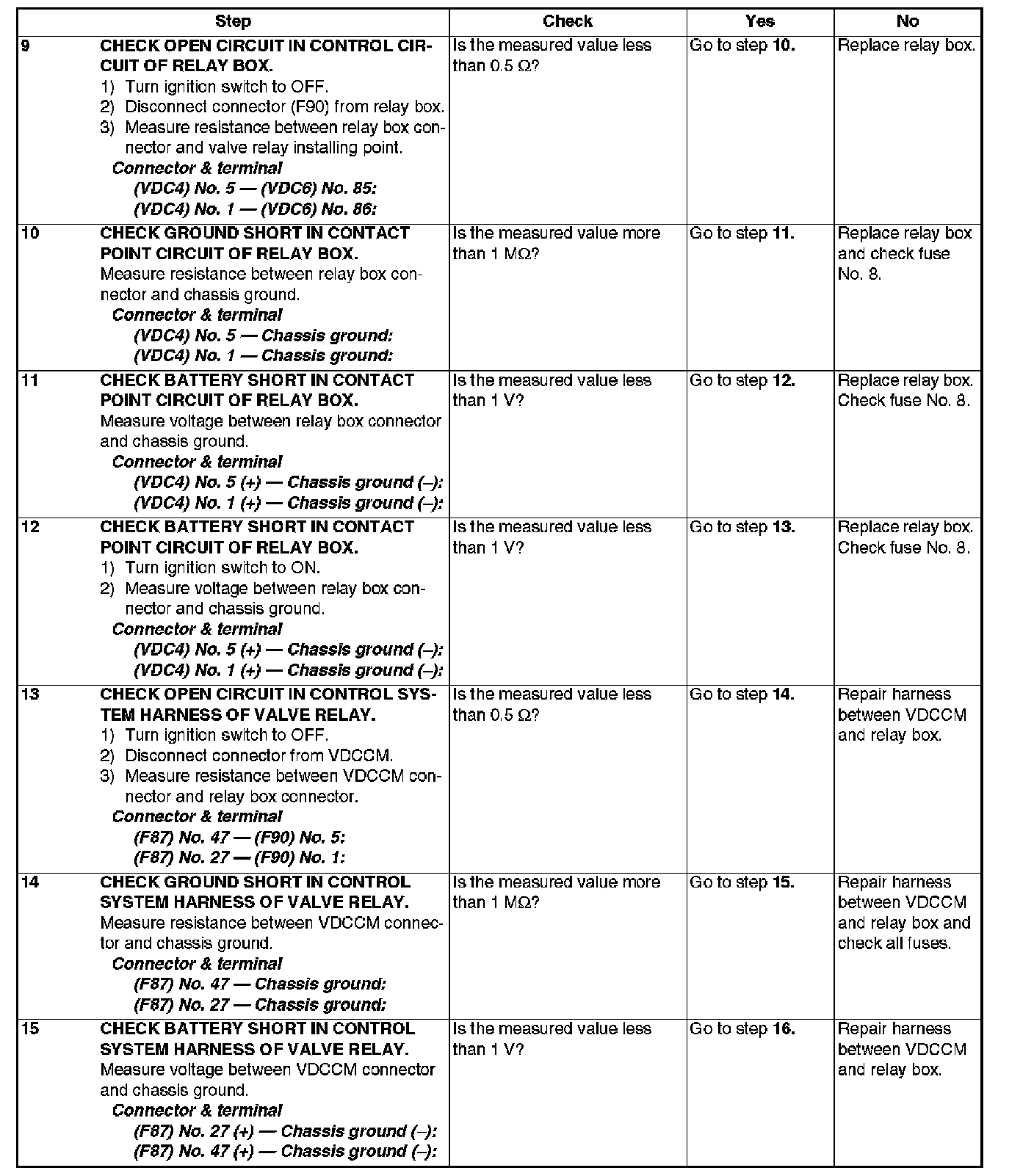

Steps 9-15:

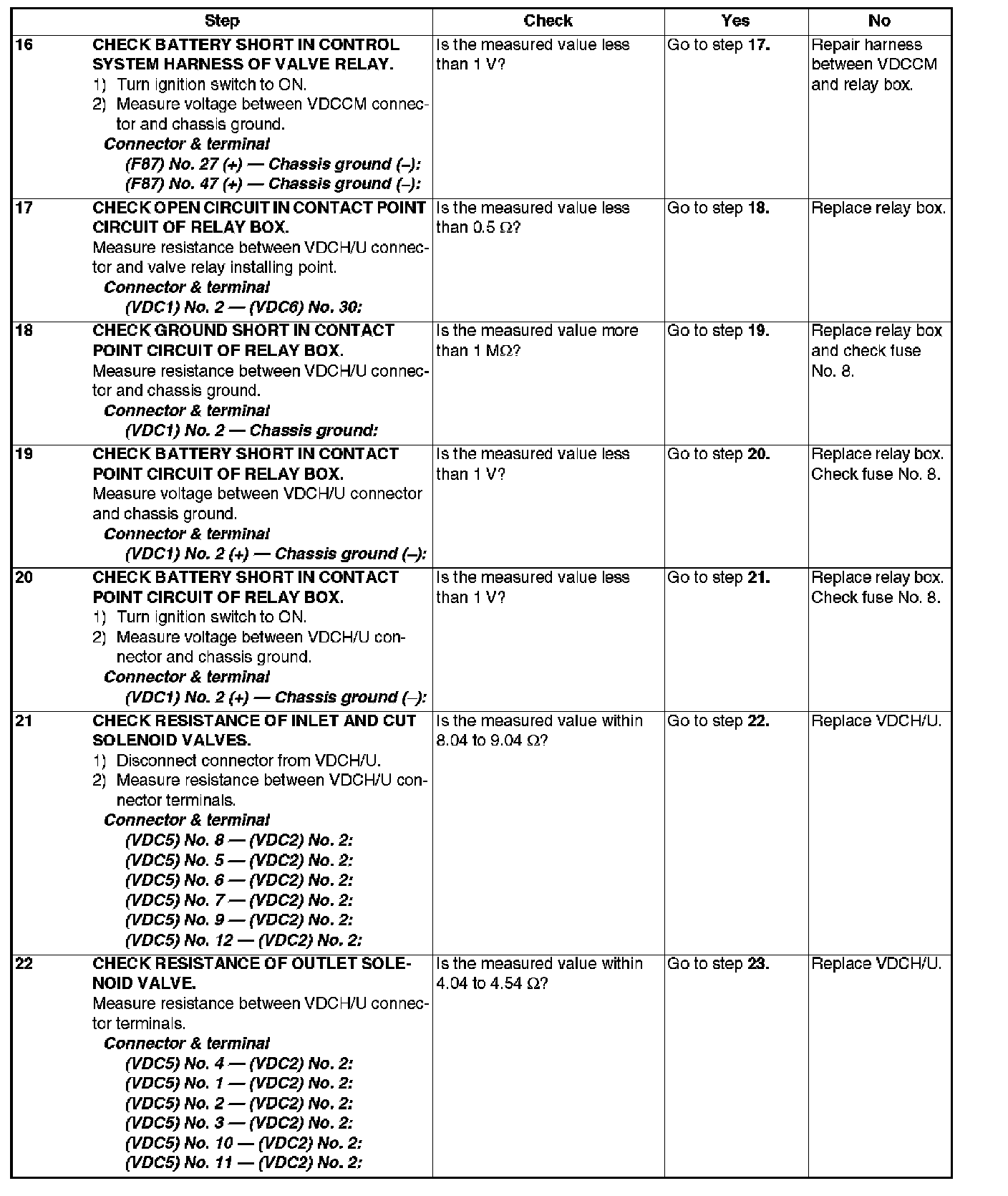

Steps 16-22:

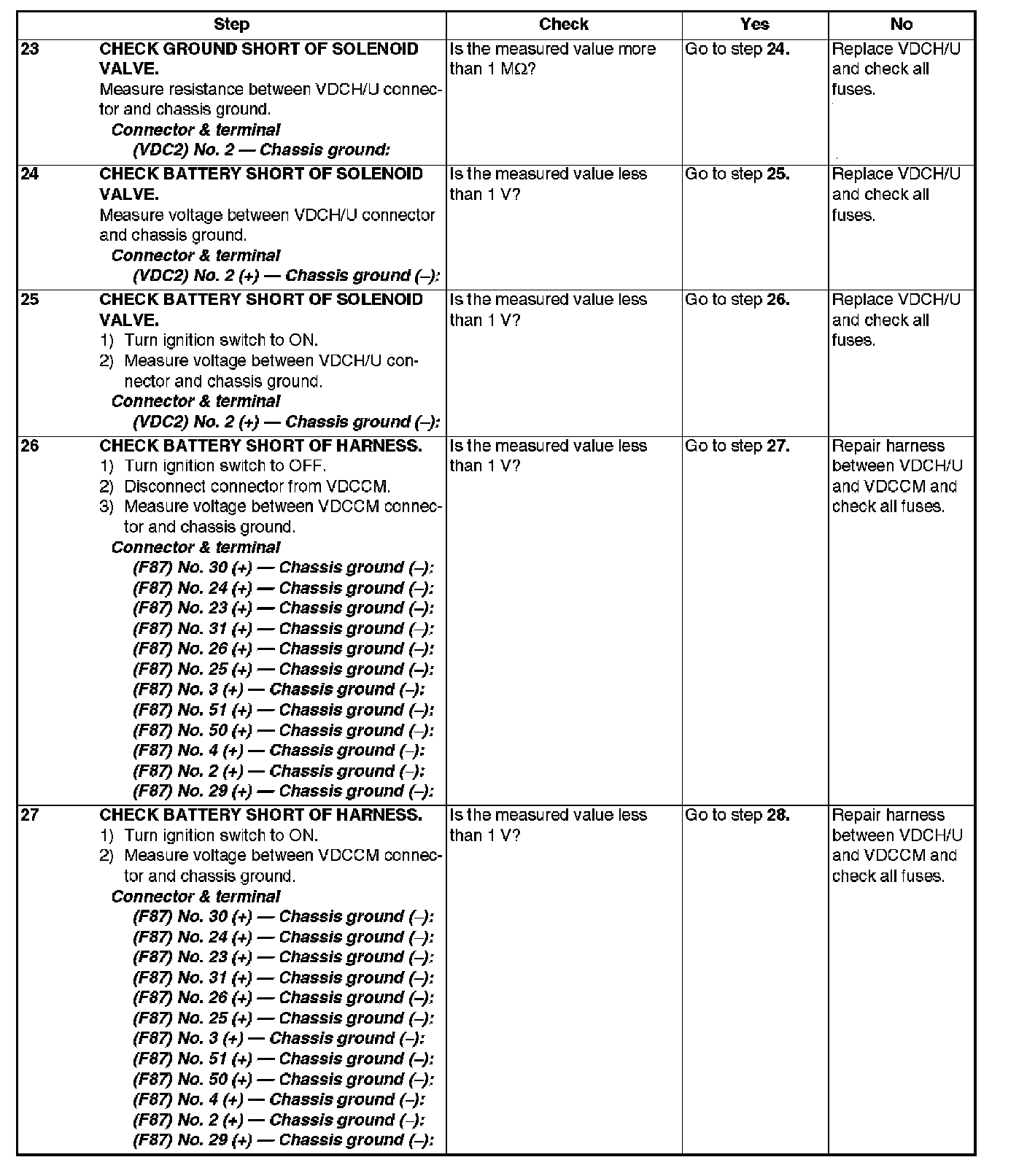

Steps 23-27:

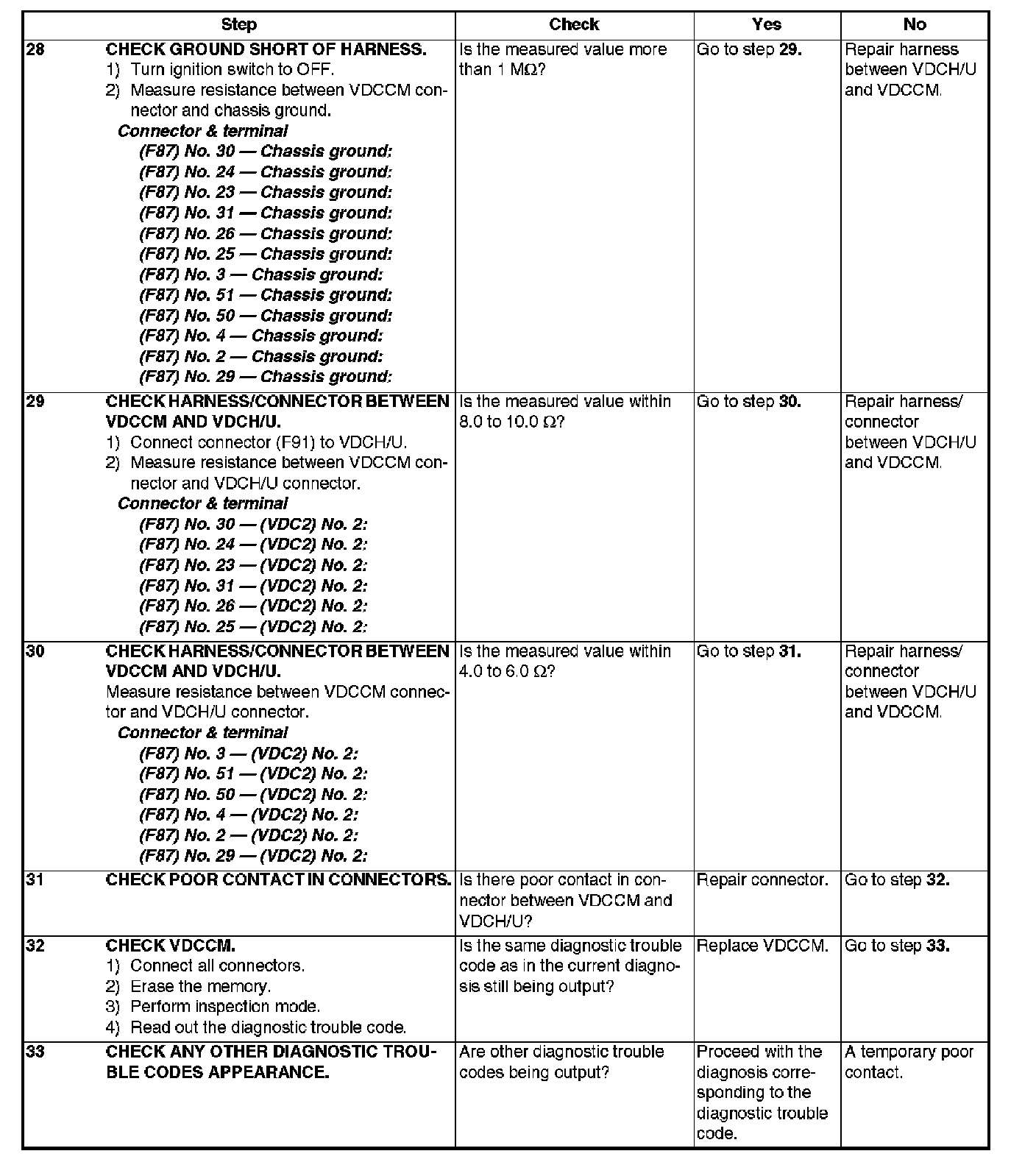

Steps 28-33:

DIAGNOSIS:
^ Faulty valve relay

NOTE: When DTC 74 ABNORMAL PRESSURE SENSOR procedure 4 is carried out, DTC 51 is memorized.

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.





WIRING DIAGRAM
