DTC 51
>>
Valve Relay ON Failure
Valve Relay ON Failure
DTC 51 VALVE RELAY ON FAILURE

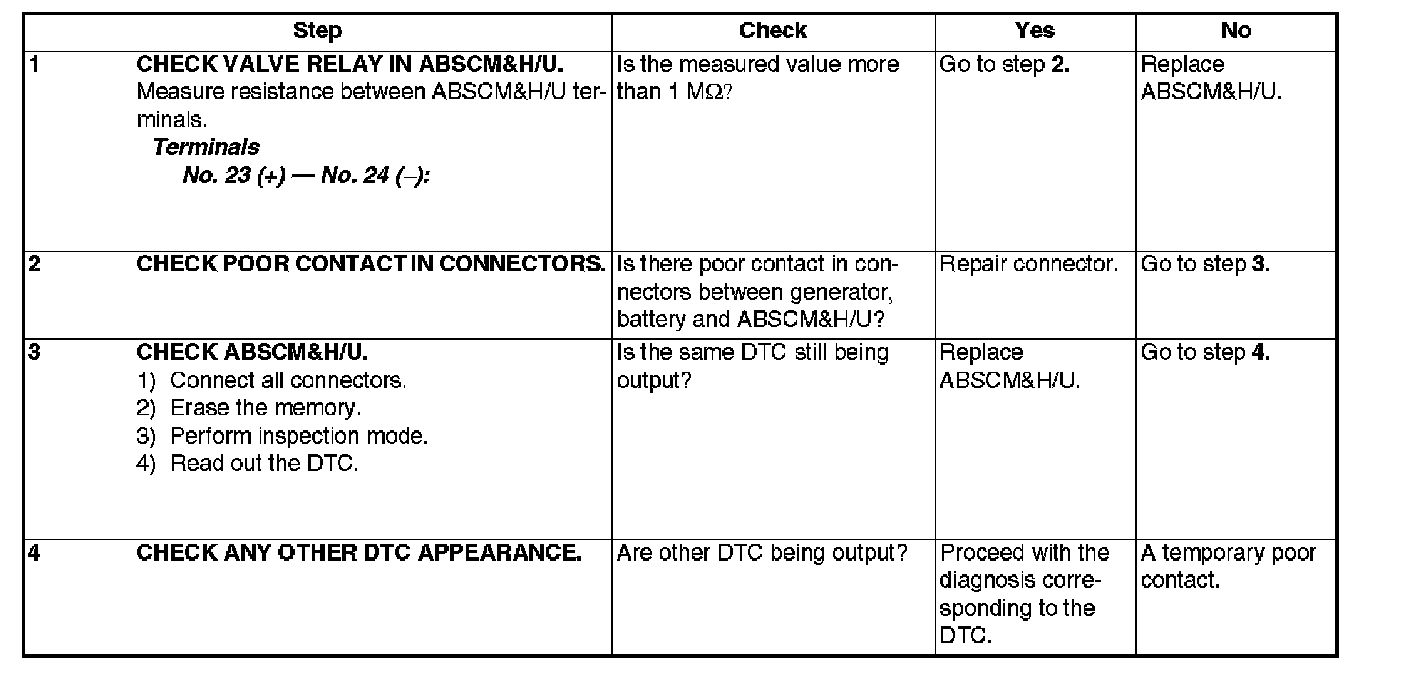

Steps 1-4:
DIAGNOSIS:
^
Faulty valve relay
TROUBLE SYMPTOM:
^
ABS does not operate.

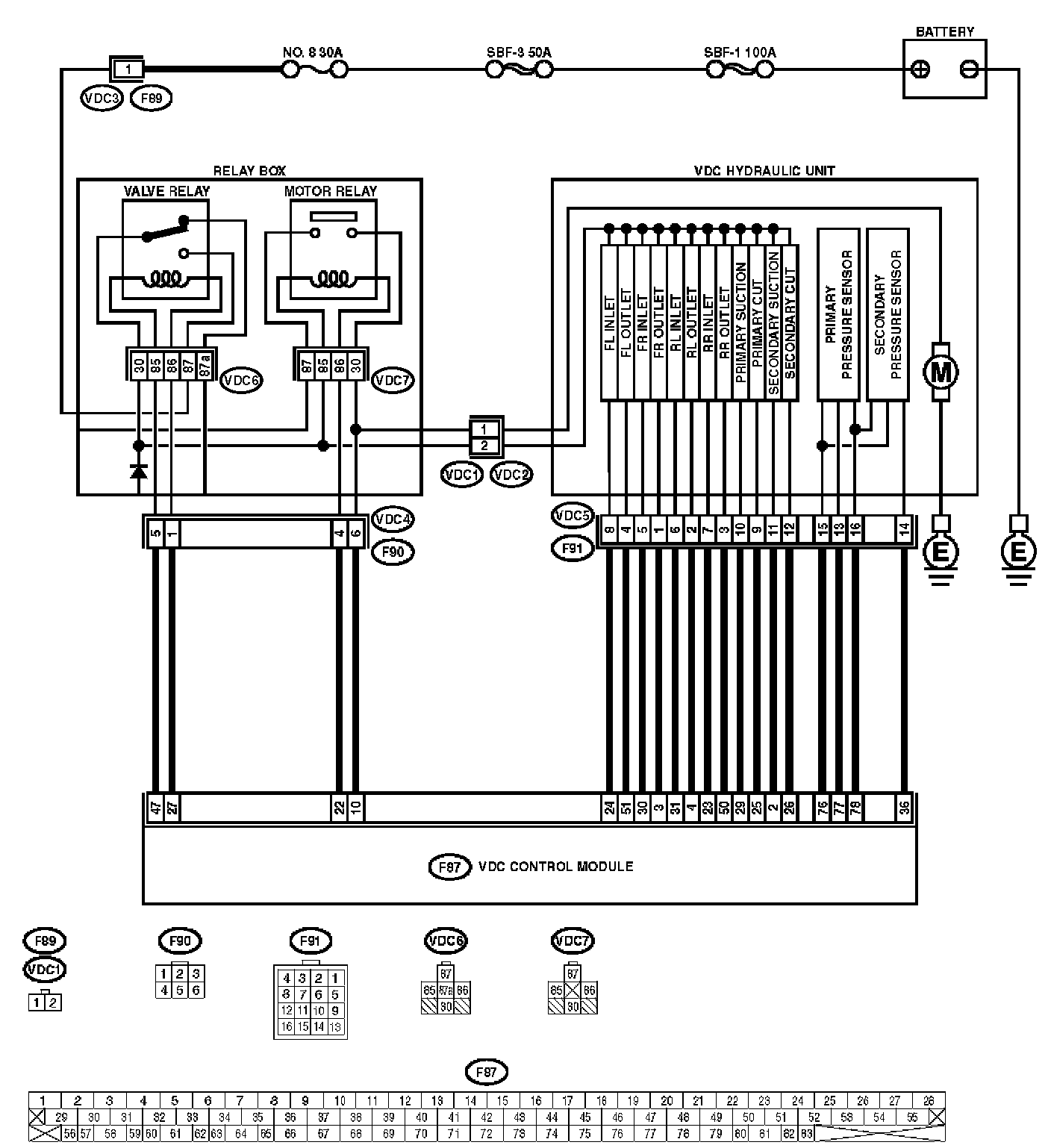

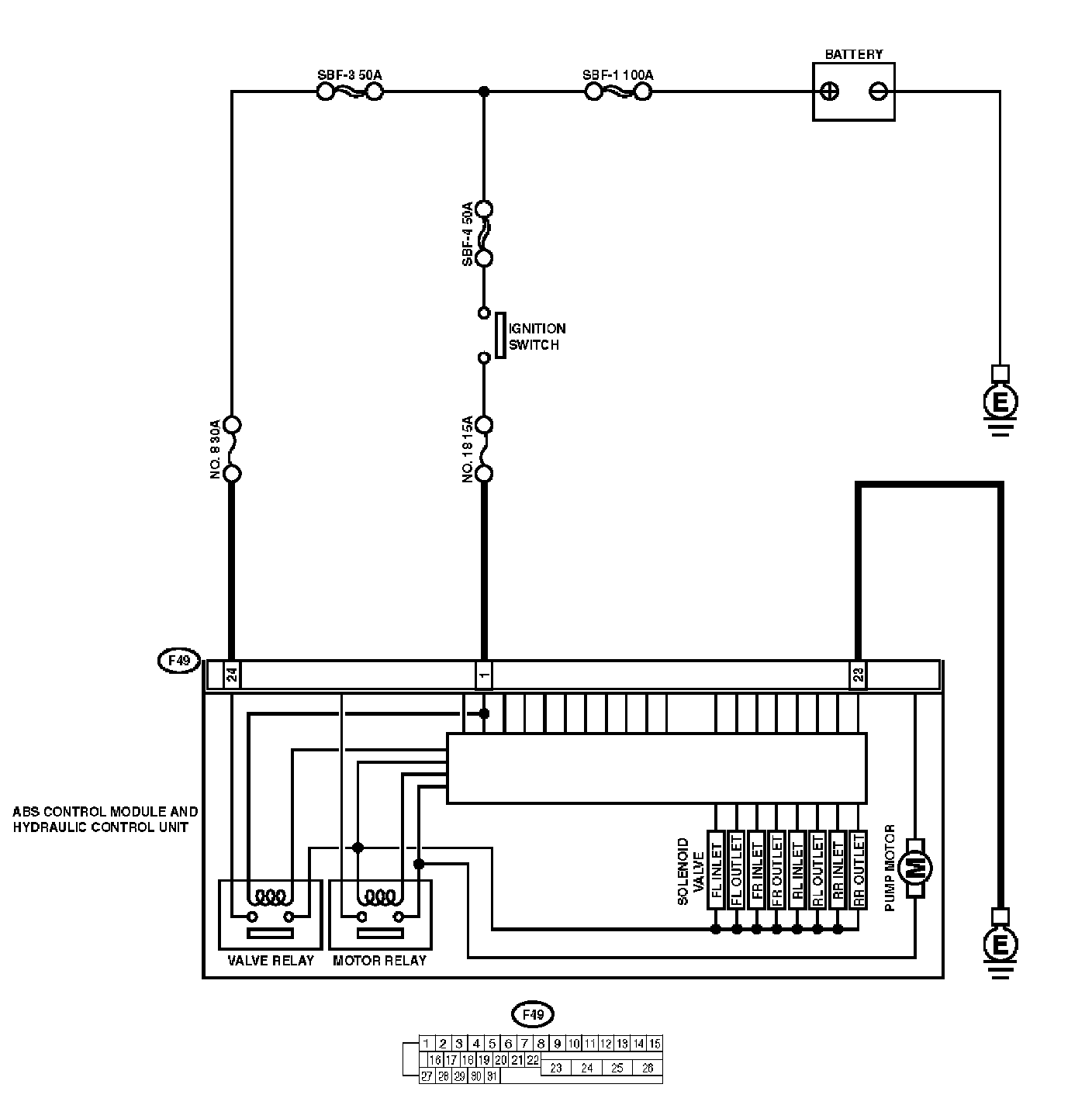

WIRING DIAGRAM
