Valve Relay

DTC 51 VALVE RELAY

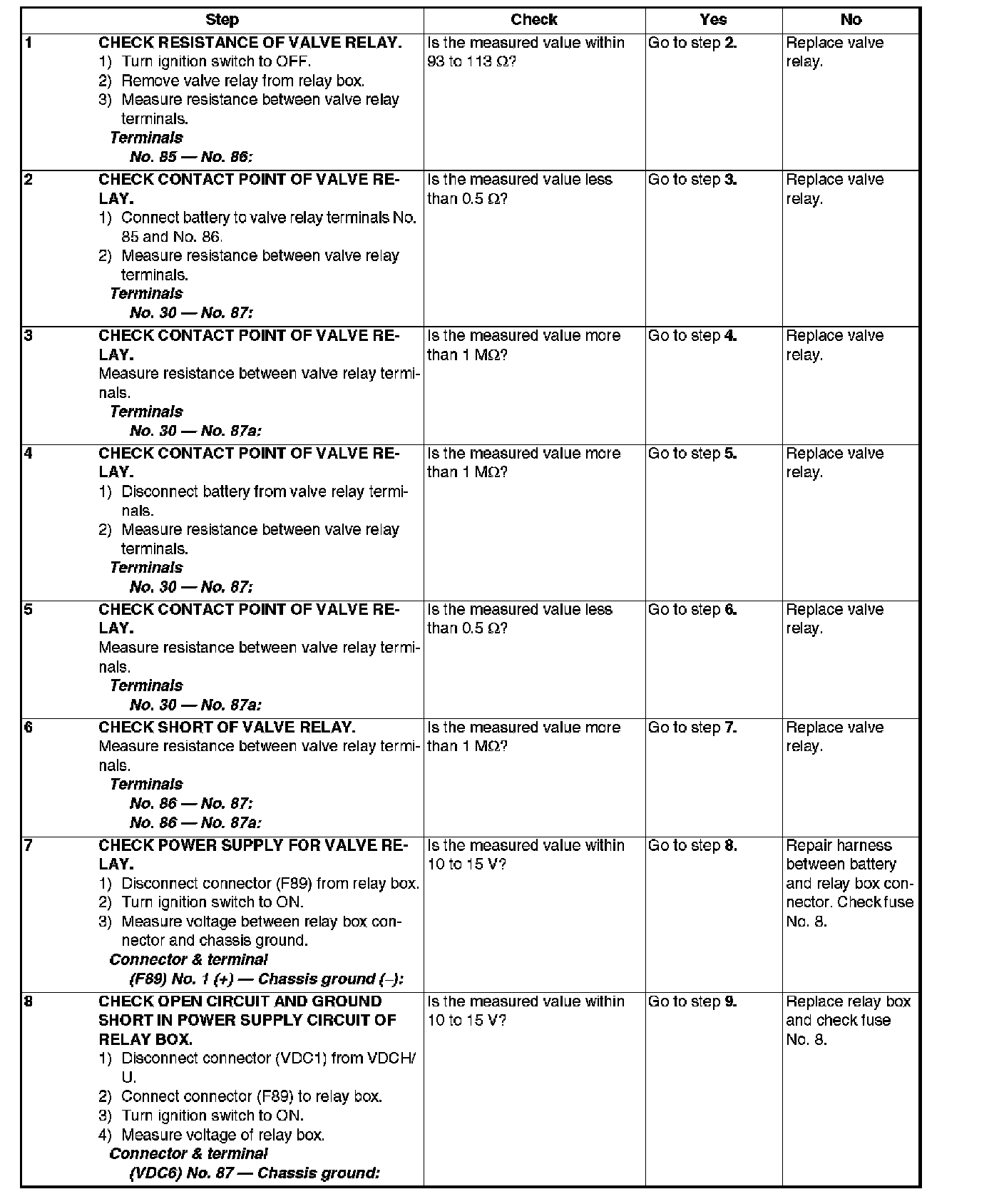

Steps 1-8:

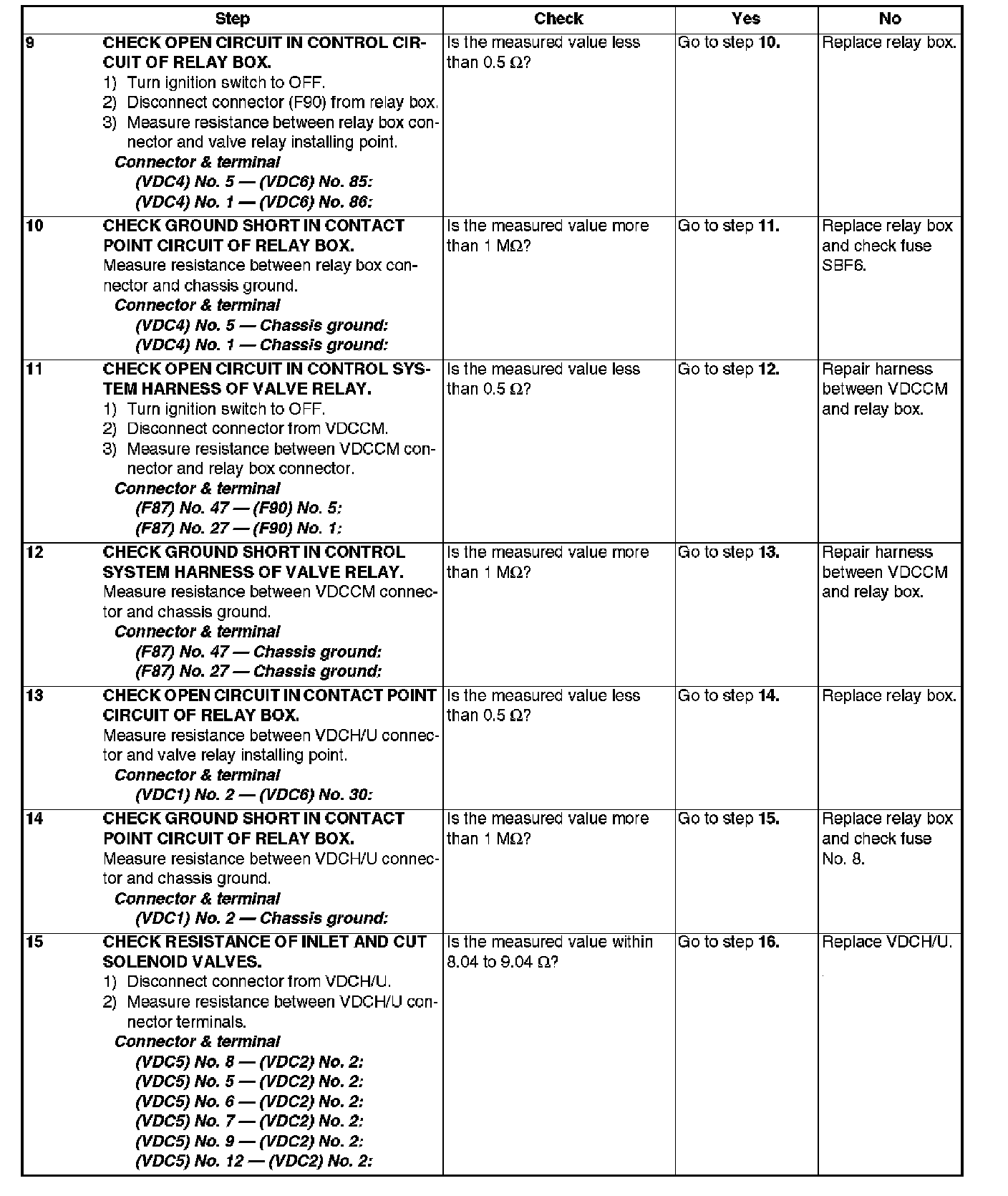

Steps 9-15:

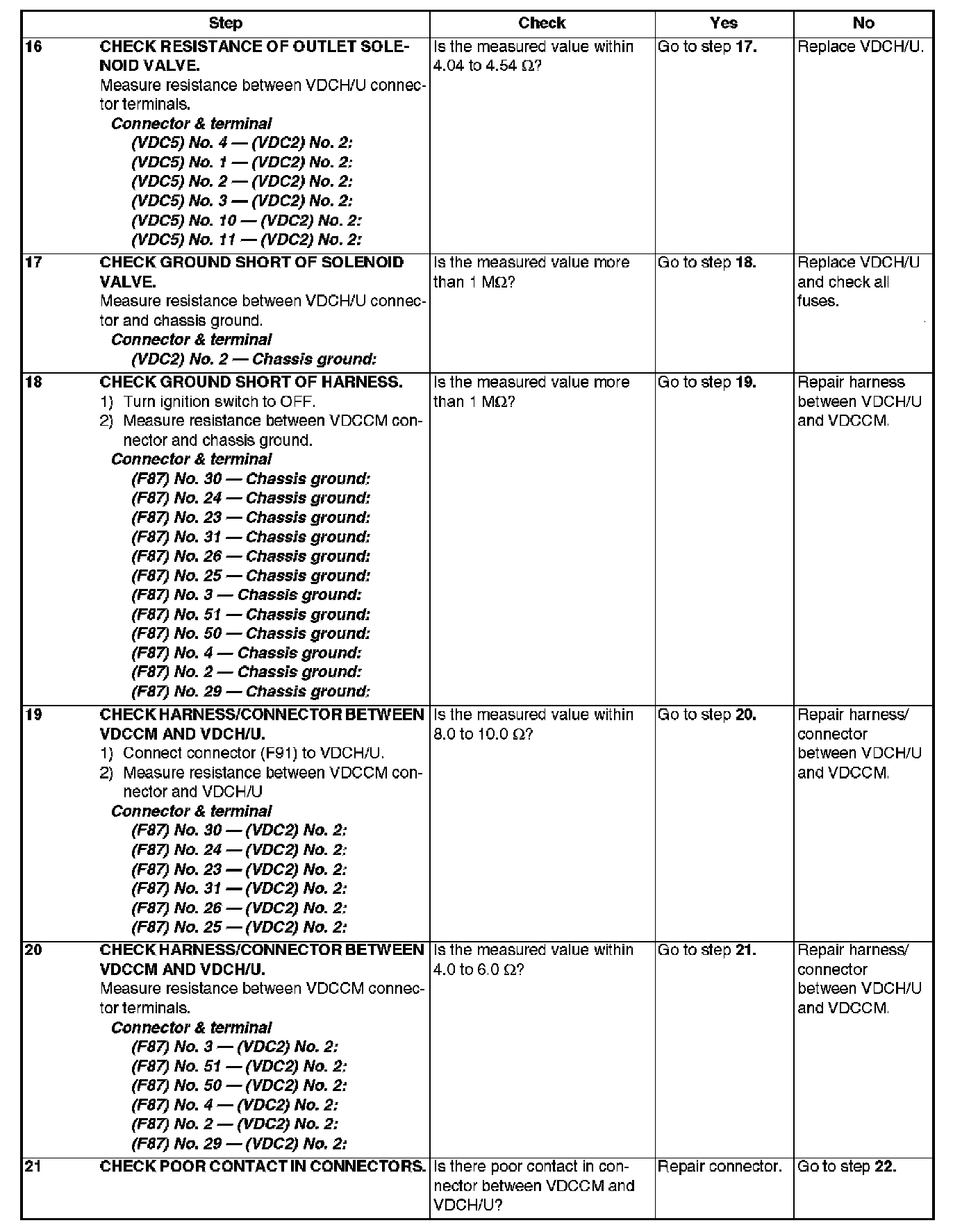

Steps 16-21:

Steps 22 & 23:

DIAGNOSIS:
^ Faulty valve relay

NOTE: When DTC 74 inspection is carried out, DTC 51 is memorized.

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

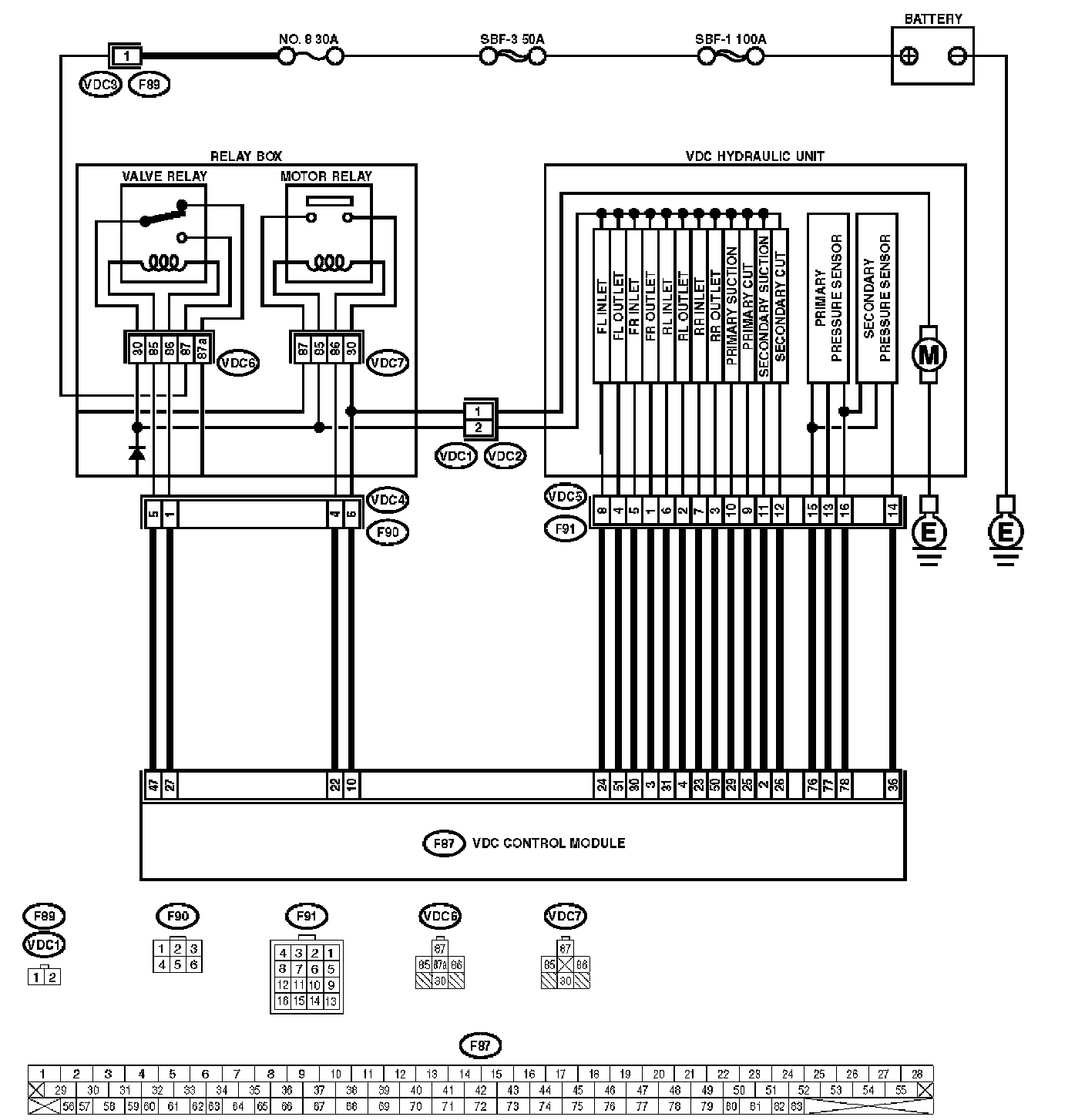

WIRING DIAGRAM
